HZJ105R-GNMNS (1998)
Toyota Land Cruiser 100
(9801- )FZJ105,HZJ105

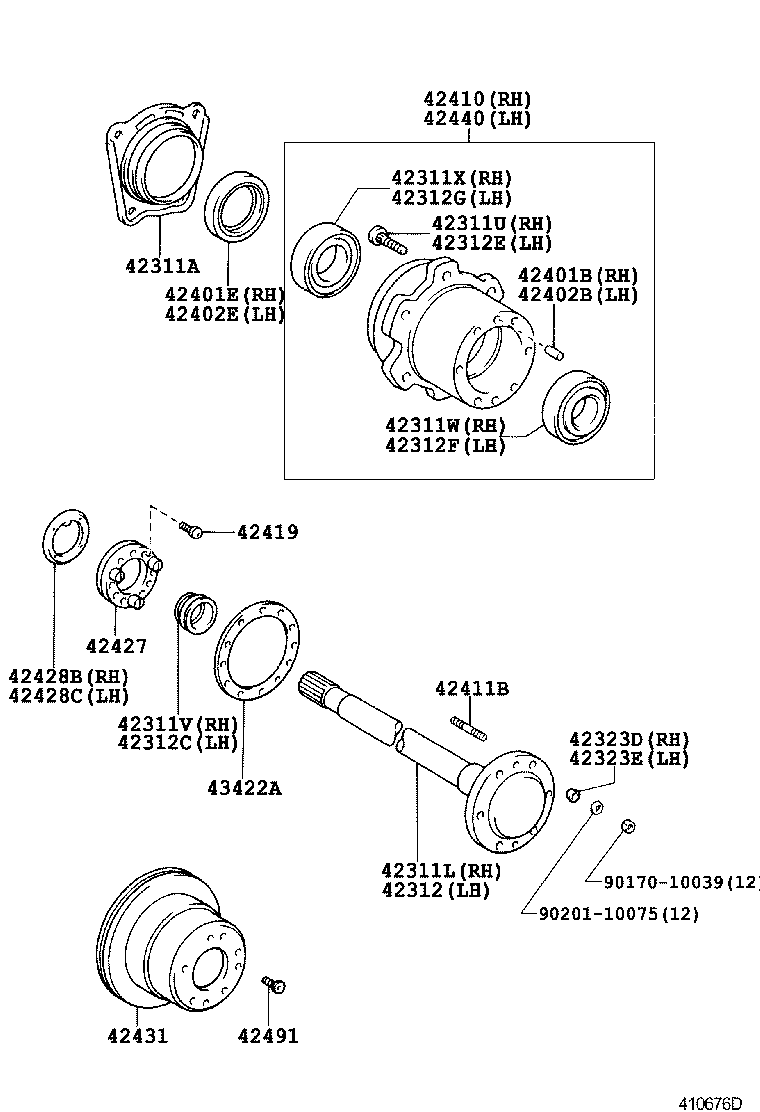

DISC BRAKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90313-93001 |
FZJ105,HZJ105..GCC,GEN |
2 | ||
| 90313-93001 |
FZJ105..GEN;HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN |
2 | ||
| 90313-93001 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN |
2 | ||
| 42311L - SHAFT, REAR AXLE, RH | ||||
| 42311-60170 |
FZJ105,HZJ105 |
1 | ||
| 42311-60180 |
FZJ105,HZJ105 W(REAR DIFFERENTIAL LOCK) |
1 | ||
| 42311-60170 |
FZJ105,HZJ105 |
1 | ||
| 42311-60180 |
FZJ105,HZJ105 W(REAR DIFFERENTIAL LOCK) |
1 | ||
| 42311-60180 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN W(REAR DIFFERENTIAL LOCK) |
1 | ||
| 42311-60170 |
FZJ105,HZJ105 |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02077 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
5 | ||
| 90942-02077 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
5 | ||
| 90942-02077 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
5 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90310-36003 |
FZJ105,HZJ105 |
1 | ||
| 90310-36003 |
FZJ105,HZJ105 |
1 | ||
| 90310-36003 |
FZJ105,HZJ105 |
1 | ||
| 42311W - BEARING (FOR REAR AXLE SHAFT OUTER RH) | ||||
| 90080-36067 |
FZJ105,HZJ105 |
1 | ||
| 90080-36067 |
FZJ105,HZJ105 |
1 | ||
| 90080-36067 |
FZJ105,HZJ105 |
1 | ||
| 42311X - BEARING (FOR REAR AXLE SHAFT INNER RH) | ||||
| 90080-36064 |
FZJ105,HZJ105 |
1 | ||
| 90080-36064 |
FZJ105,HZJ105 |
1 | ||
| 90080-36064 |
FZJ105,HZJ105 |
1 | ||
| 42312 - SHAFT, REAR AXLE, LH | ||||
| 42312-60130 |
FZJ105,HZJ105 |
1 | ||
| 42312-60130 |
FZJ105,HZJ105 |
1 | ||
| 42312-60130 |
FZJ105,HZJ105 |
1 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90310-36003 |
FZJ105,HZJ105 |
1 | ||
| 90310-36003 |
FZJ105,HZJ105 |
1 | ||
| 90310-36003 |
FZJ105,HZJ105 |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02077 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
5 | ||
| 90942-02077 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
5 | ||
| 90942-02077 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
5 | ||
| 42312F - BEARING (FOR REAR AXLE SHAFT OUTER LH) | ||||
| 90080-36067 |
FZJ105,HZJ105 |
1 | ||
| 90080-36067 |
FZJ105,HZJ105 |
1 | ||
| 90080-36067 |
FZJ105,HZJ105 |
1 | ||
| 42312G - BEARING (FOR REAR AXLE SHAFT INNER LH) | ||||
| 90080-36064 |
FZJ105,HZJ105 |
1 | ||
| 90080-36064 |
FZJ105,HZJ105 |
1 | ||
| 90080-36064 |
FZJ105,HZJ105 |
1 | ||
| 42323D - WASHER, CONE (FOR REAR AXLE SHAFT RH) | ||||
| 42323-60030 |
FZJ105,HZJ105 |
6 | ||
| 42323-60030 |
FZJ105,HZJ105 |
6 | ||
| 42323-60030 |
FZJ105,HZJ105 |
6 | ||
| 42323E - WASHER, CONE (FOR REAR AXLE SHAFT LH) | ||||
| 42323-60030 |
FZJ105,HZJ105 |
6 | ||
| 42323-60030 |
FZJ105,HZJ105 |
6 | ||
| 42323-60030 |
FZJ105,HZJ105 |
6 | ||
| 42401B - PIN, STRAIGHT (FOR REAR AXLE HUB RH) | ||||
| 90250-10032 |
FZJ105,HZJ105 |
2 | ||
| 90250-10032 |
FZJ105,HZJ105 |
2 | ||
| 90250-10032 |
FZJ105,HZJ105 |
2 | ||
| 42401E - SEAL, OIL (FOR REAR AXLE HUB RH) | ||||
| 90311-62001 |
FZJ105..GEN;HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN |
1 | ||
| 90311-62001 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN |
1 | ||
| 90311-62002 |
FZJ105,HZJ105 W(REAR DISC BRAKE) |
1 | ||
| 90311-62002 |
FZJ105,HZJ105 W(REAR DISC BRAKE) |
1 | ||
| 90311-62001 |
FZJ105,HZJ105..GCC,GEN |
1 | ||
| 90311-62002 |
FZJ105,HZJ105 W(REAR DISC BRAKE) |
1 | ||
| 42402B - PIN, STRAIGHT (FOR REAR AXLE HUB LH) | ||||
| 90250-10032 |
FZJ105,HZJ105 |
2 | ||
| 90250-10032 |
FZJ105,HZJ105 |
2 | ||
| 90250-10032 |
FZJ105,HZJ105 |
2 | ||
| 42402E - SEAL, OIL (FOR REAR AXLE HUB LH) | ||||
| 90311-62001 |
FZJ105..GEN;HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN |
1 | ||
| 90311-62002 |
FZJ105,HZJ105 W(REAR DISC BRAKE) |
1 | ||
| 90311-62002 |
FZJ105,HZJ105 W(REAR DISC BRAKE) |
1 | ||
| 90311-62002 |
FZJ105,HZJ105 W(REAR DISC BRAKE) |
1 | ||
| 90311-62001 |
FZJ105,HZJ105..GCC,GEN |
1 | ||
| 90311-62001 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN |
1 | ||
| 42410 - HUB & BEARING ASSY, REAR AXLE, RH | ||||
| 42410-69025 |
FZJ105,HZJ105 |
1 | ||
| 42450-69025 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN W(ABS) |
1 | ||
| 42410-69025 |
FZJ105,HZJ105 |
1 | ||
| 42450-69025 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS) |
1 | ||
| 42410-69025 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN |
1 | ||
| 42450-69025 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS) |
1 | ||
| 42411B - BOLT, STUD (FOR REAR AXLE HUB) | ||||
| 90116-10201 |
FZJ105,HZJ105 |
12 | ||
| 90116-10201 |
FZJ105,HZJ105 |
12 | ||
| 90116-10201 |
FZJ105,HZJ105 |
12 | ||
| 42419 - SCREW, REAR AXLE BEARING LOCK NUT | ||||
| 42419-60011 |
FZJ105,HZJ105 |
4 | ||
| 42419-60011 |
FZJ105,HZJ105 |
4 | ||
| 42419-60011 |
FZJ105,HZJ105 |
4 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-60021 |
FZJ105,HZJ105 |
2 | ||
| 42427-60021 |
FZJ105,HZJ105 |
2 | ||
| 42427-60021 |
FZJ105,HZJ105 |
2 | ||
| 42428B - PLATE, REAR AXLE LOCK NUT, RH | ||||
| 42428-60011 |
FZJ105,HZJ105 |
1 | ||
| 42428-60011 |
FZJ105,HZJ105 |
1 | ||
| 42428-60011 |
FZJ105,HZJ105 |
1 | ||
| 42428C - PLATE, REAR AXLE LOCK NUT, LH | ||||
| 42428-60011 |
FZJ105,HZJ105 |
1 | ||
| 42428-60011 |
FZJ105,HZJ105 |
1 | ||
| 42428-60011 |
FZJ105,HZJ105 |
1 | ||
| 42431 - DISC, REAR | ||||
| 42431-60240 |
FZJ105,HZJ105 |
2 | ||
| 42431-60240 |
FZJ105,HZJ105 |
2 | ||
| 42431-60240 |
FZJ105,HZJ105 |
2 | ||
| 42431-60241 |
FZJ105,HZJ105 |
2 | ||
| 42440 - HUB & BEARING ASSY, REAR AXLE, LH | ||||
| 42410-69025 |
FZJ105,HZJ105 |
1 | ||
| 42410-69025 |
FZJ105,HZJ105 |
1 | ||
| 42450-69025 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS) |
1 | ||
| 42450-69025 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN W(ABS) |
1 | ||
| 42410-69025 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN |
1 | ||
| 42450-69025 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS) |
1 | ||
| 42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE) | ||||
| 47491-22020 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 47491-22020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47491-22020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 43422A - GASKET, REAR AXLE OUTER SHAFT FLANGE | ||||
| 43422-60070 |
FZJ105,HZJ105 |
2 | ||
| 43422-60070 |
FZJ105,HZJ105 |
2 | ||
| 43422-60070 |
FZJ105,HZJ105 |
2 | ||
| Common parts | ||||
| 90170-10039 | ||||
| 90201-10075 | ||||
(9801- )FZJ105,HZJ105

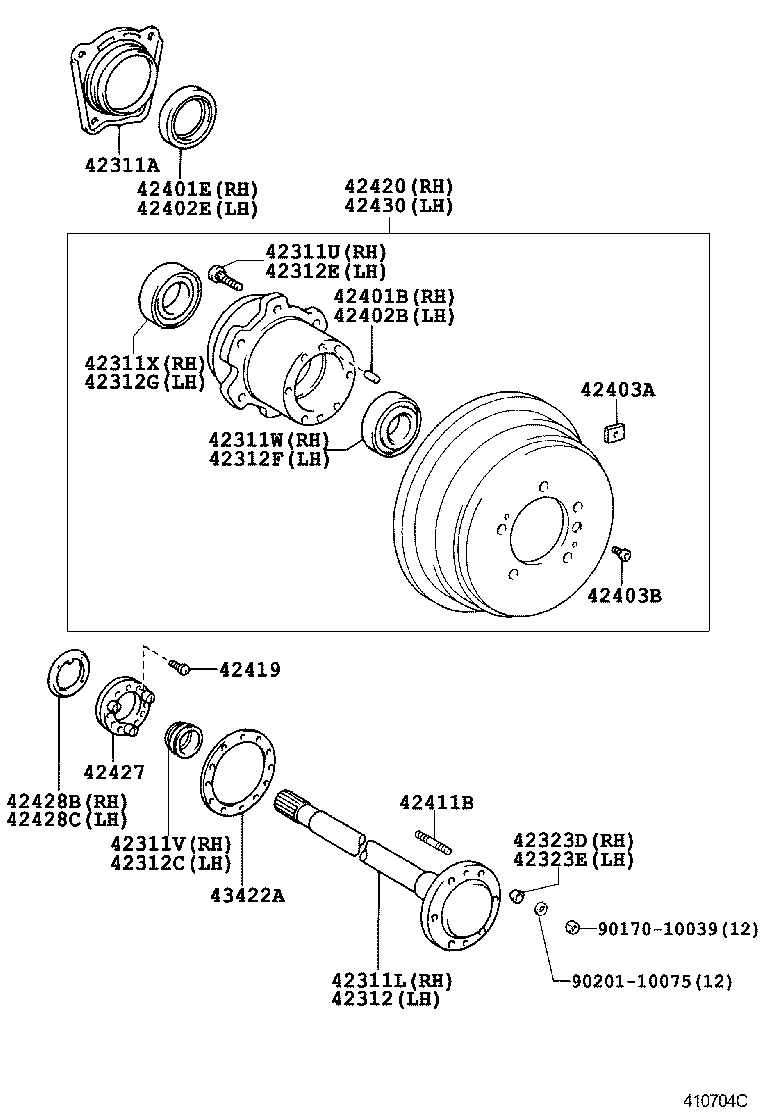

DRUM BRAKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90313-93001 |
FZJ105,HZJ105..GCC,GEN |
2 | ||
| 90313-93001 |
FZJ105..GEN;HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN |
2 | ||
| 90313-93001 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN |
2 | ||
| 42311L - SHAFT, REAR AXLE, RH | ||||
| 42311-60170 |
FZJ105,HZJ105 |
1 | ||
| 42311-60180 |
FZJ105,HZJ105 W(REAR DIFFERENTIAL LOCK) |
1 | ||
| 42311-60170 |
FZJ105,HZJ105 |
1 | ||
| 42311-60180 |
FZJ105,HZJ105 W(REAR DIFFERENTIAL LOCK) |
1 | ||
| 42311-60180 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN W(REAR DIFFERENTIAL LOCK) |
1 | ||
| 42311-60170 |
FZJ105,HZJ105 |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02077 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
5 | ||
| 90942-02077 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
5 | ||
| 90942-02077 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
5 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90310-36003 |
FZJ105,HZJ105 |
1 | ||
| 90310-36003 |
FZJ105,HZJ105 |
1 | ||
| 90310-36003 |
FZJ105,HZJ105 |
1 | ||
| 42311W - BEARING (FOR REAR AXLE SHAFT OUTER RH) | ||||
| 90080-36067 |
FZJ105,HZJ105 |
1 | ||
| 90080-36067 |
FZJ105,HZJ105 |
1 | ||
| 90080-36067 |
FZJ105,HZJ105 |
1 | ||
| 42311X - BEARING (FOR REAR AXLE SHAFT INNER RH) | ||||
| 90080-36064 |
FZJ105,HZJ105 |
1 | ||
| 90080-36064 |
FZJ105,HZJ105 |
1 | ||
| 90080-36064 |
FZJ105,HZJ105 |
1 | ||
| 42312 - SHAFT, REAR AXLE, LH | ||||
| 42312-60130 |
FZJ105,HZJ105 |
1 | ||
| 42312-60130 |
FZJ105,HZJ105 |
1 | ||
| 42312-60130 |
FZJ105,HZJ105 |
1 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90310-36003 |
FZJ105,HZJ105 |
1 | ||
| 90310-36003 |
FZJ105,HZJ105 |
1 | ||
| 90310-36003 |
FZJ105,HZJ105 |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02077 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
5 | ||
| 90942-02077 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
5 | ||
| 90942-02077 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
5 | ||
| 42312F - BEARING (FOR REAR AXLE SHAFT OUTER LH) | ||||
| 90080-36067 |
FZJ105,HZJ105 |
1 | ||
| 90080-36067 |
FZJ105,HZJ105 |
1 | ||
| 90080-36067 |
FZJ105,HZJ105 |
1 | ||
| 42312G - BEARING (FOR REAR AXLE SHAFT INNER LH) | ||||
| 90080-36064 |
FZJ105,HZJ105 |
1 | ||
| 90080-36064 |
FZJ105,HZJ105 |
1 | ||
| 90080-36064 |
FZJ105,HZJ105 |
1 | ||
| 42323D - WASHER, CONE (FOR REAR AXLE SHAFT RH) | ||||
| 42323-60030 |
FZJ105,HZJ105 |
6 | ||
| 42323-60030 |
FZJ105,HZJ105 |
6 | ||
| 42323-60030 |
FZJ105,HZJ105 |
6 | ||
| 42323E - WASHER, CONE (FOR REAR AXLE SHAFT LH) | ||||
| 42323-60030 |
FZJ105,HZJ105 |
6 | ||
| 42323-60030 |
FZJ105,HZJ105 |
6 | ||
| 42323-60030 |
FZJ105,HZJ105 |
6 | ||
| 42401B - PIN, STRAIGHT (FOR REAR AXLE HUB RH) | ||||
| 90250-10032 |
FZJ105,HZJ105 |
2 | ||
| 90250-10032 |
FZJ105,HZJ105 |
2 | ||
| 90250-10032 |
FZJ105,HZJ105 |
2 | ||
| 42401E - SEAL, OIL (FOR REAR AXLE HUB RH) | ||||
| 90311-62001 |
FZJ105..GEN;HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN |
1 | ||
| 90311-62001 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN |
1 | ||
| 90311-62002 |
FZJ105,HZJ105 W(REAR DISC BRAKE) |
1 | ||
| 90311-62002 |
FZJ105,HZJ105 W(REAR DISC BRAKE) |
1 | ||
| 90311-62001 |
FZJ105,HZJ105..GCC,GEN |
1 | ||
| 90311-62002 |
FZJ105,HZJ105 W(REAR DISC BRAKE) |
1 | ||
| 42402B - PIN, STRAIGHT (FOR REAR AXLE HUB LH) | ||||
| 90250-10032 |
FZJ105,HZJ105 |
2 | ||
| 90250-10032 |
FZJ105,HZJ105 |
2 | ||
| 90250-10032 |
FZJ105,HZJ105 |
2 | ||
| 42402E - SEAL, OIL (FOR REAR AXLE HUB LH) | ||||
| 90311-62001 |
FZJ105..GEN;HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN |
1 | ||
| 90311-62002 |
FZJ105,HZJ105 W(REAR DISC BRAKE) |
1 | ||
| 90311-62002 |
FZJ105,HZJ105 W(REAR DISC BRAKE) |
1 | ||
| 90311-62002 |
FZJ105,HZJ105 W(REAR DISC BRAKE) |
1 | ||
| 90311-62001 |
FZJ105,HZJ105..GCC,GEN |
1 | ||
| 90311-62001 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN |
1 | ||
| 42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM) | ||||
| 90937-01408 |
FZJ105..GEN;HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN 20G |
1 | ||
| 90937-01409 |
FZJ105..GEN;HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN 30G |
1 | ||
| 90937-01411 |
FZJ105..GEN;HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN 50G |
1 | ||
| 90937-01413 |
FZJ105..GEN;HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN 70G |
1 | ||
| 90937-01418 |
FZJ105..GEN;HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN 120G |
1 | ||
| 90937-01416 |
FZJ105..GEN;HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN 100G |
1 | ||
| 90937-01412 |
FZJ105..GEN;HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN 60G |
1 | ||
| 90937-01415 |
FZJ105..GEN;HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN 90G |
1 | ||
| 90937-01410 |
FZJ105..GEN;HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN 40G |
1 | ||
| 90937-01417 |
FZJ105..GEN;HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN 110G |
1 | ||
| 90937-01409 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN 30G |
1 | ||
| 90937-01414 |
FZJ105..GEN;HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN 80G |
1 | ||
| 90937-01419 |
FZJ105..GEN;HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN 10G |
1 | ||
| 90937-01408 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN 20G |
1 | ||
| 90937-01411 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN 50G |
1 | ||
| 90937-01416 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN 100G |
1 | ||
| 90937-01410 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN 40G |
1 | ||
| 90937-01412 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN 60G |
1 | ||
| 90937-01413 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN 70G |
1 | ||
| 90937-01415 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN 90G |
1 | ||
| 90937-01408 |
FZJ105,HZJ105..GCC,GEN 20G |
1 | ||
| 90937-01417 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN 110G |
1 | ||
| 90937-01419 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN 10G |
1 | ||
| 90937-01414 |
FZJ105,HZJ105..GCC,GEN 80G |
1 | ||
| 90937-01414 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN 80G |
1 | ||
| 90937-01418 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN 120G |
1 | ||
| 90937-01409 |
FZJ105,HZJ105..GCC,GEN 30G |
1 | ||
| 90937-01412 |
FZJ105,HZJ105..GCC,GEN 60G |
1 | ||
| 90937-01413 |
FZJ105,HZJ105..GCC,GEN 70G |
1 | ||
| 90937-01410 |
FZJ105,HZJ105..GCC,GEN 40G |
1 | ||
| 90937-01417 |
FZJ105,HZJ105..GCC,GEN 110G |
1 | ||
| 90937-01415 |
FZJ105,HZJ105..GCC,GEN 90G |
1 | ||
| 90937-01419 |
FZJ105,HZJ105..GCC,GEN 10G |
1 | ||
| 90937-01418 |
FZJ105,HZJ105..GCC,GEN 120G |
1 | ||
| 90937-01416 |
FZJ105,HZJ105..GCC,GEN 100G |
1 | ||
| 90937-01411 |
FZJ105,HZJ105..GCC,GEN 50G |
1 | ||
| 42403B - BOLT, SET (FOR REAR BRAKE DRUM SETTING) | ||||
| 90113-10003 |
FZJ105..GEN;HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN |
2 | ||
| 90113-10003 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN |
2 | ||
| 90113-10003 |
FZJ105,HZJ105..GCC,GEN |
2 | ||
| 42411B - BOLT, STUD (FOR REAR AXLE HUB) | ||||
| 90116-10201 |
FZJ105,HZJ105 |
12 | ||
| 90116-10201 |
FZJ105,HZJ105 |
12 | ||
| 90116-10201 |
FZJ105,HZJ105 |
12 | ||
| 42419 - SCREW, REAR AXLE BEARING LOCK NUT | ||||
| 42419-60011 |
FZJ105,HZJ105 |
4 | ||
| 42419-60011 |
FZJ105,HZJ105 |
4 | ||
| 42419-60011 |
FZJ105,HZJ105 |
4 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42420-69015 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN |
1 | ||
| 42420-69015 |
FZJ105..GEN;HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN |
1 | ||
| 42420-69015 |
FZJ105,HZJ105..GCC,GEN |
1 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-60021 |
FZJ105,HZJ105 |
2 | ||
| 42427-60021 |
FZJ105,HZJ105 |
2 | ||
| 42427-60021 |
FZJ105,HZJ105 |
2 | ||
| 42428B - PLATE, REAR AXLE LOCK NUT, RH | ||||
| 42428-60011 |
FZJ105,HZJ105 |
1 | ||
| 42428-60011 |
FZJ105,HZJ105 |
1 | ||
| 42428-60011 |
FZJ105,HZJ105 |
1 | ||
| 42428C - PLATE, REAR AXLE LOCK NUT, LH | ||||
| 42428-60011 |
FZJ105,HZJ105 |
1 | ||
| 42428-60011 |
FZJ105,HZJ105 |
1 | ||
| 42428-60011 |
FZJ105,HZJ105 |
1 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42420-69015 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN |
1 | ||
| 42420-69015 |
FZJ105..GEN;HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN |
1 | ||
| 42420-69015 |
FZJ105,HZJ105..GCC,GEN |
1 | ||
| 43422A - GASKET, REAR AXLE OUTER SHAFT FLANGE | ||||
| 43422-60070 |
FZJ105,HZJ105 |
2 | ||
| 43422-60070 |
FZJ105,HZJ105 |
2 | ||
| 43422-60070 |
FZJ105,HZJ105 |
2 | ||
| Common parts | ||||
| 90170-10039 | ||||
| 90201-10075 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
