Toyota Land cruiser 100 HZJ105 ENGINE OVERHAUL GASKET KIT

Home Blog About Contact Search

HZJ105R-GNMNS (1998)

Toyota Land Cruiser 100

Production Jan 1998 - Aug 2007

Engine 1HZ

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

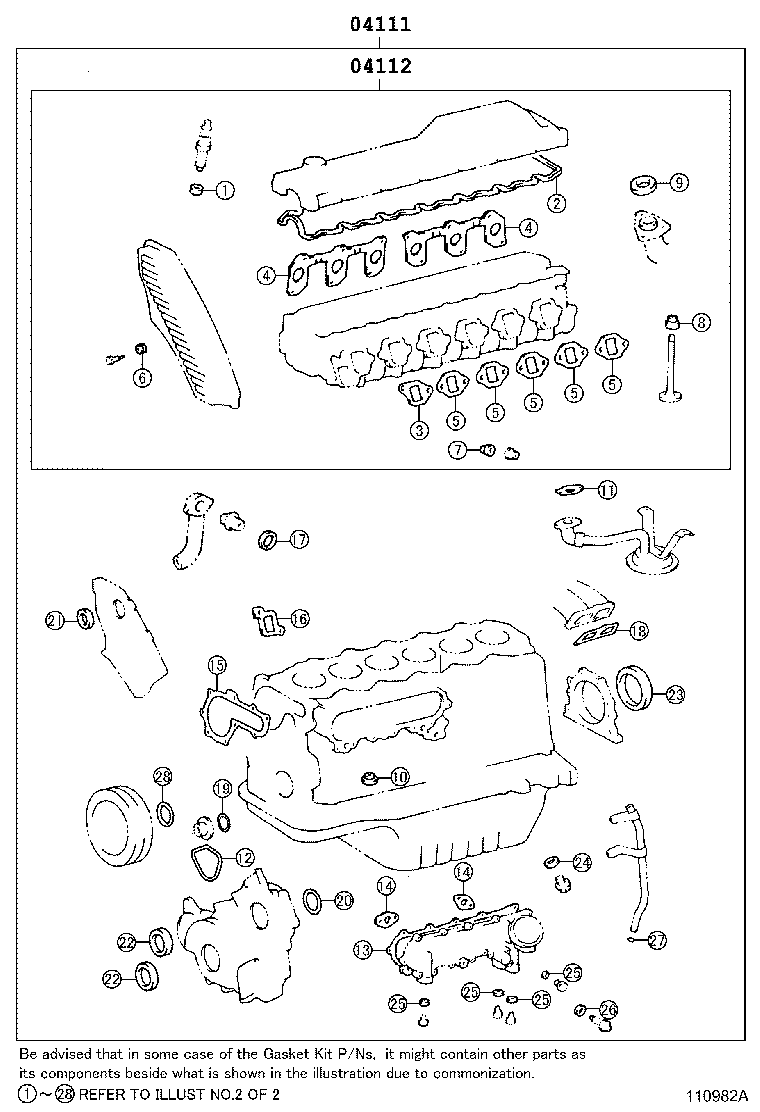

Click highlighted areas on diagram

Part #	Description	Period	Qty
04111 - GASKET KIT, ENGINE OVERHAUL
04111-17050	1HZ..HZJ105	01/1998 - 08/2002	1
04111-17050	1HZ..HZJ105	08/2002 - 05/2004	1
04111-17240	1HZ..HZJ105	05/2004 - 05/2005	1
04111-17340	1HZ..HZJ105	05/2005 - 12/2999	1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-17050	1HZ..HZJ105	01/1998 - 08/2002	1
04112-17050	1HZ..HZJ105	08/2002 - 05/2004	1
04112-17200	1HZ..HZJ105	05/2004 - 05/2005	1
04112-17260	1HZ..HZJ105	05/2005 - 12/2999	1

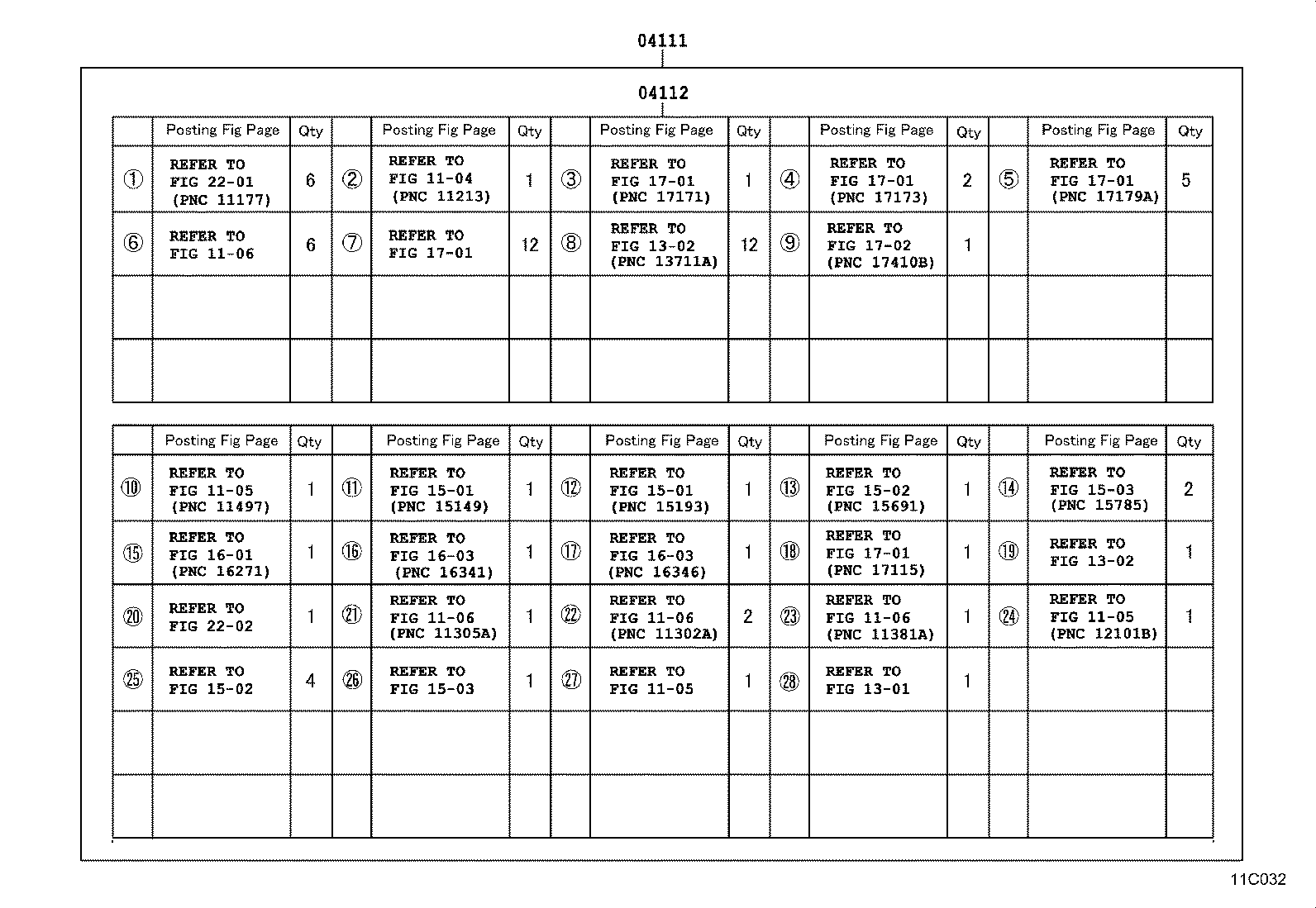

Click highlighted areas on diagram

Part #	Description	Period	Qty
04111 - GASKET KIT, ENGINE OVERHAUL
04111-17050	1HZ..HZJ105	01/1998 - 08/2002	1
04111-17050	1HZ..HZJ105	08/2002 - 05/2004	1
04111-17240	1HZ..HZJ105	05/2004 - 05/2005	1
04111-17340	1HZ..HZJ105	05/2005 - 12/2999	1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-17050	1HZ..HZJ105	01/1998 - 08/2002	1
04112-17050	1HZ..HZJ105	08/2002 - 05/2004	1
04112-17200	1HZ..HZJ105	05/2004 - 05/2005	1
04112-17260	1HZ..HZJ105	05/2005 - 12/2999	1
Linked diagrams
1104
1105
1106
1301
1302
1501
1502
1503
1601
1603
1701
1702
2201
2202
