Toyota Land cruiser 100 HZJ105 ANTI-THEFT DEVICE

HZJ105R-GCMRSQ (1998)

Toyota Land Cruiser 100

Production Jan 1998 - Aug 2007

Engine 1HZ

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9801-0208)DSL2,TD2

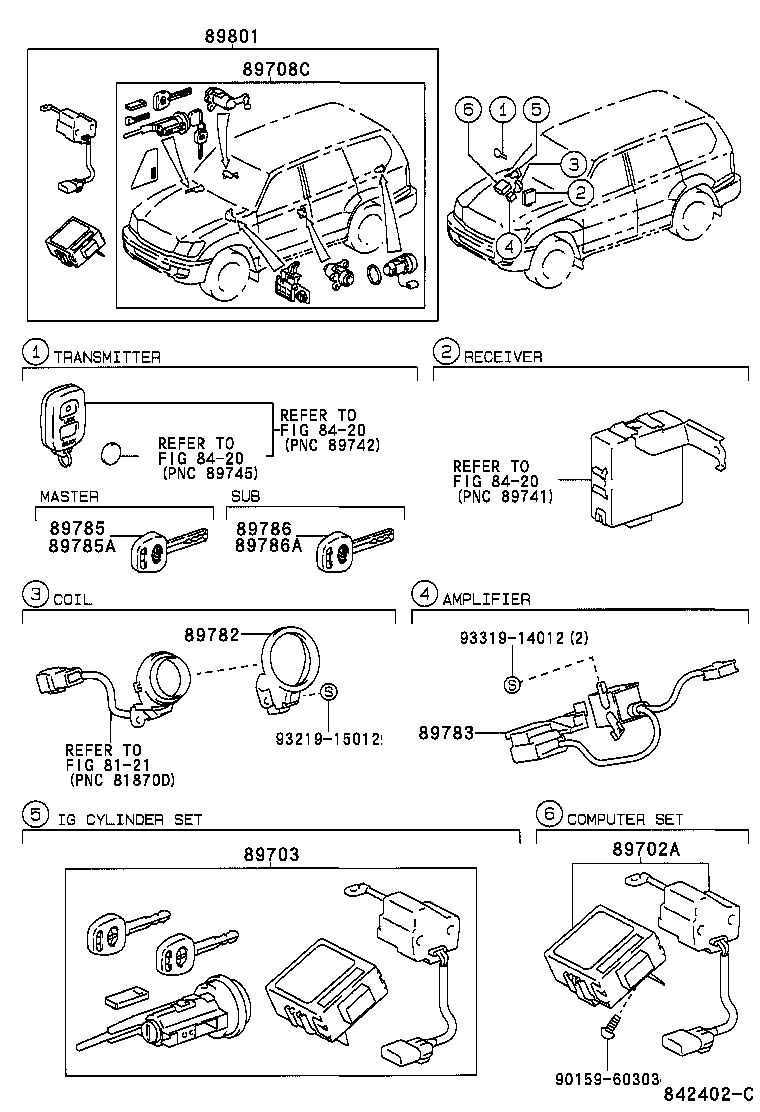

Click highlighted areas on diagram

WIRELESS=KEY TYPE

Part #	Description	Period	Qty
89702A - COMPUTER SET, TRANSPONDER W/VALVE CONTROL
89702-60030	HZJ105..ARL	01/1998 - 04/2000	1
89702-60080	HZJ105..ARL	08/2002 - 05/2005	1
89702-60031	HZJ105..ARL	04/2000 - 08/2002	1
89702-60080	HZJ105..ARL	05/2005 - 12/2999	1
89703 - CYLINDER & KEY SET, IGNITION W/TRANSPONDER
89703-60440	HZJ105..ARL	01/1998 - 08/2000	1
89703-60310	HZJ105..STD..ARL	08/2000 - 08/2002	1
89782 - COIL, TRANSPONDER KEY
89782-60030	HZJ105..ARL,GCC;HZJ105..GX..GEN;FZJ10#,HDJ100..GX	08/2000 - 08/2002	1
89782-60030	FZJ105..RHD;HZJ105..ARL;FZJ105..LHD..GX;HZJ105..GX..GEN	01/1998 - 08/2000	1
89783 - AMPLIFIER, TRANSPONDER KEY
89783-35030	FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	1
89783-60040	HZJ105..ARL;FZJ105,HDJ100..RHD;HZJ105..RHD..GX..GEN	01/1998 - 08/2002	1
89783-60110	FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN	05/2005 - 12/2999	1
89785 - TRANSMITTER, TRANSPONDER KEY MASTER
89785-60190	HZJ105..STD..ARL	08/2002 - 05/2005	1
89785-60060	HZJ105..STD..ARL	08/2000 - 08/2002	1
89785-60060	FZJ105,HZJ105,UZJ100..ARL	01/1998 - 08/2000	1
89785-60190	HZJ105..STD..ARL	05/2005 - 12/2999	1
89785A - TRANSMITTER, TRANSPONDER CUT KEY MASTER
89785-60050	HZJ105..STD..ARL	08/2000 - 08/2002	1
89785-60050	FZJ105,HZJ105,UZJ100..ARL	01/1998 - 08/2000	1
89785-60150	HZJ105..STD..ARL	05/2005 - 12/2999	1
89785-60150	HZJ105..STD..ARL	08/2002 - 05/2005	1
89786 - TRANSMITTER, TRANSPONDER KEY SUB
89786-60090	FZJ105,HZJ105,UZJ100..ARL	01/1998 - 08/2000	1
89786-60190	HZJ105..STD..ARL	08/2002 - 05/2005	1
89786-60090	HZJ105..STD..ARL	08/2000 - 08/2002	1
89786-60190	HZJ105..STD..ARL	05/2005 - 12/2999	1
89786A - TRANSMITTER, TRANSPONDER CUT KEY SUB
89786-60080	HZJ105..STD..ARL	08/2000 - 08/2002	1
89786-60080	FZJ105,HZJ105,UZJ100..ARL	01/1998 - 08/2000	1
89786-60160	HZJ105..STD..ARL	08/2002 - 05/2005	1
89786-60160	HZJ105..STD..ARL	05/2005 - 12/2999	1
Common parts
90159-60303
93219-15012
93319-14012
Linked diagrams
8121
8420

(9801-0208)DSL2,TD2

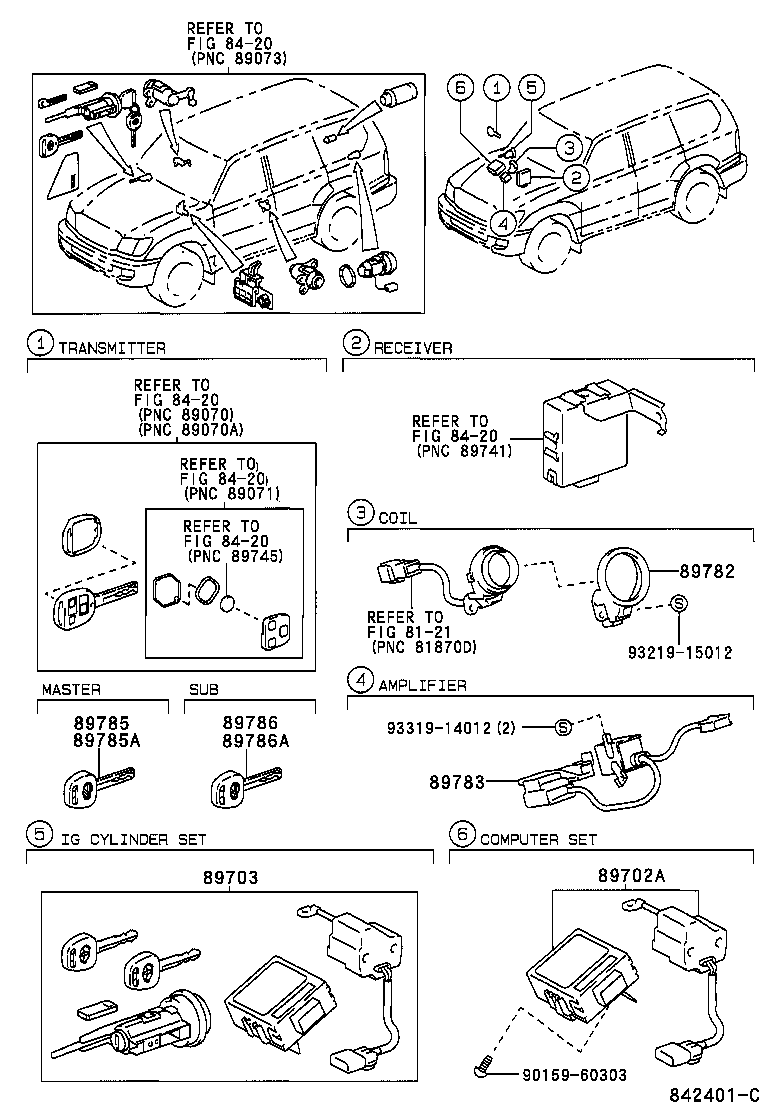

Click highlighted areas on diagram

LESS WIRELESS OR KEY HOLDER TYPE

Part #	Description	Period	Qty
89702A - COMPUTER SET, TRANSPONDER W/VALVE CONTROL
89702-60030	HZJ105..ARL	01/1998 - 04/2000	1
89702-60080	HZJ105..ARL	08/2002 - 05/2005	1
89702-60031	HZJ105..ARL	04/2000 - 08/2002	1
89702-60080	HZJ105..ARL	05/2005 - 12/2999	1
89703 - CYLINDER & KEY SET, IGNITION W/TRANSPONDER
89703-60440	HZJ105..ARL	01/1998 - 08/2000	1
89703-60310	HZJ105..STD..ARL	08/2000 - 08/2002	1
89782 - COIL, TRANSPONDER KEY
89782-60030	HZJ105..ARL,GCC;HZJ105..GX..GEN;FZJ10#,HDJ100..GX	08/2000 - 08/2002	1
89782-60030	FZJ105..RHD;HZJ105..ARL;FZJ105..LHD..GX;HZJ105..GX..GEN	01/1998 - 08/2000	1
89783 - AMPLIFIER, TRANSPONDER KEY
89783-35030	FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	1
89783-60040	HZJ105..ARL;FZJ105,HDJ100..RHD;HZJ105..RHD..GX..GEN	01/1998 - 08/2002	1
89783-60110	FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN	05/2005 - 12/2999	1
89785 - TRANSMITTER, TRANSPONDER KEY MASTER
89785-60190	HZJ105..STD..ARL	08/2002 - 05/2005	1
89785-60060	HZJ105..STD..ARL	08/2000 - 08/2002	1
89785-60060	FZJ105,HZJ105,UZJ100..ARL	01/1998 - 08/2000	1
89785-60190	HZJ105..STD..ARL	05/2005 - 12/2999	1
89785A - TRANSMITTER, TRANSPONDER CUT KEY MASTER
89785-60050	HZJ105..STD..ARL	08/2000 - 08/2002	1
89785-60050	FZJ105,HZJ105,UZJ100..ARL	01/1998 - 08/2000	1
89785-60150	HZJ105..STD..ARL	05/2005 - 12/2999	1
89785-60150	HZJ105..STD..ARL	08/2002 - 05/2005	1
89786 - TRANSMITTER, TRANSPONDER KEY SUB
89786-60090	FZJ105,HZJ105,UZJ100..ARL	01/1998 - 08/2000	1
89786-60190	HZJ105..STD..ARL	08/2002 - 05/2005	1
89786-60090	HZJ105..STD..ARL	08/2000 - 08/2002	1
89786-60190	HZJ105..STD..ARL	05/2005 - 12/2999	1
89786A - TRANSMITTER, TRANSPONDER CUT KEY SUB
89786-60160	HZJ105..STD..ARL	05/2005 - 12/2999	1
89786-60080	HZJ105..STD..ARL	08/2000 - 08/2002	1
89786-60080	FZJ105,HZJ105,UZJ100..ARL	01/1998 - 08/2000	1
89786-60160	HZJ105..STD..ARL	08/2002 - 05/2005	1
89801 - COMPUTER SET, TRANSPONDER KEY DIESEL
89801-60050	HZJ105..STD..ARL	01/1998 - 08/2000	1
89801-60051	HZJ105..STD..ARL	08/2000 - 08/2002	1
Common parts
90159-60303
93219-15012
93319-14012
Linked diagrams
8121
8420

(0208- )RHD

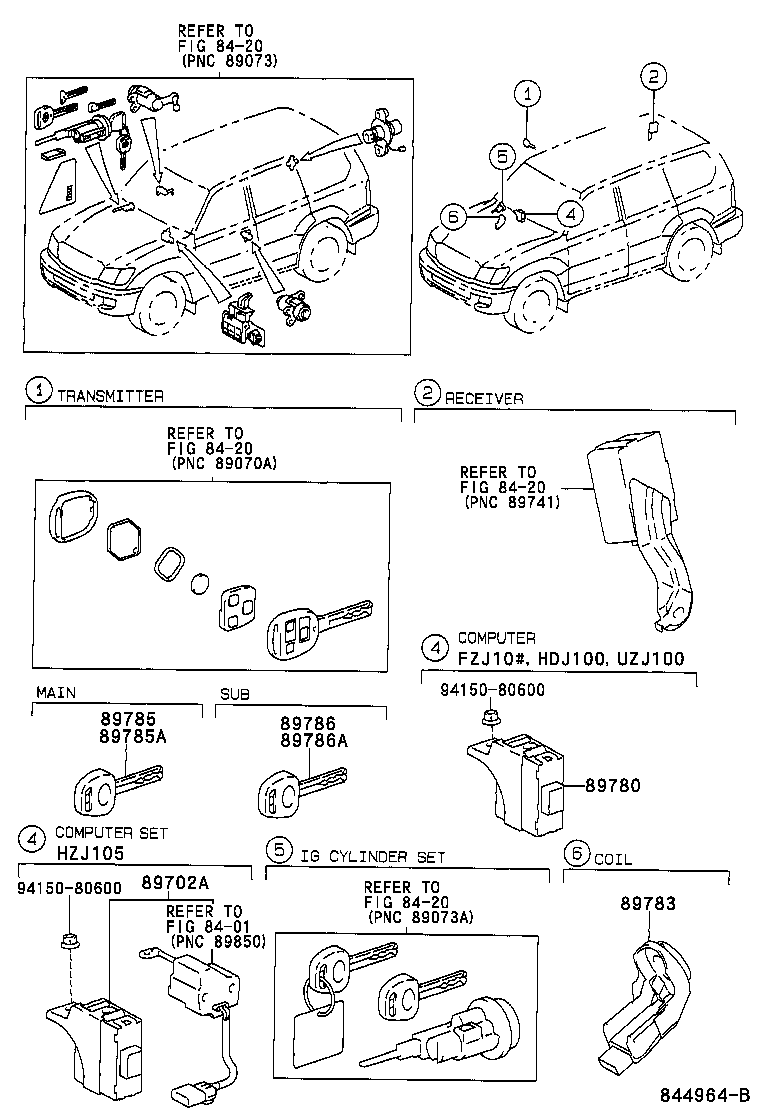

Click highlighted areas on diagram

Part #	Description	Period	Qty
89702A - COMPUTER SET, TRANSPONDER W/VALVE CONTROL
89702-60030	HZJ105..ARL	01/1998 - 04/2000	1
89702-60080	HZJ105..ARL	08/2002 - 05/2005	1
89702-60031	HZJ105..ARL	04/2000 - 08/2002	1
89702-60080	HZJ105..ARL	05/2005 - 12/2999	1
89783 - AMPLIFIER, TRANSPONDER KEY
89783-35030	FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	1
89783-60040	HZJ105..ARL;FZJ105,HDJ100..RHD;HZJ105..RHD..GX..GEN	01/1998 - 08/2002	1
89783-60110	FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN	05/2005 - 12/2999	1
89785 - TRANSMITTER, TRANSPONDER KEY MASTER
89785-60190	HZJ105..STD..ARL	08/2002 - 05/2005	1
89785-60060	HZJ105..STD..ARL	08/2000 - 08/2002	1
89785-60060	FZJ105,HZJ105,UZJ100..ARL	01/1998 - 08/2000	1
89785-60190	HZJ105..STD..ARL	05/2005 - 12/2999	1
89785A - TRANSMITTER, TRANSPONDER CUT KEY MASTER
89785-60050	HZJ105..STD..ARL	08/2000 - 08/2002	1
89785-60050	FZJ105,HZJ105,UZJ100..ARL	01/1998 - 08/2000	1
89785-60150	HZJ105..STD..ARL	05/2005 - 12/2999	1
89785-60150	HZJ105..STD..ARL	08/2002 - 05/2005	1
89786 - TRANSMITTER, TRANSPONDER KEY SUB
89786-60090	FZJ105,HZJ105,UZJ100..ARL	01/1998 - 08/2000	1
89786-60190	HZJ105..STD..ARL	08/2002 - 05/2005	1
89786-60090	HZJ105..STD..ARL	08/2000 - 08/2002	1
89786-60190	HZJ105..STD..ARL	05/2005 - 12/2999	1
89786A - TRANSMITTER, TRANSPONDER CUT KEY SUB
89786-60160	HZJ105..STD..ARL	05/2005 - 12/2999	1
89786-60080	HZJ105..STD..ARL	08/2000 - 08/2002	1
89786-60080	FZJ105,HZJ105,UZJ100..ARL	01/1998 - 08/2000	1
89786-60160	HZJ105..STD..ARL	08/2002 - 05/2005	1
Common parts
94150-80600
Linked diagrams
8401
8420
