HZJ105R-GCMRSQ (1998)
Toyota Land Cruiser 100

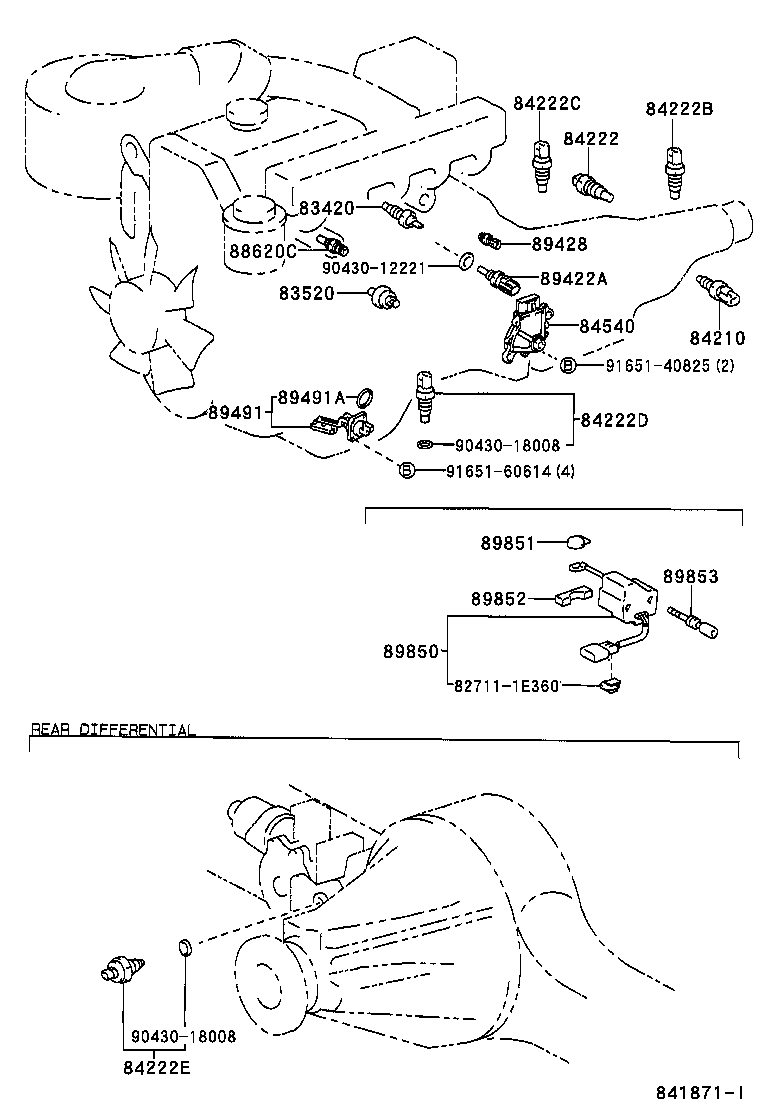

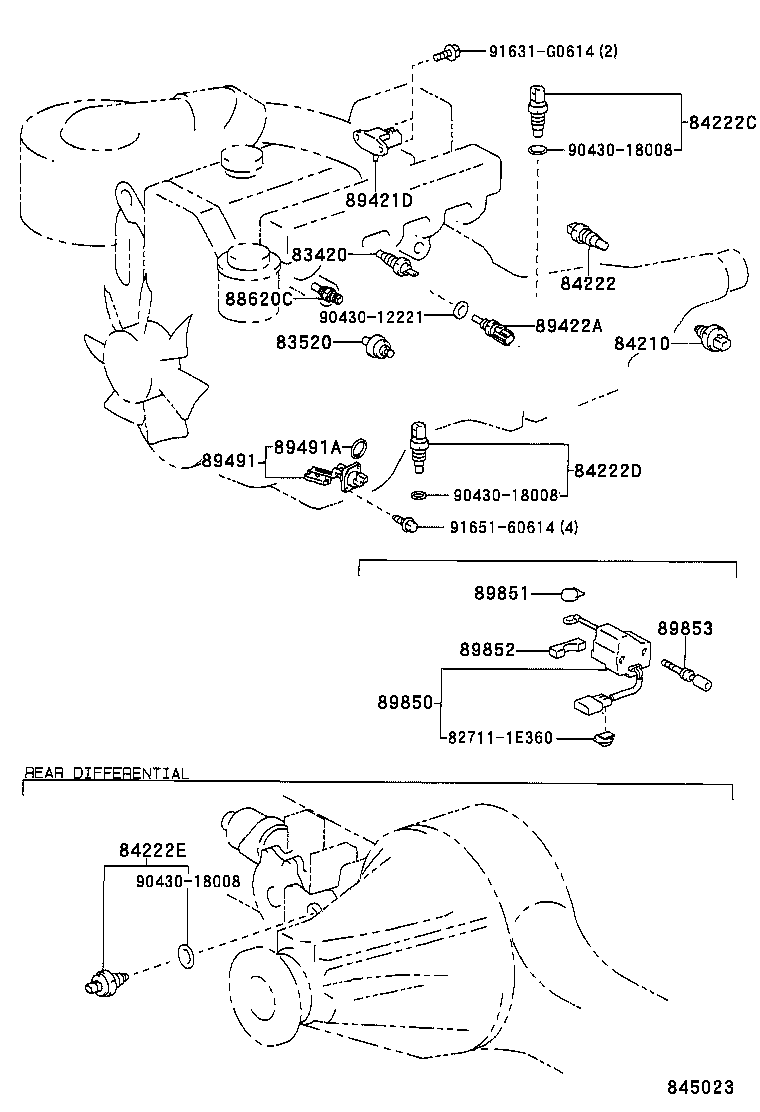

ILLUST NO. 1 OF 9(9801-0208)HZJ105
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16040 |
FZJ105..GX;FZJ105..STD..GEN;FZJ100,HDJ100,HZJ105 |
1 | ||
| 83420-16040 |
FZJ10#,HDJ100,HZJ105..ARL,GCC,GEN |
1 | ||
| 83420-16040 |
FZJ10#,HDJ100,HZJ105..ARL,GCC,GEN |
1 | ||
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-35030 |
HDJ100,HZJ105 |
1 | ||
| 83520-35031 |
HDJ100,HZJ105 |
1 | ||
| 83520-35031 |
HDJ100,HZJ105 |
1 | ||
| 83520-35030 |
HDJ100,HZJ105 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
HZJ105..5F |
1 | ||
| 84210-12040 |
HZJ105 |
1 | ||
| 84210-12040 |
HZJ105 |
1 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-12010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 84222-12010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 84222-12010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 84222C - SWITCH, TRANSFER INDICATOR, NO.3 | ||||
| 84222-12010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 84222-12010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 84222-12010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 84222D - SWITCH, TRANSFER INDICATOR, NO.4 | ||||
| 84222-12010 |
FZJ105;HZJ105..LUB..GEN;HZJ105..SOB..(ARL,GEN) |
1 | ||
| 84222-12010 |
FZJ105,HZJ105..ARL,GEN |
1 | ||
| 84222-12010 |
FZJ105,HZJ105..ARL,GEN |
1 | ||
| 84222E - SWITCH, DIFFERENTIAL LOCK INDICATOR | ||||
| 84222-12010 |
FZJ105,HZJ105 |
1 | ||
| 84222-12010 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN |
1 | ||
| 84222-12010 |
FZJ105,HZJ105 |
1 | ||
| 88620C - THERMO SWITCH ASSY | ||||
| 88790-60050 |
HZJ105 |
1 | ||
| 88790-60050 |
HZJ105 |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-20010 |
HDJ100,HZJ105..DSL2,TD2 |
1 | ||
| 89422-20010 |
HZJ105 |
1 | ||
| 89422-20010 |
HZJ105 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-60060 |
HDJ100,HZJ105..ARL,GCC |
1 | ||
| 89491-60060 |
HDJ100,HZJ105,UZJ100..ARL |
1 | ||
| 89491-60060 |
HDJ100,HZJ105..ARL,GCC |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 89493-60010 |
UZJ100..GCC,GEN;HDJ100,HZJ105..ARL,GCC |
1 | ||
| 89493-60010 |
HDJ100,HZJ105..ARL |
1 | ||
| 89493-60010 |
UZJ100..GCC,GEN;HDJ100,HZJ105..ARL,GCC |
1 | ||
| 89850 - UNIT ASSY, FUEL CUT VALVE CONTROL | ||||
| 89850-20011 |
HZJ105..ARL,GCC;HDJ100,HZJ105..(GX,VX)..GEN |
1 | ||
| 89850-20011 |
HZJ105 |
1 | ||
| 89850-20011 |
HZJ105..ARL;HDJ100,HZJ105..(GX,VX)..GEN |
1 | ||
| 89850-20011 |
HZJ105 |
1 | ||
| 89851 - CAP, FUEL CUT VALVE CONTROLLER | ||||
| 89851-20010 |
HZJ105..ARL;HDJ100,HZJ105..(GX,VX)..GEN |
1 | ||
| 89851-20010 |
HZJ105 |
1 | ||
| 89851-20010 |
HZJ105..ARL,GCC;HDJ100,HZJ105..(GX,VX)..GEN |
1 | ||
| 89851-20010 |
HZJ105 |
1 | ||
| 89852 - CLAMP, FUEL CUT VALVE CONTROLLER | ||||
| 89852-20010 |
HZJ105..ARL,GCC;HDJ100,HZJ105..(GX,VX)..GEN |
1 | ||
| 89852-20010 |
HZJ105..ARL;HDJ100,HZJ105..(GX,VX)..GEN |
1 | ||
| 89852-20010 |
HZJ105 |
1 | ||
| 89852-20010 |
HZJ105 |
1 | ||
| 89853 - BOLT, FUEL CUT VALVE CONTROLLER | ||||
| 89853-20010 |
HZJ105 |
2 | ||
| 89853-20010 |
HZJ105 |
2 | ||
| 89853-20010 |
HZJ105..ARL,GCC;HDJ100,HZJ105..(GX,VX)..GEN |
2 | ||
| 89853-20010 |
HZJ105..ARL;HDJ100,HZJ105..(GX,VX)..GEN |
2 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 90430-12221 | ||||
| 90430-18008 | ||||
| 91651-40825 | ||||
| 91651-60614 | ||||
ILLUST NO. 2 OF 9(9801-0208)
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 90987-02025 |
1FZFE,1H#,2UZFE..FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 28300-46010 |
1FZFE,1HD#,1HZ,2UZFE..FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 90987-02025 |
1FZFE,1H#,2UZFE..FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02006 |
1HDT..HDJ100..LUB;1FZFE..FZJ105..GX;1FZFE,1HDFTE,1HZ..FZJ100,HDJ100,HZJ105;1FZFE,2UZFE..FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 90987-02006 |
1FZFE,1H#,2UZFE..FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 90987-02006 |
1HDT..HDJ100..LUB;1FZFE,1HZ,2UZFE..FZJ10#,HZJ105,UZJ100 |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02006 |
1HDT..HDJ100..LUB;1FZFE..FZJ105..GX;1FZFE,1HDFTE,1HZ..FZJ100,HDJ100,HZJ105;1FZFE,2UZFE..FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 90987-02025 |
1FZFE,1H#,2UZFE..FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90987-02006 |
1FZFE,1H#,2UZFE..FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 90987-02025 |
1FZFE,1H#,2UZFE..FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 90987-02006 |
1HDT..HDJ100..LUB;1FZFE,1HZ,2UZFE..FZJ10#,HZJ105,UZJ100 |
1 | ||
| 28610A - RELAY ASSY, GLOW PLUG(SUB) | ||||
| 28601-17010 |
1HZ..HZJ105 |
1 | ||
| 28601-17010 |
1HDT,1HZ..HDJ100,HZJ105 |
1 | ||
| 28601-17010 |
1HZ..HZJ105 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09013 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 30A,MINI FUSE,GRN |
1 | ||
| 90982-09011 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09009 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 10A,MINI FUSE,RED |
1 | ||
| 90982-09009 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 10A,MINI FUSE,RED |
1 | ||
| 90982-09011 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 30A,MINI FUSE,GRN |
1 | ||
| 90982-09012 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 25A,MINI FUSE |
1 | ||
| 90982-09010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09009 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 10A,MINI FUSE,RED |
1 | ||
| 90982-09012 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 25A,MINI FUSE |
1 | ||
| 90982-09008 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09013 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 30A,MINI FUSE,GRN |
1 | ||
| 90982-09011 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09008 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09012 |
HDJ100,HZJ105;FZJ10#,UZJ100..LHD 25A,MINI FUSE |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-60010 |
FZJ105..GX;HDJ100..LUB;FZJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 82620-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 82620-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 82620-60010 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100 |
1 | ||
| 82620-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-60010 |
FZJ105..GX;HDJ100..LUB;FZJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 82620-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 82620-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 82620-60010 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100 |
1 | ||
| 82620-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82674-60010 |
FZJ105..GX;HDJ100..LUB;FZJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 82674-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 82674-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 82674-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 82674-60010 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100 |
1 | ||
| 82677 - COVER, JUNCTION BLOCK, UPPER NO.2 | ||||
| 82677-60011 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100 |
1 | ||
| 82677-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 82677-60011 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 82677-60040 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 82677-60040 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 82677-60011 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 82678 - COVER, JUNCTION BLOCK, UPPER NO.3 | ||||
| 82678-60010 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100 |
1 | ||
| 82678-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 82678-60010 |
FZJ105..GX;HDJ100..LUB;FZJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 82720 - BLOCK ASSY, ENGINE ROOM JUNCTION | ||||
| 82720-60010 |
FZJ105,HDJ100,HZJ105,UZJ100 |
1 | ||
| 82720-60011 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100 W(DUAL AIR CONDITIONER OR WINCH) |
1 | ||
| 82720-60011 |
FZJ10#,HDJ100,HZJ105,UZJ100 W(DUAL AIR CONDITIONER OR WINCH) |
1 | ||
| 82720-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 82720-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 82720-60011 |
FZJ105..GX;FZJ105,UZJ100..LHD..(STD,VX);FZJ100,HDJ100,HZJ105..DSL2,EFI,TD2 W(DUAL AIR CONDITIONER OR WINCH) |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-12340 |
HDJ100,HZJ105..DSL2,TD2 |
1 | ||
| 83390-12340 |
HZJ105;HDJ100..GEN |
1 | ||
| 83390-12340 |
HDJ100..GEN;HZJ105..SOB;HZJ105..LUB..GEN |
1 | ||
| 85530A - RELAY, POWER OUTLET SOCKET | ||||
| 90987-02006 |
FZJ105..GX;HDJ100..LUB;FZJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 90987-02006 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 90987-02006 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 85916-30060 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100 |
2 | ||
| 85916-30060 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 85916-30060 |
FZJ105..GX;HDJ100..LUB;FZJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 88630-60110 |
HDJ100;HZJ105..STD..ARL |
1 | ||
| 88630-60140 |
HZJ105..ARL DEALER OPTION |
1 | ||
| 88630-60141 |
HZJ105..ARL DEALER OPTION |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 88630-60110 |
HDJ100;HZJ105..STD..ARL |
1 | ||
| 88630-60140 |
HZJ105..ARL DEALER OPTION |
1 | ||
| 88630-60141 |
HZJ105..ARL DEALER OPTION |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02012 |
HDJ100..VX;FZJ10#,HZJ105,UZJ100 |
1 | ||
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-33010 |
UZJ100..LHD;HDJ100,HZJ105..DSL2,TD2 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100 |
1 | ||
| 86530-20070 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 86530-20070 |
FZJ105..GX;HDJ100..LUB;FZJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 85925-20010 |
HDJ100,HZJ105..DSL2,TD2 |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 85925-20010 |
HDJ100,HZJ105..DSL2,TD2 |
1 | ||
| 89593 - SENSOR, AIR CLEANER WARNING | ||||
| 89593-60030 |
HDJ100,HZJ105 |
1 | ||
| 89593-60030 |
HDJ100,HZJ105 |
1 | ||
| 89593-60030 |
HDJ100,HZJ105 |
1 | ||
| Common parts | ||||
| 90075-05002 | ||||
| 90075-10014 | ||||
| 91621-60814 | ||||
| 91631-60612 | ||||
| 93383-A5025 | ||||
| Linked diagrams | ||||
| 2302 | ||||
| 8202 | ||||

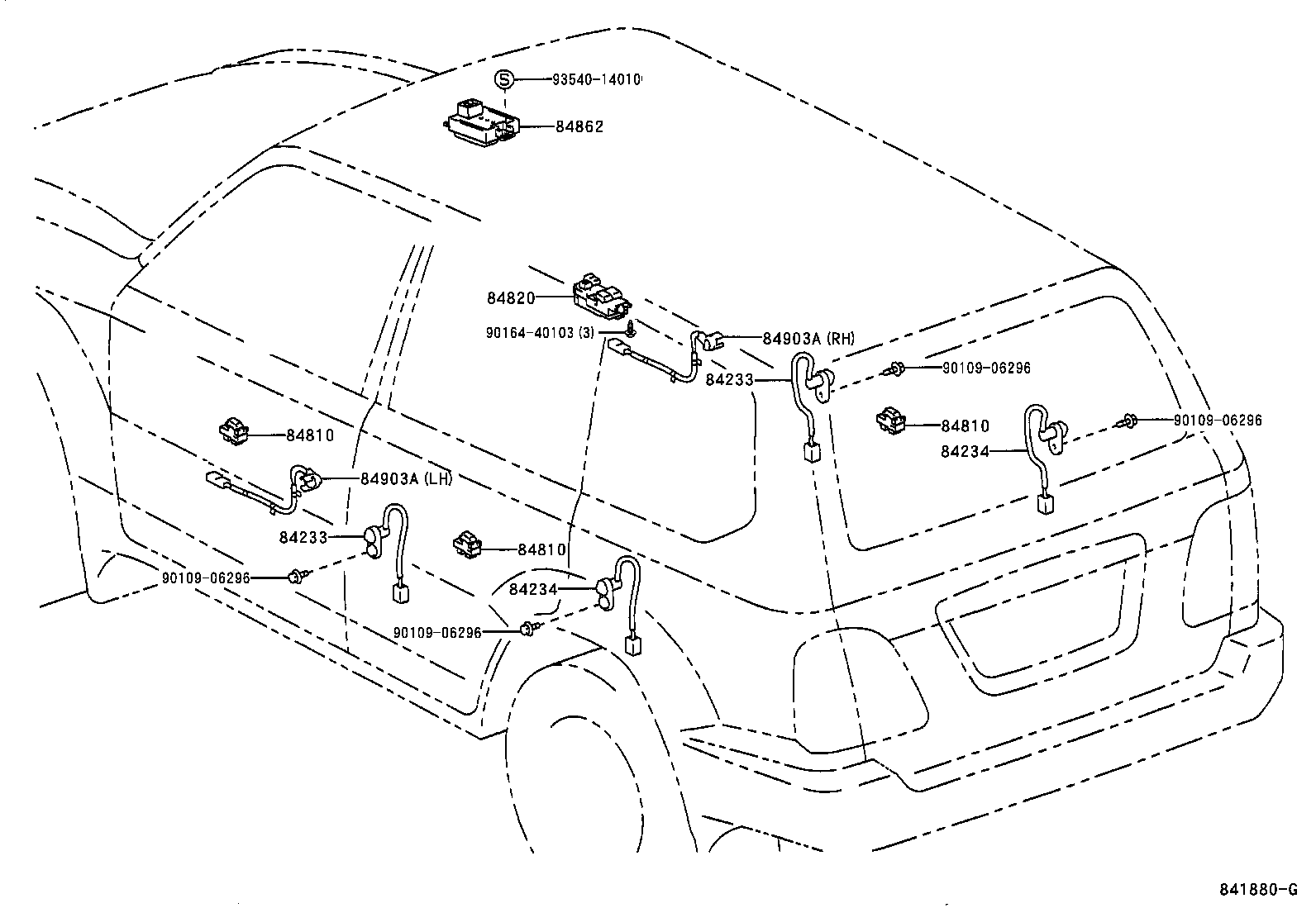

ILLUST NO. 7 OF 9(9801- )RHD
DOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 84231-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 84231-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 84231-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 84231-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 84231-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 84231-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 84231-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 84231-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| Common parts | ||||
| 90109-06296 | ||||
| 90164-40103 | ||||
| 93540-14010 | ||||

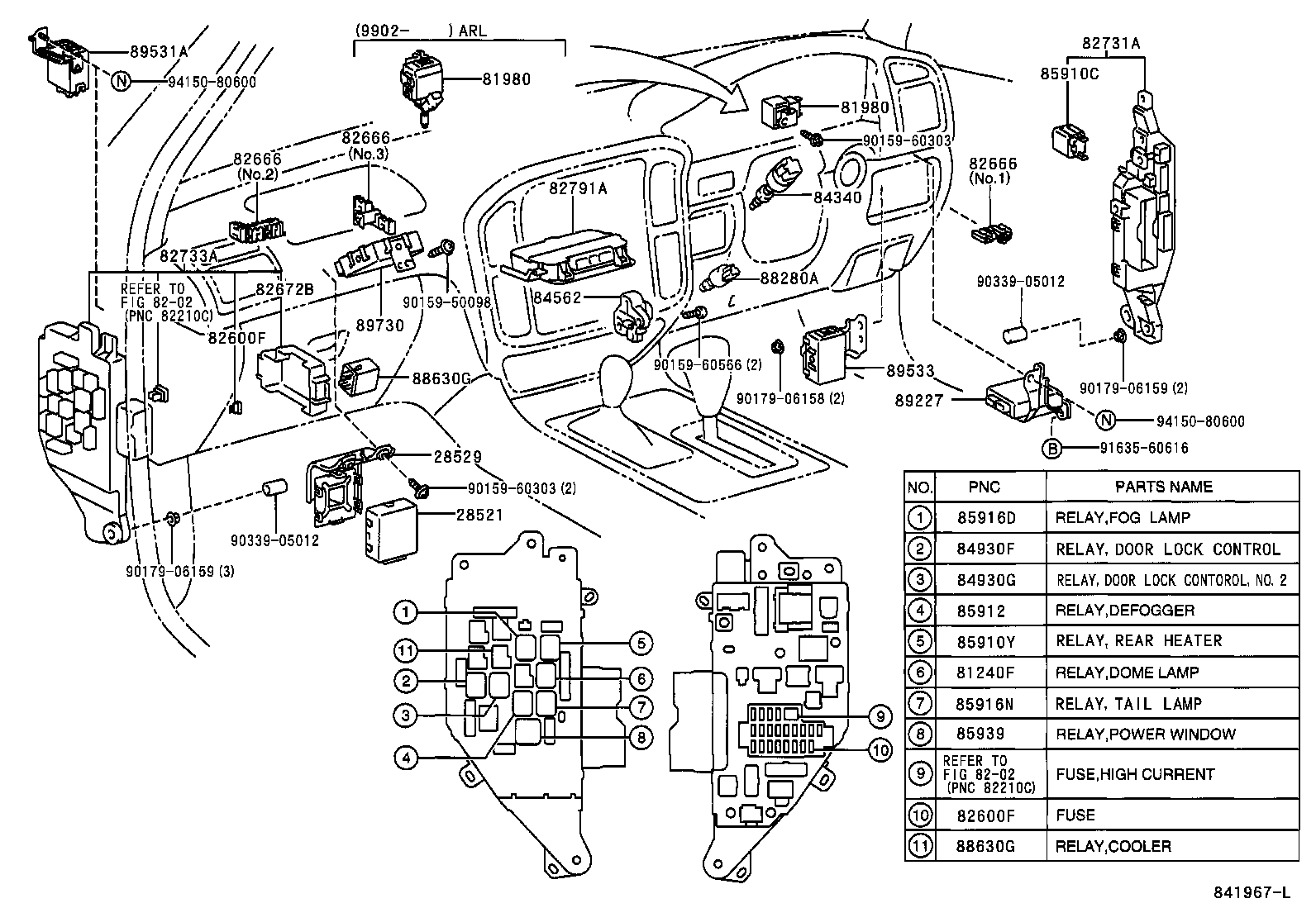

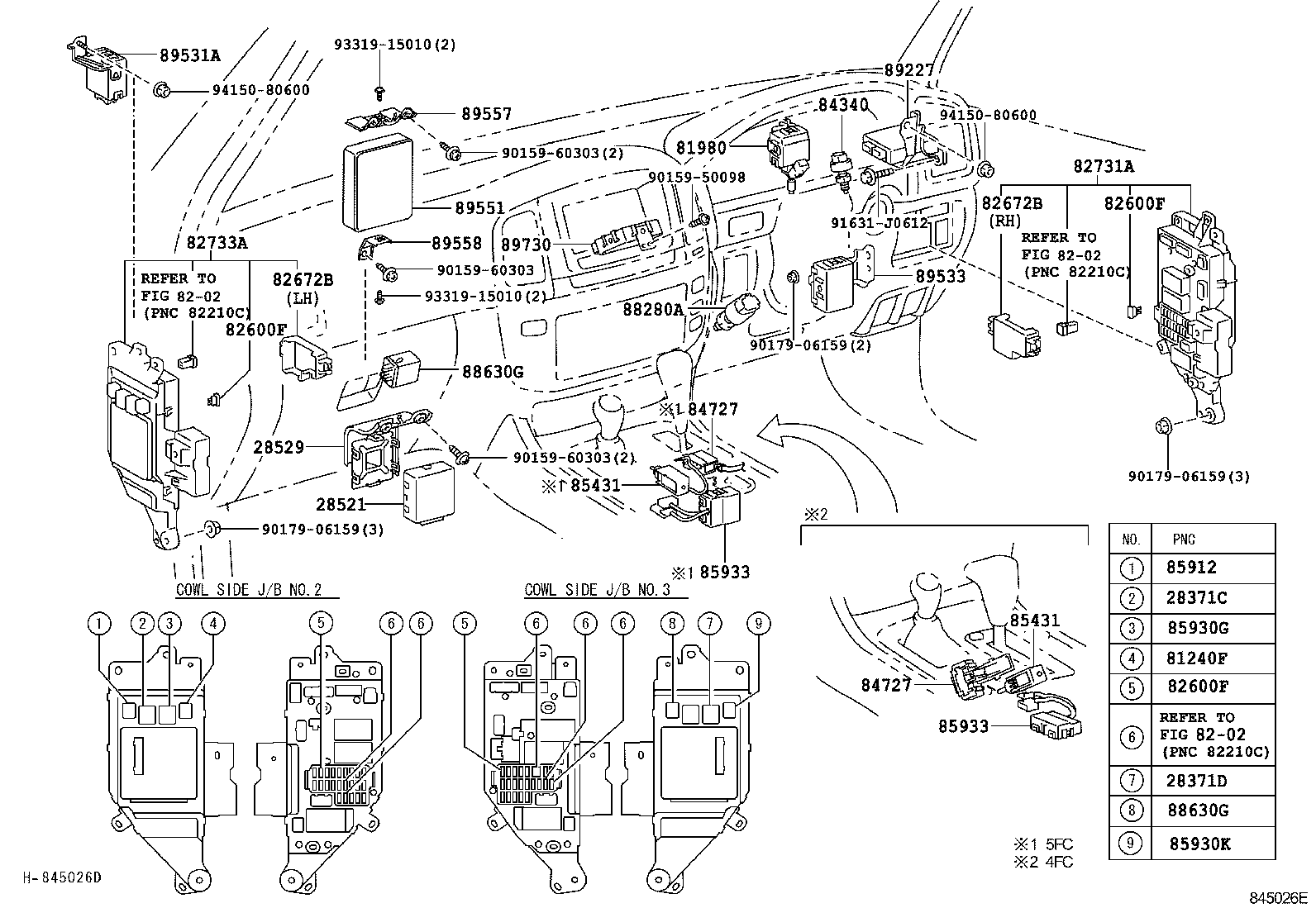

ILLUST NO. 3 OF 9(9801-0208)RHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28521 - TIMER, PREHEATING | ||||
| 28521-17190 |
1HDT,1HZ..HDJ100,HZJ105 |
1 | ||
| 28529 - BRACKET, PREHEATING TIMER, NO.1 | ||||
| 28529-17090 |
1HDT,1HZ..HDJ100,HZJ105 |
1 | ||
| 81240F - RELAY, DOME LAMP | ||||
| 90987-02012 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 90987-02022 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90987-02022 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-60040 |
FZJ105,HDJ100,HZJ105,UZJ100..ARL |
1 | ||
| 81980-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 81980-60050 |
HDJ100,HZJ105,UZJ100..ARL |
1 | ||
| 81980-60050 |
HDJ100,HZJ105,UZJ100..ARL (L) |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-60040 |
FZJ105,HDJ100,HZJ105,UZJ100..ARL |
1 | ||
| 81980-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 81980-60050 |
HDJ100,HZJ105,UZJ100..ARL |
1 | ||
| 81980-60050 |
HDJ100,HZJ105,UZJ100..ARL (L) |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09013 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 30A,MINI FUSE,GRN |
1 | ||
| 90982-09011 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09009 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 10A,MINI FUSE,RED |
1 | ||
| 90982-09009 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 10A,MINI FUSE,RED |
1 | ||
| 90982-09011 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 30A,MINI FUSE,GRN |
1 | ||
| 90982-09012 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 25A,MINI FUSE |
1 | ||
| 90982-09010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09009 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 10A,MINI FUSE,RED |
1 | ||
| 90982-09012 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 25A,MINI FUSE |
1 | ||
| 90982-09008 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09013 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 30A,MINI FUSE,GRN |
1 | ||
| 90982-09011 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09008 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09012 |
HDJ100,HZJ105;FZJ10#,UZJ100..LHD 25A,MINI FUSE |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09013 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 30A,MINI FUSE,GRN |
1 | ||
| 90982-09011 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09009 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 10A,MINI FUSE,RED |
1 | ||
| 90982-09009 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 10A,MINI FUSE,RED |
1 | ||
| 90982-09011 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 30A,MINI FUSE,GRN |
1 | ||
| 90982-09012 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 25A,MINI FUSE |
1 | ||
| 90982-09010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09009 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 10A,MINI FUSE,RED |
1 | ||
| 90982-09012 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 25A,MINI FUSE |
1 | ||
| 90982-09008 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09013 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 30A,MINI FUSE,GRN |
1 | ||
| 90982-09011 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09008 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09012 |
HDJ100,HZJ105;FZJ10#,UZJ100..LHD 25A,MINI FUSE |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-60090 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD..(DSL2,EFI,TD2) NO.2 |
1 | ||
| 82666-22070 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD NO.1 |
1 | ||
| 82666-60080 |
FZJ10#,HDJ100,HZJ105,UZJ100..DSL2,EFI,TD2 NO.3 |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-60090 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD..(DSL2,EFI,TD2) NO.2 |
1 | ||
| 82666-22070 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD NO.1 |
1 | ||
| 82666-60080 |
FZJ10#,HDJ100,HZJ105,UZJ100..DSL2,EFI,TD2 NO.3 |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-60090 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD..(DSL2,EFI,TD2) NO.2 |
1 | ||
| 82666-22070 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD NO.1 |
1 | ||
| 82666-60080 |
FZJ10#,HDJ100,HZJ105,UZJ100..DSL2,EFI,TD2 NO.3 |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-60011 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 82672-60030 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD LH |
1 | ||
| 82672-60060 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD RH |
1 | ||
| 82672-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 82672-60031 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD LH |
1 | ||
| 82672-60060 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD RH |
1 | ||
| 82731A - BLOCK, COWL SIDE JUNCTION, RH | ||||
| 82731-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 82731-60200 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,STD) |
1 | ||
| 82731-60200 |
HZJ105..RHD..SOB;FZJ105,HZJ105..RHD..LUB..GEN |
1 | ||
| 82733A - BLOCK, COWL SIDE JUNCTION, LH | ||||
| 82733-60031 |
FZJ10#,HDJ100,HZJ105,UZJ100 W(DUAL AIR CONDITIONER) |
1 | ||
| 82733-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100 W(DUAL AIR CONDITIONER) |
1 | ||
| 82733-60032 |
FZJ100..4FC;FZJ105..RHD;HDJ100,HZJ105,UZJ100 |
1 | ||
| 82733-60032 |
FZJ105..RHD;FZJ100..LUB..4FC;HDJ100,HZJ105,UZJ100 |
1 | ||
| 82733-60130 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 82733-60131 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 82733-60131 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 82791A - CONTROLLER & JUNCTION, INSTRUMENT PANEL | ||||
| 82791-60020 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 82791-60021 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32090 |
FZJ10#,HZJ105;HDJ100,UZJ100..LHD |
1 | ||
| 84340-42010 |
HDJ100..LHD;FZJ10#,HDJ100,HZJ105..(GX,STD)..(ARL,GCC,GEN) |
1 | ||
| 84340-42010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105..GX,STD;FZJ105,HDJ100,UZJ100..LHD..(STD,VX) |
1 | ||
| 84340-47010 |
HDJ100..LHD;FZJ10#,HZJ105..ARL,GCC,GEN |
1 | ||
| 84930F - RELAY, DOOR LOCK CONTOROL | ||||
| 90987-04004 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 84930G - RELAY, DOOR LOCK CONTROL, NO.2 | ||||
| 90987-04004 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 90987-04010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90987-04010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 85910Y - RELAY, REAR HEATER | ||||
| 90987-02012 |
FZJ105,HDJ100,HZJ105,UZJ100..ARL,GEN |
1 | ||
| 90987-02012 |
UZJ100..LUB;HDJ100..4FC;HDJ100..RHD;FZJ105,HZJ105;FZJ100..LUB..5F;FZJ100,HDJ100..SOB..(STD,VX) |
1 | ||
| 90987-02012 |
HDJ100..RHD;HDJ100..SOB;FZJ105,HZJ105;UZJ100..ARL,GEN;FZJ100..LUB..5F;HDJ100..4FC..GEN |
1 | ||
| 90987-02012 |
UZJ100..LUB;FZJ100..STD;FZJ100..LUB..5F;FZJ105,HDJ100,HZJ105 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02012 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 90987-04004 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90987-04004 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02012 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02009 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-04004 |
HZJ105 |
1 | ||
| 90987-04004 |
HZJ105 |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-04004 |
HZJ105 |
1 | ||
| 90987-04004 |
HZJ105 |
1 | ||
| 89533 - COMPUTER, 4 WHEEL DRIVE CONTROL | ||||
| 89533-60130 |
FZJ105,HZJ105..ARL,GEN |
1 | ||
| 89533-60220 |
FZJ105,HZJ105..RHD |
1 | ||
| 89533-60220 |
HZJ105..RHD..SOB;FZJ105,HZJ105..RHD..LUB..GEN |
1 | ||
| Common parts | ||||
| 90159-50098 | ||||
| 90159-60303 | ||||
| 90159-60566 | ||||
| 90179-06158 | ||||
| 90179-06159 | ||||
| 90339-05012 | ||||
| 91635-60616 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 8202 | ||||

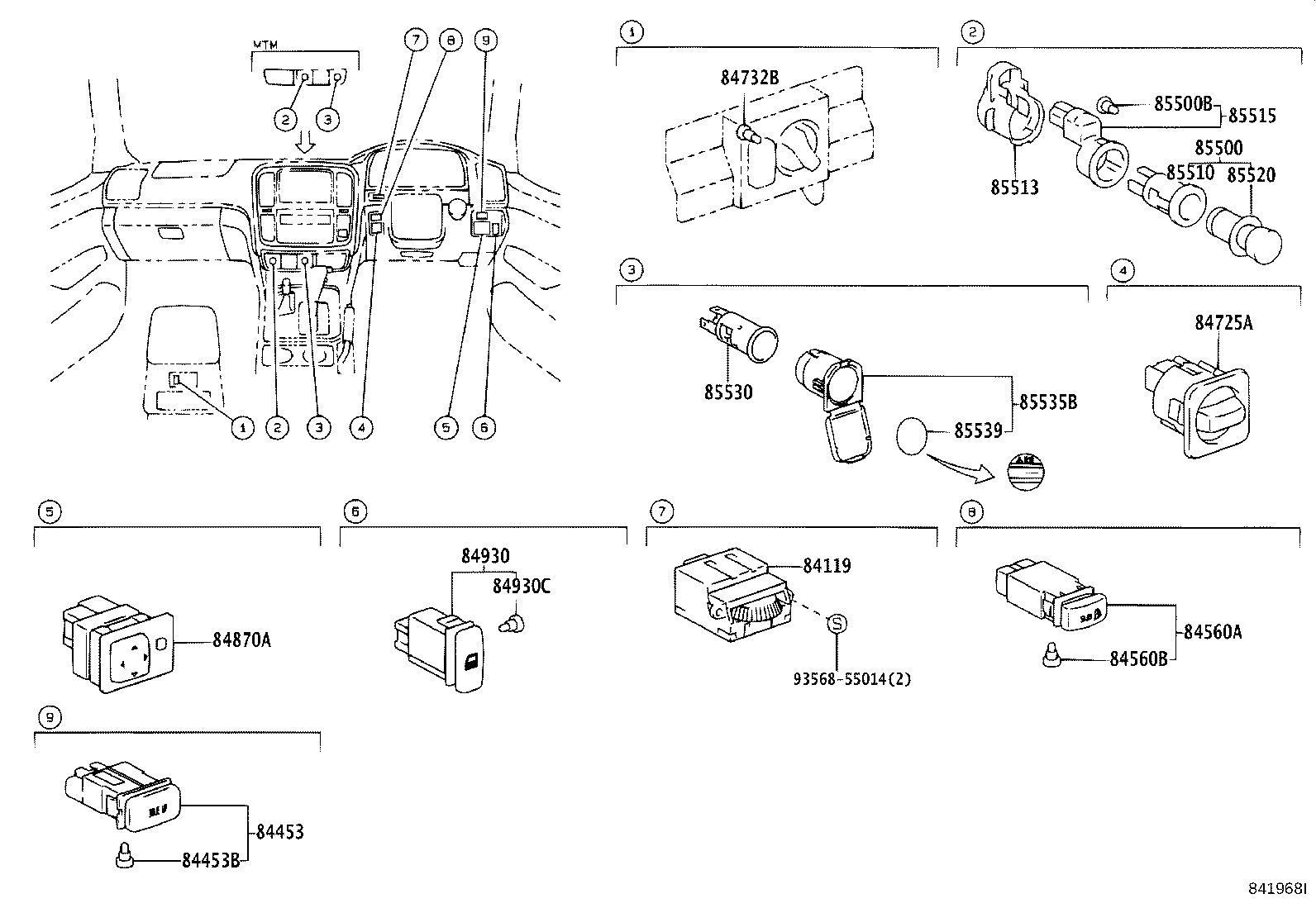

ILLUST NO. 4 OF 9(9801- )RHD
INSTRUMENT PANEL SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-60120 |
HZJ105..ARL;HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 84119-60050 |
HDJ100,UZJ100;FZJ105,HZJ105..ARL |
1 | ||
| 84119-60120 |
HDJ100..5F;HDJ100..5FC..GX;HZJ105,UZJ100..(GX,STD)..ARL;HDJ100,UZJ100..LUB..5FC..(GCC,GEN) |
1 | ||
| 84560A - SWITCH ASSY, FUEL CONTROL | ||||
| 84560-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 84560-60050 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 84560-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 84560B - BULB, FUEL CONTROL SWITCH | ||||
| 90010-01039 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90010-01039 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 90010-01039 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 84725A - SWITCH, DIFFERENTIAL LOCK | ||||
| 84725-60020 |
FZJ105,HZJ105..ARL,GEN |
1 | ||
| 84725-60020 |
FZJ105;HZJ105..LUB..GEN;HZJ105..SOB..(ARL,GEN) |
1 | ||
| 84725-60020 |
FZJ105,HZJ105..ARL,GEN |
1 | ||
| 84732B - BULB, REAR HEATER BLOWER SWITCH | ||||
| 84999-70007 |
HDJ100..LUB;FZJ105,HZJ105,UZJ100..ARL,GEN 14V 1.4W |
1 | ||
| 84999-70007 |
FZJ105,HZJ105;UZJ100..ARL,GEN;FZJ100,HDJ100..LUB 14V 1.4W |
1 | ||
| 84999-70007 |
FZJ100..STD;FZJ105,HZJ105;FZJ100..LUB..5F;HDJ100,UZJ100..LUB..(ARL,GEN) 14V 1.4W |
1 | ||
| 84999-70007 |
FZJ105,HZJ105;HDJ100,UZJ100..LUB..(ARL,GEN) 14V 1.4W |
1 | ||
| 84999-70007 |
FZJ105,HZJ105;FZJ100..LUB..5F;HDJ100,UZJ100..LUB..(ARL,GEN) 14V 1.4W |
1 | ||
| 84999-70007 |
HDJ100..LUB;FZJ105,HZJ105,UZJ100..ARL,GEN 14V 1.4W |
1 | ||
| 84999-70007 |
HZJ105;FZJ105..GX;HDJ100..LUB;FZJ100..LUB..5F;FZJ105,UZJ100..(STD,VX)..GEN 14V 1.4W |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-89106 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 85500-89106 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 85500-89106 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90010-01022 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 14V1.4W,W(GREEN CAP) |
1 | ||
| 90010-01022 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 14V1.4W,W(GREEN CAP) |
1 | ||
| 90010-01022 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 14V1.4W,W(GREEN CAP) |
1 | ||
| 85510 - SOCKET & RETAINER ASSY, CIGARLIGHTER | ||||
| 85510-16040 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 85510-16040 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 85513-12020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 85513-12020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-60010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 85515-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 85515-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-89101 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 85520-89101 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 85520-89101 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-33020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 85530-33020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 85530-33020 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-60040C0 |
FZJ10#,HZJ105..STD BLACK,TRIM10 |
1 | ||
| 85535-60040C0 |
FZJ10#,HZJ105..STD BLACK,TRIM11 |
1 | ||
| 85535-60040C0 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN BLACK,TRIM0#,1# |
1 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60020 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| Common parts | ||||
| 93568-55014 | ||||

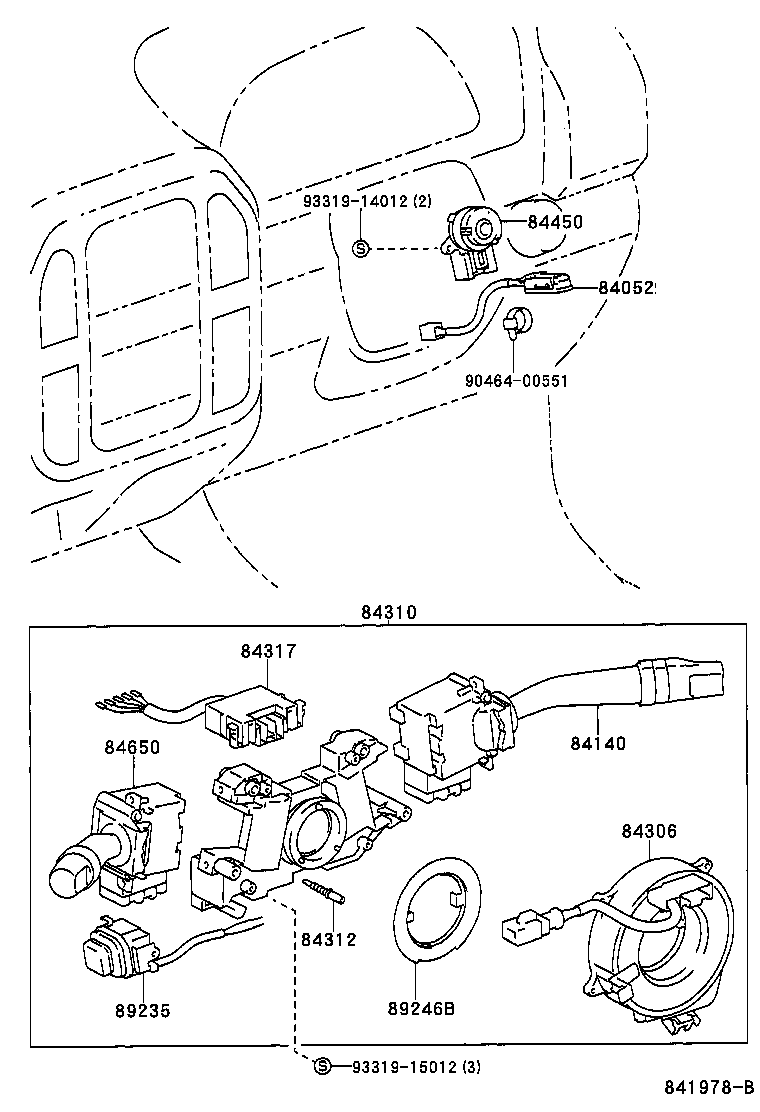

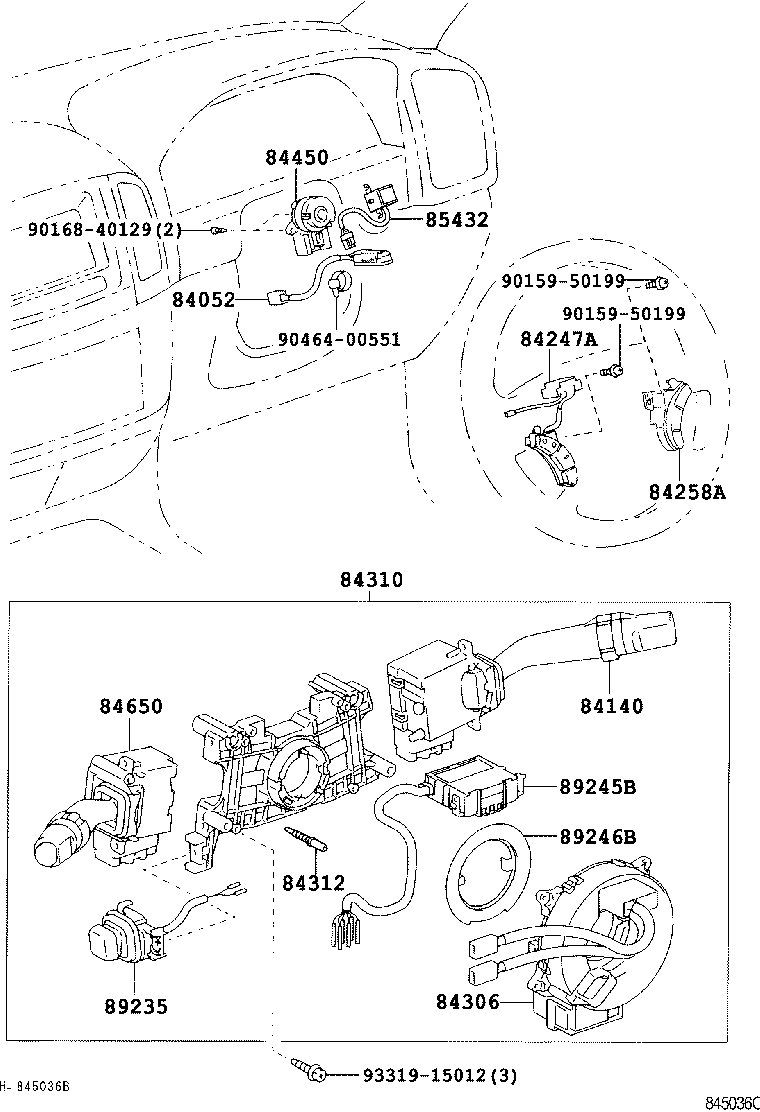

ILLUST NO. 6 OF 9(9801-0208)RHD
IGNITION & COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-33040 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 84052-33040 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 84052-33040 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-26170 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 84140-26170 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 84140-26170 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-12070 |
FZJ10#;HZJ105..GCC;HZJ105..LHD..LUB;HDJ100,HZJ105,UZJ100..RHD..(DSL2,EFI,TD2) |
1 | ||
| 84306-12070 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 84306-60090 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 84306-60090 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 84306-60071 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-26850 |
FZJ105,HZJ105..RHD W(REAR WINDOW DEFOGGER) |
1 | ||
| 84310-6A610 |
FZJ105,HZJ105..RHD W(*80) |
1 | ||
| 84310-6B281 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,STD) PART NUMBER LABEL=84310-6B281 |
1 | ||
| 84310-6B281 |
HZJ105..RHD..SOB;FZJ105,HZJ105..RHD..LUB..GEN PART NUMBER LABEL=84310-6B281 |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-26010 |
FZJ10#,HZJ105 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 84450-12200 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 84450-12200 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-26520 |
FZJ105,HZJ105..RHD W(REAR DEFOGGER) |
1 | ||
| 84652-26520 |
FZJ105,HZJ105..RHD W(REAR WIPER) |
1 | ||
| 84652-26520 |
HZJ105..RHD..SOB;FZJ105,HZJ105..RHD..LUB..GEN W(REAR WIPER) |
1 | ||
| Common parts | ||||
| 90464-00551 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
ILLUST NO. 9 OF 9(9801- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12120 | ||||
| 91511-B0614 | ||||
| 93560-54010 | ||||

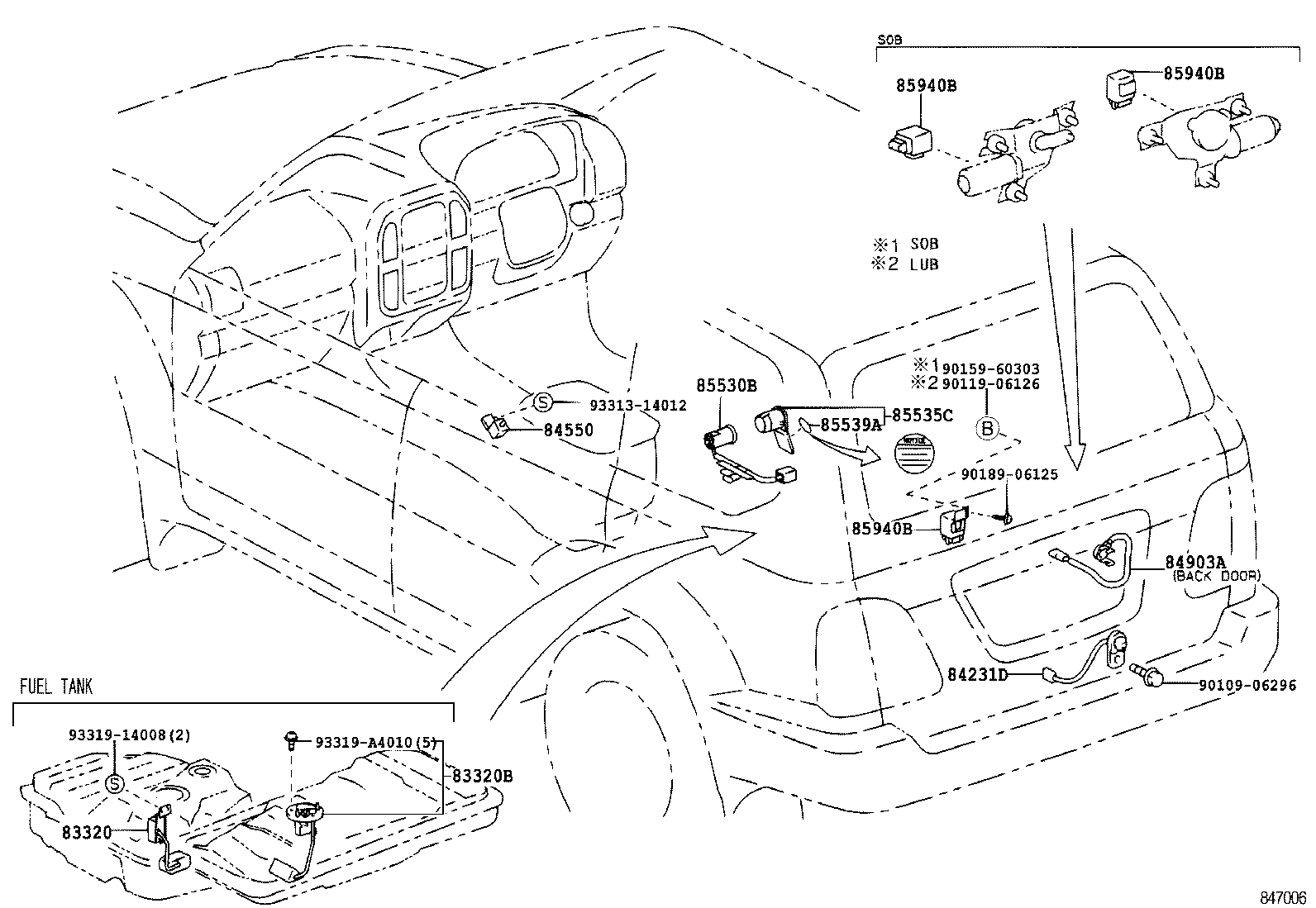

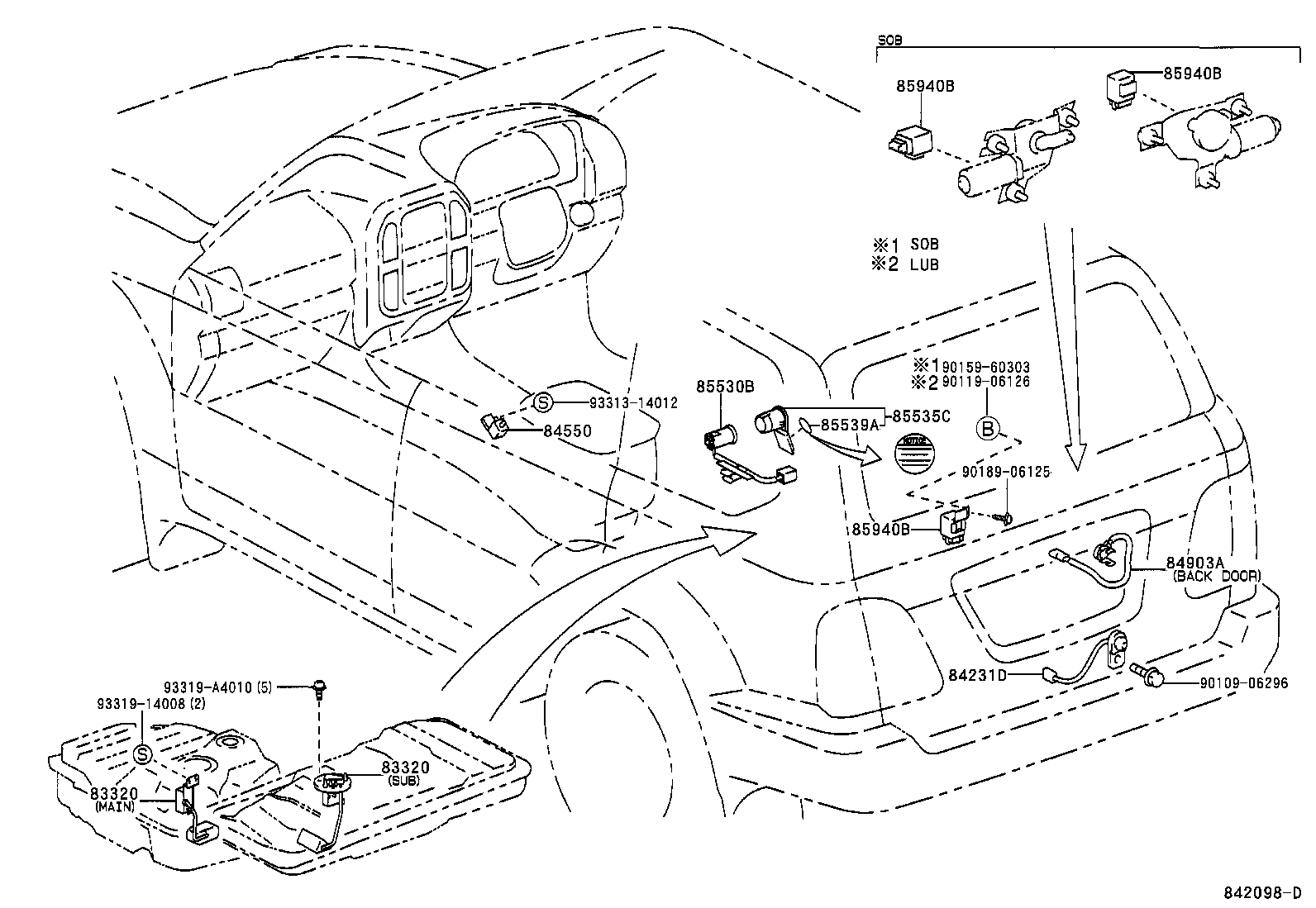

ILLUST NO. 8 OF 9(9801-0505)RHD
FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-60360 |
FZJ105,HZJ105 MAIN TANK |
1 | ||
| 83320-60360 |
FZJ105,HZJ105 |
1 | ||
| 83320-60360 |
FZJ105,HZJ105 MAIN TANK |
1 | ||
| 83320-60370 |
FZJ105,HZJ105 SUB TANK |
1 | ||
| 83320-60370 |
FZJ105,HZJ105 SUB TANK |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-60360 |
FZJ105,HZJ105 MAIN TANK |
1 | ||
| 83320-60360 |
FZJ105,HZJ105 |
1 | ||
| 83320-60360 |
FZJ105,HZJ105 MAIN TANK |
1 | ||
| 83320-60370 |
FZJ105,HZJ105 SUB TANK |
1 | ||
| 83320-60370 |
FZJ105,HZJ105 SUB TANK |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 84550-16060 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 84550-16060 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-60010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 85530-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 85530-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 85535C - COVER, POWER OUTLET SOCKET, REAR | ||||
| 85535-60040B1 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN STONE,TRIM10 |
1 | ||
| 85535-60040B0 |
FZJ10#,HDJ100,HZJ105,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 85535-60040B1 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN STONE,TRIM1# |
1 | ||
| 85539A - LABEL, POWER OUTLET NOTICE, REAR | ||||
| 85539-60020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 85539-60020 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 85539-60020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-60100 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 85940-60100 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 85940-60080 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
2 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-60100 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 85940-60100 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 85940-60080 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
2 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-60100 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 85940-60100 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 85940-60080 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
2 | ||
| Common parts | ||||
| 90109-06296 | ||||
| 90119-06126 | ||||
| 90159-60303 | ||||
| 90189-06125 | ||||
| 93313-14012 | ||||
| 93319-14008 | ||||
| 93319-A4010 | ||||

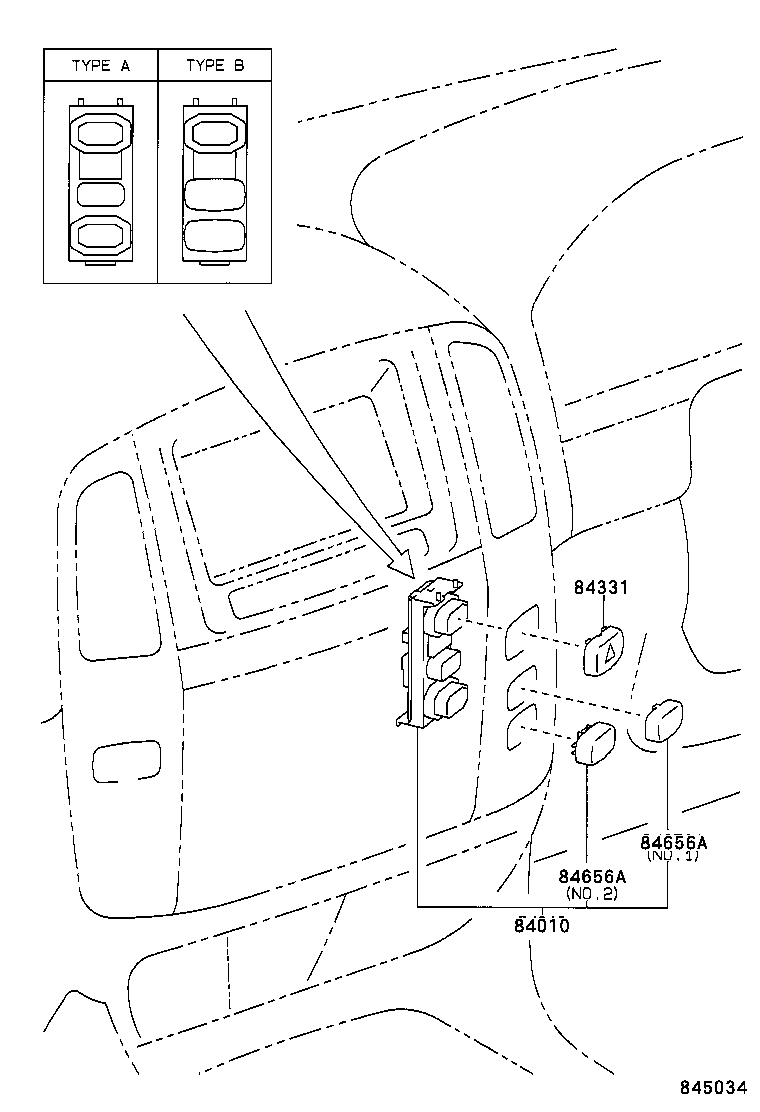

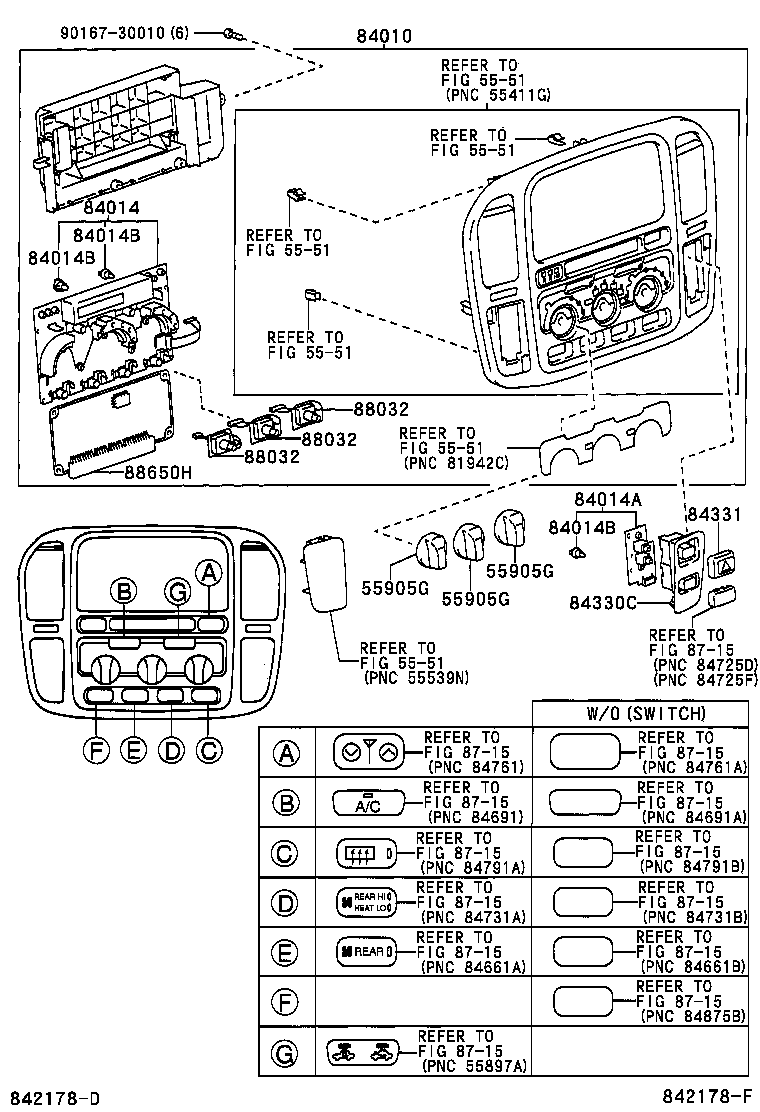

ILLUST NO. 5 OF 9(9801-0208)RHD
CENTER CLUSTER INTEGRATION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905G - KNOB SUB-ASSY, CONTROL | ||||
| 55905-60270 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
3 | ||
| 55905-60270 |
FZJ100..5F;FZJ105,HDJ100,HZJ105,UZJ100 |
3 | ||
| 55905G - KNOB SUB-ASSY, CONTROL | ||||
| 55905-60270 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
3 | ||
| 55905-60270 |
FZJ100..5F;FZJ105,HDJ100,HZJ105,UZJ100 |
3 | ||
| 55905G - KNOB SUB-ASSY, CONTROL | ||||
| 55905-60270 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
3 | ||
| 55905-60270 |
FZJ100..5F;FZJ105,HDJ100,HZJ105,UZJ100 |
3 | ||
| 84010 - SWITCH ASSY, CENTER CLUSTER INTEGRATION | ||||
| 84012-60010 |
FZJ105,HDJ100,HZJ105..RHD..(GX,STD) |
1 | ||
| 84010-60500 |
HZJ105..RHD..SOB;FZJ105,HZJ105..RHD..LUB..GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 84010-60510 |
HZJ105..RHD..SOB;FZJ105,HZJ105..RHD..LUB..GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 84010-60500 |
HZJ105..RHD..SOB;FZJ105,HZJ105..RHD..LUB..GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 84014 - BOARD SUB-ASSY, PRINTED WIRE INTEGRATION | ||||
| 84014-60040 |
FZJ105,HDJ100,HZJ105..RHD..(GX,STD) |
1 | ||
| 84014A - BOARD SUB-ASSY, PRINTED WIRE INTEGRATION, NO.2 | ||||
| 84014-60120 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 84014-60140 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 84014B - BULB, PRINTED WIRE INTEGRATION BOARD | ||||
| 84999-70007 |
FZJ10#,HDJ100,HZJ105,UZJ100 14V 1.4W |
8 | ||
| 90010-05104 |
FZJ10#,HDJ100,HZJ105,UZJ100 14V 1.12W |
2 | ||
| 90010-05104 |
FZJ100..5F;FZJ105,HDJ100,HZJ105,UZJ100 14V 1.12W |
2 | ||
| 84014B - BULB, PRINTED WIRE INTEGRATION BOARD | ||||
| 84999-70007 |
FZJ10#,HDJ100,HZJ105,UZJ100 14V 1.4W |
8 | ||
| 90010-05104 |
FZJ10#,HDJ100,HZJ105,UZJ100 14V 1.12W |
2 | ||
| 90010-05104 |
FZJ100..5F;FZJ105,HDJ100,HZJ105,UZJ100 14V 1.12W |
2 | ||
| 84014B - BULB, PRINTED WIRE INTEGRATION BOARD | ||||
| 84999-70007 |
FZJ10#,HDJ100,HZJ105,UZJ100 14V 1.4W |
8 | ||
| 90010-05104 |
FZJ10#,HDJ100,HZJ105,UZJ100 14V 1.12W |
2 | ||
| 90010-05104 |
FZJ100..5F;FZJ105,HDJ100,HZJ105,UZJ100 14V 1.12W |
2 | ||
| 84330C - COVER, HAZARD WARNING SIGNAL SWITCH | ||||
| 84332-60210 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 84331 - KNOB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84331-60040 |
FZJ100..5F;FZJ105,HDJ100,HZJ105,UZJ100 |
1 | ||
| 84331-60040 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 84331-60050 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 84331-60050 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 88032 - SWITCH, HEATER CONTROL VOLUME | ||||
| 88032-60050 |
UZJ100..GEN;FZJ10#,HDJ100,HZJ105 BLOWER,MODE |
2 | ||
| 88032-60050 |
FZJ100..5F;HDJ100,UZJ100..GEN;FZJ105,HDJ100,HZJ105..GX,STD BLOWER,MODE |
2 | ||
| 88032-60070 |
FZJ100..5F;FZJ105,HDJ100,HZJ105,UZJ100 TEMP |
1 | ||
| 88032-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100 TEMP |
1 | ||
| 88032 - SWITCH, HEATER CONTROL VOLUME | ||||
| 88032-60050 |
UZJ100..GEN;FZJ10#,HDJ100,HZJ105 BLOWER,MODE |
2 | ||
| 88032-60050 |
FZJ100..5F;HDJ100,UZJ100..GEN;FZJ105,HDJ100,HZJ105..GX,STD BLOWER,MODE |
2 | ||
| 88032-60070 |
FZJ100..5F;FZJ105,HDJ100,HZJ105,UZJ100 TEMP |
1 | ||
| 88032-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100 TEMP |
1 | ||
| 88032 - SWITCH, HEATER CONTROL VOLUME | ||||
| 88032-60050 |
UZJ100..GEN;FZJ10#,HDJ100,HZJ105 BLOWER,MODE |
2 | ||
| 88032-60050 |
FZJ100..5F;HDJ100,UZJ100..GEN;FZJ105,HDJ100,HZJ105..GX,STD BLOWER,MODE |
2 | ||
| 88032-60070 |
FZJ100..5F;FZJ105,HDJ100,HZJ105,UZJ100 TEMP |
1 | ||
| 88032-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100 TEMP |
1 | ||
| 88650H - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-60391 |
UZJ100..GEN;FZJ100,HDJ100..GX,VX;FZJ105,HZJ105..ARL,GEN W(REAR HEATER OR REAR WINDOW DEFOGGER) |
1 | ||
| 88650-60390 |
UZJ100..GEN;FZJ10#,HDJ100,HZJ105 W(REAR HEATER OR REAR WINDOW DEFOGGER) |
1 | ||
| 88650-60391 |
UZJ100..GEN;FZJ10#,HDJ100,HZJ105..DSL2,EFI,TD2 W(REAR HEATER OR REAR WINDOW DEFOGGER) |
1 | ||
| Common parts | ||||
| 90167-30010 | ||||
| Linked diagrams | ||||
| 5551 | ||||
| 8715 | ||||
ILLUST NO. 1 OF 9(0208- )HZJ105
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16040 |
FZJ105..GX;FZJ105..STD..GEN;FZJ100,HDJ100,HZJ105 |
1 | ||
| 83420-16040 |
FZJ10#,HDJ100,HZJ105..ARL,GCC,GEN |
1 | ||
| 83420-16040 |
FZJ10#,HDJ100,HZJ105..ARL,GCC,GEN |
1 | ||
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-35030 |
HDJ100,HZJ105 |
1 | ||
| 83520-35031 |
HDJ100,HZJ105 |
1 | ||
| 83520-35031 |
HDJ100,HZJ105 |
1 | ||
| 83520-35030 |
HDJ100,HZJ105 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
HZJ105..5F |
1 | ||
| 84210-12040 |
HZJ105 |
1 | ||
| 84210-12040 |
HZJ105 |
1 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-12010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 84222-12010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 84222-12010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 84222C - SWITCH, TRANSFER INDICATOR, NO.3 | ||||
| 84222-12010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 84222-12010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 84222-12010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 84222D - SWITCH, TRANSFER INDICATOR, NO.4 | ||||
| 84222-12010 |
FZJ105;HZJ105..LUB..GEN;HZJ105..SOB..(ARL,GEN) |
1 | ||
| 84222-12010 |
FZJ105,HZJ105..ARL,GEN |
1 | ||
| 84222-12010 |
FZJ105,HZJ105..ARL,GEN |
1 | ||
| 84222E - SWITCH, DIFFERENTIAL LOCK INDICATOR | ||||
| 84222-12010 |
FZJ105,HZJ105 |
1 | ||
| 84222-12010 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN |
1 | ||
| 84222-12010 |
FZJ105,HZJ105 |
1 | ||
| 88620C - THERMO SWITCH ASSY | ||||
| 88790-60050 |
HZJ105 |
1 | ||
| 88790-60050 |
HZJ105 |
1 | ||
| 89421D - SENSOR, TURBO PRESSURE | ||||
| 89421-60030 |
HZJ105..ARL,GCC |
1 | ||
| 89421-60030 |
HZJ105..ARL |
1 | ||
| 89421-60030 |
HZJ105..ARL |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-20010 |
HDJ100,HZJ105..DSL2,TD2 |
1 | ||
| 89422-20010 |
HZJ105 |
1 | ||
| 89422-20010 |
HZJ105 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-60060 |
HDJ100,HZJ105..ARL,GCC |
1 | ||
| 89491-60060 |
HDJ100,HZJ105,UZJ100..ARL |
1 | ||
| 89491-60060 |
HDJ100,HZJ105..ARL,GCC |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 89493-60010 |
UZJ100..GCC,GEN;HDJ100,HZJ105..ARL,GCC |
1 | ||
| 89493-60010 |
HDJ100,HZJ105..ARL |
1 | ||
| 89493-60010 |
UZJ100..GCC,GEN;HDJ100,HZJ105..ARL,GCC |
1 | ||
| 89850 - UNIT ASSY, FUEL CUT VALVE CONTROL | ||||
| 89850-20011 |
HZJ105..ARL,GCC;HDJ100,HZJ105..(GX,VX)..GEN |
1 | ||
| 89850-20011 |
HZJ105 |
1 | ||
| 89850-20011 |
HZJ105..ARL;HDJ100,HZJ105..(GX,VX)..GEN |
1 | ||
| 89850-20011 |
HZJ105 |
1 | ||
| 89851 - CAP, FUEL CUT VALVE CONTROLLER | ||||
| 89851-20010 |
HZJ105..ARL;HDJ100,HZJ105..(GX,VX)..GEN |
1 | ||
| 89851-20010 |
HZJ105 |
1 | ||
| 89851-20010 |
HZJ105..ARL,GCC;HDJ100,HZJ105..(GX,VX)..GEN |
1 | ||
| 89851-20010 |
HZJ105 |
1 | ||
| 89852 - CLAMP, FUEL CUT VALVE CONTROLLER | ||||
| 89852-20010 |
HZJ105..ARL,GCC;HDJ100,HZJ105..(GX,VX)..GEN |
1 | ||
| 89852-20010 |
HZJ105..ARL;HDJ100,HZJ105..(GX,VX)..GEN |
1 | ||
| 89852-20010 |
HZJ105 |
1 | ||
| 89852-20010 |
HZJ105 |
1 | ||
| 89853 - BOLT, FUEL CUT VALVE CONTROLLER | ||||
| 89853-20010 |
HZJ105 |
2 | ||
| 89853-20010 |
HZJ105 |
2 | ||
| 89853-20010 |
HZJ105..ARL,GCC;HDJ100,HZJ105..(GX,VX)..GEN |
2 | ||
| 89853-20010 |
HZJ105..ARL;HDJ100,HZJ105..(GX,VX)..GEN |
2 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 90430-12221 | ||||
| 90430-18008 | ||||
| 91631-G0614 | ||||
| 91651-60614 | ||||
ILLUST NO. 2 OF 9(0208- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 90987-02025 |
1FZFE,1H#,2UZFE..FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 28300-46010 |
1FZFE,1HD#,1HZ,2UZFE..FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 90987-02025 |
1FZFE,1H#,2UZFE..FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 28610A - RELAY ASSY, GLOW PLUG(SUB) | ||||
| 28601-17010 |
1HZ..HZJ105 |
1 | ||
| 28601-17010 |
1HDT,1HZ..HDJ100,HZJ105 |
1 | ||
| 28601-17010 |
1HZ..HZJ105 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09013 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 30A,MINI FUSE,GRN |
1 | ||
| 90982-09011 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09009 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 10A,MINI FUSE,RED |
1 | ||
| 90982-09009 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 10A,MINI FUSE,RED |
1 | ||
| 90982-09011 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 30A,MINI FUSE,GRN |
1 | ||
| 90982-09012 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 25A,MINI FUSE |
1 | ||
| 90982-09010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09009 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 10A,MINI FUSE,RED |
1 | ||
| 90982-09012 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 25A,MINI FUSE |
1 | ||
| 90982-09008 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09013 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 30A,MINI FUSE,GRN |
1 | ||
| 90982-09011 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09008 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09012 |
HDJ100,HZJ105;FZJ10#,UZJ100..LHD 25A,MINI FUSE |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-60010 |
FZJ105..GX;HDJ100..LUB;FZJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 82620-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 82620-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 82620-60010 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100 |
1 | ||
| 82620-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82674-60010 |
FZJ105..GX;HDJ100..LUB;FZJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 82674-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 82674-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 82674-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 82674-60010 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100 |
1 | ||
| 82677 - COVER, JUNCTION BLOCK, UPPER NO.2 | ||||
| 82677-60011 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100 |
1 | ||
| 82677-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 82677-60011 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 82677-60040 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 82677-60040 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 82677-60011 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 82720 - BLOCK ASSY, ENGINE ROOM JUNCTION | ||||
| 82720-60010 |
FZJ105,HDJ100,HZJ105,UZJ100 |
1 | ||
| 82720-60011 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100 W(DUAL AIR CONDITIONER OR WINCH) |
1 | ||
| 82720-60011 |
FZJ10#,HDJ100,HZJ105,UZJ100 W(DUAL AIR CONDITIONER OR WINCH) |
1 | ||
| 82720-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 82720-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 82720-60011 |
FZJ105..GX;FZJ105,UZJ100..LHD..(STD,VX);FZJ100,HDJ100,HZJ105..DSL2,EFI,TD2 W(DUAL AIR CONDITIONER OR WINCH) |
1 | ||
| 82740 - BLOCK ASSY, ENGINE ROOM RELAY | ||||
| 82740-60020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 82740-60020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-12340 |
HDJ100,HZJ105..DSL2,TD2 |
1 | ||
| 83390-12340 |
HZJ105;HDJ100..GEN |
1 | ||
| 83390-12340 |
HDJ100..GEN;HZJ105..SOB;HZJ105..LUB..GEN |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 90987-04010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90987-04010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-33010 |
UZJ100..LHD;HDJ100,HZJ105..DSL2,TD2 |
1 | ||
| 89593 - SENSOR, AIR CLEANER WARNING | ||||
| 89593-60030 |
HDJ100,HZJ105 |
1 | ||
| 89593-60030 |
HDJ100,HZJ105 |
1 | ||
| 89593-60030 |
HDJ100,HZJ105 |
1 | ||
| Common parts | ||||
| 90075-05002 | ||||
| 90075-10014 | ||||
| 90119-06171 | ||||
| 90179-08053 | ||||
| 91621-J0814 | ||||
| 93383-A5025 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
| 8414 | ||||
| 8419 | ||||
ILLUST NO. 3 OF 9(0208- )RHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02006 |
1HDT..HDJ100..LUB;1FZFE..FZJ105..GX;1FZFE,1HDFTE,1HZ..FZJ100,HDJ100,HZJ105;1FZFE,2UZFE..FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 90987-02025 |
1FZFE,1H#,2UZFE..FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90987-02006 |
1FZFE,1H#,2UZFE..FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 90987-02025 |
1FZFE,1H#,2UZFE..FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 90987-02006 |
1HDT..HDJ100..LUB;1FZFE,1HZ,2UZFE..FZJ10#,HZJ105,UZJ100 |
1 | ||
| 28371D - RELAY, IGNITION, NO.3 | ||||
| 90987-02025 |
1FZFE,1H#,2UZFE..FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90987-02025 |
1FZFE,1H#,2UZFE..FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 28521 - TIMER, PREHEATING | ||||
| 28521-17190 |
1HDT,1HZ..HDJ100,HZJ105 |
1 | ||
| 28529 - BRACKET, PREHEATING TIMER, NO.1 | ||||
| 28529-17090 |
1HDT,1HZ..HDJ100,HZJ105 |
1 | ||
| 81240F - RELAY, DOME LAMP | ||||
| 90987-02012 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 90987-02022 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90987-02022 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-60040 |
FZJ105,HDJ100,HZJ105,UZJ100..ARL |
1 | ||
| 81980-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 81980-60050 |
HDJ100,HZJ105,UZJ100..ARL |
1 | ||
| 81980-60050 |
HDJ100,HZJ105,UZJ100..ARL (L) |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09013 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 30A,MINI FUSE,GRN |
1 | ||
| 90982-09011 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09009 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 10A,MINI FUSE,RED |
1 | ||
| 90982-09009 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 10A,MINI FUSE,RED |
1 | ||
| 90982-09011 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 30A,MINI FUSE,GRN |
1 | ||
| 90982-09012 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 25A,MINI FUSE |
1 | ||
| 90982-09010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09009 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 10A,MINI FUSE,RED |
1 | ||
| 90982-09012 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 25A,MINI FUSE |
1 | ||
| 90982-09008 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09013 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 30A,MINI FUSE,GRN |
1 | ||
| 90982-09011 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09008 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09012 |
HDJ100,HZJ105;FZJ10#,UZJ100..LHD 25A,MINI FUSE |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09013 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 30A,MINI FUSE,GRN |
1 | ||
| 90982-09011 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09009 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 10A,MINI FUSE,RED |
1 | ||
| 90982-09009 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 10A,MINI FUSE,RED |
1 | ||
| 90982-09011 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 30A,MINI FUSE,GRN |
1 | ||
| 90982-09012 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 25A,MINI FUSE |
1 | ||
| 90982-09010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09009 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 10A,MINI FUSE,RED |
1 | ||
| 90982-09012 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 25A,MINI FUSE |
1 | ||
| 90982-09008 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09013 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 30A,MINI FUSE,GRN |
1 | ||
| 90982-09011 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09008 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09012 |
HDJ100,HZJ105;FZJ10#,UZJ100..LHD 25A,MINI FUSE |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09013 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 30A,MINI FUSE,GRN |
1 | ||
| 90982-09011 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09009 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 10A,MINI FUSE,RED |
1 | ||
| 90982-09011 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 30A,MINI FUSE,GRN |
1 | ||
| 90982-09012 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 25A,MINI FUSE |
1 | ||
| 90982-09010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09009 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 10A,MINI FUSE,RED |
1 | ||
| 90982-09012 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 25A,MINI FUSE |
1 | ||
| 90982-09008 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09013 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 30A,MINI FUSE,GRN |
1 | ||
| 90982-09011 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09009 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 10A,MINI FUSE,RED |
1 | ||
| 90982-09008 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09012 |
HDJ100,HZJ105;FZJ10#,UZJ100..LHD 25A,MINI FUSE |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-60011 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 82672-60030 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD LH |
1 | ||
| 82672-60060 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD RH |
1 | ||
| 82672-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 82672-60031 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD LH |
1 | ||
| 82672-60060 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD RH |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-60011 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 82672-60030 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD LH |
1 | ||
| 82672-60060 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD RH |
1 | ||
| 82672-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 82672-60031 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD LH |
1 | ||
| 82672-60060 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD RH |
1 | ||
| 82731A - BLOCK, COWL SIDE JUNCTION, RH | ||||
| 82731-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 82731-60200 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,STD) |
1 | ||
| 82731-60200 |
HZJ105..RHD..SOB;FZJ105,HZJ105..RHD..LUB..GEN |
1 | ||
| 82733A - BLOCK, COWL SIDE JUNCTION, LH | ||||
| 82733-60031 |
FZJ10#,HDJ100,HZJ105,UZJ100 W(DUAL AIR CONDITIONER) |
1 | ||
| 82733-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100 W(DUAL AIR CONDITIONER) |
1 | ||
| 82733-60032 |
FZJ100..4FC;FZJ105..RHD;HDJ100,HZJ105,UZJ100 |
1 | ||
| 82733-60032 |
FZJ105..RHD;FZJ100..LUB..4FC;HDJ100,HZJ105,UZJ100 |
1 | ||
| 82733-60130 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 82733-60131 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 82733-60131 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32090 |
FZJ10#,HZJ105;HDJ100,UZJ100..LHD |
1 | ||
| 84340-42010 |
HDJ100..LHD;FZJ10#,HDJ100,HZJ105..(GX,STD)..(ARL,GCC,GEN) |
1 | ||
| 84340-42010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105..GX,STD;FZJ105,HDJ100,UZJ100..LHD..(STD,VX) |
1 | ||
| 84340-47010 |
HDJ100..LHD;FZJ10#,HZJ105..ARL,GCC,GEN |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02012 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 90987-04004 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90987-04004 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-02025 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90987-02025 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-04004 |
HZJ105 |
1 | ||
| 90987-04004 |
HZJ105 |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-04004 |
HZJ105 |
1 | ||
| 90987-04004 |
HZJ105 |
1 | ||
| 89533 - COMPUTER, 4 WHEEL DRIVE CONTROL | ||||
| 89533-60130 |
FZJ105,HZJ105..ARL,GEN |
1 | ||
| 89533-60220 |
FZJ105,HZJ105..RHD |
1 | ||
| 89533-60220 |
HZJ105..RHD..SOB;FZJ105,HZJ105..RHD..LUB..GEN |
1 | ||
| 89551 - COMPUTER, EMISSION CONTROL | ||||
| 89551-60130 |
HZJ105..ARL |
1 | ||
| 89551-60130 |
HZJ105..ARL,GCC |
1 | ||
| 89551-60130 |
HZJ105..ARL |
1 | ||
| 89557 - BRACKET, EMISSION CONTROL COMPUTER, NO.1 | ||||
| 89667-60140 |
HZJ105..ARL |
1 | ||
| 89667-60140 |
HZJ105..ARL |
1 | ||
| 89667-60140 |
HZJ105..ARL,GCC |
1 | ||
| 89558 - BRACKET, EMISSION CONTROL COMPUTER, NO.2 | ||||
| 89668-60150 |
HZJ105..ARL |
1 | ||
| 89668-60150 |
HZJ105..ARL,GCC |
1 | ||
| 89668-60150 |
HZJ105..ARL |
1 | ||
| Common parts | ||||
| 90159-50098 | ||||
| 90159-60303 | ||||
| 90179-06159 | ||||
| 91631-J0612 | ||||
| 93319-15010 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 5 OF 9(0208- )RHD
CENTER CLUSTER INTEGRATION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84010 - SWITCH ASSY, CENTER CLUSTER INTEGRATION | ||||
| 84012-60010 |
FZJ105,HDJ100,HZJ105..RHD..(GX,STD) |
1 | ||
| 84010-60500 |
HZJ105..RHD..SOB;FZJ105,HZJ105..RHD..LUB..GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 84010-60510 |
HZJ105..RHD..SOB;FZJ105,HZJ105..RHD..LUB..GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 84010-60500 |
HZJ105..RHD..SOB;FZJ105,HZJ105..RHD..LUB..GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 84331 - KNOB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84331-60040 |
FZJ100..5F;FZJ105,HDJ100,HZJ105,UZJ100 |
1 | ||
| 84331-60040 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 84331-60050 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 84331-60050 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-60080 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#..5F..(GCC,GEN) NO.1 |
1 | ||
| 84656-60080 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#..5F..(GCC,GEN) NO.1 |
1 | ||
| 84656-60090 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#..5F..(GCC,GEN) NO.2 |
1 | ||
| 84656-60090 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#..5F..(GCC,GEN) NO.2 |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-60080 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#..5F..(GCC,GEN) NO.1 |
1 | ||
| 84656-60080 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#..5F..(GCC,GEN) NO.1 |
1 | ||
| 84656-60090 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#..5F..(GCC,GEN) NO.2 |
1 | ||
| 84656-60090 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#..5F..(GCC,GEN) NO.2 |
1 | ||
ILLUST NO. 6 OF 9(0208- )RHD
IGNITION & COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-33040 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 84052-33040 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 84052-33040 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-26170 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 84140-26170 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 84140-26170 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-12070 |
FZJ10#;HZJ105..GCC;HZJ105..LHD..LUB;HDJ100,HZJ105,UZJ100..RHD..(DSL2,EFI,TD2) |
1 | ||
| 84306-12070 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 84306-60090 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 84306-60090 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 84306-60071 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-26850 |
FZJ105,HZJ105..RHD W(REAR WINDOW DEFOGGER) |
1 | ||
| 84310-6A610 |
FZJ105,HZJ105..RHD W(*80) |
1 | ||
| 84310-6B281 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,STD) PART NUMBER LABEL=84310-6B281 |
1 | ||
| 84310-6B281 |
HZJ105..RHD..SOB;FZJ105,HZJ105..RHD..LUB..GEN PART NUMBER LABEL=84310-6B281 |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-26010 |
FZJ10#,HZJ105 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 84450-12200 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 84450-12200 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-26520 |
FZJ105,HZJ105..RHD W(REAR DEFOGGER) |
1 | ||
| 84652-26520 |
FZJ105,HZJ105..RHD W(REAR WIPER) |
1 | ||
| 84652-26520 |
HZJ105..RHD..SOB;FZJ105,HZJ105..RHD..LUB..GEN W(REAR WIPER) |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40129 | ||||
| 90464-00551 | ||||
| 93319-15012 | ||||
ILLUST NO. 8 OF 9(0505- )RHD
FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-60360 |
FZJ105,HZJ105 MAIN TANK |
1 | ||
| 83320-60360 |
FZJ105,HZJ105 |
1 | ||
| 83320-60360 |
FZJ105,HZJ105 MAIN TANK |
1 | ||
| 83320-60370 |
FZJ105,HZJ105 SUB TANK |
1 | ||
| 83320-60370 |
FZJ105,HZJ105 SUB TANK |
1 | ||
| 83320B - GAGE ASSY, FUEL SENDER, NO.2 | ||||
| 83320-69425 |
FZJ105,HZJ105 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 84550-16060 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 84550-16060 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-60010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 85530-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 85530-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 85535C - COVER, POWER OUTLET SOCKET, REAR | ||||
| 85535-60040B1 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN STONE,TRIM10 |
1 | ||
| 85535-60040B0 |
FZJ10#,HDJ100,HZJ105,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 85535-60040B1 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN STONE,TRIM1# |
1 | ||
| 85539A - LABEL, POWER OUTLET NOTICE, REAR | ||||
| 85539-60020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 85539-60020 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 85539-60020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-60100 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 85940-60100 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 85940-60080 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
2 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-60100 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 85940-60100 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 85940-60080 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
2 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-60100 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 85940-60100 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 85940-60080 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
2 | ||
| Common parts | ||||
| 90109-06296 | ||||
| 90119-06126 | ||||
| 90159-60303 | ||||
| 90189-06125 | ||||
| 93313-14012 | ||||
| 93319-14008 | ||||
| 93319-A4010 | ||||
ILLUST NO. 8 OF 9(0505- )UZJ100..LHD..5F ; (0505- )UZJ100..5FC..GCC,GEN ; (0505- )FZJ10#,HD
FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-60360 |
FZJ105,HZJ105 MAIN TANK |
1 | ||
| 83320-60360 |
FZJ105,HZJ105 MAIN TANK |
1 | ||
| 83320-60360 |
FZJ105,HZJ105 |
1 | ||
| 83320-60360 |
FZJ105,HZJ105 |
1 | ||
| 83320-60360 |
FZJ105,HZJ105 MAIN TANK |
1 | ||
| 83320-60360 |
FZJ105,HZJ105 MAIN TANK |
1 | ||
| 83320-60370 |
FZJ105,HZJ105 SUB TANK |
1 | ||
| 83320-60370 |
FZJ105,HZJ105 SUB TANK |
1 | ||
| 83320-60370 |
FZJ105,HZJ105 SUB TANK |
1 | ||
| 83320-60370 |
FZJ105,HZJ105 SUB TANK |
1 | ||
| 83320B - GAGE ASSY, FUEL SENDER, NO.2 | ||||
| 83320-69425 |
FZJ105,HZJ105 |
1 | ||
| 83320-69425 |
FZJ105,HZJ105 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 84550-16060 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 84550-16060 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 84550-16060 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 84550-16060 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 84550-16060 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-60010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 85530-60010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 85530-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 85530-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 85530-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 85530-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 85535C - COVER, POWER OUTLET SOCKET, REAR | ||||
| 85535-60040B1 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN STONE,TRIM10 |
1 | ||
| 85535-60040B1 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN STONE,TRIM10 |
1 | ||
| 85535-60040B0 |
FZJ10#,HDJ100,HZJ105,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 85535-60040B0 |
FZJ10#,HDJ100,HZJ105,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 85535-60040B1 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN STONE,TRIM1# |
1 | ||
| 85535-60040B1 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN STONE,TRIM1# |
1 | ||
| 85539A - LABEL, POWER OUTLET NOTICE, REAR | ||||
| 85539-60020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 85539-60020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 85539-60020 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 85539-60020 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 85539-60020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 85539-60020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-60100 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 85940-60100 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 85940-60100 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 85940-60100 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 85940-60080 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
2 | ||
| 85940-60080 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
2 | ||
| Common parts | ||||
| 90109-06296 | ||||
| 90189-06125 | ||||
| 93313-14012 | ||||
| 93319-14008 | ||||
| 93319-A4010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
