HZJ105R-GCMNS (1998)
Toyota Land Cruiser 100

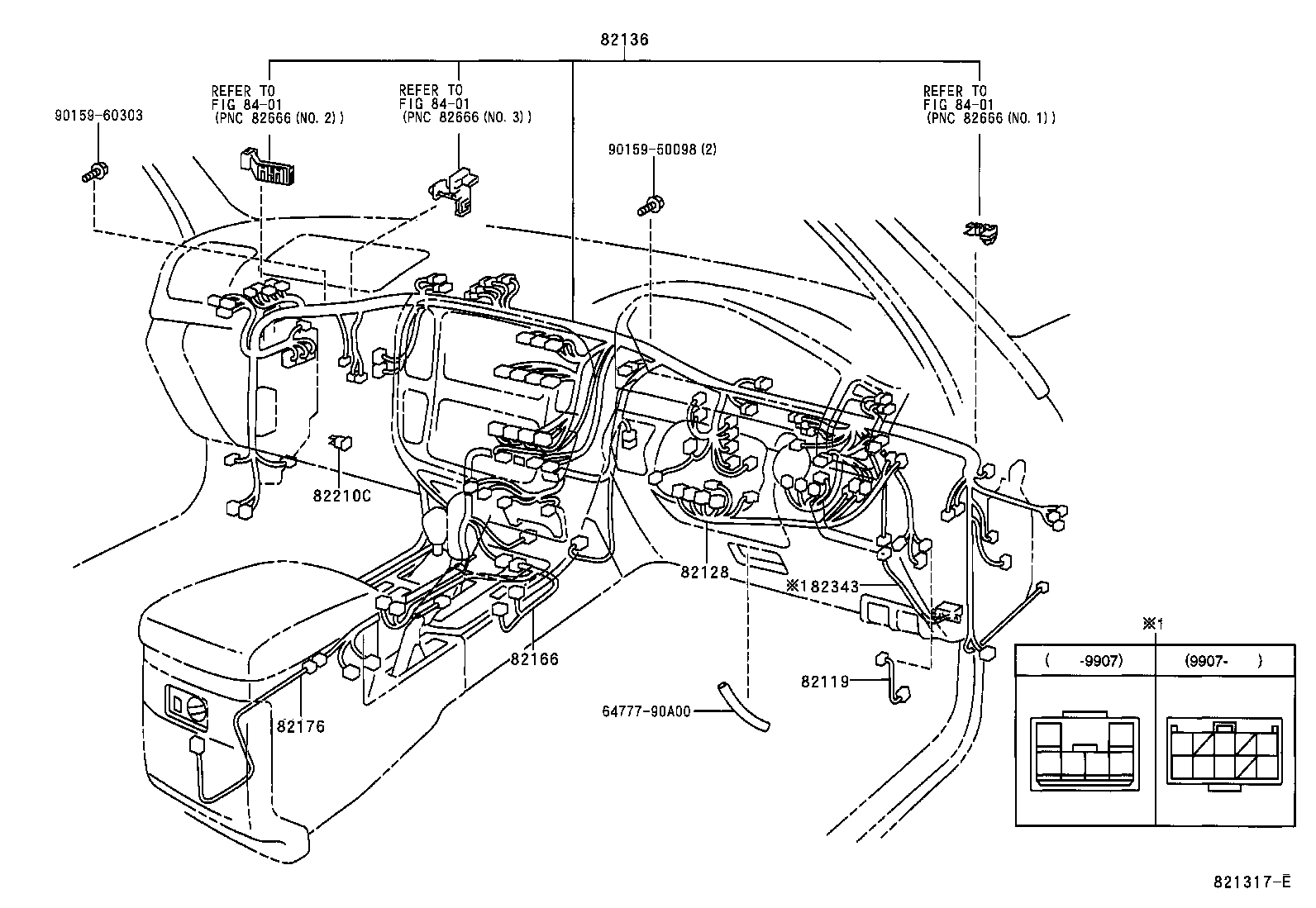

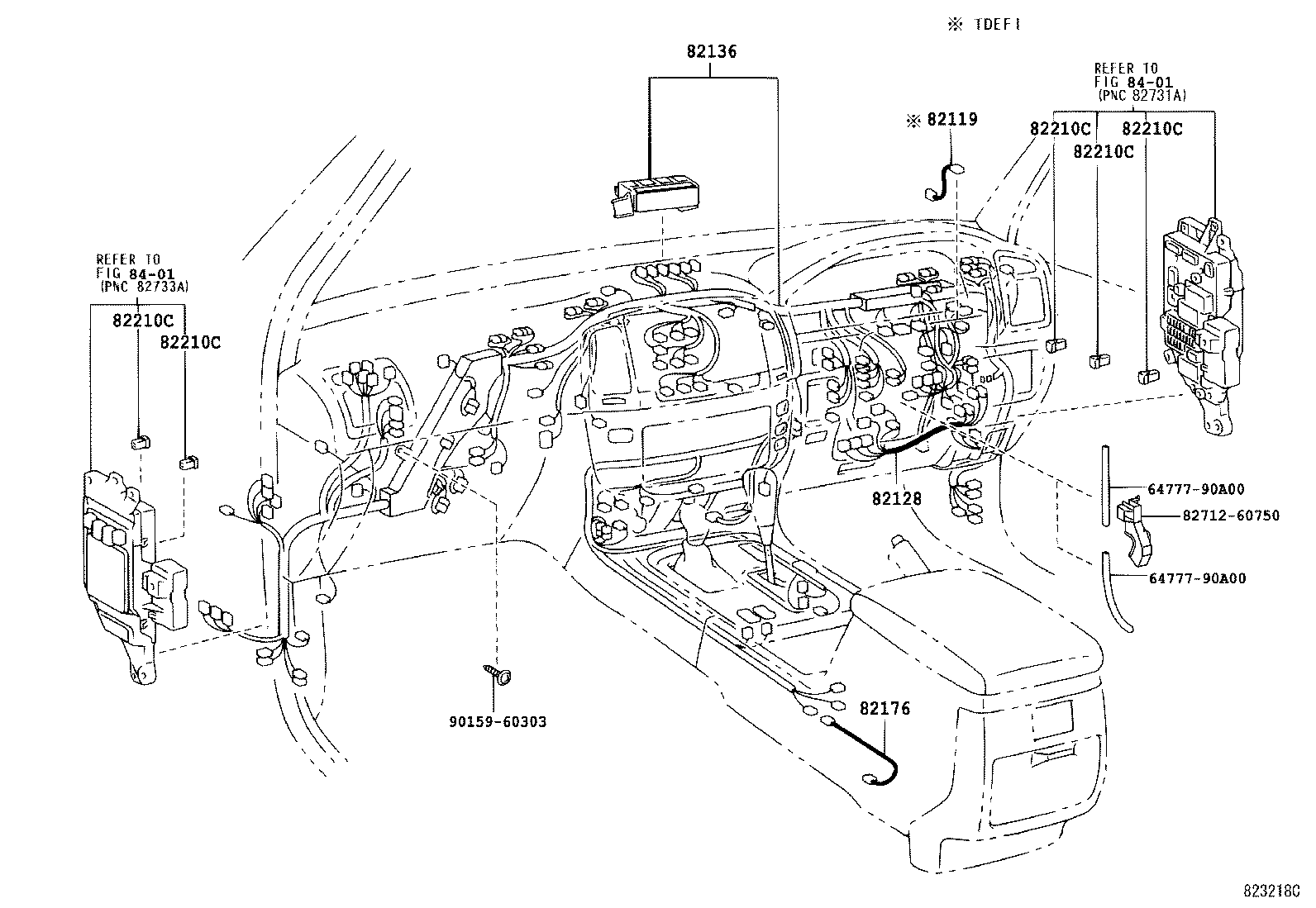

ILLUST NO. 3 OF10(9801-0208)RHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82128 - WIRE, COLUMN | ||||
| 82128-60060 |
FZJ105,HZJ105..RHD..SOB;FZJ105,HDJ100,HZJ105..RHD..LUB..GEN |
1 | ||
| 82128-60061 |
HZJ105..RHD..SOB;FZJ105,HDJ100,HZJ105..RHD..LUB..GEN |
1 | ||
| 82128-60062 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,STD) |
1 | ||
| 82128-60062 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,STD) |
1 | ||
| 82136 - WIRE, DASH | ||||
| 82136-60315 |
HZJ105..RHD..GEN SEPARATE SEAT TYPE |
1 | ||
| 82136-60310 |
HDJ100,HZJ105..RHD..(GX,VX) |
1 | ||
| 82136-60311 |
HDJ100,HZJ105..RHD W(SEPARATE SEAT) |
1 | ||
| 82136-60312 |
HDJ100,HZJ105..RHD..(GX,VX) |
1 | ||
| 82136-60313 |
HDJ100,HZJ105..RHD..(GX,VX) |
1 | ||
| 82136-60314 |
HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,TD2) |
1 | ||
| 82136-60315 |
HZJ105..RHD..GX..GEN |
1 | ||
| 82176 - WIRE, REAR CONSOLE BOX | ||||
| 82176-60020 |
HDJ100..LUB;FZJ105,HZJ105,UZJ100..ARL,GEN |
1 | ||
| 82176-60020 |
FZJ100..STD;FZJ105,HZJ105;FZJ100..LUB..5F;HDJ100,UZJ100..LUB..(ARL,GEN) |
1 | ||
| 82176-60021 |
FZJ105,HZJ105;FZJ100..LUB..5F;HDJ100,UZJ100..LUB..(ARL,GEN) W(FRONT & REAR HEATER) |
1 | ||
| 82176-60021 |
FZJ100..STD;FZJ105,HZJ105;FZJ100..LUB..5F;HDJ100,UZJ100..LUB..(ARL,GEN) W(SEPARATE SEAT) |
1 | ||
| 82176-60022 |
FZJ105,HZJ105;FZJ100..LUB..5F;HDJ100,UZJ100..LUB..GEN W(FRONT & REAR HEATER) |
1 | ||
| 82176-60052 |
HDJ100..LUB;FZJ105,HZJ105,UZJ100..ARL,GEN |
1 | ||
| 82176-60023 |
FZJ100,HDJ100..LUB;FZJ105,HZJ105,UZJ100..ARL,GEN |
1 | ||
| 82176-60052 |
HDJ100..LUB..GEN;FZJ105,HZJ105,UZJ100..GEN |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08291 |
FZJ105,HDJ100,HZJ105,UZJ100 80A,BLACK |
1 | ||
| 90982-08286 |
FZJ10#,HDJ100,HZJ105,UZJ100 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08290 |
FZJ105,HDJ100,HZJ105,UZJ100 60A,YELLOW |
1 | ||
| 90982-08284 |
FZJ10#,HDJ100,HZJ105,UZJ100 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08283 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08290 |
FZJ105..GX;HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 60A,YELLOW |
1 | ||
| 90982-08284 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08246 |
FZJ10#,HDJ100,HZJ105,UZJ100 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08291 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 80A,BLACK |
1 | ||
| 90982-08285 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08291 |
FZJ105..GX;HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 80A,BLACK |
1 | ||
| 90982-08283 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08285 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08283 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08285 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08291 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 80A,BLACK |
1 | ||
| 90982-08284 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 40A,TERM.:FEMALE,GRN |
1 | ||
| Common parts | ||||
| 64777-90A00 | ||||
| 90159-50098 | ||||
| 90159-60303 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 5 OF10(9801-0208)
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-60280 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX) W(POWER WINDOW) |
1 | ||
| 82151-60271 |
FZJ10#,HZJ105..GX |
1 | ||
| 82151-60270 |
FZJ10#,HZJ105..GX |
1 | ||
| 82151-60272 |
FZJ10#,HDJ100,HZJ105..GX |
1 | ||
| 82151-60273 |
HZJ105..LHD..STD;FZJ10#,HDJ100,HZJ105,UZJ100..GX..(ARL,GCC,GEN) |
1 | ||
| 82151-60281 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX) W(POWER WINDOW) |
1 | ||
| 82151-60303 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX) W(POWER WINDOW) |
1 | ||
| 82151-60273 |
FZJ105,HZJ105..GX..(GCC,GEN) |
1 | ||
| 82151-60282 |
HDJ100..RHD..GEN;FZJ105,HDJ100,HZJ105..RHD..GX W(POWER WINDOW) |
1 | ||
| 82151-60303 |
FZJ105,HZJ105..RHD..GX..GEN W(POWER WINDOW) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-60230 |
FZJ10#,HZJ105..GX |
1 | ||
| 82152-60281 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX) W(POWER WINDOW) |
1 | ||
| 82152-60280 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX) W(POWER WINDOW) |
1 | ||
| 82152-60231 |
FZJ10#,HZJ105..GX |
1 | ||
| 82152-60282 |
HDJ100..RHD..GEN;FZJ105,HDJ100,HZJ105..RHD..GX W(POWER WINDOW) |
1 | ||
| 82152-60233 |
HZJ105..LHD..STD;FZJ10#,HDJ100,HZJ105,UZJ100..GX..(ARL,GCC,GEN) |
1 | ||
| 82152-60232 |
FZJ10#,HDJ100,HZJ105..GX |
1 | ||
| 82152-60293 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX) W(POWER WINDOW) |
1 | ||
| 82152-60233 |
FZJ105,HZJ105..GX..(GCC,GEN) |
1 | ||
| 82152-60293 |
FZJ105,HZJ105..RHD..GX..GEN W(POWER WINDOW) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-60120 |
FZJ10#,HZJ105..GX |
1 | ||
| 82153-60132 |
HDJ100..GX;FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(DSL2,EFI,TD2) W(POWER WINDOW) |
1 | ||
| 82153-60130 |
FZJ10#,HDJ100,HZJ105,UZJ100..GX,VX W(POWER WINDOW) |
1 | ||
| 82153-60123 |
HZJ105..LHD..STD;FZJ10#,HDJ100,HZJ105,UZJ100..GX..(ARL,GCC,GEN) |
1 | ||
| 82153-60121 |
FZJ10#,HZJ105..GX |
1 | ||
| 82153-60143 |
FZJ100..STD;FZJ105,HZJ105..GX..(GCC,GEN) W(POWER WINDOW) |
1 | ||
| 82153-60131 |
FZJ10#,HDJ100,HZJ105,UZJ100..GX,VX W(POWER WINDOW) |
1 | ||
| 82153-60122 |
FZJ10#,HDJ100,HZJ105..GX |
1 | ||
| 82153-60123 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX..(GCC,GEN) |
1 | ||
| 82153-60143 |
FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN W(POWER WINDOW) |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82153-60122 |
FZJ10#,HDJ100,HZJ105..GX |
1 | ||
| 82153-60131 |
FZJ10#,HDJ100,HZJ105,UZJ100..GX,VX W(POWER WINDOW) |
1 | ||
| 82153-60120 |
FZJ10#,HZJ105..GX |
1 | ||
| 82153-60130 |
FZJ10#,HDJ100,HZJ105,UZJ100..GX,VX W(POWER WINDOW) |
1 | ||
| 82153-60123 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX..(GCC,GEN) |
1 | ||
| 82153-60132 |
HDJ100..GX;FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(DSL2,EFI,TD2) W(POWER WINDOW) |
1 | ||
| 82153-60143 |
FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN W(POWER WINDOW) |
1 | ||
| 82153-60123 |
HZJ105..LHD..STD;FZJ10#,HDJ100,HZJ105,UZJ100..GX..(ARL,GCC,GEN) |
1 | ||
| 82153-60121 |
FZJ10#,HZJ105..GX |
1 | ||
| 82153-60143 |
FZJ100..STD;FZJ105,HZJ105..GX..(GCC,GEN) W(POWER WINDOW) |
1 | ||
| Common parts | ||||
| 90467-09030 | ||||
ILLUST NO. 6 OF10(9801-0208)
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-60020 |
HDJ100,UZJ100..LHD;FZJ105,HDJ100,HZJ105..RHD..(GX,STD) |
1 | ||
| 82191-60021 |
UZJ100..5F;HDJ100..LHD;UZJ100..5FC..GX..ARL;UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105..(GX,STD)..(ARL,GCC,GEN) |
1 | ||
| 82191-60021 |
HDJ100..LHD;HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,UZJ100..GCC,GEN |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-60021 |
HDJ100,UZJ100..RHD;FZJ10#,HZJ105..ARL,GCC,GEN |
1 | ||
| 82192-60020 |
FZJ105,HZJ105..RHD W(*80,DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| 82192-60021 |
FZJ105,HZJ105..RHD..GEN W(*80,DRIVER SIDE & PASSENGER SIDE) |
1 | ||
ILLUST NO. 1 OF10(9801-0208)HDJ100,HZJ105
ENGINE ROOM(2-BATTERY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-6A090 |
HDJ100,HZJ105 |
1 | ||
| 82111-6A101 |
HDJ100,HZJ105..(GX,VX)..(ARL,GEN) W(DUAL AIR CONDITIONER) |
1 | ||
| 82111-6A091 |
HDJ100,HZJ105 |
1 | ||
| 82111-6A091 |
HZJ105;HDJ100..LUB |
1 | ||
| 82111-6A100 |
HZJ105..GX W(SINGLE AIR CONDITIONER) |
1 | ||
| 82111-6A101 |
HDJ100,HZJ105..GX,VX W(DUAL AIR CONDITIONER) |
1 | ||
| 82111-6A093 |
HZJ105;HDJ100..LUB..GEN |
1 | ||
| 82111-6A103 |
HZJ105..GX..(ARL,GEN) W(COOL BOX & SINGLE AIR CONDITIONER) |
1 | ||
| 82111-6A095 |
HZJ105 |
1 | ||
| 82111-6A104 |
HZJ105..GX..(ARL,GEN) W(SINGLE AIR CONDITIONER) |
1 | ||
| 82111-6A096 |
HZJ105 |
1 | ||
| 82111-6A105 |
HZJ105..GX..GEN W(COOL BOX) |
1 | ||
| 82111-6A097 |
HZJ105 |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-60310 |
HDJ100,HZJ105..RHD |
1 | ||
| 82112-60220 |
HDJ100,HZJ105..RHD..(GX,VX) W(ABS) |
1 | ||
| 82112-60311 |
HDJ100,HZJ105..RHD |
1 | ||
| 82112-60221 |
HDJ100,HZJ105..RHD..(GX,VX) W(ABS) |
1 | ||
| 82112-60312 |
HDJ100,HZJ105..RHD..(DSL2,TD2) |
1 | ||
| 82112-60222 |
HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,TD2) W(ABS) |
1 | ||
| 82112-60223 |
HZJ105..RHD..GX W(ABS) |
1 | ||
| 82112-60224 |
HZJ105..RHD..GX W(ABS) |
1 | ||
| 82112-60313 |
HZJ105..RHD |
1 | ||
| 82112-60225 |
HZJ105..RHD..GX W(ABS) |
1 | ||
| 82112-60314 |
HZJ105..RHD |
1 | ||
| 82112-60314 |
HZJ105..RHD..SOB;HZJ105..RHD..LUB..GEN |
1 | ||
| 82112-60225 |
HZJ105..RHD..GX..GEN W(ABS) |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-60070 |
HZJ105..ARL,GEN;HDJ100..LUB..GEN W(1 BATTERY) |
1 | ||
| 82113-60070 |
HDJ100,HZJ105 W(1 BATTERY) |
1 | ||
| 82127 - WIRE, DIFFERENTIAL | ||||
| 82127-60030 |
FZJ105,HZJ105..RHD |
1 | ||
| 82127-60030 |
HZJ105..RHD..SOB;FZJ105,HZJ105..RHD..LUB..GEN |
1 | ||
| 82127-60030 |
FZJ105,HZJ105..RHD |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08291 |
FZJ105,HDJ100,HZJ105,UZJ100 80A,BLACK |
1 | ||
| 90982-08286 |
FZJ10#,HDJ100,HZJ105,UZJ100 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08290 |
FZJ105,HDJ100,HZJ105,UZJ100 60A,YELLOW |
1 | ||
| 90982-08284 |
FZJ10#,HDJ100,HZJ105,UZJ100 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08283 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08290 |
FZJ105..GX;HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 60A,YELLOW |
1 | ||
| 90982-08284 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08246 |
FZJ10#,HDJ100,HZJ105,UZJ100 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08291 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 80A,BLACK |
1 | ||
| 90982-08285 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08291 |
FZJ105..GX;HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 80A,BLACK |
1 | ||
| 90982-08283 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08285 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08283 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08285 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08291 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 80A,BLACK |
1 | ||
| 90982-08284 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 40A,TERM.:FEMALE,GRN |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08291 |
FZJ105,HDJ100,HZJ105,UZJ100 80A,BLACK |
1 | ||
| 90982-08286 |
FZJ10#,HDJ100,HZJ105,UZJ100 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08290 |
FZJ105,HDJ100,HZJ105,UZJ100 60A,YELLOW |
1 | ||
| 90982-08284 |
FZJ10#,HDJ100,HZJ105,UZJ100 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08283 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08290 |
FZJ105..GX;HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 60A,YELLOW |
1 | ||
| 90982-08284 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08246 |
FZJ10#,HDJ100,HZJ105,UZJ100 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08291 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 80A,BLACK |
1 | ||
| 90982-08285 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08291 |
FZJ105..GX;HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 80A,BLACK |
1 | ||
| 90982-08283 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08285 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08283 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08285 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08291 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 80A,BLACK |
1 | ||
| 90982-08284 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 40A,TERM.:FEMALE,GRN |
1 | ||
| 82261A - WIRE, ALTERNATOR | ||||
| 82261-60070 |
HDJ100,HZJ105..DSL2,TD2 |
1 | ||
| 82261-60071 |
HZJ105 |
1 | ||
| 82261-60071 |
HZJ105 |
1 | ||
| 82621 - COVER, FUSIBLE LINK | ||||
| 82621-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 82621-60010 |
FZJ105..GX;HDJ100..LUB;FZJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 82621-60010 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 82666-60060 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 82666-60060 |
HZJ105;FZJ105..RHD;FZJ100,HDJ100,UZJ100..(GX,VX)..(GCC,GEN) |
1 | ||
| 82666-60060 |
HZJ105;FZJ105..RHD;FZJ100,HDJ100,UZJ100..(GX,VX)..(GCC,GEN) |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-24110 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 82817-24110 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100 |
2 | ||
| 82817-24110 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 82817-24110 |
FZJ105..GX;HDJ100..LUB;FZJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 82817-24110 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-24110 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 82817-24110 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100 |
2 | ||
| 82817-24110 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 82817-24110 |
FZJ105..GX;HDJ100..LUB;FZJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 82817-24110 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 82823-22050 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 82823-22050 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06335 | ||||
| 91511-60614 | ||||
| 91651-40610 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 4 OF10(9801-0208)RHD
INSTRUMENT PANEL

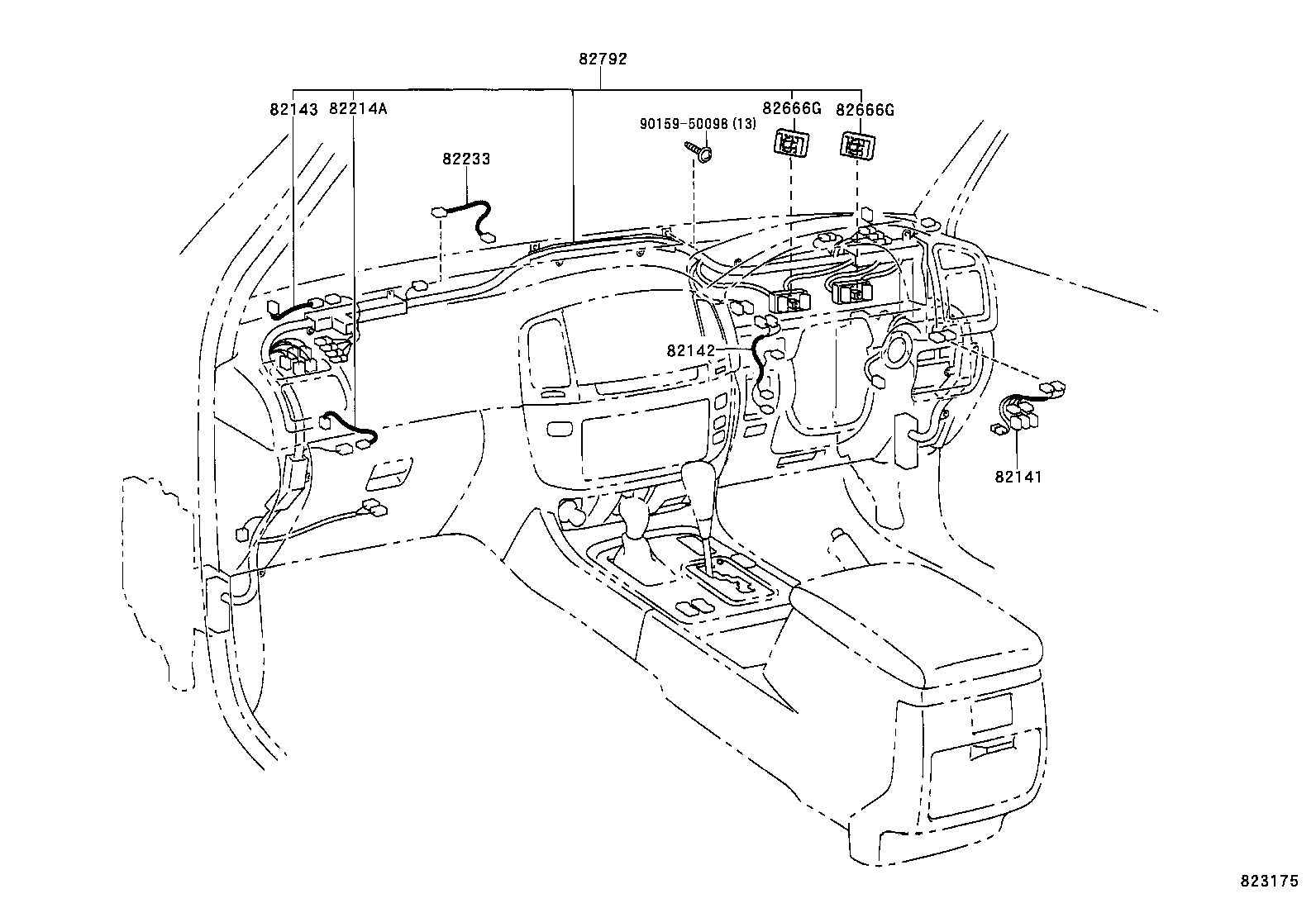

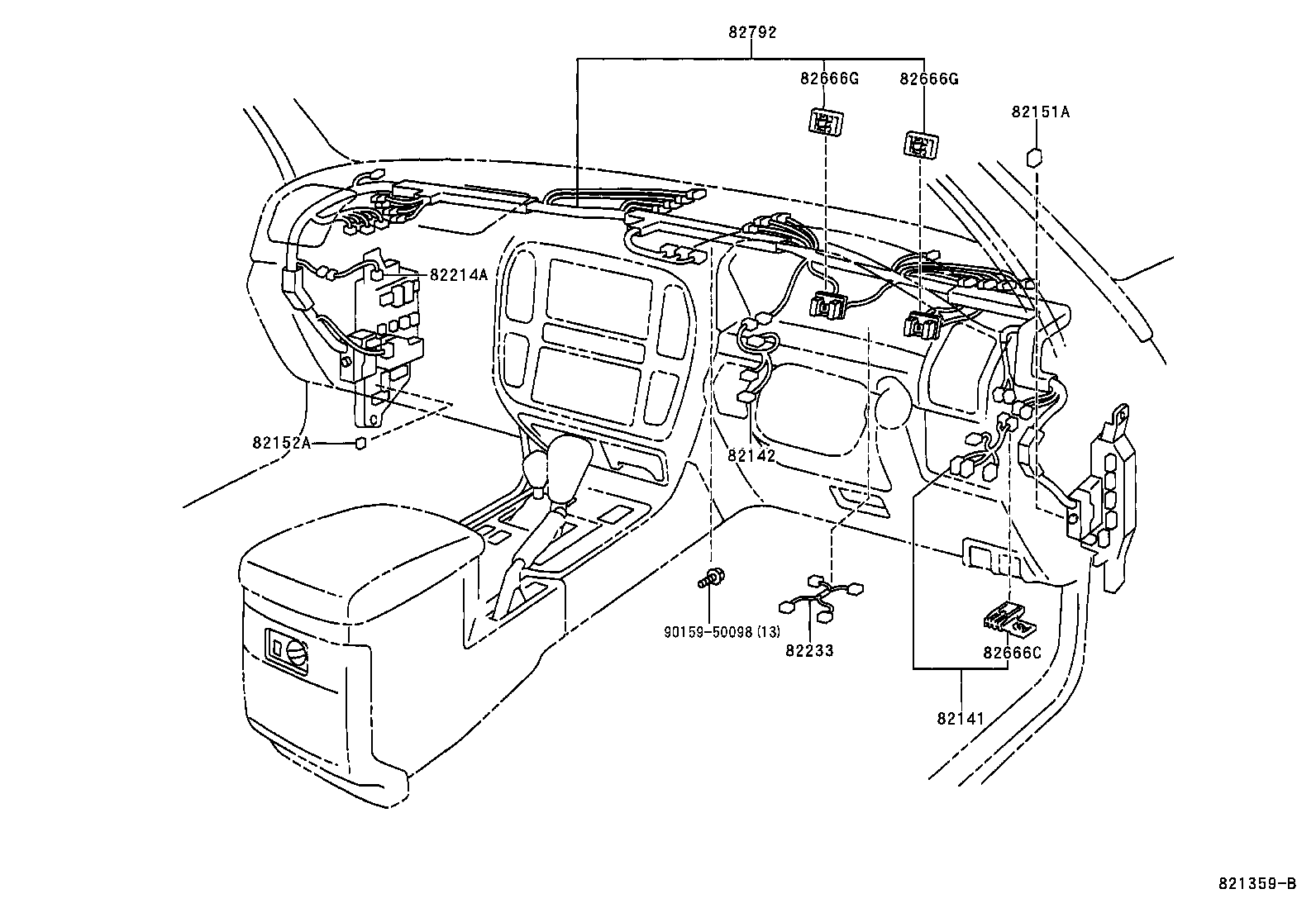

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-60240 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX) |
1 | ||
| 82141-60241 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX) |
1 | ||
| 82141-60242 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD..GX |
1 | ||
| 82141-60242 |
HZJ105..ARL;HZJ105..RHD..GX..GEN;FZJ105,HDJ100,UZJ100..RHD..GX |
1 | ||
| 82141-60242 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD..GX |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-60070 |
FZJ105,HZJ105..RHD..GEN |
1 | ||
| 82142-60071 |
FZJ105,HZJ105..RHD..GEN |
1 | ||
| 82142-60071 |
FZJ105,HZJ105..RHD..GEN |
1 | ||
| 82214A - WIRE, LAMP | ||||
| 82214-60030 |
FZJ105..GX;FZJ100..LUB;HDJ100,HZJ105;FZJ100..SOB..4FC;FZJ10#,UZJ100..LHD..(STD,VX) |
1 | ||
| 82214-60030 |
FZJ100..STD;FZJ105,HZJ105;HDJ100,UZJ100..RHD |
1 | ||
| 82214-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 82214-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 82233 - WIRE, COMPUTER | ||||
| 82233-60010 |
FZJ105,HDJ100,HZJ105,UZJ100..(GX,VX)..GEN |
1 | ||
| 82233-60011 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 82233-60011 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX..(GCC,GEN);FZJ100,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-60120 |
FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100;FZJ105,HZJ105..LHD..STD |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-60050 |
FZJ105..GX;FZJ100..LUB;HDJ100,HZJ105;FZJ100..SOB..4FC;FZJ10#,UZJ100..LHD..(STD,VX) |
2 | ||
| 82666-60050 |
FZJ10#,HZJ105..ARL,GCC,GEN |
2 | ||
| 82666-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 82666-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-60050 |
FZJ105..GX;FZJ100..LUB;HDJ100,HZJ105;FZJ100..SOB..4FC;FZJ10#,UZJ100..LHD..(STD,VX) |
2 | ||
| 82666-60050 |
FZJ10#,HZJ105..ARL,GCC,GEN |
2 | ||
| 82666-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 82666-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 82792 - WIRE, INSTRUMENT PANEL INTEGRATION | ||||
| 82792-60200 |
FZJ105,HZJ105..RHD..GEN |
1 | ||
| 82792-60201 |
FZJ105,HZJ105..RHD..GEN |
1 | ||
| 82792-60025 |
FZJ105,HZJ105..RHD..GEN W(AIR BAG) |
1 | ||
| 82792-60201 |
FZJ105,HZJ105..RHD..GEN |
1 | ||
| 82792-60031 |
FZJ105,HZJ105..RHD |
1 | ||
| 82792-60030 |
FZJ105,HZJ105..RHD |
1 | ||
| 82792-60022 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 82792-60023 |
FZJ105,HDJ100,HZJ105..RHD |
1 | ||
| 82792-60024 |
FZJ105,HZJ105..RHD..GEN W(AIR BAG) |
1 | ||
| 82792-60025 |
FZJ105,HZJ105..RHD..GEN W(AIR BAG) |
1 | ||
| Common parts | ||||
| 90159-50098 | ||||
ILLUST NO. 7 OF10(9801-0208)
FLOOR,ROOF,LUGGAGE,BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82155 - WIRE, CENTER PILLER, NO.1 | ||||
| 82155-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB..(GX,VX) |
1 | ||
| 82155-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB..(GX,VX) |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-60552 |
FZJ105,HDJ100,HZJ105..SOB..GEN W(FUEL SUB TANK) |
1 | ||
| 82161-60735 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100..ARL,GCC,GEN W(FUEL SUB TANK) |
1 | ||
| 82161-60664 |
HDJ100..LUB..GEN;FZJ105,HZJ105..GEN |
1 | ||
| 82161-60542 |
FZJ105,HDJ100,HZJ105..SOB..GEN |
1 | ||
| 82161-60665 |
HDJ100..LUB..GEN;FZJ105,HZJ105..GEN |
1 | ||
| 82161-60666 |
HDJ100..LUB..GEN;FZJ105,HZJ105..RHD..GX..GEN |
1 | ||
| 82161-60736 |
HDJ100..LUB..GEN;FZJ105,HZJ105..RHD..GX..GEN W(FUEL SUB TANK) |
1 | ||
| 82161-60735 |
HDJ100..LUB..GEN;FZJ105,HZJ105..RHD..GX..GEN W(FUEL SUB TANK) |
1 | ||
| 82161-60540 |
FZJ105,HDJ100,HZJ105..SOB..GEN |
1 | ||
| 82161-60550 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB W(SUB FUEL TANK) |
1 | ||
| 82161-60551 |
FZJ105,HDJ100,HZJ105..SOB..GEN W(FUEL SUB TANK) |
1 | ||
| 82161-60541 |
FZJ105,HDJ100,HZJ105..SOB..GEN |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-60480 |
FZJ105,HDJ100,HZJ105,UZJ100 W(DUAL MANUAL AIR CONDITIONER) |
1 | ||
| 82162-60481 |
UZJ100..LUB;FZJ105,HDJ100,HZJ105 |
1 | ||
| 82162-60710 |
FZJ105,HZJ105..ARL,GEN |
1 | ||
| 82162-60711 |
FZJ105,HZJ105..ARL,GEN W(REAR DIFFERENTIAL LOCK) |
1 | ||
| 82162-60482 |
UZJ100..LUB;FZJ105,HDJ100,HZJ105 |
1 | ||
| 82162-60712 |
FZJ105,HZJ105..ARL,GEN W(REAR DIFFERENTIAL LOCK) |
1 | ||
| 82162-60484 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100..ARL,GCC,GEN SEPARATE SEAT TYPE |
1 | ||
| 82162-60484 |
FZJ105,HZJ105..RHD..GX;HDJ100,UZJ100..LUB..5FC..(GCC,GEN);HDJ100,UZJ100..LUB..5F..(ARL,GCC,GEN);FZJ100,HDJ100,UZJ100..ATM..GX..(ARL,GCC) |
1 | ||
| 82162-60483 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100 SEPARATE SEAT TYPE |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-60210 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 82163-60211 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 82163-60212 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 82163-60213 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 82163-60213 |
HDJ100..5FC..GX;UZJ100..GX..ARL;FZJ105,HDJ100,HZJ105..RHD..5F |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-60280 |
FZJ105,HZJ105 W(REAR DIFFERENTIAL LOCK) |
1 | ||
| 82164-60250 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS) |
1 | ||
| 82164-60250 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS) |
1 | ||
| 82164-60280 |
FZJ105,HZJ105 W(REAR DIFFERENTIAL LOCK) |
1 | ||
| 82164-60260 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS & REAR DIFFERENTIAL LOCK) |
1 | ||
| 82164-60250 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX..(GCC,GEN) W(ABS) |
1 | ||
| 82164-60260 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS & REAR DIFFERENTIAL LOCK) |
1 | ||
| 82164-60280 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN W(REAR DIFFERENTIAL LOCK) |
1 | ||
| 82164-60260 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX..(GCC,GEN) W(ABS & REAR DIFFERENTIAL LOCK) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-60620 |
FZJ10#,HDJ100,HZJ105,UZJ100..GX,VX W(OVERHEAD CONSOLE---SMALL) |
1 | ||
| 82171-60700 |
FZJ10#,HZJ105 |
1 | ||
| 82171-60621 |
UZJ100..GEN;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TD2) W(OVERHEAD CONSOLE---SMALL) |
1 | ||
| 82171-60701 |
FZJ10#,HDJ100,HZJ105..GX,STD |
1 | ||
| 82171-60702 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN |
1 | ||
| 82171-60702 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) |
1 | ||
| 82171-60622 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(GCC,GEN) W(MOON ROOF) |
1 | ||
| 82171-60622 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(GCC,GEN) W(MOON ROOF) |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-60190 |
FZJ100..STD;FZJ105,HZJ105..SOB..GEN W(HIGH MOUNT STOP LAMP) |
1 | ||
| 82184-60210 |
FZJ105,HZJ105..SOB..GEN;FZJ100,HDJ100..SOB..(STD,VX) |
1 | ||
| 82184-60201 |
FZJ100..STD;FZJ105,HZJ105..SOB..GEN W(REAR WINDOW DEFOGGER & HIGH MOUNT STOP LAMP) |
1 | ||
| 82184-60191 |
FZJ100..STD;FZJ105,HZJ105..SOB..GEN W(HIGH MOUNT STOP LAMP) |
1 | ||
| 82184-60192 |
FZJ10#,HZJ105..SOB..(GCC,GEN) W(HIGH MOUNT STOP LAMP) |
1 | ||
| 82184-60202 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB W(REAR WINDOW DEFOGGER & HIGH MOUNT STOP LAMP) |
1 | ||
| 82184-60200 |
FZJ105..SOB..GEN;FZJ100,HDJ100,HZJ105..SOB W(REAR WINDOW DEFOGGER) |
1 | ||
| 82184-60192 |
FZJ10#,HZJ105..SOB..(GCC,GEN) W(HIGH MOUNT STOP LAMP) |
1 | ||
| 82184-60212 |
FZJ105,HZJ105..SOB..GEN;FZJ100,HDJ100..SOB..(STD,VX) W(REAR WINDOW DEFOGGER) |
1 | ||
| 82184-60211 |
FZJ105,HZJ105..SOB..GEN;FZJ100,HDJ100..SOB..(STD,VX) W(REAR WINDOW DEFOGGER) |
1 | ||
| 82184-60212 |
FZJ105,HZJ105..SOB..GEN;FZJ100,HDJ100..SOB..(STD,VX) W(REAR WINDOW DEFOGGER) |
1 | ||
| 82184-60202 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB W(REAR WINDOW DEFOGGER & HIGH MOUNT STOP LAMP) |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-60070 |
FZJ100..STD;FZJ105,HZJ105..SOB..GEN W(HIGH MOUNT STOP LAMP) |
1 | ||
| 82185-60071 |
FZJ10#,HZJ105..SOB..(GCC,GEN) |
1 | ||
| 82185-60080 |
FZJ105..SOB..GEN;FZJ100,HDJ100,HZJ105..SOB W(REAR WINDOW DEFOGGER) |
1 | ||
| 82185-60081 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB W(REAR WINDOW DEFOGGER) |
1 | ||
| 82185-60072 |
FZJ10#,HZJ105..SOB..(GCC,GEN) |
1 | ||
| 82185-60081 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB W(REAR WINDOW DEFOGGER) |
1 | ||
| 82185-60072 |
FZJ10#,HZJ105..SOB..(GCC,GEN) |
1 | ||
| 82413A - WIRE, FUEL TANK | ||||
| 82413-60010 |
FZJ105,HDJ100,HZJ105,UZJ100..GEN |
1 | ||
| 82413-60020 |
HDJ100,HZJ105..DSL2,TD2 W(SUB FUEL TANK) |
1 | ||
| 82413-60010 |
FZJ105,HDJ100,HZJ105..GEN |
1 | ||
| 82413-60011 |
FZJ105,HDJ100,HZJ105..GEN W(SUB FUEL TANK) |
1 | ||
| 82413-60021 |
HDJ100,HZJ105 |
1 | ||
| 82413-60011 |
FZJ105,HDJ100,HZJ105..GEN |
1 | ||
| 82413-60021 |
HDJ100,HZJ105..GEN W(FUEL SUB TANK) |
1 | ||
| 82414A - WIRE, FUEL TANK, NO.2 | ||||
| 82414-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 82414-60012 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 82414-60012 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 82414-60011 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-60270 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN NO.1 |
1 | ||
| 82666-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN NO.2 |
2 | ||
| 82666-60110 |
FZJ10#,HDJ100,HZJ105,UZJ100 NO.2 |
1 | ||
| 82666-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN NO.2 |
2 | ||
| 82666-60100 |
FZJ10#,HDJ100,HZJ105,UZJ100 NO.1 |
1 | ||
| 82666-60270 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN NO.1 |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-60270 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN NO.1 |
1 | ||
| 82666-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN NO.2 |
2 | ||
| 82666-60110 |
FZJ10#,HDJ100,HZJ105,UZJ100 NO.2 |
1 | ||
| 82666-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN NO.2 |
2 | ||
| 82666-60100 |
FZJ10#,HDJ100,HZJ105,UZJ100 NO.1 |
1 | ||
| 82666-60270 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN NO.1 |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100..DSL2,EFI,TD2 NO.2 |
1 | ||
| 82666-60060 |
HDJ100..ARL;HDJ100..LHD;FZJ10#,HZJ105,UZJ100 NO.2 |
1 | ||
| 82666-60070 |
HDJ100..VX;HDJ100..5FC..GX;FZJ10#,HZJ105,UZJ100..ARL,GCC,GEN NO.1 & NO.4 |
2 | ||
| 82666-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN NO.2 & NO.5 |
2 | ||
| 82666-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN NO.1 & NO.4 |
2 | ||
| 82666-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN NO.2 & NO.5 |
2 | ||
| 82666-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..DSL2,EFI,TD2 NO.1 |
3 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100..DSL2,EFI,TD2 NO.2 |
1 | ||
| 82666-60060 |
HDJ100..ARL;HDJ100..LHD;FZJ10#,HZJ105,UZJ100 NO.2 |
1 | ||
| 82666-60070 |
HDJ100..VX;HDJ100..5FC..GX;FZJ10#,HZJ105,UZJ100..ARL,GCC,GEN NO.1 & NO.4 |
2 | ||
| 82666-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN NO.2 & NO.5 |
2 | ||
| 82666-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN NO.1 & NO.4 |
2 | ||
| 82666-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN NO.2 & NO.5 |
2 | ||
| 82666-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..DSL2,EFI,TD2 NO.1 |
3 | ||
| Common parts | ||||
| 82712-60100 | ||||
| 82712-60110 | ||||
| 82712-60120 | ||||
| 82712-60150 | ||||
| 90119-06005 | ||||
| 90119-06838 | ||||
| 90179-06115 | ||||
| 90333-25003 | ||||
| Linked diagrams | ||||
| 4101 | ||||

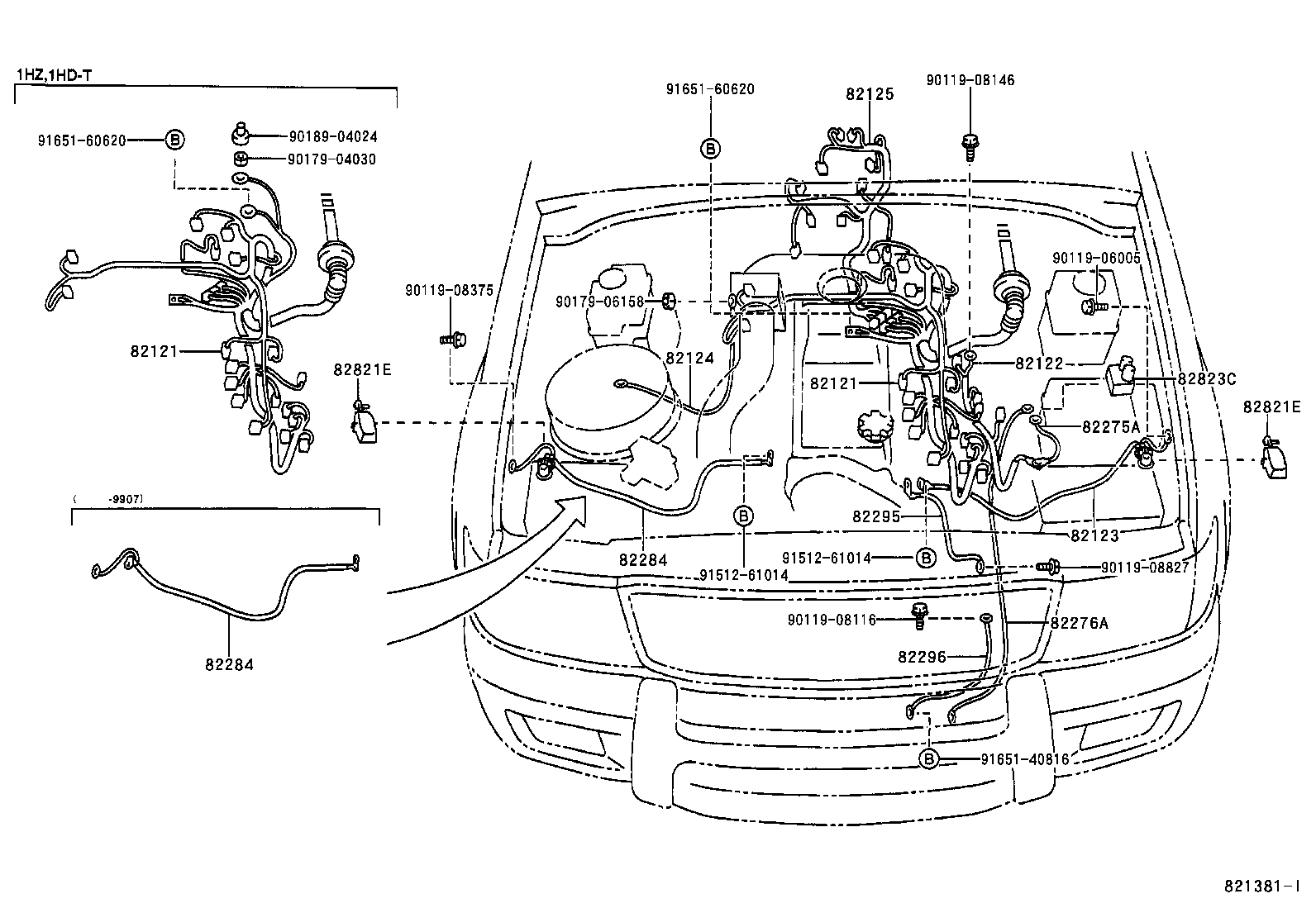

ILLUST NO. 2 OF10(9801-0208)HDJ100,HZJ105
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-6A090 |
HDJ100,HZJ105..RHD..5F..(DSL2,TD2) |
1 | ||
| 82121-6A091 |
HZJ105..RHD..GEN |
1 | ||
| 82121-6A091 |
HZJ105..RHD..GEN |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-6A090 |
HDJ100,HZJ105..RHD..5F..(DSL2,TD2) |
1 | ||
| 82121-6A091 |
HZJ105..RHD..GEN |
1 | ||
| 82121-6A091 |
HZJ105..RHD..GEN |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-60360 |
HZJ105 |
1 | ||
| 82122-60361 |
HZJ105 |
1 | ||
| 82122-60362 |
HZJ105 |
1 | ||
| 82122-60361 |
HZJ105 |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-60450 |
HZJ105..SOB;HZJ105..LUB..GEN |
1 | ||
| 82125-60410 |
HZJ105..GCC,GEN;HZJ105..5F..GX..ARL W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
1 | ||
| 82125-60452 |
HZJ105..SOB;HZJ105..LUB..GEN |
1 | ||
| 82125-60451 |
HZJ105..SOB;HZJ105..LUB..GEN |
1 | ||
| 82125-60412 |
HZJ105..GCC,GEN;HZJ105..5F..GX..ARL W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
1 | ||
| 82125-60411 |
HZJ105..GCC,GEN;HZJ105..GX..ARL W(CENTER DIFFERENTIAL LOCK) |
1 | ||
| 82125-60411 |
HZJ105..GCC,GEN W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
1 | ||
| 82125-60451 |
HZJ105..SOB;HZJ105..LUB..GEN |
1 | ||
| 82275A - CABLE, BATTERY TO MAGNET SWITCH | ||||
| 82275-60100 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 82275-60100 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 82275-60100 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 82276A - CABLE, MAGNET SWITCH TO WINCH | ||||
| 82276-60090 |
FZJ105,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 82276-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 82276-60090 |
FZJ105,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 82295 - WIRE, WINCH EARTH | ||||
| 82295-60060 |
FZJ105,HZJ105..GCC,GEN |
1 | ||
| 82295-60060 |
FZJ105,HZJ105..GCC,GEN |
1 | ||
| 82295-60050 |
HZJ105..GCC,GEN |
1 | ||
| 82295-60060 |
FZJ105,HZJ105 |
1 | ||
| 82295-60060 |
FZJ105,HZJ105 |
1 | ||
| 82296 - WIRE, WINCH EARTH, NO.2 | ||||
| 82296-60020 |
FZJ105,HZJ105..GCC,GEN |
1 | ||
| 82296-60020 |
FZJ105,HZJ105..GCC,GEN |
1 | ||
| 82296-60020 |
FZJ105,HZJ105..GCC,GEN |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-12400 |
HZJ105 |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-12400 |
HZJ105 |
1 | ||
| 82823C - CAP, TERMINAL, NO.4 | ||||
| 82823-90300 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 82823-90300 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 82823-90300 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-08116 | ||||
| 90119-08146 | ||||
| 90119-08375 | ||||
| 90119-08827 | ||||
| 90179-04030 | ||||
| 90179-06158 | ||||
| 90189-04024 | ||||
| 91512-61014 | ||||
| 91651-40816 | ||||
| 91651-60620 | ||||
ILLUST NO. 8 OF10(9801- )
BRACKET & CLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 35139-60020 | ||||
| 82710-60011 | ||||
| 82711-14110 | ||||
| 82711-22270 | ||||
| 82711-60410 | ||||
| 82715-10030 | ||||
| 82715-37150 | ||||
| 82715-60050 | ||||
| 82715-60430 | ||||
| 82715-60440 | ||||
| 82715-60450 | ||||
| 82715-60460 | ||||
| 82715-60470 | ||||
| 82715-60480 | ||||
| 82715-60490 | ||||
| 82715-60500 | ||||
| 82715-60560 | ||||
| 82715-60570 | ||||
| 82715-60700 | ||||
| 82715-60710 | ||||
| 82715-60740 | ||||
| 82715-60750 | ||||
| 82715-60780 | ||||
| 82715-60790 | ||||
| 82715-60820 | ||||
| 82729-60290 | ||||
| 82817-60540 | ||||
| 88266-60390 | ||||
| 90119-06416 | ||||
| 90464-00234 | ||||
| 90464-00241 | ||||
| 91511-60614 | ||||
| 91512-61014 | ||||
| 91621-J0612 | ||||
| 91621-J0814 | ||||
| 91651-40614 | ||||
| 91651-40816 | ||||
| 91651-60612 | ||||
| 91651-60614 | ||||
| 91651-61016 | ||||
| 91651-B0814 | ||||
| 91651-B0816 | ||||
| 91652-60816 | ||||
| 94130-00602 | ||||
ILLUST NO. 8 OF10(9801- )
BRACKET & CLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 32925-60190 | ||||
| 82711-12120 | ||||
| 82711-12200 | ||||
| 82711-14110 | ||||
| 82711-22270 | ||||
| 82711-2B660 | ||||
| 82711-60520 | ||||
| 82715-22150 | ||||
| 82715-30520 | ||||
| 82715-35581 | ||||
| 82715-3A050 | ||||
| 82715-3A110 | ||||
| 82715-40040 | ||||
| 82715-60420 | ||||
| 82715-60440 | ||||
| 82715-60460 | ||||
| 82715-60500 | ||||
| 82715-60510 | ||||
| 82715-60530 | ||||
| 82715-60540 | ||||
| 82715-60550 | ||||
| 82715-60580 | ||||
| 82715-60590 | ||||
| 82715-60600 | ||||
| 82715-60710 | ||||
| 82715-60730 | ||||
| 82715-60771 | ||||
| 82715-60830 | ||||
| 82715-60850 | ||||
| 82715-60860 | ||||
| 82715-60C60 | ||||
| 82729-60130 | ||||
| 82729-60280 | ||||
| 82817-60500 | ||||
| 87616-35010 | ||||
| 90119-06373 | ||||
| 90119-06610 | ||||
| 90464-00592 | ||||
| 90464-00598 | ||||
| 90464-00612 | ||||
| 90949-01499 | ||||
| 91512-61014 | ||||
| 91551-80814 | ||||
| 91611-60816 | ||||
| 91611-B0816 | ||||
| 91621-B0816 | ||||
| 91621-J0612 | ||||
| 91621-J0814 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91651-40816 | ||||
| 91651-60612 | ||||
| 91651-60816 | ||||
| 91651-61016 | ||||
| 91651-B0814 | ||||
| 91651-B0816 | ||||

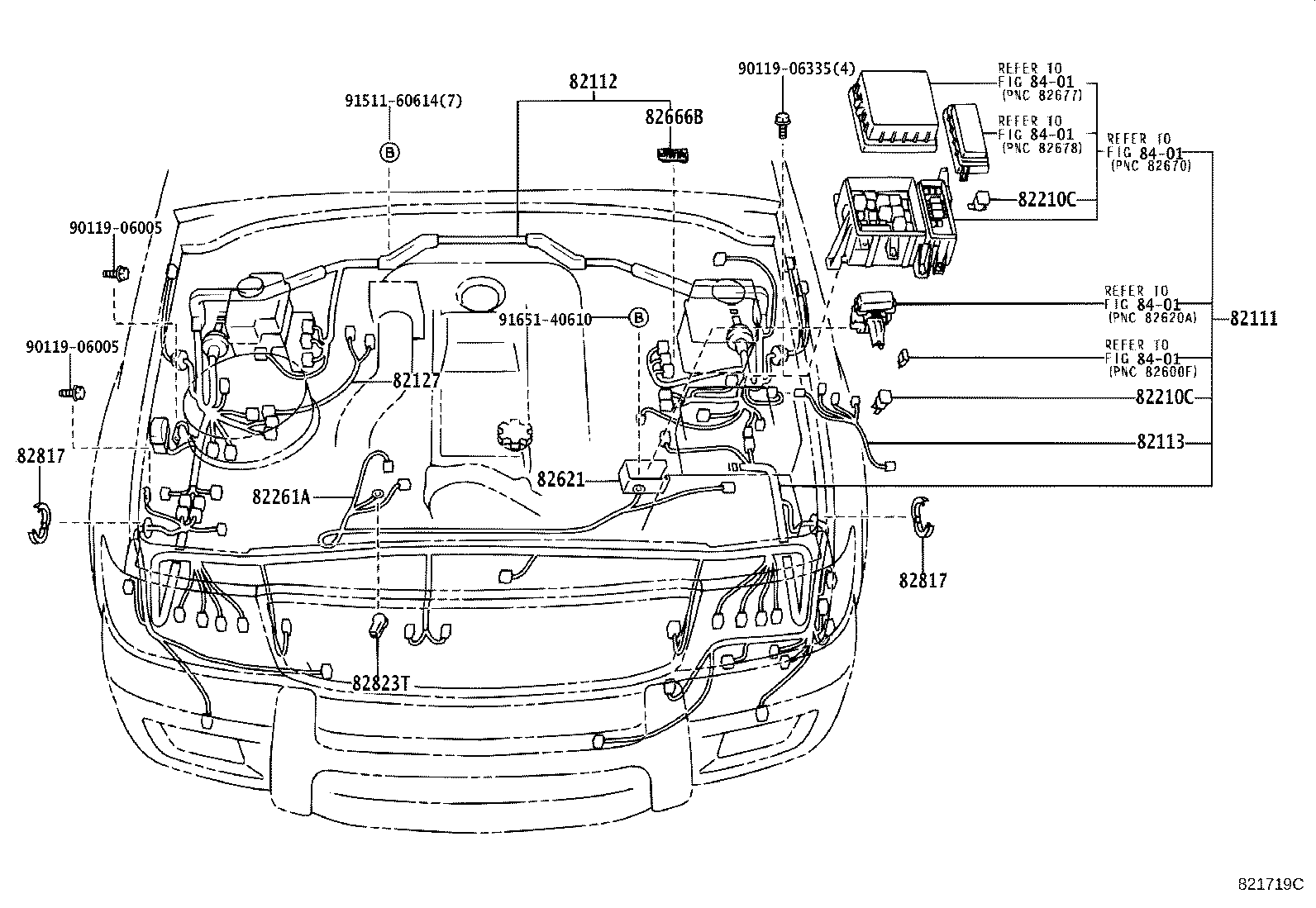

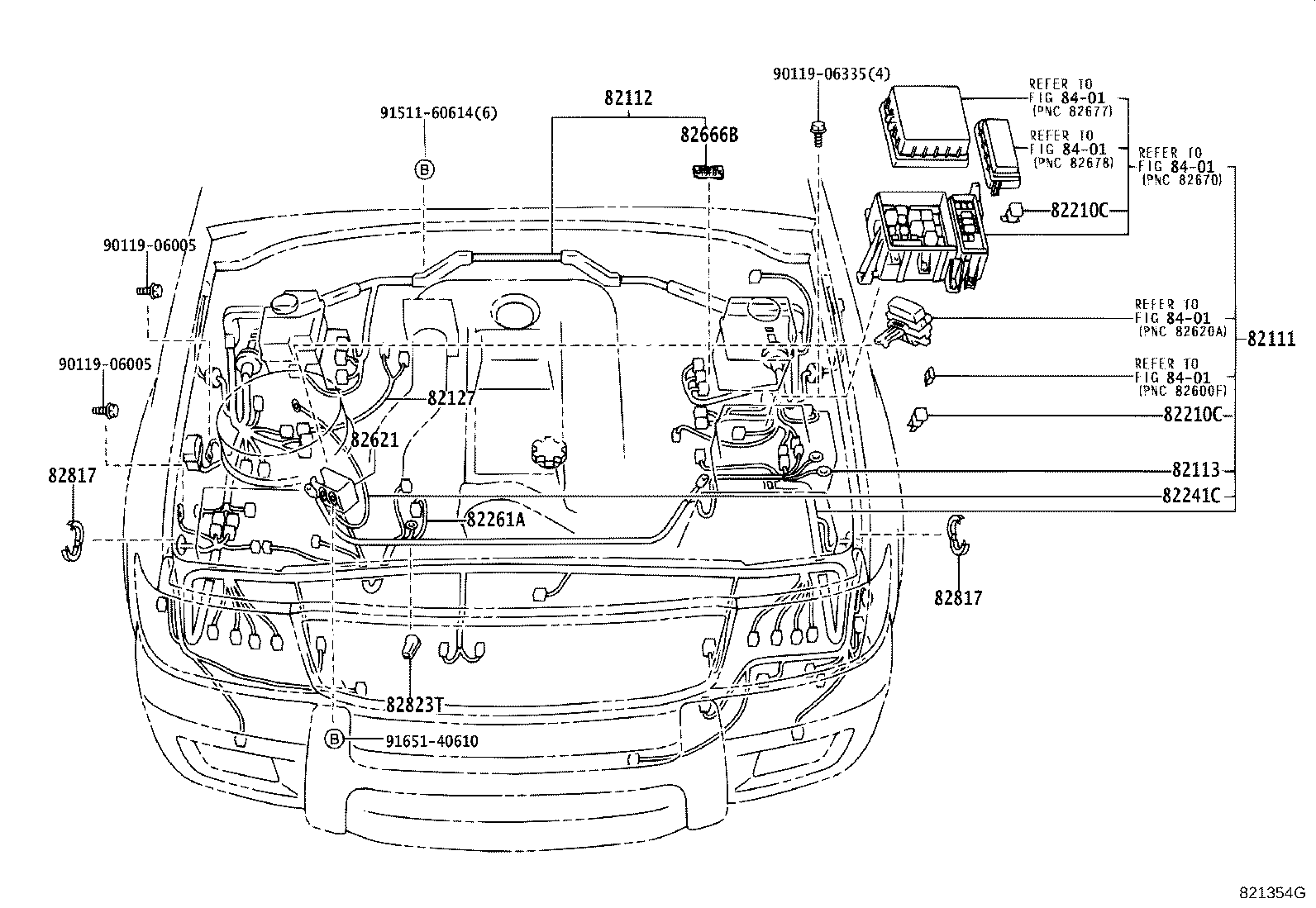

ILLUST NO. 1 OF10(9801-0208)HDJ100,HZJ105
ENGINE ROOM(1-BATTERY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-6A090 |
HDJ100,HZJ105 |
1 | ||
| 82111-6A101 |
HDJ100,HZJ105..(GX,VX)..(ARL,GEN) W(DUAL AIR CONDITIONER) |
1 | ||
| 82111-6A091 |
HDJ100,HZJ105 |
1 | ||
| 82111-6A091 |
HZJ105;HDJ100..LUB |
1 | ||
| 82111-6A100 |
HZJ105..GX W(SINGLE AIR CONDITIONER) |
1 | ||
| 82111-6A101 |
HDJ100,HZJ105..GX,VX W(DUAL AIR CONDITIONER) |
1 | ||
| 82111-6A093 |
HZJ105;HDJ100..LUB..GEN |
1 | ||
| 82111-6A103 |
HZJ105..GX..(ARL,GEN) W(COOL BOX & SINGLE AIR CONDITIONER) |
1 | ||
| 82111-6A095 |
HZJ105 |
1 | ||
| 82111-6A104 |
HZJ105..GX..(ARL,GEN) W(SINGLE AIR CONDITIONER) |
1 | ||
| 82111-6A096 |
HZJ105 |
1 | ||
| 82111-6A105 |
HZJ105..GX..GEN W(COOL BOX) |
1 | ||
| 82111-6A097 |
HZJ105 |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-60310 |
HDJ100,HZJ105..RHD |
1 | ||
| 82112-60220 |
HDJ100,HZJ105..RHD..(GX,VX) W(ABS) |
1 | ||
| 82112-60311 |
HDJ100,HZJ105..RHD |
1 | ||
| 82112-60221 |
HDJ100,HZJ105..RHD..(GX,VX) W(ABS) |
1 | ||
| 82112-60312 |
HDJ100,HZJ105..RHD..(DSL2,TD2) |
1 | ||
| 82112-60222 |
HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,TD2) W(ABS) |
1 | ||
| 82112-60223 |
HZJ105..RHD..GX W(ABS) |
1 | ||
| 82112-60224 |
HZJ105..RHD..GX W(ABS) |
1 | ||
| 82112-60313 |
HZJ105..RHD |
1 | ||
| 82112-60225 |
HZJ105..RHD..GX W(ABS) |
1 | ||
| 82112-60314 |
HZJ105..RHD |
1 | ||
| 82112-60314 |
HZJ105..RHD..SOB;HZJ105..RHD..LUB..GEN |
1 | ||
| 82112-60225 |
HZJ105..RHD..GX..GEN W(ABS) |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-60070 |
HZJ105..ARL,GEN;HDJ100..LUB..GEN W(1 BATTERY) |
1 | ||
| 82113-60070 |
HDJ100,HZJ105 W(1 BATTERY) |
1 | ||
| 82127 - WIRE, DIFFERENTIAL | ||||
| 82127-60030 |
FZJ105,HZJ105..RHD |
1 | ||
| 82127-60030 |
HZJ105..RHD..SOB;FZJ105,HZJ105..RHD..LUB..GEN |
1 | ||
| 82127-60030 |
FZJ105,HZJ105..RHD |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08291 |
FZJ105,HDJ100,HZJ105,UZJ100 80A,BLACK |
1 | ||
| 90982-08286 |
FZJ10#,HDJ100,HZJ105,UZJ100 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08290 |
FZJ105,HDJ100,HZJ105,UZJ100 60A,YELLOW |
1 | ||
| 90982-08284 |
FZJ10#,HDJ100,HZJ105,UZJ100 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08283 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08290 |
FZJ105..GX;HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 60A,YELLOW |
1 | ||
| 90982-08284 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08246 |
FZJ10#,HDJ100,HZJ105,UZJ100 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08291 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 80A,BLACK |
1 | ||
| 90982-08285 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08291 |
FZJ105..GX;HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 80A,BLACK |
1 | ||
| 90982-08283 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08285 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08283 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08285 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08291 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 80A,BLACK |
1 | ||
| 90982-08284 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 40A,TERM.:FEMALE,GRN |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08291 |
FZJ105,HDJ100,HZJ105,UZJ100 80A,BLACK |
1 | ||
| 90982-08286 |
FZJ10#,HDJ100,HZJ105,UZJ100 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08290 |
FZJ105,HDJ100,HZJ105,UZJ100 60A,YELLOW |
1 | ||
| 90982-08284 |
FZJ10#,HDJ100,HZJ105,UZJ100 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08283 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08290 |
FZJ105..GX;HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 60A,YELLOW |
1 | ||
| 90982-08284 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08246 |
FZJ10#,HDJ100,HZJ105,UZJ100 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08291 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 80A,BLACK |
1 | ||
| 90982-08285 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08291 |
FZJ105..GX;HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 80A,BLACK |
1 | ||
| 90982-08283 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08285 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08283 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08285 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08291 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 80A,BLACK |
1 | ||
| 90982-08284 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 40A,TERM.:FEMALE,GRN |
1 | ||
| 82261A - WIRE, ALTERNATOR | ||||
| 82261-60070 |
HDJ100,HZJ105..DSL2,TD2 |
1 | ||
| 82261-60071 |
HZJ105 |
1 | ||
| 82261-60071 |
HZJ105 |
1 | ||
| 82621 - COVER, FUSIBLE LINK | ||||
| 82621-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 82621-60010 |
FZJ105..GX;HDJ100..LUB;FZJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 82621-60010 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 82666-60060 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 82666-60060 |
HZJ105;FZJ105..RHD;FZJ100,HDJ100,UZJ100..(GX,VX)..(GCC,GEN) |
1 | ||
| 82666-60060 |
HZJ105;FZJ105..RHD;FZJ100,HDJ100,UZJ100..(GX,VX)..(GCC,GEN) |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-24110 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 82817-24110 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100 |
2 | ||
| 82817-24110 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 82817-24110 |
FZJ105..GX;HDJ100..LUB;FZJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 82817-24110 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-24110 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 82817-24110 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100 |
2 | ||
| 82817-24110 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 82817-24110 |
FZJ105..GX;HDJ100..LUB;FZJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 82817-24110 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 82823-22050 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 82823-22050 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06335 | ||||
| 91511-60614 | ||||
| 91651-40610 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 6 OF10(0208- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-60020 |
HDJ100,UZJ100..LHD;FZJ105,HDJ100,HZJ105..RHD..(GX,STD) |
1 | ||
| 82191-60021 |
UZJ100..5F;HDJ100..LHD;UZJ100..5FC..GX..ARL;UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105..(GX,STD)..(ARL,GCC,GEN) |
1 | ||
| 82191-60021 |
HDJ100..LHD;HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,UZJ100..GCC,GEN |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-60021 |
HDJ100,UZJ100..RHD;FZJ10#,HZJ105..ARL,GCC,GEN |
1 | ||
| 82192-60020 |
FZJ105,HZJ105..RHD W(*80,DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| 82192-60021 |
FZJ105,HZJ105..RHD..GEN W(*80,DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| Common parts | ||||
| 91511-B0614 | ||||
ILLUST NO. 4 OF10(0208- )RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-60240 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX) |
1 | ||
| 82141-60241 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX) |
1 | ||
| 82141-60242 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD..GX |
1 | ||
| 82141-60242 |
HZJ105..ARL;HZJ105..RHD..GX..GEN;FZJ105,HDJ100,UZJ100..RHD..GX |
1 | ||
| 82141-60242 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD..GX |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-60070 |
FZJ105,HZJ105..RHD..GEN |
1 | ||
| 82142-60071 |
FZJ105,HZJ105..RHD..GEN |
1 | ||
| 82142-60071 |
FZJ105,HZJ105..RHD..GEN |
1 | ||
| 82143 - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82143-60091 |
HDJ100,UZJ100..RHD;FZJ10#,HZJ105..ARL,GCC,GEN |
1 | ||
| 82143-60091 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 82214A - WIRE, LAMP | ||||
| 82214-60030 |
FZJ105..GX;FZJ100..LUB;HDJ100,HZJ105;FZJ100..SOB..4FC;FZJ10#,UZJ100..LHD..(STD,VX) |
1 | ||
| 82214-60030 |
FZJ100..STD;FZJ105,HZJ105;HDJ100,UZJ100..RHD |
1 | ||
| 82214-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 82214-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 82233 - WIRE, COMPUTER | ||||
| 82233-60010 |
FZJ105,HDJ100,HZJ105,UZJ100..(GX,VX)..GEN |
1 | ||
| 82233-60011 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 82233-60011 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX..(GCC,GEN);FZJ100,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-60050 |
FZJ105..GX;FZJ100..LUB;HDJ100,HZJ105;FZJ100..SOB..4FC;FZJ10#,UZJ100..LHD..(STD,VX) |
2 | ||
| 82666-60050 |
FZJ10#,HZJ105..ARL,GCC,GEN |
2 | ||
| 82666-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 82666-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-60050 |
FZJ105..GX;FZJ100..LUB;HDJ100,HZJ105;FZJ100..SOB..4FC;FZJ10#,UZJ100..LHD..(STD,VX) |
2 | ||
| 82666-60050 |
FZJ10#,HZJ105..ARL,GCC,GEN |
2 | ||
| 82666-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 82666-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 82792 - WIRE, INSTRUMENT PANEL INTEGRATION | ||||
| 82792-60200 |
FZJ105,HZJ105..RHD..GEN |
1 | ||
| 82792-60201 |
FZJ105,HZJ105..RHD..GEN |
1 | ||
| 82792-60025 |
FZJ105,HZJ105..RHD..GEN W(AIR BAG) |
1 | ||
| 82792-60201 |
FZJ105,HZJ105..RHD..GEN |
1 | ||
| 82792-60031 |
FZJ105,HZJ105..RHD |
1 | ||
| 82792-60030 |
FZJ105,HZJ105..RHD |
1 | ||
| 82792-60022 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 82792-60023 |
FZJ105,HDJ100,HZJ105..RHD |
1 | ||
| 82792-60024 |
FZJ105,HZJ105..RHD..GEN W(AIR BAG) |
1 | ||
| 82792-60025 |
FZJ105,HZJ105..RHD..GEN W(AIR BAG) |
1 | ||
| Common parts | ||||
| 90159-50098 | ||||
ILLUST NO. 1 OF10(0208- )HDJ100,HZJ105
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-6A090 |
HDJ100,HZJ105 |
1 | ||
| 82111-6A101 |
HDJ100,HZJ105..(GX,VX)..(ARL,GEN) W(DUAL AIR CONDITIONER) |
1 | ||
| 82111-6A091 |
HDJ100,HZJ105 |
1 | ||
| 82111-6A091 |
HZJ105;HDJ100..LUB |
1 | ||
| 82111-6A100 |
HZJ105..GX W(SINGLE AIR CONDITIONER) |
1 | ||
| 82111-6A101 |
HDJ100,HZJ105..GX,VX W(DUAL AIR CONDITIONER) |
1 | ||
| 82111-6A093 |
HZJ105;HDJ100..LUB..GEN |
1 | ||
| 82111-6A103 |
HZJ105..GX..(ARL,GEN) W(COOL BOX & SINGLE AIR CONDITIONER) |
1 | ||
| 82111-6A095 |
HZJ105 |
1 | ||
| 82111-6A104 |
HZJ105..GX..(ARL,GEN) W(SINGLE AIR CONDITIONER) |
1 | ||
| 82111-6A096 |
HZJ105 |
1 | ||
| 82111-6A105 |
HZJ105..GX..GEN W(COOL BOX) |
1 | ||
| 82111-6A097 |
HZJ105 |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-60310 |
HDJ100,HZJ105..RHD |
1 | ||
| 82112-60220 |
HDJ100,HZJ105..RHD..(GX,VX) W(ABS) |
1 | ||
| 82112-60311 |
HDJ100,HZJ105..RHD |
1 | ||
| 82112-60221 |
HDJ100,HZJ105..RHD..(GX,VX) W(ABS) |
1 | ||
| 82112-60312 |
HDJ100,HZJ105..RHD..(DSL2,TD2) |
1 | ||
| 82112-60222 |
HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,TD2) W(ABS) |
1 | ||
| 82112-60223 |
HZJ105..RHD..GX W(ABS) |
1 | ||
| 82112-60224 |
HZJ105..RHD..GX W(ABS) |
1 | ||
| 82112-60313 |
HZJ105..RHD |
1 | ||
| 82112-60225 |
HZJ105..RHD..GX W(ABS) |
1 | ||
| 82112-60314 |
HZJ105..RHD |
1 | ||
| 82112-60314 |
HZJ105..RHD..SOB;HZJ105..RHD..LUB..GEN |
1 | ||
| 82112-60225 |
HZJ105..RHD..GX..GEN W(ABS) |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN W/O(FRONT FOG LAMP) |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN W/O(FRONT FOG LAMP) |
1 | ||
| 82127 - WIRE, DIFFERENTIAL | ||||
| 82127-60030 |
FZJ105,HZJ105..RHD |
1 | ||
| 82127-60030 |
HZJ105..RHD..SOB;FZJ105,HZJ105..RHD..LUB..GEN |
1 | ||
| 82127-60030 |
FZJ105,HZJ105..RHD |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08291 |
FZJ105,HDJ100,HZJ105,UZJ100 80A,BLACK |
1 | ||
| 90982-08286 |
FZJ10#,HDJ100,HZJ105,UZJ100 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08290 |
FZJ105,HDJ100,HZJ105,UZJ100 60A,YELLOW |
1 | ||
| 90982-08284 |
FZJ10#,HDJ100,HZJ105,UZJ100 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08283 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08290 |
FZJ105..GX;HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 60A,YELLOW |
1 | ||
| 90982-08284 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08246 |
FZJ10#,HDJ100,HZJ105,UZJ100 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08291 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 80A,BLACK |
1 | ||
| 90982-08285 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08291 |
FZJ105..GX;HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 80A,BLACK |
1 | ||
| 90982-08283 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08285 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08283 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08285 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08291 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 80A,BLACK |
1 | ||
| 90982-08284 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 40A,TERM.:FEMALE,GRN |
1 | ||
| 82261A - WIRE, ALTERNATOR | ||||
| 82261-60070 |
HDJ100,HZJ105..DSL2,TD2 |
1 | ||
| 82261-60071 |
HZJ105 |
1 | ||
| 82261-60071 |
HZJ105 |
1 | ||
| 82261A - WIRE, ALTERNATOR | ||||
| 82261-60070 |
HDJ100,HZJ105..DSL2,TD2 |
1 | ||
| 82261-60071 |
HZJ105 |
1 | ||
| 82261-60071 |
HZJ105 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 82666-60060 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 82666-60060 |
HZJ105;FZJ105..RHD;FZJ100,HDJ100,UZJ100..(GX,VX)..(GCC,GEN) |
1 | ||
| 82666-60060 |
HZJ105;FZJ105..RHD;FZJ100,HDJ100,UZJ100..(GX,VX)..(GCC,GEN) |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-24110 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 82817-24110 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100 |
2 | ||
| 82817-24110 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 82817-24110 |
FZJ105..GX;HDJ100..LUB;FZJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 82817-24110 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-24110 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 82817-24110 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100 |
2 | ||
| 82817-24110 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 82817-24110 |
FZJ105..GX;HDJ100..LUB;FZJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 82817-24110 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 82823-22050 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 82823-22050 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 82823-22050 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 82823-22050 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| Common parts | ||||
| 82821-35050 | ||||
| 90119-06005 | ||||
| 91511-B0614 | ||||
| Linked diagrams | ||||
| 8201 | ||||
| 8401 | ||||
ILLUST NO. 2 OF10(0208- )HDJ100,HZJ105
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-6A090 |
HDJ100,HZJ105..RHD..5F..(DSL2,TD2) |
1 | ||
| 82121-6A091 |
HZJ105..RHD..GEN |
1 | ||
| 82121-6A091 |
HZJ105..RHD..GEN |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-60360 |
HZJ105 |
1 | ||
| 82122-60361 |
HZJ105 |
1 | ||
| 82122-60362 |
HZJ105 |
1 | ||
| 82122-60361 |
HZJ105 |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-60450 |
HZJ105..SOB;HZJ105..LUB..GEN |
1 | ||
| 82125-60410 |
HZJ105..GCC,GEN;HZJ105..5F..GX..ARL W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
1 | ||
| 82125-60452 |
HZJ105..SOB;HZJ105..LUB..GEN |
1 | ||
| 82125-60451 |
HZJ105..SOB;HZJ105..LUB..GEN |
1 | ||
| 82125-60412 |
HZJ105..GCC,GEN;HZJ105..5F..GX..ARL W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
1 | ||
| 82125-60411 |
HZJ105..GCC,GEN;HZJ105..GX..ARL W(CENTER DIFFERENTIAL LOCK) |
1 | ||
| 82125-60411 |
HZJ105..GCC,GEN W(2-4 SELECTOR OR CENTER DIFFERENTIAL LOCK SWITCH) |
1 | ||
| 82125-60451 |
HZJ105..SOB;HZJ105..LUB..GEN |
1 | ||
| 82275A - CABLE, BATTERY TO MAGNET SWITCH | ||||
| 82275-60100 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 82275-60100 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 82275-60100 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 82276A - CABLE, MAGNET SWITCH TO WINCH | ||||
| 82276-60090 |
FZJ105,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 82276-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 82276-60090 |
FZJ105,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 82295 - WIRE, WINCH EARTH | ||||
| 82295-60060 |
FZJ105,HZJ105..GCC,GEN |
1 | ||
| 82295-60060 |
FZJ105,HZJ105..GCC,GEN |
1 | ||
| 82295-60050 |
HZJ105..GCC,GEN |
1 | ||
| 82295-60060 |
FZJ105,HZJ105 |
1 | ||
| 82295-60060 |
FZJ105,HZJ105 |
1 | ||
| 82296 - WIRE, WINCH EARTH, NO.2 | ||||
| 82296-60020 |
FZJ105,HZJ105..GCC,GEN |
1 | ||
| 82296-60020 |
FZJ105,HZJ105..GCC,GEN |
1 | ||
| 82296-60020 |
FZJ105,HZJ105..GCC,GEN |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-12400 |
HZJ105 |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-12400 |
HZJ105 |
1 | ||
| 82823C - CAP, TERMINAL, NO.4 | ||||
| 82823-90300 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 82823-90300 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 82823-90300 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-30100 |
HDJ100,HZJ105 |
1 | ||
| 82823-30100 |
HDJ100,HZJ105 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-08116 | ||||
| 90119-08375 | ||||
| 90119-08827 | ||||
| 90179-06158 | ||||
| 91512-61014 | ||||
| 91651-40816 | ||||
| 91651-60620 | ||||
| Linked diagrams | ||||
| 8201 | ||||
ILLUST NO. 8 OF10(9801- )
BRACKET & CLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-60040 | ||||
| 82715-60190 | ||||
| 82715-60290 | ||||
| 82715-60360 | ||||
| 82715-60370 | ||||
| 82715-60380 | ||||
| 82715-60390 | ||||
| 82715-60400 | ||||
| 82715-60410 | ||||
| 82715-60610 | ||||
| 82715-60620 | ||||
| 82715-60630 | ||||
| 82715-60650 | ||||
| 82715-60660 | ||||
| 82715-60800 | ||||
| 82715-60810 | ||||
| 82715-60840 | ||||
| 82715-6A500 | ||||
| 82715-6A580 | ||||
| 82729-60150 | ||||
| 82729-60160 | ||||
| 82729-60240 | ||||
| 82729-60250 | ||||
| 82729-60260 | ||||
| 82729-60270 | ||||
| 82729-60300 | ||||
| 82729-60310 | ||||
| 90119-06375 | ||||
| 90464-00241 | ||||
| 91611-60816 | ||||
| 91611-B0816 | ||||
| 91651-40816 | ||||
| 91651-41020 | ||||
| 91651-60616 | ||||
| 91651-61020 | ||||
ILLUST NO.10 OF10(9801- )
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10825 | ||||
| 90980-10860 | ||||
| 90980-10871 | ||||
| 90980-10908 | ||||
| 90980-11019 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
| 90980-11159 | ||||
| 90980-11162 | ||||
| 90980-11587 | ||||
| 90980-11659 | ||||
| 90980-11660 | ||||
ILLUST NO. 5 OF10(0208- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82081 - WIRING ASSY, DOOR LOCK | ||||
| 82081-60010 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN RH,(J) |
1 | ||
| 82081-60020 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN LH,(J) |
1 | ||
| 82081-60020 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN LH |
1 | ||
| 82081-60010 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN RH |
1 | ||
| 82081 - WIRING ASSY, DOOR LOCK | ||||
| 82081-60010 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN RH,(J) |
1 | ||
| 82081-60020 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN LH,(J) |
1 | ||
| 82081-60020 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN LH |
1 | ||
| 82081-60010 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN RH |
1 | ||
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-60280 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX) W(POWER WINDOW) |
1 | ||
| 82151-60271 |
FZJ10#,HZJ105..GX |
1 | ||
| 82151-60270 |
FZJ10#,HZJ105..GX |
1 | ||
| 82151-60272 |
FZJ10#,HDJ100,HZJ105..GX |
1 | ||
| 82151-60273 |
HZJ105..LHD..STD;FZJ10#,HDJ100,HZJ105,UZJ100..GX..(ARL,GCC,GEN) |
1 | ||
| 82151-60281 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX) W(POWER WINDOW) |
1 | ||
| 82151-60303 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX) W(POWER WINDOW) |
1 | ||
| 82151-60273 |
FZJ105,HZJ105..GX..(GCC,GEN) |
1 | ||
| 82151-60282 |
HDJ100..RHD..GEN;FZJ105,HDJ100,HZJ105..RHD..GX W(POWER WINDOW) |
1 | ||
| 82151-60303 |
FZJ105,HZJ105..RHD..GX..GEN W(POWER WINDOW) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-60230 |
FZJ10#,HZJ105..GX |
1 | ||
| 82152-60281 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX) W(POWER WINDOW) |
1 | ||
| 82152-60280 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX) W(POWER WINDOW) |
1 | ||
| 82152-60231 |
FZJ10#,HZJ105..GX |
1 | ||
| 82152-60282 |
HDJ100..RHD..GEN;FZJ105,HDJ100,HZJ105..RHD..GX W(POWER WINDOW) |
1 | ||
| 82152-60233 |
HZJ105..LHD..STD;FZJ10#,HDJ100,HZJ105,UZJ100..GX..(ARL,GCC,GEN) |
1 | ||
| 82152-60232 |
FZJ10#,HDJ100,HZJ105..GX |
1 | ||
| 82152-60293 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX) W(POWER WINDOW) |
1 | ||
| 82152-60233 |
FZJ105,HZJ105..GX..(GCC,GEN) |
1 | ||
| 82152-60293 |
FZJ105,HZJ105..RHD..GX..GEN W(POWER WINDOW) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-60120 |
FZJ10#,HZJ105..GX |
1 | ||
| 82153-60132 |
HDJ100..GX;FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(DSL2,EFI,TD2) W(POWER WINDOW) |
1 | ||
| 82153-60130 |
FZJ10#,HDJ100,HZJ105,UZJ100..GX,VX W(POWER WINDOW) |
1 | ||
| 82153-60123 |
HZJ105..LHD..STD;FZJ10#,HDJ100,HZJ105,UZJ100..GX..(ARL,GCC,GEN) |
1 | ||
| 82153-60121 |
FZJ10#,HZJ105..GX |
1 | ||
| 82153-60143 |
FZJ100..STD;FZJ105,HZJ105..GX..(GCC,GEN) W(POWER WINDOW) |
1 | ||
| 82153-60131 |
FZJ10#,HDJ100,HZJ105,UZJ100..GX,VX W(POWER WINDOW) |
1 | ||
| 82153-60122 |
FZJ10#,HDJ100,HZJ105..GX |
1 | ||
| 82153-60123 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX..(GCC,GEN) |
1 | ||
| 82153-60143 |
FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN W(POWER WINDOW) |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82153-60122 |
FZJ10#,HDJ100,HZJ105..GX |
1 | ||
| 82153-60131 |
FZJ10#,HDJ100,HZJ105,UZJ100..GX,VX W(POWER WINDOW) |
1 | ||
| 82153-60120 |
FZJ10#,HZJ105..GX |
1 | ||
| 82153-60130 |
FZJ10#,HDJ100,HZJ105,UZJ100..GX,VX W(POWER WINDOW) |
1 | ||
| 82153-60123 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX..(GCC,GEN) |
1 | ||
| 82153-60132 |
HDJ100..GX;FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(DSL2,EFI,TD2) W(POWER WINDOW) |
1 | ||
| 82153-60143 |
FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN W(POWER WINDOW) |
1 | ||
| 82153-60123 |
HZJ105..LHD..STD;FZJ10#,HDJ100,HZJ105,UZJ100..GX..(ARL,GCC,GEN) |
1 | ||
| 82153-60121 |
FZJ10#,HZJ105..GX |
1 | ||
| 82153-60143 |
FZJ100..STD;FZJ105,HZJ105..GX..(GCC,GEN) W(POWER WINDOW) |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-60300 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 82666-60300 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-60300 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 82666-60300 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| Common parts | ||||
| 90467-09030 | ||||
ILLUST NO. 7 OF10(0208- )
ROOF,BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82155 - WIRE, CENTER PILLER, NO.1 | ||||
| 82155-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB..(GX,VX) |
1 | ||
| 82155-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB..(GX,VX) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-60620 |
FZJ10#,HDJ100,HZJ105,UZJ100..GX,VX W(OVERHEAD CONSOLE---SMALL) |
1 | ||
| 82171-60700 |
FZJ10#,HZJ105 |
1 | ||
| 82171-60621 |
UZJ100..GEN;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TD2) W(OVERHEAD CONSOLE---SMALL) |
1 | ||
| 82171-60701 |
FZJ10#,HDJ100,HZJ105..GX,STD |
1 | ||
| 82171-60702 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN |
1 | ||
| 82171-60702 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) |
1 | ||
| 82171-60622 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(GCC,GEN) W(MOON ROOF) |
1 | ||
| 82171-60622 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(GCC,GEN) W(MOON ROOF) |
1 | ||
| 82173 - WIRE, ROOF, NO.3 | ||||
| 82173-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,STD)..(ARL,GCC,GEN) |
1 | ||
| 82173-60090 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) W(MOON ROOF) |
1 | ||
| 82173-60090 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) W(MOON ROOF) |
1 | ||
| 82173-60070 |
HZJ105..SOB;FZJ10#..GCC,GEN;HZJ105..LUB..GEN |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-60190 |
FZJ100..STD;FZJ105,HZJ105..SOB..GEN W(HIGH MOUNT STOP LAMP) |
1 | ||
| 82184-60210 |
FZJ105,HZJ105..SOB..GEN;FZJ100,HDJ100..SOB..(STD,VX) |
1 | ||
| 82184-60201 |
FZJ100..STD;FZJ105,HZJ105..SOB..GEN W(REAR WINDOW DEFOGGER & HIGH MOUNT STOP LAMP) |
1 | ||
| 82184-60191 |
FZJ100..STD;FZJ105,HZJ105..SOB..GEN W(HIGH MOUNT STOP LAMP) |
1 | ||
| 82184-60192 |
FZJ10#,HZJ105..SOB..(GCC,GEN) W(HIGH MOUNT STOP LAMP) |
1 | ||
| 82184-60202 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB W(REAR WINDOW DEFOGGER & HIGH MOUNT STOP LAMP) |
1 | ||
| 82184-60200 |
FZJ105..SOB..GEN;FZJ100,HDJ100,HZJ105..SOB W(REAR WINDOW DEFOGGER) |
1 | ||
| 82184-60192 |
FZJ10#,HZJ105..SOB..(GCC,GEN) W(HIGH MOUNT STOP LAMP) |
1 | ||
| 82184-60212 |
FZJ105,HZJ105..SOB..GEN;FZJ100,HDJ100..SOB..(STD,VX) W(REAR WINDOW DEFOGGER) |
1 | ||
| 82184-60211 |
FZJ105,HZJ105..SOB..GEN;FZJ100,HDJ100..SOB..(STD,VX) W(REAR WINDOW DEFOGGER) |
1 | ||
| 82184-60212 |
FZJ105,HZJ105..SOB..GEN;FZJ100,HDJ100..SOB..(STD,VX) W(REAR WINDOW DEFOGGER) |
1 | ||
| 82184-60202 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB W(REAR WINDOW DEFOGGER & HIGH MOUNT STOP LAMP) |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-60070 |
FZJ100..STD;FZJ105,HZJ105..SOB..GEN W(HIGH MOUNT STOP LAMP) |
1 | ||
| 82185-60071 |
FZJ10#,HZJ105..SOB..(GCC,GEN) |
1 | ||
| 82185-60080 |
FZJ105..SOB..GEN;FZJ100,HDJ100,HZJ105..SOB W(REAR WINDOW DEFOGGER) |
1 | ||
| 82185-60081 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB W(REAR WINDOW DEFOGGER) |
1 | ||
| 82185-60072 |
FZJ10#,HZJ105..SOB..(GCC,GEN) |
1 | ||
| 82185-60081 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB W(REAR WINDOW DEFOGGER) |
1 | ||
| 82185-60072 |
FZJ10#,HZJ105..SOB..(GCC,GEN) |
1 | ||
| Common parts | ||||
| 90119-06838 | ||||
ILLUST NO. 3 OF10(0208- )RHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82128 - WIRE, COLUMN | ||||
| 82128-60060 |
FZJ105,HZJ105..RHD..SOB;FZJ105,HDJ100,HZJ105..RHD..LUB..GEN |
1 | ||
| 82128-60061 |
HZJ105..RHD..SOB;FZJ105,HDJ100,HZJ105..RHD..LUB..GEN |
1 | ||
| 82128-60062 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,STD) |
1 | ||
| 82128-60062 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,STD) |
1 | ||
| 82136 - WIRE, DASH | ||||
| 82136-60315 |
HZJ105..RHD..GEN SEPARATE SEAT TYPE |
1 | ||
| 82136-60310 |
HDJ100,HZJ105..RHD..(GX,VX) |
1 | ||
| 82136-60311 |
HDJ100,HZJ105..RHD W(SEPARATE SEAT) |
1 | ||
| 82136-60312 |
HDJ100,HZJ105..RHD..(GX,VX) |
1 | ||
| 82136-60313 |
HDJ100,HZJ105..RHD..(GX,VX) |
1 | ||
| 82136-60314 |
HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,TD2) |
1 | ||
| 82136-60315 |
HZJ105..RHD..GX..GEN |
1 | ||
| 82176 - WIRE, REAR CONSOLE BOX | ||||
| 82176-60020 |
HDJ100..LUB;FZJ105,HZJ105,UZJ100..ARL,GEN |
1 | ||
| 82176-60020 |
FZJ100..STD;FZJ105,HZJ105;FZJ100..LUB..5F;HDJ100,UZJ100..LUB..(ARL,GEN) |
1 | ||
| 82176-60021 |
FZJ105,HZJ105;FZJ100..LUB..5F;HDJ100,UZJ100..LUB..(ARL,GEN) W(FRONT & REAR HEATER) |
1 | ||
| 82176-60021 |
FZJ100..STD;FZJ105,HZJ105;FZJ100..LUB..5F;HDJ100,UZJ100..LUB..(ARL,GEN) W(SEPARATE SEAT) |
1 | ||
| 82176-60022 |
FZJ105,HZJ105;FZJ100..LUB..5F;HDJ100,UZJ100..LUB..GEN W(FRONT & REAR HEATER) |
1 | ||
| 82176-60052 |
HDJ100..LUB;FZJ105,HZJ105,UZJ100..ARL,GEN |
1 | ||
| 82176-60023 |
FZJ100,HDJ100..LUB;FZJ105,HZJ105,UZJ100..ARL,GEN |
1 | ||
| 82176-60052 |
HDJ100..LUB..GEN;FZJ105,HZJ105,UZJ100..GEN |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08291 |
FZJ105,HDJ100,HZJ105,UZJ100 80A,BLACK |
1 | ||
| 90982-08286 |
FZJ10#,HDJ100,HZJ105,UZJ100 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08290 |
FZJ105,HDJ100,HZJ105,UZJ100 60A,YELLOW |
1 | ||
| 90982-08284 |
FZJ10#,HDJ100,HZJ105,UZJ100 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08283 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08290 |
FZJ105..GX;HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 60A,YELLOW |
1 | ||
| 90982-08284 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08246 |
FZJ10#,HDJ100,HZJ105,UZJ100 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08291 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 80A,BLACK |
1 | ||
| 90982-08285 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08291 |
FZJ105..GX;HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 80A,BLACK |
1 | ||
| 90982-08283 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08285 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08283 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08285 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08291 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 80A,BLACK |
1 | ||
| 90982-08284 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 40A,TERM.:FEMALE,GRN |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08291 |
FZJ105,HDJ100,HZJ105,UZJ100 80A,BLACK |
1 | ||
| 90982-08286 |
FZJ10#,HDJ100,HZJ105,UZJ100 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08290 |
FZJ105,HDJ100,HZJ105,UZJ100 60A,YELLOW |
1 | ||
| 90982-08284 |
FZJ10#,HDJ100,HZJ105,UZJ100 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08283 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08290 |
FZJ105..GX;HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 60A,YELLOW |
1 | ||
| 90982-08284 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08246 |
FZJ10#,HDJ100,HZJ105,UZJ100 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08291 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 80A,BLACK |
1 | ||
| 90982-08285 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08291 |
FZJ105..GX;HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 80A,BLACK |
1 | ||
| 90982-08283 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08285 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08283 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08285 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08291 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 80A,BLACK |
1 | ||
| 90982-08284 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 40A,TERM.:FEMALE,GRN |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08291 |
FZJ105,HDJ100,HZJ105,UZJ100 80A,BLACK |
1 | ||
| 90982-08286 |
FZJ10#,HDJ100,HZJ105,UZJ100 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08290 |
FZJ105,HDJ100,HZJ105,UZJ100 60A,YELLOW |
1 | ||
| 90982-08284 |
FZJ10#,HDJ100,HZJ105,UZJ100 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08283 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08290 |
FZJ105..GX;HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 60A,YELLOW |
1 | ||
| 90982-08284 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08246 |
FZJ10#,HDJ100,HZJ105,UZJ100 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08291 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 80A,BLACK |
1 | ||
| 90982-08285 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08291 |
FZJ105..GX;HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 80A,BLACK |
1 | ||
| 90982-08283 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08285 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08283 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08285 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08291 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 80A,BLACK |
1 | ||
| 90982-08284 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 40A,TERM.:FEMALE,GRN |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08291 |
FZJ105,HDJ100,HZJ105,UZJ100 80A,BLACK |
1 | ||
| 90982-08286 |
FZJ10#,HDJ100,HZJ105,UZJ100 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08290 |
FZJ105,HDJ100,HZJ105,UZJ100 60A,YELLOW |
1 | ||
| 90982-08284 |
FZJ10#,HDJ100,HZJ105,UZJ100 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08283 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08290 |
FZJ105..GX;HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 60A,YELLOW |
1 | ||
| 90982-08284 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08246 |
FZJ10#,HDJ100,HZJ105,UZJ100 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08291 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 80A,BLACK |
1 | ||
| 90982-08285 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08291 |
FZJ105..GX;HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 80A,BLACK |
1 | ||
| 90982-08283 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08285 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08283 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08285 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08291 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 80A,BLACK |
1 | ||
| 90982-08284 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 40A,TERM.:FEMALE,GRN |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08291 |
FZJ105,HDJ100,HZJ105,UZJ100 80A,BLACK |
1 | ||
| 90982-08286 |
FZJ10#,HDJ100,HZJ105,UZJ100 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08290 |
FZJ105,HDJ100,HZJ105,UZJ100 60A,YELLOW |
1 | ||
| 90982-08284 |
FZJ10#,HDJ100,HZJ105,UZJ100 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08283 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08290 |
FZJ105..GX;HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 60A,YELLOW |
1 | ||
| 90982-08284 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08246 |
FZJ10#,HDJ100,HZJ105,UZJ100 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08291 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 80A,BLACK |
1 | ||
| 90982-08285 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08291 |
FZJ105..GX;HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 80A,BLACK |
1 | ||
| 90982-08283 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08285 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08283 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08285 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08291 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 80A,BLACK |
1 | ||
| 90982-08284 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN 40A,TERM.:FEMALE,GRN |
1 | ||
| Common parts | ||||
| 64777-90A00 | ||||
| 82712-60750 | ||||
| 90159-60303 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 7 OF10(0208- )
FLOOR,LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-60552 |
FZJ105,HDJ100,HZJ105..SOB..GEN W(FUEL SUB TANK) |
1 | ||
| 82161-60735 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100..ARL,GCC,GEN W(FUEL SUB TANK) |
1 | ||
| 82161-60664 |
HDJ100..LUB..GEN;FZJ105,HZJ105..GEN |
1 | ||
| 82161-60542 |
FZJ105,HDJ100,HZJ105..SOB..GEN |
1 | ||
| 82161-60665 |
HDJ100..LUB..GEN;FZJ105,HZJ105..GEN |
1 | ||
| 82161-60666 |
HDJ100..LUB..GEN;FZJ105,HZJ105..RHD..GX..GEN |
1 | ||
| 82161-60736 |
HDJ100..LUB..GEN;FZJ105,HZJ105..RHD..GX..GEN W(FUEL SUB TANK) |
1 | ||
| 82161-60735 |
HDJ100..LUB..GEN;FZJ105,HZJ105..RHD..GX..GEN W(FUEL SUB TANK) |
1 | ||
| 82161-60540 |
FZJ105,HDJ100,HZJ105..SOB..GEN |
1 | ||
| 82161-60550 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB W(SUB FUEL TANK) |
1 | ||
| 82161-60551 |
FZJ105,HDJ100,HZJ105..SOB..GEN W(FUEL SUB TANK) |
1 | ||
| 82161-60541 |
FZJ105,HDJ100,HZJ105..SOB..GEN |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-60480 |
FZJ105,HDJ100,HZJ105,UZJ100 W(DUAL MANUAL AIR CONDITIONER) |
1 | ||
| 82162-60481 |
UZJ100..LUB;FZJ105,HDJ100,HZJ105 |
1 | ||
| 82162-60710 |
FZJ105,HZJ105..ARL,GEN |
1 | ||
| 82162-60711 |
FZJ105,HZJ105..ARL,GEN W(REAR DIFFERENTIAL LOCK) |
1 | ||
| 82162-60482 |
UZJ100..LUB;FZJ105,HDJ100,HZJ105 |
1 | ||
| 82162-60712 |
FZJ105,HZJ105..ARL,GEN W(REAR DIFFERENTIAL LOCK) |
1 | ||
| 82162-60484 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100..ARL,GCC,GEN SEPARATE SEAT TYPE |
1 | ||
| 82162-60484 |
FZJ105,HZJ105..RHD..GX;HDJ100,UZJ100..LUB..5FC..(GCC,GEN);HDJ100,UZJ100..LUB..5F..(ARL,GCC,GEN);FZJ100,HDJ100,UZJ100..ATM..GX..(ARL,GCC) |
1 | ||
| 82162-60483 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100 SEPARATE SEAT TYPE |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-60210 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 82163-60211 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 82163-60212 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 82163-60213 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 82163-60213 |
HDJ100..5FC..GX;UZJ100..GX..ARL;FZJ105,HDJ100,HZJ105..RHD..5F |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-60280 |
FZJ105,HZJ105 W(REAR DIFFERENTIAL LOCK) |
1 | ||
| 82164-60250 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS) |
1 | ||
| 82164-60250 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS) |
1 | ||
| 82164-60280 |
FZJ105,HZJ105 W(REAR DIFFERENTIAL LOCK) |
1 | ||
| 82164-60260 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS & REAR DIFFERENTIAL LOCK) |
1 | ||
| 82164-60250 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX..(GCC,GEN) W(ABS) |
1 | ||
| 82164-60260 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS & REAR DIFFERENTIAL LOCK) |
1 | ||
| 82164-60280 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN W(REAR DIFFERENTIAL LOCK) |
1 | ||
| 82164-60260 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX..(GCC,GEN) W(ABS & REAR DIFFERENTIAL LOCK) |
1 | ||
| 82413A - WIRE, FUEL TANK | ||||
| 82413-60010 |
FZJ105,HDJ100,HZJ105,UZJ100..GEN |
1 | ||
| 82413-60020 |
HDJ100,HZJ105..DSL2,TD2 W(SUB FUEL TANK) |
1 | ||
| 82413-60010 |
FZJ105,HDJ100,HZJ105..GEN |
1 | ||
| 82413-60011 |
FZJ105,HDJ100,HZJ105..GEN W(SUB FUEL TANK) |
1 | ||
| 82413-60021 |
HDJ100,HZJ105 |
1 | ||
| 82413-60011 |
FZJ105,HDJ100,HZJ105..GEN |
1 | ||
| 82413-60021 |
HDJ100,HZJ105..GEN W(FUEL SUB TANK) |
1 | ||
| 82414A - WIRE, FUEL TANK, NO.2 | ||||
| 82414-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 82414-60012 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 82414-60012 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 82414-60011 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-60270 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN NO.1 |
1 | ||
| 82666-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN NO.2 |
2 | ||
| 82666-60110 |
FZJ10#,HDJ100,HZJ105,UZJ100 NO.2 |
1 | ||
| 82666-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN NO.2 |
2 | ||
| 82666-60100 |
FZJ10#,HDJ100,HZJ105,UZJ100 NO.1 |
1 | ||
| 82666-60270 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN NO.1 |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-60270 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN NO.1 |
1 | ||
| 82666-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN NO.2 |
2 | ||
| 82666-60110 |
FZJ10#,HDJ100,HZJ105,UZJ100 NO.2 |
1 | ||
| 82666-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN NO.2 |
2 | ||
| 82666-60100 |
FZJ10#,HDJ100,HZJ105,UZJ100 NO.1 |
1 | ||
| 82666-60270 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN NO.1 |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100..DSL2,EFI,TD2 NO.2 |
1 | ||
| 82666-60060 |
HDJ100..ARL;HDJ100..LHD;FZJ10#,HZJ105,UZJ100 NO.2 |
1 | ||
| 82666-60070 |
HDJ100..VX;HDJ100..5FC..GX;FZJ10#,HZJ105,UZJ100..ARL,GCC,GEN NO.1 & NO.4 |
2 | ||
| 82666-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN NO.2 & NO.5 |
2 | ||
| 82666-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN NO.1 & NO.4 |
2 | ||
| 82666-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN NO.2 & NO.5 |
2 | ||
| 82666-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..DSL2,EFI,TD2 NO.1 |
3 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100..DSL2,EFI,TD2 NO.2 |
1 | ||
| 82666-60060 |
HDJ100..ARL;HDJ100..LHD;FZJ10#,HZJ105,UZJ100 NO.2 |
1 | ||
| 82666-60070 |
HDJ100..VX;HDJ100..5FC..GX;FZJ10#,HZJ105,UZJ100..ARL,GCC,GEN NO.1 & NO.4 |
2 | ||
| 82666-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN NO.2 & NO.5 |
2 | ||
| 82666-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN NO.1 & NO.4 |
2 | ||
| 82666-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN NO.2 & NO.5 |
2 | ||
| 82666-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..DSL2,EFI,TD2 NO.1 |
3 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100..DSL2,EFI,TD2 NO.2 |
1 | ||
| 82666-60060 |
HDJ100..ARL;HDJ100..LHD;FZJ10#,HZJ105,UZJ100 NO.2 |
1 | ||
| 82666-60070 |
HDJ100..VX;HDJ100..5FC..GX;FZJ10#,HZJ105,UZJ100..ARL,GCC,GEN NO.1 & NO.4 |
2 | ||
| 82666-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN NO.2 & NO.5 |
2 | ||
| 82666-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN NO.1 & NO.4 |
2 | ||
| 82666-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN NO.2 & NO.5 |
2 | ||
| 82666-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..DSL2,EFI,TD2 NO.1 |
3 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100..DSL2,EFI,TD2 NO.2 |
1 | ||
| 82666-60060 |
HDJ100..ARL;HDJ100..LHD;FZJ10#,HZJ105,UZJ100 NO.2 |
1 | ||
| 82666-60070 |
HDJ100..VX;HDJ100..5FC..GX;FZJ10#,HZJ105,UZJ100..ARL,GCC,GEN NO.1 & NO.4 |
2 | ||
| 82666-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN NO.2 & NO.5 |
2 | ||
| 82666-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN NO.1 & NO.4 |
2 | ||
| 82666-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN NO.2 & NO.5 |
2 | ||
| 82666-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..DSL2,EFI,TD2 NO.1 |
3 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100..DSL2,EFI,TD2 NO.2 |
1 | ||
| 82666-60060 |
HDJ100..ARL;HDJ100..LHD;FZJ10#,HZJ105,UZJ100 NO.2 |
1 | ||
| 82666-60070 |
HDJ100..VX;HDJ100..5FC..GX;FZJ10#,HZJ105,UZJ100..ARL,GCC,GEN NO.1 & NO.4 |
2 | ||
| 82666-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN NO.2 & NO.5 |
2 | ||
| 82666-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN NO.1 & NO.4 |
2 | ||
| 82666-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN NO.2 & NO.5 |
2 | ||
| 82666-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..DSL2,EFI,TD2 NO.1 |
3 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100..DSL2,EFI,TD2 NO.2 |
1 | ||
| 82666-60060 |
HDJ100..ARL;HDJ100..LHD;FZJ10#,HZJ105,UZJ100 NO.2 |
1 | ||
| 82666-60070 |
HDJ100..VX;HDJ100..5FC..GX;FZJ10#,HZJ105,UZJ100..ARL,GCC,GEN NO.1 & NO.4 |
2 | ||
| 82666-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN NO.2 & NO.5 |
2 | ||
| 82666-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN NO.1 & NO.4 |
2 | ||
| 82666-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN NO.2 & NO.5 |
2 | ||
| 82666-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..DSL2,EFI,TD2 NO.1 |
3 | ||
| Common parts | ||||
| 82712-60100 | ||||
| 82712-60110 | ||||
| 82712-60120 | ||||
| 82712-60150 | ||||
| 90119-06005 | ||||
| 90179-06115 | ||||
| 90333-25003 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
