HZJ105L-GNMNS (1998)
Toyota Land Cruiser 100
Production
Jan 1998
-
Aug 2007
Engine
1HZ
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9801- )1HZ

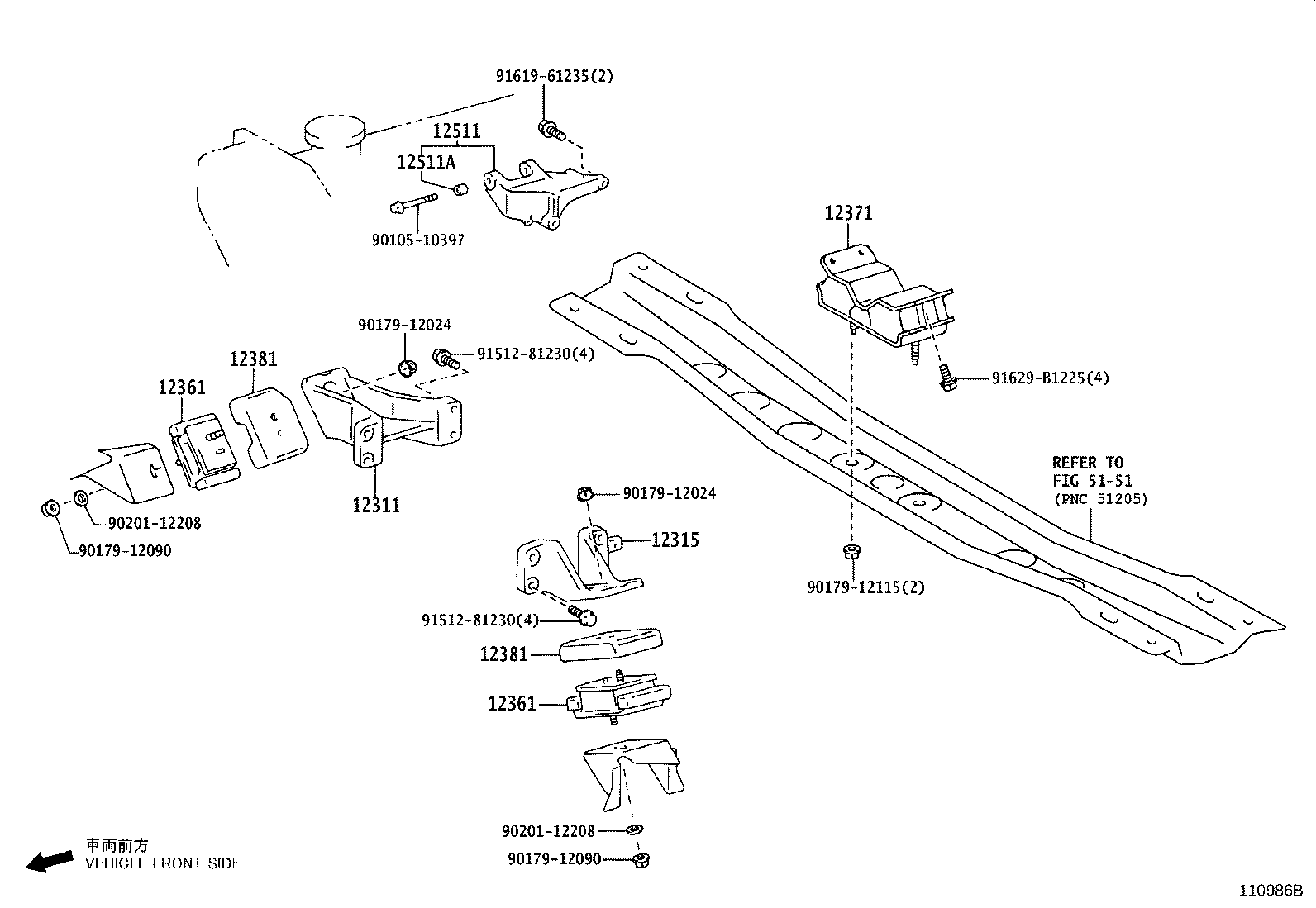

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-17010 |
1HZ..HZJ105 |
1 | ||
| 12311-17010 |
1HZ..HZJ105 |
1 | ||
| 12311-17010 |
1HZ..HZJ105 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-17011 |
1HD#,1HZ..HDJ100,HZJ105 |
1 | ||
| 12315-17011 |
1H#..HDJ100,HZJ105 |
1 | ||
| 12315-17011 |
1H#..HDJ100,HZJ105 |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-17011 |
1HZ..HZJ105 |
2 | ||
| 12361-17011 |
1HZ..HZJ105 |
2 | ||
| 12361-17011 |
1HZ..HZJ105 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-17011 |
1HZ..HZJ105 |
2 | ||
| 12361-17011 |
1HZ..HZJ105 |
2 | ||
| 12361-17011 |
1HZ..HZJ105 |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-66060 |
1HZ..HZJ105..5F |
1 | ||
| 12371-66060 |
1HZ..HZJ105 |
1 | ||
| 12371-66060 |
1HZ..HZJ105 |
1 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-66010 |
1HZ..HZJ105 |
2 | ||
| 12381-66010 |
1HZ..HZJ105 |
2 | ||
| 12381-66010 |
1HZ..HZJ105 |
2 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-66010 |
1HZ..HZJ105 |
2 | ||
| 12381-66010 |
1HZ..HZJ105 |
2 | ||
| 12381-66010 |
1HZ..HZJ105 |
2 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-17013 |
1HD#,1HZ..HDJ100,HZJ105 |
1 | ||
| 12511-17013 |
1H#..HDJ100,HZJ105 |
1 | ||
| 12511-17013 |
1H#..HDJ100,HZJ105 |
1 | ||
| 12511A - BUSH, ALTERNATOR BRACKET | ||||
| 90387-10155 |
1HD#,1HZ..HDJ100,HZJ105 |
1 | ||
| 90387-10155 |
1H#..HDJ100,HZJ105 |
1 | ||
| 90387-10155 |
1H#..HDJ100,HZJ105 |
1 | ||
| Common parts | ||||
| 90105-10397 | ||||
| 90179-12024 | ||||
| 90179-12090 | ||||
| 90179-12115 | ||||
| 90201-12208 | ||||
| 91512-81230 | ||||
| 91619-61235 | ||||
| 91629-B1225 | ||||
| Linked diagrams | ||||
| 5151 | ||||
