HZJ105L-GCMRS (1998)
Toyota Land Cruiser 100
ILLUST NO. 2 OF 2(9801-0208)1HD#,1HZ ; (0208- )1HZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
1HDT,1HZ..HDJ100,HZJ105 |
1 | ||
| 16417-15210 |
1HDFTE..HDJ100;1HZ..HZJ105..GCC,GEN |
1 | ||
| 16417-15210 |
1HDFTE..HDJ100;1HZ..HZJ105..GCC,GEN |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-15520 |
1HDT,1HZ..HDJ100,HZJ105 |
1 | ||
| 16418-15520 |
1HDFTE..HDJ100;1HZ..HZJ105..GCC,GEN |
1 | ||
| 16418-15520 |
1HDFTE..HDJ100;1HZ..HZJ105..GCC,GEN |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-67150 |
1HD#,1HZ..HDJ100,HZJ105 |
1 | ||
| 16401-67150 |
1H#..HDJ100,HZJ105 |
1 | ||
| 16401-50210 |
1H#..HDJ100,HZJ105 |
1 | ||
| 16401-50210 |
1H#..HDJ100,HZJ105 |
1 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-66130 |
1HZ..HZJ105..GCC,GEN |
1 | ||
| 16453-66130 |
1HZ..HZJ105 |
1 | ||
| 16453-66130 |
1HZ..HZJ105..GCC,GEN |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-67020 |
1HZ..HZJ105..5F |
1 | ||
| 16454-66130 |
1HZ..HZJ105..GCC,GEN |
1 | ||
| 16454-66130 |
1HZ..HZJ105..GCC,GEN |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16455-67020 |
1HDT,1HZ..HDJ100,HZJ105 |
8 | ||
| 16455-67020 |
1HDFTE..HDJ100;1HZ..HZJ105..GCC,GEN |
8 | ||
| 16455-67020 |
1HDFTE..HDJ100;1HZ..HZJ105..GCC,GEN |
8 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16455-67020 |
1HDT,1HZ..HDJ100,HZJ105 |
8 | ||
| 16455-67020 |
1HDFTE..HDJ100;1HZ..HZJ105..GCC,GEN |
8 | ||
| 16455-67020 |
1HDFTE..HDJ100;1HZ..HZJ105..GCC,GEN |
8 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16455-67020 |
1HDT,1HZ..HDJ100,HZJ105 |
8 | ||
| 16455-67020 |
1HDFTE..HDJ100;1HZ..HZJ105..GCC,GEN |
8 | ||
| 16455-67020 |
1HDFTE..HDJ100;1HZ..HZJ105..GCC,GEN |
8 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 16455-67020 |
1HDT,1HZ..HDJ100,HZJ105 |
8 | ||
| 16455-67020 |
1HDFTE..HDJ100;1HZ..HZJ105..GCC,GEN |
8 | ||
| 16455-67020 |
1HDFTE..HDJ100;1HZ..HZJ105..GCC,GEN |
8 | ||

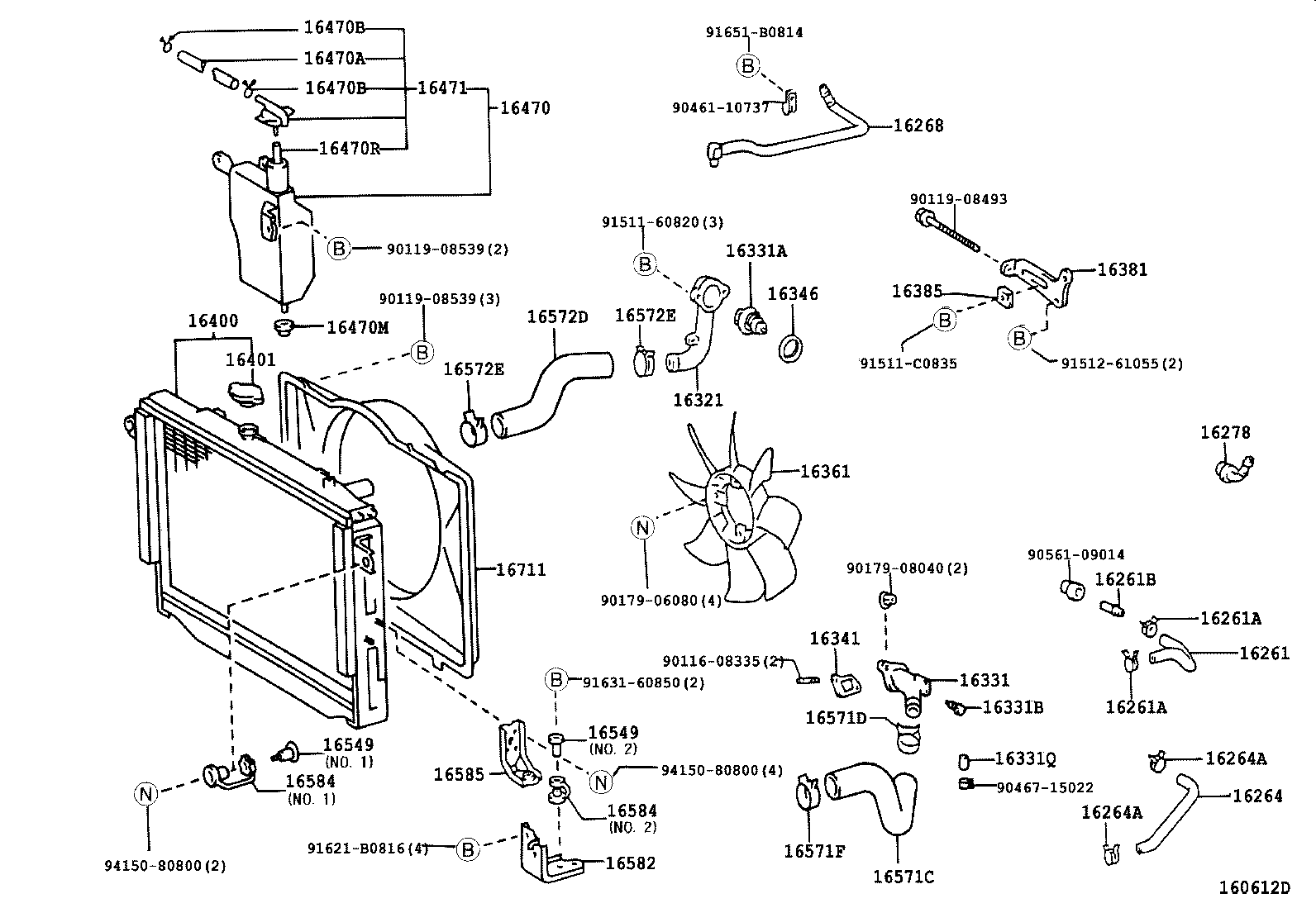

ILLUST NO. 1 OF 2(9801- )1HZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-17010 |
1HZ..HZJ105..ARL;1HZ..HZJ105..LHD..SOB..GEN |
1 | ||
| 16261-17010 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN |
1 | ||
| 16261-17010 |
1HDT..HDJ100;1HZ..HZJ105..LHD..SOB |
1 | ||
| 16261-17010 |
1HZ..HZJ105..ARL;1HZ..HZJ105..LHD..SOB..GEN |
1 | ||
| 16261-17010 |
1HDT..HDJ100;1HZ..HZJ105..LHD..GEN |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
1HDT..HDJ100;1HZ..HZJ105..LHD..SOB |
2 | ||
| 90467-15022 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN |
2 | ||
| 90467-15022 |
1HDT..HDJ100;1HZ..HZJ105..LHD..GEN |
2 | ||
| 90467-15022 |
1HZ..HZJ105..ARL;1HZ..HZJ105..LHD..SOB..GEN |
2 | ||
| 90467-15022 |
1HZ..HZJ105..ARL;1HZ..HZJ105..LHD..SOB..GEN |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
1HDT..HDJ100;1HZ..HZJ105..LHD..SOB |
2 | ||
| 90467-15022 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN |
2 | ||
| 90467-15022 |
1HDT..HDJ100;1HZ..HZJ105..LHD..GEN |
2 | ||
| 90467-15022 |
1HZ..HZJ105..ARL;1HZ..HZJ105..LHD..SOB..GEN |
2 | ||
| 90467-15022 |
1HZ..HZJ105..ARL;1HZ..HZJ105..LHD..SOB..GEN |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90406-10014 |
1HDT..HDJ100;1HZ..HZJ105..4FC;1HZ..HZJ105..LHD..GEN |
1 | ||
| 90406-10014 |
1HZ..HZJ105..ARL;1HZ..HZJ105..LHD..SOB..GEN |
1 | ||
| 90406-10014 |
1HZ..HZJ105..ARL;1HZ..HZJ105..LHD..SOB..GEN |
1 | ||
| 90406-10014 |
1HDT..HDJ100;1HZ..HZJ105..4FC;1HZ..HZJ105..LHD..SOB |
1 | ||
| 90406-10014 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-17011 |
1HDT..HDJ100;1HZ..HZJ105..LHD..GEN |
1 | ||
| 16264-17011 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN |
1 | ||
| 16264-17011 |
1HDT..HDJ100;1HZ..HZJ105..LHD..SOB |
1 | ||
| 16264-17011 |
1HZ..HZJ105..ARL;1HZ..HZJ105..LHD..SOB..GEN |
1 | ||
| 16264-17011 |
1HZ..HZJ105..ARL;1HZ..HZJ105..LHD..SOB..GEN |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN |
2 | ||
| 90467-15022 |
1HZ..HZJ105..ARL;1HZ..HZJ105..LHD..SOB..GEN |
2 | ||
| 90467-15022 |
1HZ..HZJ105..ARL;1HZ..HZJ105..LHD..SOB..GEN |
2 | ||
| 90467-15022 |
1HDT..HDJ100;1HZ..HZJ105..LHD..SOB |
2 | ||
| 90467-15022 |
1HDT..HDJ100;1HZ..HZJ105..LHD..GEN |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN |
2 | ||
| 90467-15022 |
1HZ..HZJ105..ARL;1HZ..HZJ105..LHD..SOB..GEN |
2 | ||
| 90467-15022 |
1HZ..HZJ105..ARL;1HZ..HZJ105..LHD..SOB..GEN |
2 | ||
| 90467-15022 |
1HDT..HDJ100;1HZ..HZJ105..LHD..SOB |
2 | ||
| 90467-15022 |
1HDT..HDJ100;1HZ..HZJ105..LHD..GEN |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-17010 |
1HZ..HZJ105 |
1 | ||
| 16268-17010 |
1HZ..HZJ105 |
1 | ||
| 16268-17010 |
1HZ..HZJ105 |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-17010 |
1HD#,1HZ..HDJ100,HZJ105 |
1 | ||
| 16278-17010 |
1H#..HDJ100,HZJ105 |
1 | ||
| 16278-17010 |
1H#..HDJ100,HZJ105 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-17010 |
1HD#,1HZ..HDJ100,HZJ105 |
1 | ||
| 16321-17010 |
1H#..HDJ100,HZJ105 |
1 | ||
| 16321-17010 |
1H#..HDJ100,HZJ105 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-17030 |
1HZ..HZJ105..5F |
1 | ||
| 16331-17030 |
1HZ..HZJ105 |
1 | ||
| 16331-17030 |
1HZ..HZJ105 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03089 |
1H#..HDJ100,HZJ105 *WAX 76-90 |
1 | ||
| 90916-03089 |
1HD#,1HZ..HDJ100,HZJ105 *WAX 76-90 |
1 | ||
| 90916-03089 |
1H#..HDJ100,HZJ105 *WAX 76-90 |
1 | ||
| 16331B - PLUG(FOR WATER OUTLET) | ||||
| 90341-16094 |
1HZ..HZJ105 |
1 | ||
| 90341-16094 |
1HZ..HZJ105 |
1 | ||
| 90341-16094 |
1HZ..HZJ105 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-17010 |
1HD#,1HZ..HDJ100,HZJ105 |
1 | ||
| 16341-17010 |
1H#..HDJ100,HZJ105 |
1 | ||
| 16341-17010 |
1H#..HDJ100,HZJ105 |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-66020 |
1HD#,1HZ..HDJ100,HZJ105 |
1 | ||
| 16346-66020 |
1H#..HDJ100,HZJ105 |
1 | ||
| 16346-66020 |
1H#..HDJ100,HZJ105 |
1 | ||
| 16361 - FAN | ||||
| 16361-17030 |
1H#..HDJ100,HZJ105..ARL,GEN |
1 | ||
| 16361-17030 |
1HZ..HZJ105..LHD..SOB..GEN RUSSIA SPEC |
1 | ||
| 16361-17030 |
1HZ..HZJ105..LHD..SOB..GEN RUSSIA SPEC |
1 | ||
| 16361-17030 |
1H#..HDJ100,HZJ105..GEN |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-17010 |
1HZ..HZJ105;1HDFTE..HDJ100..GEN |
1 | ||
| 16381-17010 |
1HDT,1HZ..HDJ100,HZJ105 |
1 | ||
| 16381-17010 |
1H#..HDJ100,HZJ105..GCC,GEN |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-17010 |
1H#..HDJ100,HZJ105 |
1 | ||
| 16385-17010 |
1HD#,1HZ..HDJ100,HZJ105 |
1 | ||
| 16385-17010 |
1H#..HDJ100,HZJ105 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-66130 |
1HZ..HZJ105..5F |
1 | ||
| 16400-66131 |
1HZ..HZJ105..GCC,GEN MARK 6613 |
1 | ||
| 16400-66131 |
1HZ..HZJ105..GCC,GEN MARK 6613 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-67150 |
1HD#,1HZ..HDJ100,HZJ105 |
1 | ||
| 16401-67150 |
1H#..HDJ100,HZJ105 |
1 | ||
| 16401-50210 |
1H#..HDJ100,HZJ105 |
1 | ||
| 16401-50210 |
1H#..HDJ100,HZJ105 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-66030 |
1HD#,1HZ..HDJ100,HZJ105 |
1 | ||
| 16470-66030 |
1H#..HDJ100,HZJ105 |
1 | ||
| 16470-66030 |
1H#..HDJ100,HZJ105 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
1HD#,1HZ..HDJ100,HZJ105 *H,L=450 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1HD#,1HZ..HDJ100,HZJ105 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1HD#,1HZ..HDJ100,HZJ105 |
2 | ||
| 16470M - GROMMET | ||||
| 90480-25025 |
1H#..HDJ100,HZJ105 |
1 | ||
| 90480-25025 |
1H#..HDJ100,HZJ105 |
1 | ||
| 90480-25025 |
1HD#,1HZ..HDJ100,HZJ105 |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 16472-66030 |
1HD#,1HZ..HDJ100,HZJ105 L=309 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-66030 |
1HD#,1HZ..HDJ100,HZJ105 |
1 | ||
| 16405-66030 |
1H#..HDJ100,HZJ105 |
1 | ||
| 16405-66030 |
1H#..HDJ100,HZJ105 |
1 | ||
| 16549 - COLLAR, RADIATOR SUPPORT, NO.2 | ||||
| 16549-61010 |
1HD#,1HZ..HDJ100,HZJ105 NO.2 |
2 | ||
| 16549-50010 |
1HD#,1HZ..HDJ100,HZJ105 NO.1 |
2 | ||
| 16549-50010 |
1H#..HDJ100,HZJ105 NO.1 |
2 | ||
| 16549-61010 |
1H#..HDJ100,HZJ105 NO.2 |
2 | ||
| 16549-50010 |
1H#..HDJ100,HZJ105 NO.1 |
2 | ||
| 16549-61010 |
1H#..HDJ100,HZJ105 NO.2 |
2 | ||
| 16549 - COLLAR, RADIATOR SUPPORT, NO.2 | ||||
| 16549-61010 |
1HD#,1HZ..HDJ100,HZJ105 NO.2 |
2 | ||
| 16549-50010 |
1HD#,1HZ..HDJ100,HZJ105 NO.1 |
2 | ||
| 16549-50010 |
1H#..HDJ100,HZJ105 NO.1 |
2 | ||
| 16549-61010 |
1H#..HDJ100,HZJ105 NO.2 |
2 | ||
| 16549-50010 |
1H#..HDJ100,HZJ105 NO.1 |
2 | ||
| 16549-61010 |
1H#..HDJ100,HZJ105 NO.2 |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-17010 |
1HDT,1HZ..HDJ100,HZJ105 |
1 | ||
| 16571-17010 |
1HZ..HZJ105 |
1 | ||
| 16571-17010 |
1HZ..HZJ105 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90467-41006 |
1H#..HDJ100,HZJ105 |
1 | ||
| 90467-41006 |
1H#..HDJ100,HZJ105 |
1 | ||
| 90467-41006 |
1HD#,1HZ..HDJ100,HZJ105 |
1 | ||
| 16571F - CLAMP OR CLIP(FOR WATER HOSE) | ||||
| 90467-42001 |
1H#..HDJ100,HZJ105 |
1 | ||
| 90467-42001 |
1H#..HDJ100,HZJ105 |
1 | ||
| 90467-42001 |
1HD#,1HZ..HDJ100,HZJ105 |
1 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-17140 |
1HZ..HZJ105 |
1 | ||
| 16572-17140 |
1HZ..HZJ105 |
1 | ||
| 16572-17140 |
1HZ..HZJ105 |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90467-43002 |
1HD#,1HZ..HDJ100,HZJ105 |
2 | ||
| 90467-43002 |
1H#..HDJ100,HZJ105 |
2 | ||
| 90467-43002 |
1H#..HDJ100,HZJ105 |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90467-43002 |
1HD#,1HZ..HDJ100,HZJ105 |
2 | ||
| 90467-43002 |
1H#..HDJ100,HZJ105 |
2 | ||
| 90467-43002 |
1H#..HDJ100,HZJ105 |
2 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-50010 |
1HD#,1HZ..HDJ100,HZJ105 |
2 | ||
| 16582-50010 |
1H#..HDJ100,HZJ105 |
2 | ||
| 16582-50010 |
1H#..HDJ100,HZJ105 |
2 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-66010 |
1HD#,1HZ..HDJ100,HZJ105 NO.1 |
2 | ||
| 16584-61020 |
1HD#,1HZ..HDJ100,HZJ105 NO.2 |
2 | ||
| 16584-61020 |
1H#..HDJ100,HZJ105 NO.2 |
2 | ||
| 16584-66010 |
1H#..HDJ100,HZJ105 NO.1 |
2 | ||
| 16584-61020 |
1H#..HDJ100,HZJ105 NO.2 |
2 | ||
| 16584-66010 |
1H#..HDJ100,HZJ105 NO.1 |
2 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-66010 |
1HD#,1HZ..HDJ100,HZJ105 NO.1 |
2 | ||
| 16584-61020 |
1HD#,1HZ..HDJ100,HZJ105 NO.2 |
2 | ||
| 16584-61020 |
1H#..HDJ100,HZJ105 NO.2 |
2 | ||
| 16584-66010 |
1H#..HDJ100,HZJ105 NO.1 |
2 | ||
| 16584-61020 |
1H#..HDJ100,HZJ105 NO.2 |
2 | ||
| 16584-66010 |
1H#..HDJ100,HZJ105 NO.1 |
2 | ||
| 16585 - BRACKET, RADIATOR, NO.3 | ||||
| 16585-61020 |
1H#..HDJ100,HZJ105 |
2 | ||
| 16585-61020 |
1HD#,1HZ..HDJ100,HZJ105 |
2 | ||
| 16585-61020 |
1H#..HDJ100,HZJ105 |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-17110 |
1HZ..HZJ105 |
1 | ||
| 16711-17110 |
1HZ..HZJ105 |
1 | ||
| 16711-17110 |
1HZ..HZJ105 |
1 | ||
| Common parts | ||||
| 90116-08335 | ||||
| 90119-08493 | ||||
| 90119-08539 | ||||
| 90179-06080 | ||||
| 90179-08040 | ||||
| 90461-10737 | ||||
| 90467-15022 | ||||
| 90561-09014 | ||||
| 91511-60820 | ||||
| 91511-C0835 | ||||
| 91512-61055 | ||||
| 91621-B0816 | ||||
| 91631-60850 | ||||
| 91651-B0814 | ||||
| 94150-80800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
