HZJ105L-GCMNSV (1998)
Toyota Land Cruiser 100

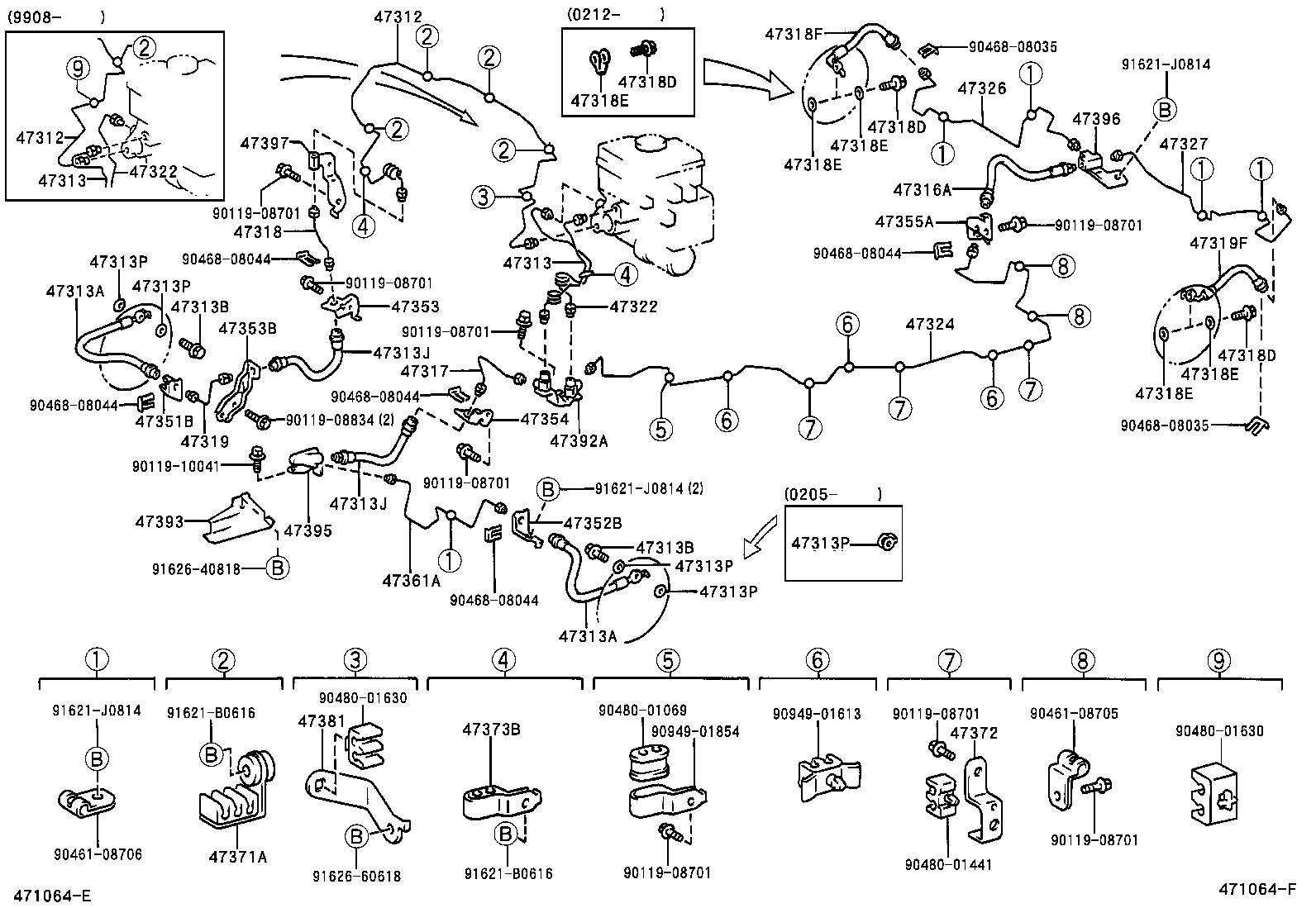

ILLUST NO. 1 OF 2(9801- )FZJ105,HZJ105..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-6A040 |
HZJ105..LHD;FZJ105..LHD..GX W(ABS) |
1 | ||
| 47312-6A042 |
HZJ105..LHD;FZJ105..LHD..GX W(ABS) |
1 | ||
| 47312-6A180 |
FZJ105,HZJ105..LHD |
1 | ||
| 47312-6A043 |
HZJ105..LHD;FZJ105..LHD..GX W(ABS) |
1 | ||
| 47312-6A180 |
FZJ105,HZJ105..LHD |
1 | ||
| 47312-6A200 |
HZJ105..LHD;FZJ105..LHD..GX W(ABS) |
1 | ||
| 47312-6A200 |
HZJ105..LHD;FZJ105..LHD..GX W(ABS) |
1 | ||
| 47312-6A021 |
FZJ105,HZJ105..LHD |
1 | ||
| 47312-6A180 |
FZJ105,HZJ105..LHD |
1 | ||
| 47312-6A200 |
HZJ105..LHD;FZJ105..LHD..GX W(ABS) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02967 |
FZJ105,HZJ105 |
2 | ||
| 90947-02A16 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS) |
2 | ||
| 90947-02967 |
FZJ105,HZJ105 |
2 | ||
| 90947-02A16 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS) |
2 | ||
| 90947-02A16 |
FZJ105,HZJ105 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02967 |
FZJ105,HZJ105 |
2 | ||
| 90947-02A16 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS) |
2 | ||
| 90947-02967 |
FZJ105,HZJ105 |
2 | ||
| 90947-02A16 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS) |
2 | ||
| 90947-02A16 |
FZJ105,HZJ105 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 90401-10058 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 90401-10058 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 90401-10058 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 90401-10058 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 90401-10058 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 90401-10058 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02A15 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS),RH |
1 | ||
| 90947-02A18 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS),LH |
1 | ||
| 90947-02A18 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN |
1 | ||
| 90947-02A15 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX RH |
1 | ||
| 90947-02A18 |
FZJ105,HZJ105 |
1 | ||
| 90947-02A15 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS),RH |
1 | ||
| 90947-02A18 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS),LH |
1 | ||
| 90947-02A18 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX LH |
1 | ||
| 90947-02969 |
FZJ105,HZJ105 |
1 | ||
| 90947-02969 |
FZJ105,HZJ105 |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 47389-50020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47389-50020 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 47389-50020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 47389-50020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47389-50020 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 47389-50020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 47389-50020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47389-50020 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 47389-50020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 47389-50020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47389-50020 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 47389-50020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 47389-50020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47389-50020 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 47389-50020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 47389-50020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47389-50020 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 47389-50020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02A17 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS) |
1 | ||
| 90947-02968 |
FZJ105,HZJ105 |
1 | ||
| 90947-02968 |
FZJ105,HZJ105 |
1 | ||
| 90947-02A17 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS) |
1 | ||
| 90947-02A17 |
FZJ105,HZJ105 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-60070 |
FZJ105,HZJ105 |
1 | ||
| 47317-60070 |
FZJ105,HZJ105 |
1 | ||
| 47317-60070 |
FZJ105,HZJ105 |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 90401-10058 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 90401-10015 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 90401-10058 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 90401-10058 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 90401-10015 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 90401-10058 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47389-50020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47389-50020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47389-50020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02A07 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 90947-02A09 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN W(ABS) |
1 | ||
| 90947-02A07 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 90947-02A09 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..EFI,TD2 W(ABS) |
1 | ||
| 90947-02A07 |
HZJ105;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 90947-02A07 |
UZJ100..LHD;FZJ10#,HDJ100,HZJ105..DSL2,EFI,TD2 |
1 | ||
| 90947-02A09 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN W(ABS) |
1 | ||
| 90947-02F25 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-60101 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS) |
1 | ||
| 47319-60101 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS) |
1 | ||
| 47319-60090 |
FZJ105,HZJ105 |
1 | ||
| 47319-60090 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN |
1 | ||
| 47319-60090 |
FZJ105,HZJ105 |
1 | ||
| 47319-60101 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS) |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02A08 |
UZJ100..LHD;FZJ10#,HDJ100,HZJ105..DSL2,EFI,TD2 |
1 | ||
| 90947-02A10 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..EFI,TD2 W(ABS) |
1 | ||
| 90947-02A08 |
HZJ105;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 90947-02A10 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN W(ABS) |
1 | ||
| 90947-02A10 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN W(ABS) |
1 | ||
| 90947-02A08 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 90947-02A08 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 90947-02F26 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-60760 |
FZJ105,HZJ105..LHD |
1 | ||
| 47322-60780 |
HZJ105..LHD;FZJ105..LHD..GX W(ABS) |
1 | ||
| 47322-6A010 |
FZJ105,HZJ105..LHD |
1 | ||
| 47322-6A030 |
HZJ105..LHD;FZJ105..LHD..GX W(ABS) |
1 | ||
| 47322-6A010 |
FZJ105,HZJ105..LHD |
1 | ||
| 47322-6A030 |
HZJ105..LHD;FZJ105..LHD..GX W(ABS) |
1 | ||
| 47322-6A030 |
HZJ105..LHD;FZJ105..LHD..GX W(ABS) |
1 | ||
| 47322-6A010 |
FZJ105,HZJ105..LHD |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-60260 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS) |
1 | ||
| 47324-60250 |
FZJ105,HZJ105 |
1 | ||
| 47324-60250 |
FZJ105,HZJ105 |
1 | ||
| 47324-60260 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS) |
1 | ||
| 47324-60260 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS) |
1 | ||
| 47324-60250 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-60111 |
FZJ105,HZJ105 |
1 | ||
| 47325-60111 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN |
1 | ||
| 47325-60111 |
FZJ105,HZJ105 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-60180 |
FZJ105,HZJ105 W(REAR DISC BRAKE) |
1 | ||
| 47326-60170 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN |
1 | ||
| 47326-60180 |
FZJ105,HZJ105 W(REAR DISC BRAKE) |
1 | ||
| 47326-60180 |
FZJ105,HZJ105 W(REAR DISC BRAKE) |
1 | ||
| 47326-60170 |
FZJ105,HZJ105..GCC,GEN |
1 | ||
| 47326-60170 |
FZJ105..GEN;HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-60070 |
FZJ105..GEN;HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN |
1 | ||
| 47327-60080 |
FZJ105,HZJ105 W(REAR DISC BRAKE) |
1 | ||
| 47327-60070 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN |
1 | ||
| 47327-60080 |
FZJ105,HZJ105 W(REAR DISC BRAKE) |
1 | ||
| 47327-60080 |
FZJ105,HZJ105 W(REAR DISC BRAKE) |
1 | ||
| 47327-60070 |
FZJ105,HZJ105..GCC,GEN |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-60210 |
FZJ105,HZJ105 |
1 | ||
| 47351-60210 |
FZJ105,HZJ105 |
1 | ||
| 47351-60210 |
FZJ105,HZJ105 |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47352-60120 |
FZJ105,HZJ105 |
1 | ||
| 47352-60120 |
FZJ105,HZJ105 |
1 | ||
| 47352-60120 |
FZJ105,HZJ105 |
1 | ||
| 47354 - BRACKET, FRONT FLEXIBLE HOSE | ||||
| 47354-60121 |
FZJ105,HZJ105 |
1 | ||
| 47354-60121 |
FZJ105,HZJ105 |
1 | ||
| 47354-60121 |
FZJ105,HZJ105 |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47355-60051 |
FZJ105,HZJ105 |
1 | ||
| 47355-60051 |
FZJ105,HZJ105 |
1 | ||
| 47355-60051 |
FZJ105,HZJ105 |
1 | ||
| 47361A - TUBE, FRONT BRAKE, NO.10 | ||||
| 47361-60100 |
FZJ105,HZJ105 |
1 | ||
| 47361-60100 |
FZJ105,HZJ105 |
1 | ||
| 47361-60100 |
FZJ105,HZJ105 |
1 | ||
| 47362 - TUBE, FRONT BRAKE, NO.11 | ||||
| 47362-60060 |
FZJ105,HZJ105 |
1 | ||
| 47362-60060 |
FZJ105,HZJ105 |
1 | ||
| 47362-60060 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-60080 |
FZJ105,HZJ105 |
3 | ||
| 47371-60080 |
FZJ105,HZJ105 |
3 | ||
| 47371-60080 |
FZJ105,HZJ105 |
3 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-60220 |
HZJ105..LHD;FZJ105..LHD..GX W(ABS) |
2 | ||
| 47371-60220 |
FZJ105,HZJ105..LHD |
1 | ||
| 47371-60220 |
FZJ105,HZJ105..LHD |
1 | ||
| 47371-60220 |
FZJ105,HZJ105..LHD |
1 | ||
| 47371-60220 |
HZJ105..LHD;FZJ105..LHD..GX W(ABS) |
2 | ||
| 47371-60220 |
HZJ105..LHD;FZJ105..LHD..GX W(ABS) |
2 | ||
| 47392A - WAY, BRAKE TUBE, NO.2 | ||||
| 47392-60060 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS) |
1 | ||
| 47392-60050 |
FZJ105,HZJ105 |
1 | ||
| 47392-60050 |
FZJ105,HZJ105 |
1 | ||
| 47392-60060 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS) |
1 | ||
| 47392-60060 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS) |
1 | ||
| 47392-60050 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN |
1 | ||
| 47395 - WAY, BRAKE TUBE, NO.3 | ||||
| 47395-60040 |
FZJ105,HZJ105 |
1 | ||
| 47395-60040 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN |
1 | ||
| 47395-60050 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS) |
1 | ||
| 47395-60050 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS) |
1 | ||
| 47395-60040 |
FZJ105,HZJ105 |
1 | ||
| 47395-60050 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS) |
1 | ||
| 47396 - WAY, BRAKE TUBE, NO.4 | ||||
| 47396-60010 |
FZJ105,HZJ105 |
1 | ||
| 47396-60010 |
FZJ105,HZJ105 |
1 | ||
| 47396-60010 |
FZJ105,HZJ105 |
1 | ||
| Common parts | ||||
| 90119-08701 | ||||
| 90119-10041 | ||||
| 90461-08704 | ||||
| 90461-08705 | ||||
| 90461-08706 | ||||
| 90464-00519 | ||||
| 90468-08035 | ||||
| 90468-08044 | ||||
| 90480-01069 | ||||
| 90480-01441 | ||||
| 90949-01613 | ||||
| 90949-01854 | ||||
| 91621-B0616 | ||||
| 91621-J0814 | ||||
| 91626-60618 | ||||
(9801- )FZJ105,HZJ105..LHD
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-6A040 |
HZJ105..LHD;FZJ105..LHD..GX W(ABS) |
1 | ||
| 47312-6A042 |
HZJ105..LHD;FZJ105..LHD..GX W(ABS) |
1 | ||
| 47312-6A180 |
FZJ105,HZJ105..LHD |
1 | ||
| 47312-6A043 |
HZJ105..LHD;FZJ105..LHD..GX W(ABS) |
1 | ||
| 47312-6A180 |
FZJ105,HZJ105..LHD |
1 | ||
| 47312-6A200 |
HZJ105..LHD;FZJ105..LHD..GX W(ABS) |
1 | ||
| 47312-6A200 |
HZJ105..LHD;FZJ105..LHD..GX W(ABS) |
1 | ||
| 47312-6A021 |
FZJ105,HZJ105..LHD |
1 | ||
| 47312-6A180 |
FZJ105,HZJ105..LHD |
1 | ||
| 47312-6A200 |
HZJ105..LHD;FZJ105..LHD..GX W(ABS) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-6A040 |
HZJ105..LHD;FZJ105..LHD..GX W(ABS) |
1 | ||
| 47312-6A042 |
HZJ105..LHD;FZJ105..LHD..GX W(ABS) |
1 | ||
| 47312-6A180 |
FZJ105,HZJ105..LHD |
1 | ||
| 47312-6A043 |
HZJ105..LHD;FZJ105..LHD..GX W(ABS) |
1 | ||
| 47312-6A180 |
FZJ105,HZJ105..LHD |
1 | ||
| 47312-6A200 |
HZJ105..LHD;FZJ105..LHD..GX W(ABS) |
1 | ||
| 47312-6A200 |
HZJ105..LHD;FZJ105..LHD..GX W(ABS) |
1 | ||
| 47312-6A021 |
FZJ105,HZJ105..LHD |
1 | ||
| 47312-6A180 |
FZJ105,HZJ105..LHD |
1 | ||
| 47312-6A200 |
HZJ105..LHD;FZJ105..LHD..GX W(ABS) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-60270 |
HZJ105..LHD;FZJ105..LHD..GX |
1 | ||
| 47313-60400 |
HZJ105..LHD;FZJ105..LHD..GX |
1 | ||
| 47313-60400 |
HZJ105..LHD;FZJ105..LHD..GX |
1 | ||
| 47313-60400 |
HZJ105..LHD;FZJ105..LHD..GX |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-60270 |
HZJ105..LHD;FZJ105..LHD..GX |
1 | ||
| 47313-60400 |
HZJ105..LHD;FZJ105..LHD..GX |
1 | ||
| 47313-60400 |
HZJ105..LHD;FZJ105..LHD..GX |
1 | ||
| 47313-60400 |
HZJ105..LHD;FZJ105..LHD..GX |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02967 |
FZJ105,HZJ105 |
2 | ||
| 90947-02A16 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS) |
2 | ||
| 90947-02967 |
FZJ105,HZJ105 |
2 | ||
| 90947-02A16 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS) |
2 | ||
| 90947-02A16 |
FZJ105,HZJ105 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02967 |
FZJ105,HZJ105 |
2 | ||
| 90947-02A16 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS) |
2 | ||
| 90947-02967 |
FZJ105,HZJ105 |
2 | ||
| 90947-02A16 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS) |
2 | ||
| 90947-02A16 |
FZJ105,HZJ105 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 90401-10058 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 90401-10058 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 90401-10058 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 90401-10058 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 90401-10058 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 90401-10058 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02A15 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS),RH |
1 | ||
| 90947-02A18 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS),LH |
1 | ||
| 90947-02A18 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN |
1 | ||
| 90947-02A15 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX RH |
1 | ||
| 90947-02A18 |
FZJ105,HZJ105 |
1 | ||
| 90947-02A15 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS),RH |
1 | ||
| 90947-02A18 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS),LH |
1 | ||
| 90947-02A18 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX LH |
1 | ||
| 90947-02969 |
FZJ105,HZJ105 |
1 | ||
| 90947-02969 |
FZJ105,HZJ105 |
1 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02A15 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS),RH |
1 | ||
| 90947-02A18 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS),LH |
1 | ||
| 90947-02A18 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN |
1 | ||
| 90947-02A15 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX RH |
1 | ||
| 90947-02A18 |
FZJ105,HZJ105 |
1 | ||
| 90947-02A15 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS),RH |
1 | ||
| 90947-02A18 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS),LH |
1 | ||
| 90947-02A18 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX LH |
1 | ||
| 90947-02969 |
FZJ105,HZJ105 |
1 | ||
| 90947-02969 |
FZJ105,HZJ105 |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 47389-50020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47389-50020 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 47389-50020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 47389-50020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47389-50020 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 47389-50020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 47389-50020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47389-50020 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 47389-50020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 47389-50020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47389-50020 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 47389-50020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 47389-50020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47389-50020 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 47389-50020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02A17 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS) |
1 | ||
| 90947-02968 |
FZJ105,HZJ105 |
1 | ||
| 90947-02968 |
FZJ105,HZJ105 |
1 | ||
| 90947-02A17 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS) |
1 | ||
| 90947-02A17 |
FZJ105,HZJ105 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-60070 |
FZJ105,HZJ105 |
1 | ||
| 47317-60070 |
FZJ105,HZJ105 |
1 | ||
| 47317-60070 |
FZJ105,HZJ105 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-60090 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX |
1 | ||
| 47318-60090 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX |
1 | ||
| 47318-60090 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 90401-10058 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 90401-10015 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 90401-10058 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 90401-10058 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 90401-10015 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 90401-10058 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 90401-10058 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 90401-10015 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 90401-10058 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47389-50020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47389-50020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47389-50020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47389-50020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47389-50020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 90430-10074 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02A07 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 90947-02A09 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN W(ABS) |
1 | ||
| 90947-02A07 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 90947-02A09 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..EFI,TD2 W(ABS) |
1 | ||
| 90947-02A07 |
HZJ105;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 90947-02A07 |
UZJ100..LHD;FZJ10#,HDJ100,HZJ105..DSL2,EFI,TD2 |
1 | ||
| 90947-02A09 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN W(ABS) |
1 | ||
| 90947-02F25 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-60101 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS) |
1 | ||
| 47319-60101 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS) |
1 | ||
| 47319-60090 |
FZJ105,HZJ105 |
1 | ||
| 47319-60090 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN |
1 | ||
| 47319-60090 |
FZJ105,HZJ105 |
1 | ||
| 47319-60101 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS) |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02A08 |
UZJ100..LHD;FZJ10#,HDJ100,HZJ105..DSL2,EFI,TD2 |
1 | ||
| 90947-02A10 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..EFI,TD2 W(ABS) |
1 | ||
| 90947-02A08 |
HZJ105;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 90947-02A10 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN W(ABS) |
1 | ||
| 90947-02A10 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100..ARL,GCC,GEN W(ABS) |
1 | ||
| 90947-02A08 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 90947-02A08 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 90947-02F26 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-60760 |
FZJ105,HZJ105..LHD |
1 | ||
| 47322-60780 |
HZJ105..LHD;FZJ105..LHD..GX W(ABS) |
1 | ||
| 47322-6A010 |
FZJ105,HZJ105..LHD |
1 | ||
| 47322-6A030 |
HZJ105..LHD;FZJ105..LHD..GX W(ABS) |
1 | ||
| 47322-6A010 |
FZJ105,HZJ105..LHD |
1 | ||
| 47322-6A030 |
HZJ105..LHD;FZJ105..LHD..GX W(ABS) |
1 | ||
| 47322-6A030 |
HZJ105..LHD;FZJ105..LHD..GX W(ABS) |
1 | ||
| 47322-6A010 |
FZJ105,HZJ105..LHD |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-60760 |
FZJ105,HZJ105..LHD |
1 | ||
| 47322-60780 |
HZJ105..LHD;FZJ105..LHD..GX W(ABS) |
1 | ||
| 47322-6A010 |
FZJ105,HZJ105..LHD |
1 | ||
| 47322-6A030 |
HZJ105..LHD;FZJ105..LHD..GX W(ABS) |
1 | ||
| 47322-6A010 |
FZJ105,HZJ105..LHD |
1 | ||
| 47322-6A030 |
HZJ105..LHD;FZJ105..LHD..GX W(ABS) |
1 | ||
| 47322-6A030 |
HZJ105..LHD;FZJ105..LHD..GX W(ABS) |
1 | ||
| 47322-6A010 |
FZJ105,HZJ105..LHD |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-60260 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS) |
1 | ||
| 47324-60250 |
FZJ105,HZJ105 |
1 | ||
| 47324-60250 |
FZJ105,HZJ105 |
1 | ||
| 47324-60260 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS) |
1 | ||
| 47324-60260 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS) |
1 | ||
| 47324-60250 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-60180 |
FZJ105,HZJ105 W(REAR DISC BRAKE) |
1 | ||
| 47326-60170 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN |
1 | ||
| 47326-60180 |
FZJ105,HZJ105 W(REAR DISC BRAKE) |
1 | ||
| 47326-60180 |
FZJ105,HZJ105 W(REAR DISC BRAKE) |
1 | ||
| 47326-60170 |
FZJ105,HZJ105..GCC,GEN |
1 | ||
| 47326-60170 |
FZJ105..GEN;HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-60070 |
FZJ105..GEN;HZJ105..SOB;FZJ105..STD..ARL;HZJ105..LUB..GEN |
1 | ||
| 47327-60080 |
FZJ105,HZJ105 W(REAR DISC BRAKE) |
1 | ||
| 47327-60070 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN |
1 | ||
| 47327-60080 |
FZJ105,HZJ105 W(REAR DISC BRAKE) |
1 | ||
| 47327-60080 |
FZJ105,HZJ105 W(REAR DISC BRAKE) |
1 | ||
| 47327-60070 |
FZJ105,HZJ105..GCC,GEN |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-60210 |
FZJ105,HZJ105 |
1 | ||
| 47351-60210 |
FZJ105,HZJ105 |
1 | ||
| 47351-60210 |
FZJ105,HZJ105 |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47352-60120 |
FZJ105,HZJ105 |
1 | ||
| 47352-60120 |
FZJ105,HZJ105 |
1 | ||
| 47352-60120 |
FZJ105,HZJ105 |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-60110 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX |
1 | ||
| 47353-60110 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX |
1 | ||
| 47353-60110 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47356-60011 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX |
1 | ||
| 47356-60011 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX |
1 | ||
| 47356-60011 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX |
1 | ||
| 47354 - BRACKET, FRONT FLEXIBLE HOSE | ||||
| 47354-60121 |
FZJ105,HZJ105 |
1 | ||
| 47354-60121 |
FZJ105,HZJ105 |
1 | ||
| 47354-60121 |
FZJ105,HZJ105 |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47355-60051 |
FZJ105,HZJ105 |
1 | ||
| 47355-60051 |
FZJ105,HZJ105 |
1 | ||
| 47355-60051 |
FZJ105,HZJ105 |
1 | ||
| 47361A - TUBE, FRONT BRAKE, NO.10 | ||||
| 47361-60100 |
FZJ105,HZJ105 |
1 | ||
| 47361-60100 |
FZJ105,HZJ105 |
1 | ||
| 47361-60100 |
FZJ105,HZJ105 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-60200 |
FZJ105..LHD..GX;FZJ100,HDJ100,HZJ105,UZJ100..LHD W(ABS) |
4 | ||
| 47371-60200 |
FZJ105..LHD..GX;FZJ100,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) W(ABS) |
4 | ||
| 47371-60200 |
FZJ105..LHD..GX;FZJ100,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) W(ABS) |
4 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-60080 |
FZJ105,HZJ105 |
3 | ||
| 47371-60080 |
FZJ105,HZJ105 |
3 | ||
| 47371-60080 |
FZJ105,HZJ105 |
3 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-60220 |
HZJ105..LHD;FZJ105..LHD..GX W(ABS) |
2 | ||
| 47371-60220 |
FZJ105,HZJ105..LHD |
1 | ||
| 47371-60220 |
FZJ105,HZJ105..LHD |
1 | ||
| 47371-60220 |
FZJ105,HZJ105..LHD |
1 | ||
| 47371-60220 |
HZJ105..LHD;FZJ105..LHD..GX W(ABS) |
2 | ||
| 47371-60220 |
HZJ105..LHD;FZJ105..LHD..GX W(ABS) |
2 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-60040 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100 |
1 | ||
| 47392A - WAY, BRAKE TUBE, NO.2 | ||||
| 47392-60060 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS) |
1 | ||
| 47392-60050 |
FZJ105,HZJ105 |
1 | ||
| 47392-60050 |
FZJ105,HZJ105 |
1 | ||
| 47392-60060 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS) |
1 | ||
| 47392-60060 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS) |
1 | ||
| 47392-60050 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN |
1 | ||
| 47393 - INSULATOR, BRAKE TUBE HEAT | ||||
| 47393-60040 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX |
1 | ||
| 47393-60040 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX |
1 | ||
| 47393-60040 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX |
1 | ||
| 47395 - WAY, BRAKE TUBE, NO.3 | ||||
| 47395-60040 |
FZJ105,HZJ105 |
1 | ||
| 47395-60040 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN |
1 | ||
| 47395-60050 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS) |
1 | ||
| 47395-60050 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS) |
1 | ||
| 47395-60040 |
FZJ105,HZJ105 |
1 | ||
| 47395-60050 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX W(ABS) |
1 | ||
| 47396 - WAY, BRAKE TUBE, NO.4 | ||||
| 47396-60010 |
FZJ105,HZJ105 |
1 | ||
| 47396-60010 |
FZJ105,HZJ105 |
1 | ||
| 47396-60010 |
FZJ105,HZJ105 |
1 | ||
| 47397 - WAY, BRAKE TUBE, NO.5 | ||||
| 47397-60010 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX |
1 | ||
| 47397-60010 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX |
1 | ||
| 47397-60010 |
HZJ105..LHD..STD;FZJ105,HZJ105..GX |
1 | ||
| Common parts | ||||
| 90119-08701 | ||||
| 90119-08834 | ||||
| 90119-10041 | ||||
| 90461-08705 | ||||
| 90461-08706 | ||||
| 90468-08035 | ||||
| 90468-08044 | ||||
| 90480-01069 | ||||
| 90480-01441 | ||||
| 90480-01630 | ||||
| 90949-01613 | ||||
| 90949-01854 | ||||
| 91621-B0616 | ||||
| 91621-J0814 | ||||
| 91626-40818 | ||||
| 91626-60618 | ||||
ILLUST NO. 2 OF 2(9801-9907) ; (9907- )HDJ100,UZJ100..GCC,GEN; (9907- )FZJ10#,HZJ105..ARL,GCC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04477 - BUSH & BOOT KIT, LOAD SENSING SPRING | ||||
| 04477-60010 |
UZJ100..LHD;FZJ10#,HDJ100,HZJ105..DSL2,EFI,TD2 |
1 | ||
| 04477-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 04477-60010 |
HZJ105;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 04477-60010 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 31478D - CAP, BLEEDER PLUG(FOR LSPV) | ||||
| 31478-30010 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 31478-30010 |
UZJ100..LHD;FZJ10#,HDJ100,HZJ105..DSL2,EFI,TD2 |
1 | ||
| 31478-30010 |
HZJ105;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 31478-30010 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-60120 |
UZJ100..LHD;FZJ10#,HDJ100,HZJ105..DSL2,EFI,TD2 |
1 | ||
| 47910-60120 |
HZJ105;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47910-60120 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 47910-60120 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47920 - SPRING ASSY, LOAD SENSING | ||||
| 47920-60120 |
FZJ105,HZJ105 |
1 | ||
| 47920-60120 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN |
1 | ||
| 47920-60120 |
FZJ105,HZJ105 |
1 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
UZJ100..LHD;FZJ10#,HDJ100,HZJ105..DSL2,EFI,TD2 |
2 | ||
| 90387-08099 |
HZJ105;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 90387-08099 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 90387-08099 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
UZJ100..LHD;FZJ10#,HDJ100,HZJ105..DSL2,EFI,TD2 |
2 | ||
| 90387-08099 |
HZJ105;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 90387-08099 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 90387-08099 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 47920B - CLIP(FOR LOAD SENSING VALVE BOOT) | ||||
| 90467-31110 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 90467-31110 |
UZJ100..LHD;FZJ10#,HDJ100,HZJ105..DSL2,EFI,TD2 |
1 | ||
| 90467-31110 |
HZJ105;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 90467-31110 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
UZJ100..LHD;FZJ10#,HDJ100,HZJ105..DSL2,EFI,TD2 |
2 | ||
| 90202-10103 |
HZJ105;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 90202-10103 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 90202-10103 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
UZJ100..LHD;FZJ10#,HDJ100,HZJ105..DSL2,EFI,TD2 |
2 | ||
| 90202-10103 |
HZJ105;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 90202-10103 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 90202-10103 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 47924 - BUSH, LOAD SENSING VALVE | ||||
| 47924-35010 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 47924-35010 |
UZJ100..LHD;FZJ10#,HDJ100,HZJ105..DSL2,EFI,TD2 |
2 | ||
| 47924-35010 |
HZJ105;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 47924-35010 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 47924 - BUSH, LOAD SENSING VALVE | ||||
| 47924-35010 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 47924-35010 |
UZJ100..LHD;FZJ10#,HDJ100,HZJ105..DSL2,EFI,TD2 |
2 | ||
| 47924-35010 |
HZJ105;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 47924-35010 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
2 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-60070 |
FZJ105,HZJ105 |
1 | ||
| 47931-60070 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN |
1 | ||
| 47931-60070 |
FZJ105,HZJ105 |
1 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-60070 |
FZJ105,HZJ105 |
1 | ||
| 47931-60070 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN |
1 | ||
| 47931-60070 |
FZJ105,HZJ105 |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-60120 |
FZJ105,HZJ105 |
1 | ||
| 47933-60120 |
FZJ105,HZJ105 |
1 | ||
| 47933-60120 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-60120 |
FZJ105,HZJ105 |
1 | ||
| 47933-60120 |
FZJ105,HZJ105 |
1 | ||
| 47933-60120 |
FZJ105;HZJ105..SOB;HZJ105..LUB..GEN |
1 | ||
| 47935 - SHACKLE, LOAD SENSING SPRING, NO.1 | ||||
| 47935-35030 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 47935-35030 |
HZJ105;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47935-35030 |
UZJ100..LHD;FZJ10#,HDJ100,HZJ105..DSL2,EFI,TD2 |
1 | ||
| 47935-35030 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90387-08099 |
HZJ105;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 90387-08099 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 90387-08099 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 90387-08099 |
UZJ100..LHD;FZJ10#,HDJ100,HZJ105..DSL2,EFI,TD2 |
1 | ||
| 47936 - SHACKLE, LOAD SENSING SPRING, NO.2 | ||||
| 47936-60030 |
UZJ100..LHD;FZJ10#,HDJ100,HZJ105..DSL2,EFI,TD2 |
1 | ||
| 47936-60030 |
HZJ105;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47936-60030 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47936-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 47937 - PLATE, LOAD SENSING VALVE SET | ||||
| 47937-35030 |
UZJ100..LHD;FZJ10#,HDJ100,HZJ105..DSL2,EFI,TD2 |
1 | ||
| 47937-35030 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 47937-60010 |
HZJ105..SOB;HZJ105..LUB..GEN;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 47937-35030 |
HZJ105;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| Common parts | ||||
| 90119-08834 | ||||
| 90201-08062 | ||||
| 90201-23360 | ||||
| 91131-50840 | ||||
| 91611-B0816 | ||||
| 94130-00802 | ||||
| 94512-00800 | ||||
| 94612-10800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
