HDJ100R-GNPEZQ (2000)

Toyota Land Cruiser 100

Production Aug 2000 - Aug 2002
Engine 1HDFTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0008- )TDEFI

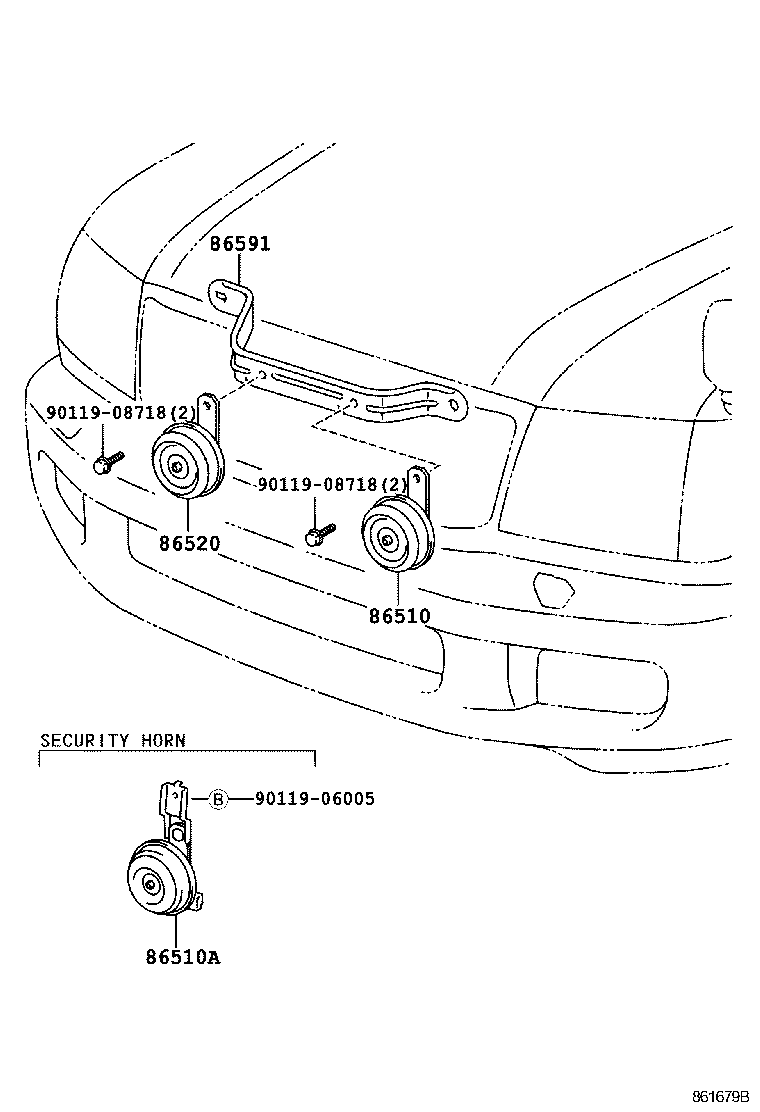

Click highlighted areas on diagram

diagram 86510 86510A 86520 86591 9011906005 9011908718 9011908718
Part # Description Qty Price
86510 - HORN ASSY, HIGH PITCHED
86510-60180

FZJ105,HDJ100,HZJ105,UZJ100..ARL,GEN

 1
86520 - HORN ASSY, LOW PITCHED
86520-60140

FZJ105,HDJ100,HZJ105,UZJ100..ARL,GEN

 1
86591 - BRACKET, HORN
86591-60030

HDJ100..ARL

 1
Common parts
90119-06005
90119-08718
