HDJ100R-GNPEZQ (2000)

Toyota Land Cruiser 100

Production Aug 2000 - Aug 2002
Engine 1HDFTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9801-0208)RHD

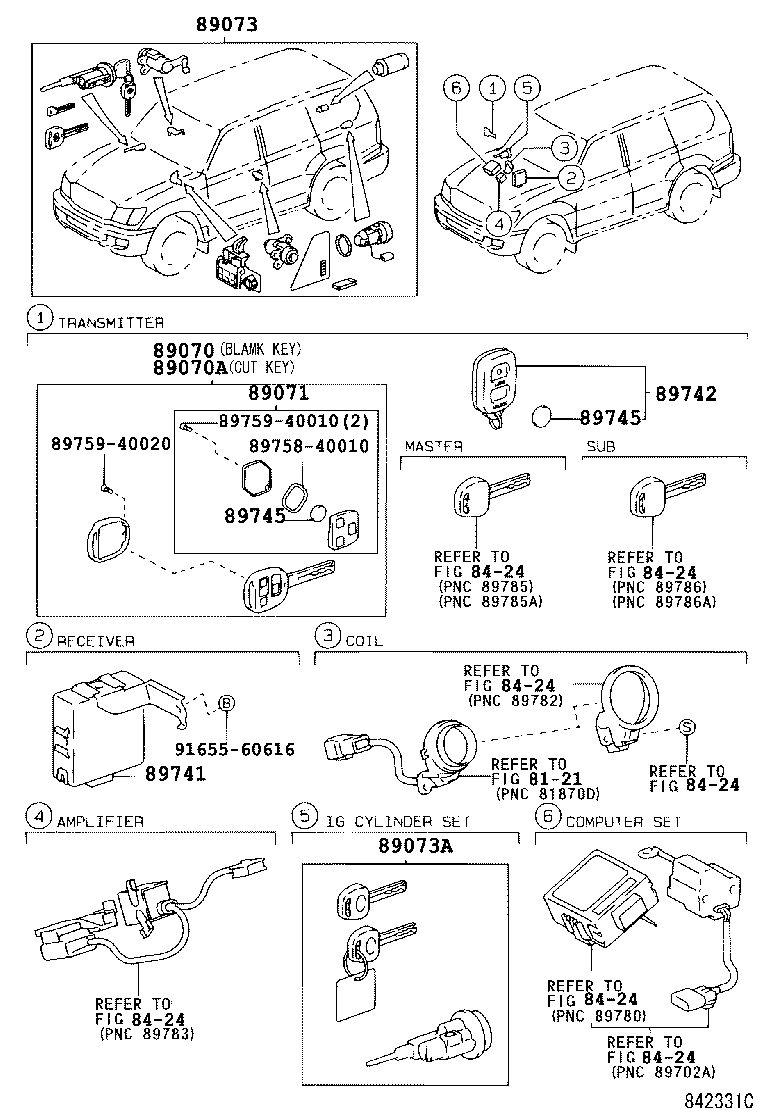

Click highlighted areas on diagram

diagram 8121 8424 8424 8424 8424 8424 8424 8424 89070 89070A 89071 89073 89073A 89741 89742 89745 89745 8975840010 8975940010 8975940020 9165560616
Part # Description Qty Price
89070 - TRANSMITTER ASSY, DOOR CONTROL
89070-60111

FZJ105,HDJ100,HZJ105..LUB..ARL

 1
89070A - TRANSMITTER, DOOR CONTROL (CUT KEY)
89070-60161

FZJ105,HDJ100,HZJ105..LUB..ARL

 1
89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-60030

HDJ100..ARL;FZJ100..SOB..GX

 2
89073 - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
89073-60101

FZJ105,HDJ100,HZJ105..LUB..ARL

 1
89073A - IGN CYLINDER SET LOCK W/TRANSMITTER HOUSING (CUT KEY)
89073-60041

FZJ105,HDJ100,HZJ105..LUB..ARL

 1
89741 - RECEIVER, DOOR CONTROL
89741-60080

FZJ105,HDJ100,HZJ105..LUB..ARL

 1
89745 - BATTERY, TRANSMITTER
89745-40010

FZJ100,HDJ100,UZJ100..GX,VX;FZJ105,HZJ105..GX..(GCC,GEN)

 2
89745-40010

FZJ10#,HDJ100,HZJ105,UZJ100..GX,VX

 2
89745 - BATTERY, TRANSMITTER
89745-40010

FZJ100,HDJ100,UZJ100..GX,VX;FZJ105,HZJ105..GX..(GCC,GEN)

 2
89745-40010

FZJ10#,HDJ100,HZJ105,UZJ100..GX,VX

 2
Common parts
89758-40010
89759-40010
89759-40020
91655-60616
Linked diagrams
8121
8424
