HDJ100R-GNPEZQ (2000)
Toyota Land Cruiser 100

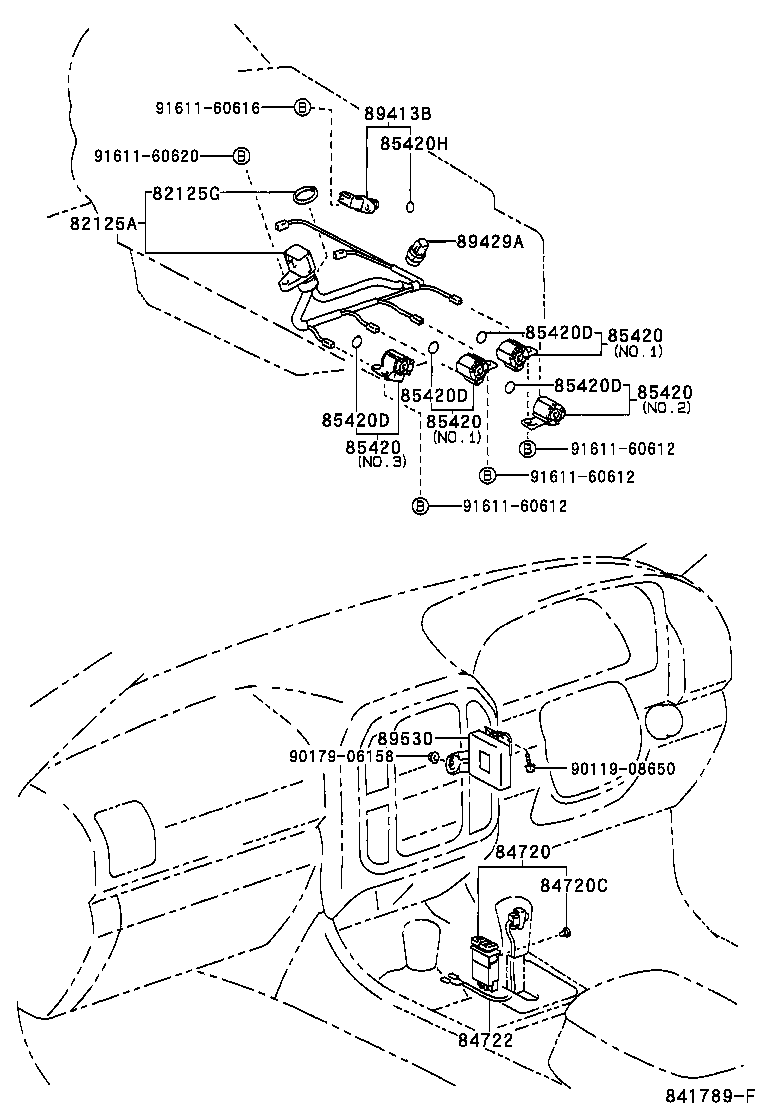

(9801-0208)HDJ100,UZJ100..4FC..EFI,TDEFI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82125A - WIRE, TRANSMISSION | ||||
| 82125-36010 |
FZJ10#,HDJ100,HZJ105..4FC..(DSL2,EFI,TD2) |
1 | ||
| 82125G - RING, O(FOR TRANSMISSION WIRE) | ||||
| 96721-24020 |
HDJ100,UZJ100..4FC..(EFI,TDEFI) |
1 | ||
| 96721-24018 |
FZJ10#,HDJ100,HZJ105..4FC..(DSL2,EFI,TD2) |
1 | ||
| 84720 - SWITCH ASSY, PATTERN SELECT | ||||
| 84720-60110 |
FZJ105,HDJ100,HZJ105,UZJ100..4FC..ARL |
1 | ||
| 84720C - BULB(FOR PATTERN SELECT SWITCH) | ||||
| 90010-01039 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC 14V0.91W,W(GREEN CAP |
1 | ||
| 84722 - SWITCH, TRANSMISSION CONTROL | ||||
| 84722-60140C0 |
FZJ105,HDJ100,HZJ105..4FC..ARL BLACK,TRIM1#,4# |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-60070 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC NO.3 |
1 | ||
| 85420-60050 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC NO.1 |
2 | ||
| 85420-60060 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC NO.2 |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-60070 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC NO.3 |
1 | ||
| 85420-60050 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC NO.1 |
2 | ||
| 85420-60060 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC NO.2 |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-60070 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC NO.3 |
1 | ||
| 85420-60050 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC NO.1 |
2 | ||
| 85420-60060 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC NO.2 |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-60070 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC NO.3 |
1 | ||
| 85420-60050 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC NO.1 |
2 | ||
| 85420-60060 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC NO.2 |
1 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
4 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
4 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
4 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
4 | ||
| 85420H - RING, O(FOR SPEED SENSOR) | ||||
| 90301-11008 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 89413B - SENSOR, TRANSMISSION REVOLUTION | ||||
| 89413-32010 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 89429A - SENSOR, TEMPERATURE | ||||
| 89428-60090 |
FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 89530 - COMPUTER ASSY, TRANSMISSION CONTROL | ||||
| 89530-60270 |
HDJ100..4FC..ARL |
1 | ||
| 89530-60241 |
HDJ100..4FC..ARL |
1 | ||
| Common parts | ||||
| 90119-08650 | ||||
| 90179-06158 | ||||
| 91611-60612 | ||||
| 91611-60616 | ||||
| 91611-60620 | ||||
(9801-0208)FZJ100,HDJ100..LHD..4FC ; (0208- )4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82125A - WIRE, TRANSMISSION | ||||
| 82125-36010 |
FZJ10#,HDJ100,HZJ105..4FC..(DSL2,EFI,TD2) |
1 | ||
| 82125G - RING, O(FOR TRANSMISSION WIRE) | ||||
| 96721-24020 |
HDJ100,UZJ100..4FC..(EFI,TDEFI) |
1 | ||
| 96721-24018 |
FZJ10#,HDJ100,HZJ105..4FC..(DSL2,EFI,TD2) |
1 | ||
| 84720 - SWITCH ASSY, PATTERN SELECT | ||||
| 84720-60110 |
FZJ105,HDJ100,HZJ105,UZJ100..4FC..ARL |
1 | ||
| 84720C - BULB(FOR PATTERN SELECT SWITCH) | ||||
| 90010-01039 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC 14V0.91W,W(GREEN CAP |
1 | ||
| 84722 - SWITCH, TRANSMISSION CONTROL | ||||
| 84722-60140C0 |
FZJ105,HDJ100,HZJ105..4FC..ARL BLACK,TRIM1#,4# |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-60070 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC NO.3 |
1 | ||
| 85420-60050 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC NO.1 |
2 | ||
| 85420-60060 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC NO.2 |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-60070 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC NO.3 |
1 | ||
| 85420-60050 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC NO.1 |
2 | ||
| 85420-60060 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC NO.2 |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-60070 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC NO.3 |
1 | ||
| 85420-60050 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC NO.1 |
2 | ||
| 85420-60060 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC NO.2 |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-60070 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC NO.3 |
1 | ||
| 85420-60050 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC NO.1 |
2 | ||
| 85420-60060 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC NO.2 |
1 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
4 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
4 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
4 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
4 | ||
| 85420H - RING, O(FOR SPEED SENSOR) | ||||
| 90301-11008 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 89413B - SENSOR, TRANSMISSION REVOLUTION | ||||
| 89413-32010 |
UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 89429A - SENSOR, TEMPERATURE | ||||
| 89428-60090 |
FZJ10#,HDJ100,HZJ105..4FC |
1 | ||
| 89530 - COMPUTER ASSY, TRANSMISSION CONTROL | ||||
| 89530-60270 |
HDJ100..4FC..ARL |
1 | ||
| 89530-60241 |
HDJ100..4FC..ARL |
1 | ||
| Common parts | ||||
| 90119-08650 | ||||
| 90179-06158 | ||||
| 91611-60620 | ||||
| 91611-B0616 | ||||
| 91611-G0612 | ||||
