HDJ100R-GNPEZQ (2000)

Toyota Land Cruiser 100

Production Aug 2000 - Aug 2002
Engine 1HDFTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0008- )TDEFI

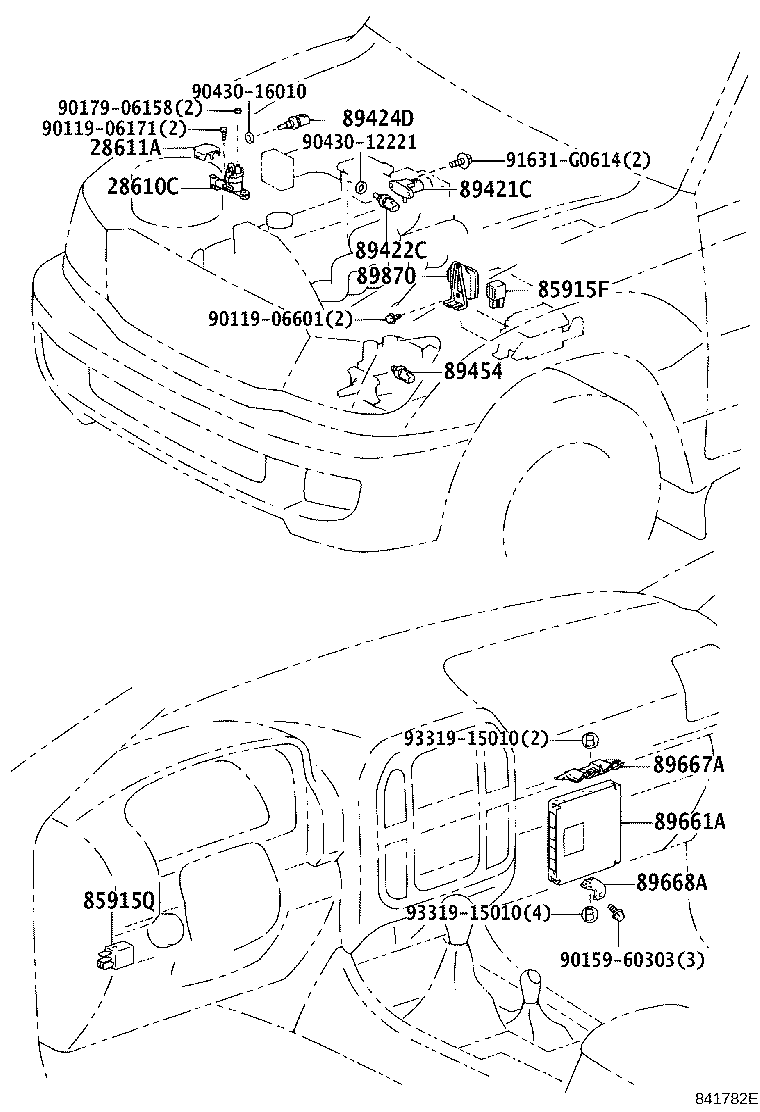

Click highlighted areas on diagram

diagram 28610C 28611A 85915F 85915Q 89421C 89422C 89424D 89454 89661A 89667A 89668A 89870 9011906171 9011906601 9015960303 9017906158 9043012221 9043016010 91631G0614 9331915010 9331915010
Part # Description Qty Price
28610C - RELAY ASSY, INTAKE HEATER
28610-17090

1HDFTE..HDJ100

 1
28611A - COVER, INTAKE HEATER RELAY
28611-55010

1HDFTE..HDJ100

 1
85915F - RELAY, SPILL VALVE
85915-30050

HDJ100..ARL

 1
85915Q - RELAY, COMPUTER (FOR DIESEL)
90987-02012

HDJ100..ARL

 1
89421C - SENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89421-21010

HDJ100..ARL

 1
89421-20210

HDJ100..ARL

 1
89422C - SENSOR, DIESEL ENGINE WATER TEMPERATURE
89422-35010

HDJ100..ARL

 1
89424D - SENSOR, INLET AIR TEMPERATURE
89424-60010

HDJ100..ARL

 1
89454 - SENSOR, FUEL TEMPERATURE
89454-60010

HDJ100..ARL

 1
89661A - COMPUTER, ENGINE CONTROL
89666-60480

HDJ100..4FC..ARL

 1
89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-60140

HDJ100..ARL

 1
89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-60150

HDJ100..ARL

 1
89870 - DRIVER ASSY, SPILL VALVE CONTROL
89870-60010

HDJ100..ARL

 1
Common parts
90119-06171
90119-06601
90159-60303
90179-06158
90430-12221
90430-16010
91631-G0614
93319-15010
