HDJ100R-GNPEZQ (2000)
Toyota Land Cruiser 100

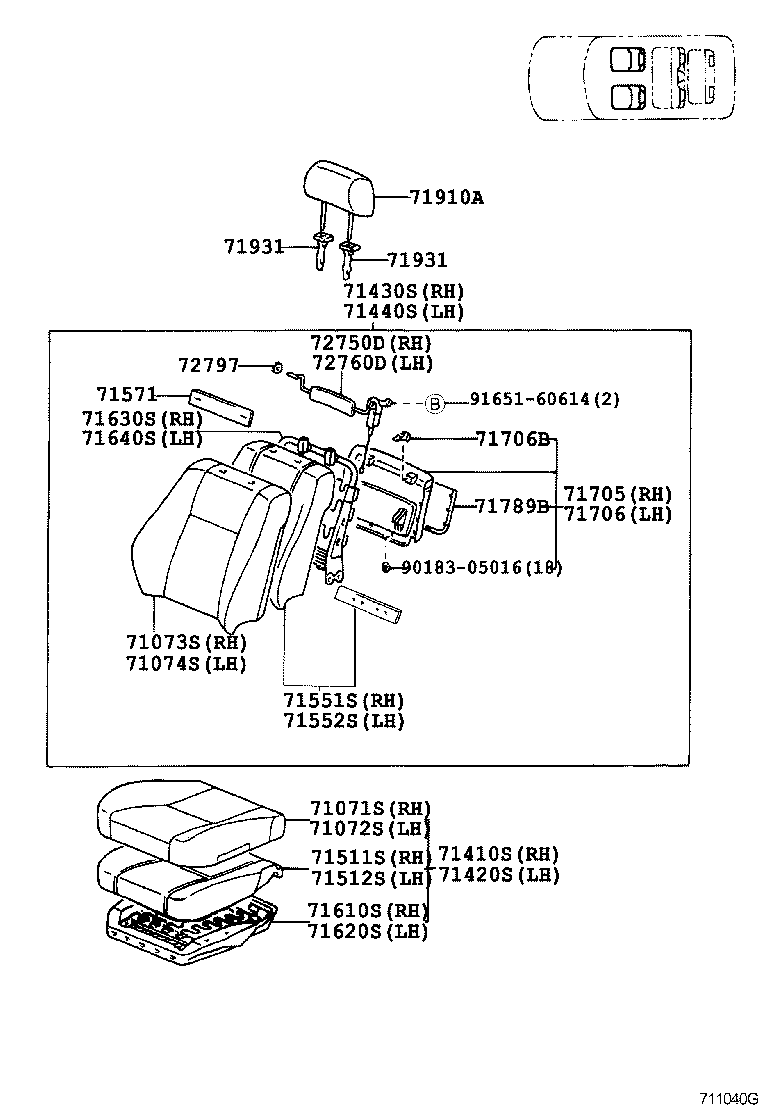

ILLUST NO. 1 OF10(9801-0208)
FRONT SEAT(SEPARATE TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-6A050B0 |
HDJ100,UZJ100..RHD..VX GRAY,TRIM1# |
1 | ||
| 71071-6A050E0 |
HDJ100,UZJ100..RHD..VX LT. OAK,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-60680B0 |
HDJ100,UZJ100..RHD..VX GRAY,TRIM1# |
1 | ||
| 71072-60680E0 |
HDJ100,UZJ100..RHD..VX LT. OAK,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-6A130E0 |
HDJ100,UZJ100..RHD..VX OAK,TRIM4# |
1 | ||
| 71073-6A130B0 |
HDJ100,UZJ100..RHD..VX SHADOW GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-6A060E0 |
HDJ100,UZJ100..RHD..VX LT. OAK,TRIM4# |
1 | ||
| 71073-6A060B0 |
HDJ100,UZJ100..RHD..VX GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-6A430E0 |
HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),OAK,TRIM4# |
1 | ||
| 71410-6A370E1 |
HDJ100,UZJ100..RHD..VX OAK,TRIM4# |
1 | ||
| 71410-6A430B0 |
HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-6A370B0 |
HDJ100,UZJ100..RHD..VX SHADOW GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-6A410E0 |
HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),OAK,TRIM4# |
1 | ||
| 71420-6A410B0 |
HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-6A480B0 |
HDJ100,UZJ100..RHD..VX SHADOW GRAY,TRIM1# |
1 | ||
| 71420-6A480E1 |
HDJ100,UZJ100..RHD..VX OAK,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71040-60050E0 |
HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),OAK,TRIM4# |
1 | ||
| 71040-60050B0 |
HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71040-60210E1 |
HDJ100,UZJ100..RHD..VX OAK,TRIM4# |
1 | ||
| 71040-60210B0 |
HDJ100,UZJ100..RHD..VX SHADOW GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71040-60190B0 |
HDJ100,UZJ100..RHD..VX SHADOW GRAY,TRIM1# |
1 | ||
| 71040-60190E1 |
HDJ100,UZJ100..RHD..VX OAK,TRIM4# |
1 | ||
| 71070-60010B0 |
HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71070-60010E0 |
HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),OAK,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-60080 |
HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT) |
1 | ||
| 71511-60160 |
HDJ100..ARL;FZJ10#,HZJ105..LHD |
1 | ||
| 71511-60160 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD..(DSL2,EFI,TD2) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-60060 |
HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT & WARNING SENSOR) |
1 | ||
| 71502-60110 |
HDJ100,UZJ100..RHD..(EFI,TD2) W(WARNING SENSOR) |
1 | ||
| 71502-60110 |
HDJ100..VX..ARL W(WARNING SENSOR) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-60270 |
UZJ100;HDJ100..LUB..VX W(SEAT BACK BOARD) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-60270 |
HDJ100,UZJ100..VX W(SEAT BACK BOARD) |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-60020 |
HDJ100..VX;UZJ100..LHD |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-60130 |
FZJ105..GX;HDJ100..LUB;FZJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-60170 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-60150 |
HDJ100,UZJ100..RHD..VX |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-60140 |
FZJ105..GX;HDJ100..RHD;FZJ100,HZJ105;FZJ105..STD..GEN |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-60180B0 |
UZJ100;HDJ100..LUB..VX GRAY,TRIM1# |
1 | ||
| 71705-60180E0 |
UZJ100;HDJ100..LUB..VX LT. OAK,TRIM4# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71705-60180E0 |
HDJ100,UZJ100..VX LT. OAK,TRIM4# |
1 | ||
| 71705-60180B0 |
HDJ100,UZJ100..VX GRAY,TRIM1# |
1 | ||
| 71706B - CLIP, FRONT SEAT BACK BOARD | ||||
| 71769-60020 |
UZJ100..LHD;HDJ100..LUB..VX |
4 | ||
| 71789B - POCKET, FRONT SEAT BACK BOARD | ||||
| 71780-60020E0 |
HDJ100..VX..ARL LT. OAK,TRIM4# |
2 | ||
| 71780-60020B0 |
UZJ100;HDJ100..LUB..VX GRAY,TRIM1# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-60420B0 |
HDJ100,UZJ100..VX GRAY,TRIM1# |
2 | ||
| 71910-60420E0 |
HDJ100,UZJ100..VX OAK,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-28040B5 |
FZJ10#,HDJ100,HZJ105,UZJ100 W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-28050A0 |
HDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),IVORY,TRIM4# |
2 | ||
| 71930-28040A0 |
HDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),IVORY,TRIM4# |
2 | ||
| 71930-60030A0 |
HDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),IVORY,TRIM4# |
2 | ||
| 71931-28050B5 |
FZJ10#,HDJ100,HZJ105,UZJ100 W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-60030B0 |
HDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-60020B0 |
HDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-60020A0 |
HDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),IVORY,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-28040B5 |
FZJ10#,HDJ100,HZJ105,UZJ100 W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-28050A0 |
HDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),IVORY,TRIM4# |
2 | ||
| 71930-28040A0 |
HDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),IVORY,TRIM4# |
2 | ||
| 71930-60030A0 |
HDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),IVORY,TRIM4# |
2 | ||
| 71931-28050B5 |
FZJ10#,HDJ100,HZJ105,UZJ100 W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-60030B0 |
HDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-60020B0 |
HDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-60020A0 |
HDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),IVORY,TRIM4# |
2 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72760-60040 |
HDJ100,UZJ100..RHD..VX |
1 | ||
| 72797 - SPACER, LUMBAR SUPPORT | ||||
| 72797-50010 |
HDJ100..VX;UZJ100..LHD |
1 | ||
| Common parts | ||||
| 90183-05016 | ||||
| 91651-60614 | ||||

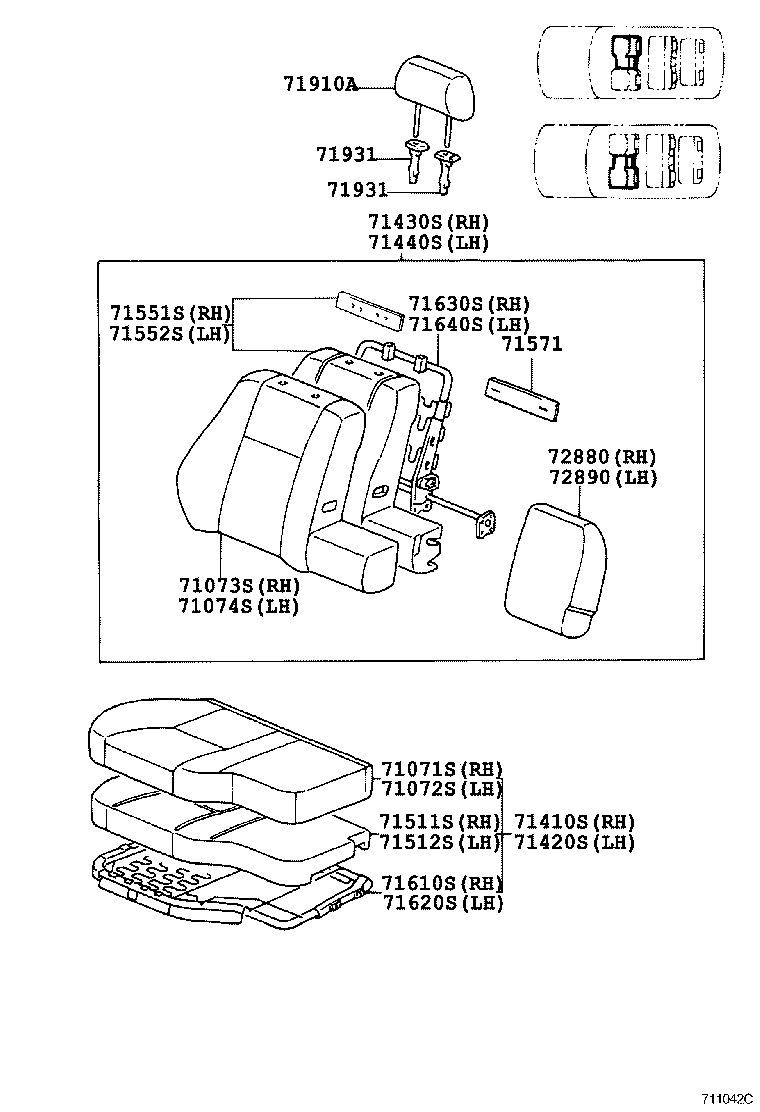

ILLUST NO. 1 OF10(9801-0208)
FRONT SEAT (BENCH TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-6A050B0 |
HDJ100,UZJ100..RHD..VX GRAY,TRIM1# |
1 | ||
| 71071-6A050E0 |
HDJ100,UZJ100..RHD..VX LT. OAK,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-60680B0 |
HDJ100,UZJ100..RHD..VX GRAY,TRIM1# |
1 | ||
| 71072-60680E0 |
HDJ100,UZJ100..RHD..VX LT. OAK,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-6A130E0 |
HDJ100,UZJ100..RHD..VX OAK,TRIM4# |
1 | ||
| 71073-6A130B0 |
HDJ100,UZJ100..RHD..VX SHADOW GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-6A060E0 |
HDJ100,UZJ100..RHD..VX LT. OAK,TRIM4# |
1 | ||
| 71073-6A060B0 |
HDJ100,UZJ100..RHD..VX GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-6A430E0 |
HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),OAK,TRIM4# |
1 | ||
| 71410-6A370E1 |
HDJ100,UZJ100..RHD..VX OAK,TRIM4# |
1 | ||
| 71410-6A430B0 |
HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71410-6A370B0 |
HDJ100,UZJ100..RHD..VX SHADOW GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-6A410E0 |
HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),OAK,TRIM4# |
1 | ||
| 71420-6A410B0 |
HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71420-6A480B0 |
HDJ100,UZJ100..RHD..VX SHADOW GRAY,TRIM1# |
1 | ||
| 71420-6A480E1 |
HDJ100,UZJ100..RHD..VX OAK,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71040-60050E0 |
HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),OAK,TRIM4# |
1 | ||
| 71040-60050B0 |
HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71040-60210E1 |
HDJ100,UZJ100..RHD..VX OAK,TRIM4# |
1 | ||
| 71040-60210B0 |
HDJ100,UZJ100..RHD..VX SHADOW GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71040-60190B0 |
HDJ100,UZJ100..RHD..VX SHADOW GRAY,TRIM1# |
1 | ||
| 71040-60190E1 |
HDJ100,UZJ100..RHD..VX OAK,TRIM4# |
1 | ||
| 71070-60010B0 |
HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71070-60010E0 |
HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),OAK,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-60080 |
HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT) |
1 | ||
| 71511-60160 |
HDJ100..ARL;FZJ10#,HZJ105..LHD |
1 | ||
| 71511-60160 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD..(DSL2,EFI,TD2) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-60060 |
HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT & WARNING SENSOR) |
1 | ||
| 71502-60110 |
HDJ100,UZJ100..RHD..(EFI,TD2) W(WARNING SENSOR) |
1 | ||
| 71502-60110 |
HDJ100..VX..ARL W(WARNING SENSOR) |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-60270 |
UZJ100;HDJ100..LUB..VX W(SEAT BACK BOARD) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-60270 |
HDJ100,UZJ100..VX W(SEAT BACK BOARD) |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-60020 |
HDJ100..VX;UZJ100..LHD |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-60130 |
FZJ105..GX;HDJ100..LUB;FZJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-60170 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-60150 |
HDJ100,UZJ100..RHD..VX |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71630-60140 |
FZJ105..GX;HDJ100..RHD;FZJ100,HZJ105;FZJ105..STD..GEN |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-60420B0 |
HDJ100,UZJ100..VX GRAY,TRIM1# |
2 | ||
| 71910-60420E0 |
HDJ100,UZJ100..VX OAK,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-28040B5 |
FZJ10#,HDJ100,HZJ105,UZJ100 W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-28050A0 |
HDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),IVORY,TRIM4# |
2 | ||
| 71930-28040A0 |
HDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),IVORY,TRIM4# |
2 | ||
| 71930-60030A0 |
HDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),IVORY,TRIM4# |
2 | ||
| 71931-28050B5 |
FZJ10#,HDJ100,HZJ105,UZJ100 W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-60030B0 |
HDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-60020B0 |
HDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-60020A0 |
HDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),IVORY,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-28040B5 |
FZJ10#,HDJ100,HZJ105,UZJ100 W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-28050A0 |
HDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),IVORY,TRIM4# |
2 | ||
| 71930-28040A0 |
HDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),IVORY,TRIM4# |
2 | ||
| 71930-60030A0 |
HDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),IVORY,TRIM4# |
2 | ||
| 71931-28050B5 |
FZJ10#,HDJ100,HZJ105,UZJ100 W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-60030B0 |
HDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-60020B0 |
HDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-60020A0 |
HDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),IVORY,TRIM4# |
2 | ||

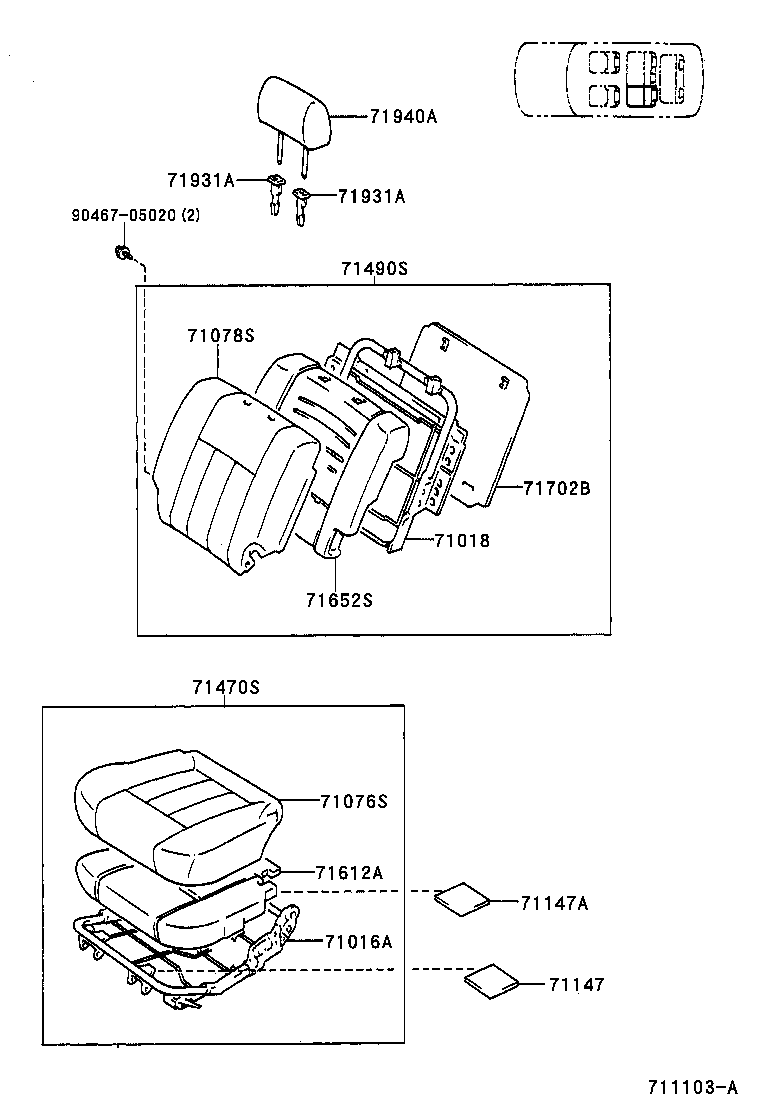

ILLUST NO. 4 OF10(9801-0208)RHD
REAR NO.1 SEAT (TYPE B)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 71016-60050 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX) |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-60180 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX) |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-60400B0 |
HDJ100,UZJ100..RHD..VX GRAY,TRIM1# |
1 | ||
| 71076-60400E0 |
HDJ100,UZJ100..RHD..VX LT. OAK,TRIM4# |
1 | ||
| 71076-60420A0 |
HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),IVORY,TRIM4# |
1 | ||
| 71076-60420B0 |
HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-60520B0 |
HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),GRAY,TRIM1# |
1 | ||
| 71078-60590E0 |
HDJ100,UZJ100..RHD..VX LT. OAK,TRIM4# |
1 | ||
| 71078-60590B0 |
HDJ100,UZJ100..RHD..VX GRAY,TRIM1# |
1 | ||
| 71078-60520A0 |
HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),IVORY,TRIM4# |
1 | ||
| 71147 - SILENCER, SEAT SPRING | ||||
| 71147-60010 |
HDJ100..ARL;FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GX,VX) W(REAR NO.1 SEAT=TYPE A:REFER TO ILLUSTRATION) |
2 | ||
| 71147-60060 |
UZJ100..LHD;FZJ10#,HDJ100,HZJ105..GX,VX W(REAR NO.1 SEAT=TYPE B:REFER TO ILLUSTRATION) |
1 | ||
| 71147-60010 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX)..(DSL2,EFI,TD2) W(REAR NO.1 SEAT=TYPE A:REFER TO ILLUSTRATION) |
4 | ||
| 71147A - SILENCER, REAR SEAT SPRING | ||||
| 71147-60020 |
FZJ10#,HDJ100,HZJ105,UZJ100..GX,VX |
2 | ||
| 71470S - CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71470-60460B0 |
HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71470-60520B0 |
HDJ100,UZJ100..RHD..VX SHADOW GRAY,TRIM1# |
1 | ||
| 71470-60460E0 |
HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),OAK,TRIM4# |
1 | ||
| 71470-60520E1 |
HDJ100,UZJ100..RHD..VX OAK,TRIM4# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-60760B0 |
HDJ100,UZJ100..RHD..VX SHADOW GRAY,TRIM1# |
1 | ||
| 71490-60760E1 |
HDJ100,UZJ100..RHD..VX OAK,TRIM4# |
1 | ||
| 71490-60790E0 |
HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),OAK,TRIM4# |
1 | ||
| 71490-60790B0 |
HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71612-60140 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX) |
1 | ||
| 71612-60090 |
HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT) |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-60130 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX) |
1 | ||
| 71702B - BOARD SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71702-60010B0 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX) GRAY,TRIM1# |
1 | ||
| 71702-60010E0 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD..(GX,VX) LT. OAK,TRIM4# |
1 | ||
| 71702-60020A0 |
HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),IVORY,TRIM4# |
1 | ||
| 71702-60020B0 |
HDJ100,UZJ100..RHD..(EFI,TD2) W(LEATHER SEAT),MD.GRAY,TRIM1# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-28040A0 |
HDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),IVORY,TRIM4# |
3 | ||
| 71930-28040B5 |
HDJ100..ARL W(LOCK),MD.GRAY,TRIM1# |
3 | ||
| 71931-28050A0 |
HDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),IVORY,TRIM4# |
3 | ||
| 71931-28050B5 |
HDJ100..ARL W/O(LOCK),MD.GRAY,TRIM1# |
3 | ||
| 71930-28040B5 |
FZJ105..RHD;FZJ105..LHD..GX;HZJ105..ARL,GCC;HZJ105..GX..GEN;FZJ100,HDJ100,UZJ100 W(LOCK),W(BENCH TYPE SECOND SEAT),MD.GRAY,TRIM1# |
3 | ||
| 71931-28050B5 |
FZJ10#,HDJ100,HZJ105,UZJ100..DSL2,EFI,TD2 W/O(LOCK),W(BENCH TYPE SECOND SEAT),MD.GRAY,TRIM1# |
3 | ||
| 71931-28050B5 |
FZJ105..RHD;FZJ105..LHD..GX;HZJ105..ARL,GCC;HZJ105..GX..GEN;FZJ100,HDJ100,UZJ100 W/O(LOCK),W(BENCH TYPE SECOND SEAT),MD.GRAY,TRIM1# |
3 | ||
| 71930-28040A0 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),IVORY,TRIM4#,RH & CENTER |
2 | ||
| 71930-28040B5 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX) W(LOCK),MD.GRAY,TRIM1#,RH & CENTER |
2 | ||
| 71930-60030A0 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),IVORY,TRIM4#,LH |
1 | ||
| 71930-60030B0 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),MD.GRAY,TRIM1#,LH |
1 | ||
| 71930-28040B5 |
FZJ10#,HDJ100,HZJ105,UZJ100..DSL2,EFI,TD2 W(LOCK),W(BENCH TYPE SECOND SEAT),MD.GRAY,TRIM1# |
3 | ||
| 71931-28050A0 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),IVORY,TRIM4#,RH & CENTER |
2 | ||
| 71931-60020A0 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),IVORY,TRIM4#,LH |
1 | ||
| 71931-60020B0 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),MD.GRAY,TRIM1#,LH |
1 | ||
| 71931-28050B5 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX) W/O(LOCK),MD.GRAY,TRIM1#,RH & CENTER |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-28040A0 |
HDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),IVORY,TRIM4# |
3 | ||
| 71930-28040B5 |
HDJ100..ARL W(LOCK),MD.GRAY,TRIM1# |
3 | ||
| 71931-28050A0 |
HDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),IVORY,TRIM4# |
3 | ||
| 71931-28050B5 |
HDJ100..ARL W/O(LOCK),MD.GRAY,TRIM1# |
3 | ||
| 71930-28040B5 |
FZJ105..RHD;FZJ105..LHD..GX;HZJ105..ARL,GCC;HZJ105..GX..GEN;FZJ100,HDJ100,UZJ100 W(LOCK),W(BENCH TYPE SECOND SEAT),MD.GRAY,TRIM1# |
3 | ||
| 71931-28050B5 |
FZJ10#,HDJ100,HZJ105,UZJ100..DSL2,EFI,TD2 W/O(LOCK),W(BENCH TYPE SECOND SEAT),MD.GRAY,TRIM1# |
3 | ||
| 71931-28050B5 |
FZJ105..RHD;FZJ105..LHD..GX;HZJ105..ARL,GCC;HZJ105..GX..GEN;FZJ100,HDJ100,UZJ100 W/O(LOCK),W(BENCH TYPE SECOND SEAT),MD.GRAY,TRIM1# |
3 | ||
| 71930-28040A0 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),IVORY,TRIM4#,RH & CENTER |
2 | ||
| 71930-28040B5 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX) W(LOCK),MD.GRAY,TRIM1#,RH & CENTER |
2 | ||
| 71930-60030A0 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),IVORY,TRIM4#,LH |
1 | ||
| 71930-60030B0 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),MD.GRAY,TRIM1#,LH |
1 | ||
| 71930-28040B5 |
FZJ10#,HDJ100,HZJ105,UZJ100..DSL2,EFI,TD2 W(LOCK),W(BENCH TYPE SECOND SEAT),MD.GRAY,TRIM1# |
3 | ||
| 71931-28050A0 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),IVORY,TRIM4#,RH & CENTER |
2 | ||
| 71931-60020A0 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),IVORY,TRIM4#,LH |
1 | ||
| 71931-60020B0 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),MD.GRAY,TRIM1#,LH |
1 | ||
| 71931-28050B5 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX) W/O(LOCK),MD.GRAY,TRIM1#,RH & CENTER |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-60250E0 |
HDJ100,UZJ100..VX OAK,TRIM4# |
2 | ||
| 71940-60250B0 |
HDJ100,UZJ100..VX GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90467-05020 | ||||
ILLUST NO. 8 OF10(9801-0208)
REAR NO.2 SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-28040A0 |
FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),IVORY,TRIM4# |
2 | ||
| 71931-28050B5 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100..GX,VX W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-28050A0 |
FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),IVORY,TRIM4# |
2 | ||
| 71930-60030A0 |
FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),IVORY,TRIM4# |
2 | ||
| 71930-60030B0 |
FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-60020A0 |
FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),IVORY,TRIM4# |
2 | ||
| 71931-60020B0 |
FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-28040B5 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100..GX,VX W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-28040A0 |
FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),IVORY,TRIM4# |
2 | ||
| 71931-28050B5 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100..GX,VX W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-28050A0 |
FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),IVORY,TRIM4# |
2 | ||
| 71930-60030A0 |
FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),IVORY,TRIM4# |
2 | ||
| 71930-60030B0 |
FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-60020A0 |
FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),IVORY,TRIM4# |
2 | ||
| 71931-60020B0 |
FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-28040B5 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100..GX,VX W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-28040A0 |
FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),IVORY,TRIM4# |
2 | ||
| 71931-28050B5 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100..GX,VX W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-28050A0 |
FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),IVORY,TRIM4# |
2 | ||
| 71930-60030A0 |
FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),IVORY,TRIM4# |
2 | ||
| 71930-60030B0 |
FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-60020A0 |
FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),IVORY,TRIM4# |
2 | ||
| 71931-60020B0 |
FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-28040B5 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100..GX,VX W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-28040A0 |
FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),IVORY,TRIM4# |
2 | ||
| 71931-28050B5 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100..GX,VX W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-28050A0 |
FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),IVORY,TRIM4# |
2 | ||
| 71930-60030A0 |
FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),IVORY,TRIM4# |
2 | ||
| 71930-60030B0 |
FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71931-60020A0 |
FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),IVORY,TRIM4# |
2 | ||
| 71931-60020B0 |
FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),MD.GRAY,TRIM1# |
2 | ||
| 71930-28040B5 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100..GX,VX W(LOCK),MD.GRAY,TRIM1# |
2 | ||

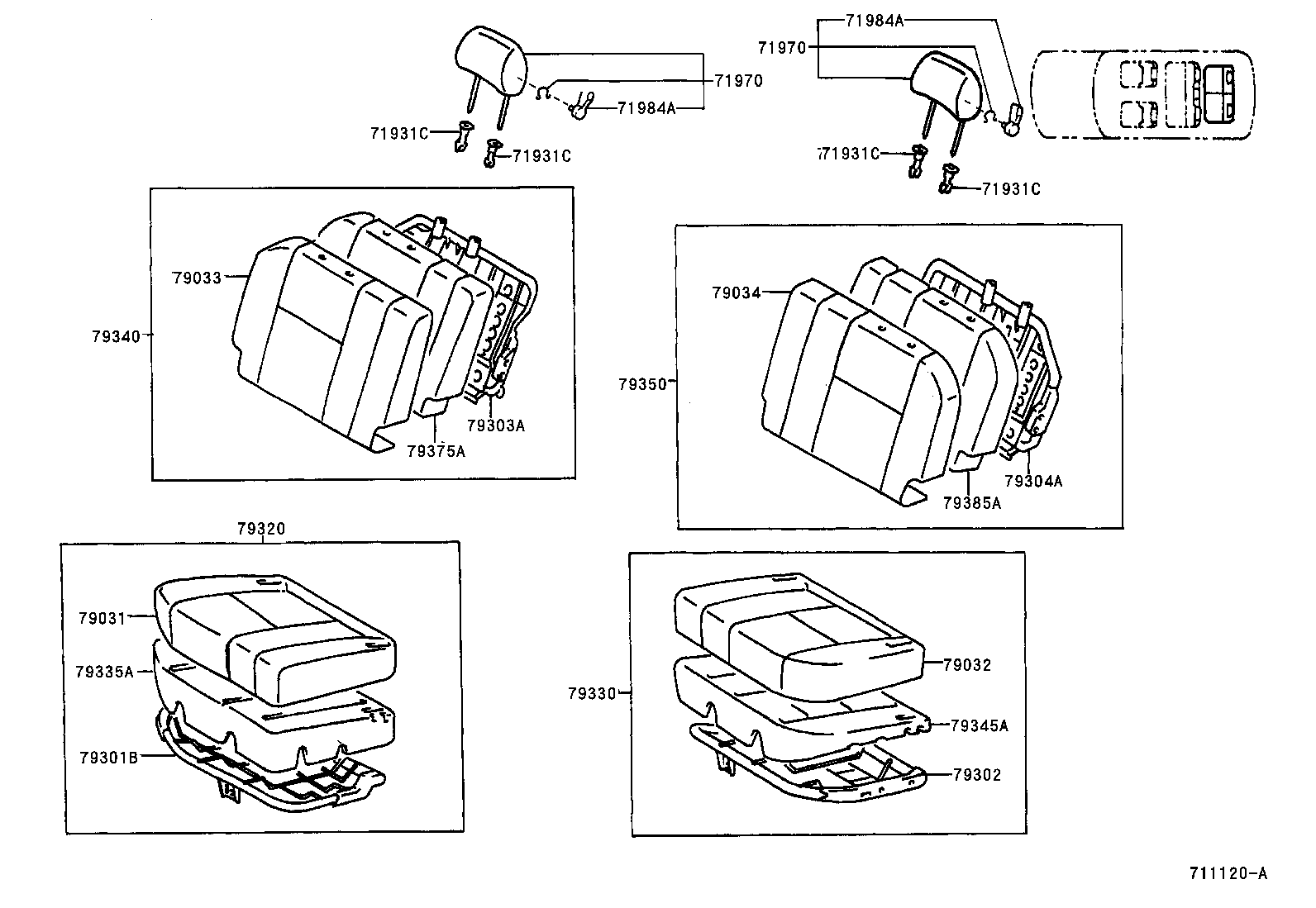

| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71970-60160B0 |
UZJ100..ARL;HDJ100..4FC..VX GRAY,TRIM1# |
2 | ||
| 71970-60160E0 |
UZJ100..ARL;HDJ100..4FC..VX OAK,TRIM4# |
2 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71970-60160B0 |
UZJ100..ARL;HDJ100..4FC..VX GRAY,TRIM1# |
2 | ||
| 71970-60160E0 |
UZJ100..ARL;HDJ100..4FC..VX OAK,TRIM4# |
2 | ||
| 71984A - HANDLE, REAR SEAT HEADREST | ||||
| 71984-60010E0 |
HZJ105..LHD..SOB..GX..GEN;FZJ105,HDJ100,HZJ105..RHD..LUB..(DSL2,EFI,TDEFI) MD.OAK,TRIM4# |
2 | ||
| 71984-60010B0 |
HDJ100..4FC..GEN;HZJ105..LHD..SOB..GX..GEN;FZJ105,HDJ100,HZJ105,UZJ100..RHD..LUB..(DSL2,EFI,TDEFI) MD.GRAY,TRIM1# |
2 | ||
| 71984A - HANDLE, REAR SEAT HEADREST | ||||
| 71984-60010E0 |
HZJ105..LHD..SOB..GX..GEN;FZJ105,HDJ100,HZJ105..RHD..LUB..(DSL2,EFI,TDEFI) MD.OAK,TRIM4# |
2 | ||
| 71984-60010B0 |
HDJ100..4FC..GEN;HZJ105..LHD..SOB..GX..GEN;FZJ105,HDJ100,HZJ105,UZJ100..RHD..LUB..(DSL2,EFI,TDEFI) MD.GRAY,TRIM1# |
2 | ||
| 79031 - COVER SUB-ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79031-60470B0 |
UZJ100;HDJ100..LUB..VX GRAY,TRIM1# |
1 | ||
| 79031-60470E0 |
UZJ100;HDJ100..LUB..VX LT. OAK,TRIM4# |
1 | ||
| 79032 - COVER SUB-ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79032-60470B0 |
UZJ100;HDJ100..LUB..VX GRAY,TRIM1# |
1 | ||
| 79032-60470E0 |
UZJ100;HDJ100..LUB..VX LT. OAK,TRIM4# |
1 | ||
| 79033 - COVER SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79033-60420B1 |
UZJ100;HDJ100..LUB..VX GRAY,TRIM1# |
1 | ||
| 79033-60420E1 |
UZJ100;HDJ100..LUB..VX LT. OAK,TRIM4# |
1 | ||
| 79034 - COVER SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79034-60420B1 |
UZJ100;HDJ100..LUB..VX GRAY,TRIM1# |
1 | ||
| 79034-60420E1 |
UZJ100;HDJ100..LUB..VX LT. OAK,TRIM4# |
1 | ||
| 79301B - FRAME SUB-ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79301-60080 |
HDJ100..LUB;UZJ100..LHD;FZJ10#,HZJ105..GX |
1 | ||
| 79302 - FRAME SUB-ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79302-60080 |
HDJ100..LUB;UZJ100..LHD;FZJ10#,HZJ105..GX |
1 | ||
| 79303A - FRAME SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79303-60110 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100..GX,VX |
1 | ||
| 79303-60090 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100..GX,VX |
1 | ||
| 79304A - FRAME SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79304-60090 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100..GX,VX |
1 | ||
| 79304-60110 |
HDJ100..LUB;FZJ10#,HZJ105,UZJ100..GX,VX |
1 | ||
| 79320 - CUSHION ASSY, NO.3 SEAT, RH | ||||
| 79320-60640E1 |
UZJ100;HDJ100..LUB..VX OAK,TRIM4# |
1 | ||
| 79320-60640B0 |
UZJ100;HDJ100..LUB..VX SHADOW GRAY,TRIM1# |
1 | ||
| 79330 - CUSHION ASSY, NO.3 SEAT, LH | ||||
| 79330-60640E1 |
UZJ100;HDJ100..LUB..VX OAK,TRIM4# |
1 | ||
| 79330-60640B0 |
UZJ100;HDJ100..LUB..VX SHADOW GRAY,TRIM1# |
1 | ||
| 79335A - PAD, NO.3 SEAT CUSHION, RH | ||||
| 79335-60120 |
HDJ100..LUB;UZJ100..LHD;FZJ10#,HZJ105..GX |
1 | ||
| 79340 - BACK ASSY, NO.3 SEAT, RH | ||||
| 79340-60520E1 |
UZJ100;HDJ100..LUB..VX OAK,TRIM4# |
1 | ||
| 79340-60520B0 |
UZJ100;HDJ100..LUB..VX SHADOW GRAY,TRIM1# |
1 | ||
| 79340-60700B0 |
UZJ100;HDJ100..LUB..VX SHADOW GRAY,TRIM1# |
1 | ||
| 79340-60700E0 |
UZJ100;HDJ100..LUB..VX OAK,TRIM4# |
1 | ||
| 79345A - PAD, NO.3 SEAT CUSHION, LH | ||||
| 79345-60130 |
HDJ100..LUB;UZJ100..LHD;FZJ10#,HZJ105..GX |
1 | ||
| 79350 - BACK ASSY, NO.3 SEAT, LH | ||||
| 79350-60700B0 |
UZJ100;HDJ100..LUB..VX SHADOW GRAY,TRIM1# |
1 | ||
| 79350-60700E0 |
UZJ100;HDJ100..LUB..VX OAK,TRIM4# |
1 | ||
| 79350-60540B0 |
UZJ100;HDJ100..LUB..VX SHADOW GRAY,TRIM1# |
1 | ||
| 79350-60540E1 |
UZJ100;HDJ100..LUB..VX OAK,TRIM4# |
1 | ||
| 79375A - PAD, NO.3 SEAT BACK, RH | ||||
| 79375-60090 |
HDJ100..LUB;UZJ100..LHD;FZJ10#,HZJ105..GX |
1 | ||
| 79385A - PAD, NO.3 SEAT BACK, LH | ||||
| 79385-60090 |
HDJ100..LUB;UZJ100..LHD;FZJ10#,HZJ105..GX |
1 | ||

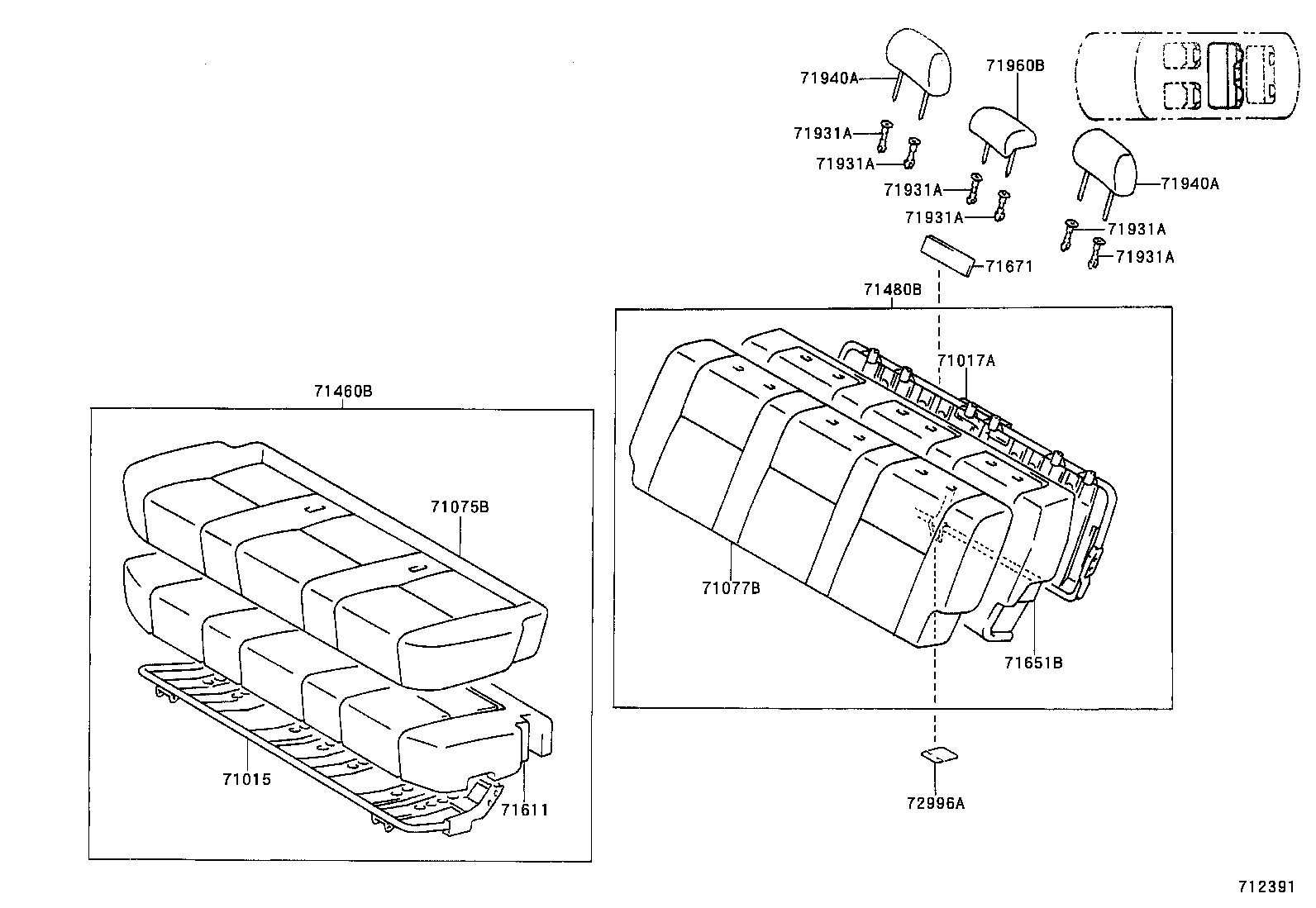

ILLUST NO. 3 OF10(9801-0208)
REAR NO.1 SEAT (BENCH TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-28040A0 |
HDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),IVORY,TRIM4# |
3 | ||
| 71930-28040B5 |
HDJ100..ARL W(LOCK),MD.GRAY,TRIM1# |
3 | ||
| 71931-28050A0 |
HDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),IVORY,TRIM4# |
3 | ||
| 71931-28050B5 |
HDJ100..ARL W/O(LOCK),MD.GRAY,TRIM1# |
3 | ||
| 71930-28040B5 |
FZJ105..RHD;FZJ105..LHD..GX;HZJ105..ARL,GCC;HZJ105..GX..GEN;FZJ100,HDJ100,UZJ100 W(LOCK),W(BENCH TYPE SECOND SEAT),MD.GRAY,TRIM1# |
3 | ||
| 71931-28050B5 |
FZJ10#,HDJ100,HZJ105,UZJ100..DSL2,EFI,TD2 W/O(LOCK),W(BENCH TYPE SECOND SEAT),MD.GRAY,TRIM1# |
3 | ||
| 71931-28050B5 |
FZJ105..RHD;FZJ105..LHD..GX;HZJ105..ARL,GCC;HZJ105..GX..GEN;FZJ100,HDJ100,UZJ100 W/O(LOCK),W(BENCH TYPE SECOND SEAT),MD.GRAY,TRIM1# |
3 | ||
| 71930-28040A0 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),IVORY,TRIM4#,RH & CENTER |
2 | ||
| 71930-28040B5 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX) W(LOCK),MD.GRAY,TRIM1#,RH & CENTER |
2 | ||
| 71930-60030A0 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),IVORY,TRIM4#,LH |
1 | ||
| 71930-60030B0 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),MD.GRAY,TRIM1#,LH |
1 | ||
| 71930-28040B5 |
FZJ10#,HDJ100,HZJ105,UZJ100..DSL2,EFI,TD2 W(LOCK),W(BENCH TYPE SECOND SEAT),MD.GRAY,TRIM1# |
3 | ||
| 71931-28050A0 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),IVORY,TRIM4#,RH & CENTER |
2 | ||
| 71931-60020A0 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),IVORY,TRIM4#,LH |
1 | ||
| 71931-60020B0 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),MD.GRAY,TRIM1#,LH |
1 | ||
| 71931-28050B5 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX) W/O(LOCK),MD.GRAY,TRIM1#,RH & CENTER |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-28040A0 |
HDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),IVORY,TRIM4# |
3 | ||
| 71930-28040B5 |
HDJ100..ARL W(LOCK),MD.GRAY,TRIM1# |
3 | ||
| 71931-28050A0 |
HDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),IVORY,TRIM4# |
3 | ||
| 71931-28050B5 |
HDJ100..ARL W/O(LOCK),MD.GRAY,TRIM1# |
3 | ||
| 71930-28040B5 |
FZJ105..RHD;FZJ105..LHD..GX;HZJ105..ARL,GCC;HZJ105..GX..GEN;FZJ100,HDJ100,UZJ100 W(LOCK),W(BENCH TYPE SECOND SEAT),MD.GRAY,TRIM1# |
3 | ||
| 71931-28050B5 |
FZJ10#,HDJ100,HZJ105,UZJ100..DSL2,EFI,TD2 W/O(LOCK),W(BENCH TYPE SECOND SEAT),MD.GRAY,TRIM1# |
3 | ||
| 71931-28050B5 |
FZJ105..RHD;FZJ105..LHD..GX;HZJ105..ARL,GCC;HZJ105..GX..GEN;FZJ100,HDJ100,UZJ100 W/O(LOCK),W(BENCH TYPE SECOND SEAT),MD.GRAY,TRIM1# |
3 | ||
| 71930-28040A0 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),IVORY,TRIM4#,RH & CENTER |
2 | ||
| 71930-28040B5 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX) W(LOCK),MD.GRAY,TRIM1#,RH & CENTER |
2 | ||
| 71930-60030A0 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),IVORY,TRIM4#,LH |
1 | ||
| 71930-60030B0 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),MD.GRAY,TRIM1#,LH |
1 | ||
| 71930-28040B5 |
FZJ10#,HDJ100,HZJ105,UZJ100..DSL2,EFI,TD2 W(LOCK),W(BENCH TYPE SECOND SEAT),MD.GRAY,TRIM1# |
3 | ||
| 71931-28050A0 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),IVORY,TRIM4#,RH & CENTER |
2 | ||
| 71931-60020A0 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),IVORY,TRIM4#,LH |
1 | ||
| 71931-60020B0 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),MD.GRAY,TRIM1#,LH |
1 | ||
| 71931-28050B5 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX) W/O(LOCK),MD.GRAY,TRIM1#,RH & CENTER |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-28040A0 |
HDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),IVORY,TRIM4# |
3 | ||
| 71930-28040B5 |
HDJ100..ARL W(LOCK),MD.GRAY,TRIM1# |
3 | ||
| 71931-28050A0 |
HDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),IVORY,TRIM4# |
3 | ||
| 71931-28050B5 |
HDJ100..ARL W/O(LOCK),MD.GRAY,TRIM1# |
3 | ||
| 71930-28040B5 |
FZJ105..RHD;FZJ105..LHD..GX;HZJ105..ARL,GCC;HZJ105..GX..GEN;FZJ100,HDJ100,UZJ100 W(LOCK),W(BENCH TYPE SECOND SEAT),MD.GRAY,TRIM1# |
3 | ||
| 71931-28050B5 |
FZJ10#,HDJ100,HZJ105,UZJ100..DSL2,EFI,TD2 W/O(LOCK),W(BENCH TYPE SECOND SEAT),MD.GRAY,TRIM1# |
3 | ||
| 71931-28050B5 |
FZJ105..RHD;FZJ105..LHD..GX;HZJ105..ARL,GCC;HZJ105..GX..GEN;FZJ100,HDJ100,UZJ100 W/O(LOCK),W(BENCH TYPE SECOND SEAT),MD.GRAY,TRIM1# |
3 | ||
| 71930-28040A0 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),IVORY,TRIM4#,RH & CENTER |
2 | ||
| 71930-28040B5 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX) W(LOCK),MD.GRAY,TRIM1#,RH & CENTER |
2 | ||
| 71930-60030A0 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),IVORY,TRIM4#,LH |
1 | ||
| 71930-60030B0 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),MD.GRAY,TRIM1#,LH |
1 | ||
| 71930-28040B5 |
FZJ10#,HDJ100,HZJ105,UZJ100..DSL2,EFI,TD2 W(LOCK),W(BENCH TYPE SECOND SEAT),MD.GRAY,TRIM1# |
3 | ||
| 71931-28050A0 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),IVORY,TRIM4#,RH & CENTER |
2 | ||
| 71931-60020A0 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),IVORY,TRIM4#,LH |
1 | ||
| 71931-60020B0 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),MD.GRAY,TRIM1#,LH |
1 | ||
| 71931-28050B5 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX) W/O(LOCK),MD.GRAY,TRIM1#,RH & CENTER |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-28040A0 |
HDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),IVORY,TRIM4# |
3 | ||
| 71930-28040B5 |
HDJ100..ARL W(LOCK),MD.GRAY,TRIM1# |
3 | ||
| 71931-28050A0 |
HDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),IVORY,TRIM4# |
3 | ||
| 71931-28050B5 |
HDJ100..ARL W/O(LOCK),MD.GRAY,TRIM1# |
3 | ||
| 71930-28040B5 |
FZJ105..RHD;FZJ105..LHD..GX;HZJ105..ARL,GCC;HZJ105..GX..GEN;FZJ100,HDJ100,UZJ100 W(LOCK),W(BENCH TYPE SECOND SEAT),MD.GRAY,TRIM1# |
3 | ||
| 71931-28050B5 |
FZJ10#,HDJ100,HZJ105,UZJ100..DSL2,EFI,TD2 W/O(LOCK),W(BENCH TYPE SECOND SEAT),MD.GRAY,TRIM1# |
3 | ||
| 71931-28050B5 |
FZJ105..RHD;FZJ105..LHD..GX;HZJ105..ARL,GCC;HZJ105..GX..GEN;FZJ100,HDJ100,UZJ100 W/O(LOCK),W(BENCH TYPE SECOND SEAT),MD.GRAY,TRIM1# |
3 | ||
| 71930-28040A0 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),IVORY,TRIM4#,RH & CENTER |
2 | ||
| 71930-28040B5 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX) W(LOCK),MD.GRAY,TRIM1#,RH & CENTER |
2 | ||
| 71930-60030A0 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),IVORY,TRIM4#,LH |
1 | ||
| 71930-60030B0 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),MD.GRAY,TRIM1#,LH |
1 | ||
| 71930-28040B5 |
FZJ10#,HDJ100,HZJ105,UZJ100..DSL2,EFI,TD2 W(LOCK),W(BENCH TYPE SECOND SEAT),MD.GRAY,TRIM1# |
3 | ||
| 71931-28050A0 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),IVORY,TRIM4#,RH & CENTER |
2 | ||
| 71931-60020A0 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),IVORY,TRIM4#,LH |
1 | ||
| 71931-60020B0 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),MD.GRAY,TRIM1#,LH |
1 | ||
| 71931-28050B5 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX) W/O(LOCK),MD.GRAY,TRIM1#,RH & CENTER |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-28040A0 |
HDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),IVORY,TRIM4# |
3 | ||
| 71930-28040B5 |
HDJ100..ARL W(LOCK),MD.GRAY,TRIM1# |
3 | ||
| 71931-28050A0 |
HDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),IVORY,TRIM4# |
3 | ||
| 71931-28050B5 |
HDJ100..ARL W/O(LOCK),MD.GRAY,TRIM1# |
3 | ||
| 71930-28040B5 |
FZJ105..RHD;FZJ105..LHD..GX;HZJ105..ARL,GCC;HZJ105..GX..GEN;FZJ100,HDJ100,UZJ100 W(LOCK),W(BENCH TYPE SECOND SEAT),MD.GRAY,TRIM1# |
3 | ||
| 71931-28050B5 |
FZJ10#,HDJ100,HZJ105,UZJ100..DSL2,EFI,TD2 W/O(LOCK),W(BENCH TYPE SECOND SEAT),MD.GRAY,TRIM1# |
3 | ||
| 71931-28050B5 |
FZJ105..RHD;FZJ105..LHD..GX;HZJ105..ARL,GCC;HZJ105..GX..GEN;FZJ100,HDJ100,UZJ100 W/O(LOCK),W(BENCH TYPE SECOND SEAT),MD.GRAY,TRIM1# |
3 | ||
| 71930-28040A0 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),IVORY,TRIM4#,RH & CENTER |
2 | ||
| 71930-28040B5 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX) W(LOCK),MD.GRAY,TRIM1#,RH & CENTER |
2 | ||
| 71930-60030A0 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),IVORY,TRIM4#,LH |
1 | ||
| 71930-60030B0 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),MD.GRAY,TRIM1#,LH |
1 | ||
| 71930-28040B5 |
FZJ10#,HDJ100,HZJ105,UZJ100..DSL2,EFI,TD2 W(LOCK),W(BENCH TYPE SECOND SEAT),MD.GRAY,TRIM1# |
3 | ||
| 71931-28050A0 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),IVORY,TRIM4#,RH & CENTER |
2 | ||
| 71931-60020A0 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),IVORY,TRIM4#,LH |
1 | ||
| 71931-60020B0 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),MD.GRAY,TRIM1#,LH |
1 | ||
| 71931-28050B5 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX) W/O(LOCK),MD.GRAY,TRIM1#,RH & CENTER |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-28040A0 |
HDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),IVORY,TRIM4# |
3 | ||
| 71930-28040B5 |
HDJ100..ARL W(LOCK),MD.GRAY,TRIM1# |
3 | ||
| 71931-28050A0 |
HDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),IVORY,TRIM4# |
3 | ||
| 71931-28050B5 |
HDJ100..ARL W/O(LOCK),MD.GRAY,TRIM1# |
3 | ||
| 71930-28040B5 |
FZJ105..RHD;FZJ105..LHD..GX;HZJ105..ARL,GCC;HZJ105..GX..GEN;FZJ100,HDJ100,UZJ100 W(LOCK),W(BENCH TYPE SECOND SEAT),MD.GRAY,TRIM1# |
3 | ||
| 71931-28050B5 |
FZJ10#,HDJ100,HZJ105,UZJ100..DSL2,EFI,TD2 W/O(LOCK),W(BENCH TYPE SECOND SEAT),MD.GRAY,TRIM1# |
3 | ||
| 71931-28050B5 |
FZJ105..RHD;FZJ105..LHD..GX;HZJ105..ARL,GCC;HZJ105..GX..GEN;FZJ100,HDJ100,UZJ100 W/O(LOCK),W(BENCH TYPE SECOND SEAT),MD.GRAY,TRIM1# |
3 | ||
| 71930-28040A0 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),IVORY,TRIM4#,RH & CENTER |
2 | ||
| 71930-28040B5 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX) W(LOCK),MD.GRAY,TRIM1#,RH & CENTER |
2 | ||
| 71930-60030A0 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),IVORY,TRIM4#,LH |
1 | ||
| 71930-60030B0 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W(LOCK),MD.GRAY,TRIM1#,LH |
1 | ||
| 71930-28040B5 |
FZJ10#,HDJ100,HZJ105,UZJ100..DSL2,EFI,TD2 W(LOCK),W(BENCH TYPE SECOND SEAT),MD.GRAY,TRIM1# |
3 | ||
| 71931-28050A0 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),IVORY,TRIM4#,RH & CENTER |
2 | ||
| 71931-60020A0 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),IVORY,TRIM4#,LH |
1 | ||
| 71931-60020B0 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..(DSL2,EFI,TDEFI) W/O(LOCK),MD.GRAY,TRIM1#,LH |
1 | ||
| 71931-28050B5 |
FZJ105,HDJ100,HZJ105..RHD..(GX,VX) W/O(LOCK),MD.GRAY,TRIM1#,RH & CENTER |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-60250E0 |
HDJ100,UZJ100..VX OAK,TRIM4# |
2 | ||
| 71940-60250B0 |
HDJ100,UZJ100..VX GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-60250E0 |
HDJ100,UZJ100..VX OAK,TRIM4# |
2 | ||
| 71940-60250B0 |
HDJ100,UZJ100..VX GRAY,TRIM1# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-60020E0 |
HDJ100,UZJ100..VX OAK,TRIM4# |
1 | ||
| 71960-60020B0 |
HDJ100,UZJ100..VX GRAY,TRIM1# |
1 | ||

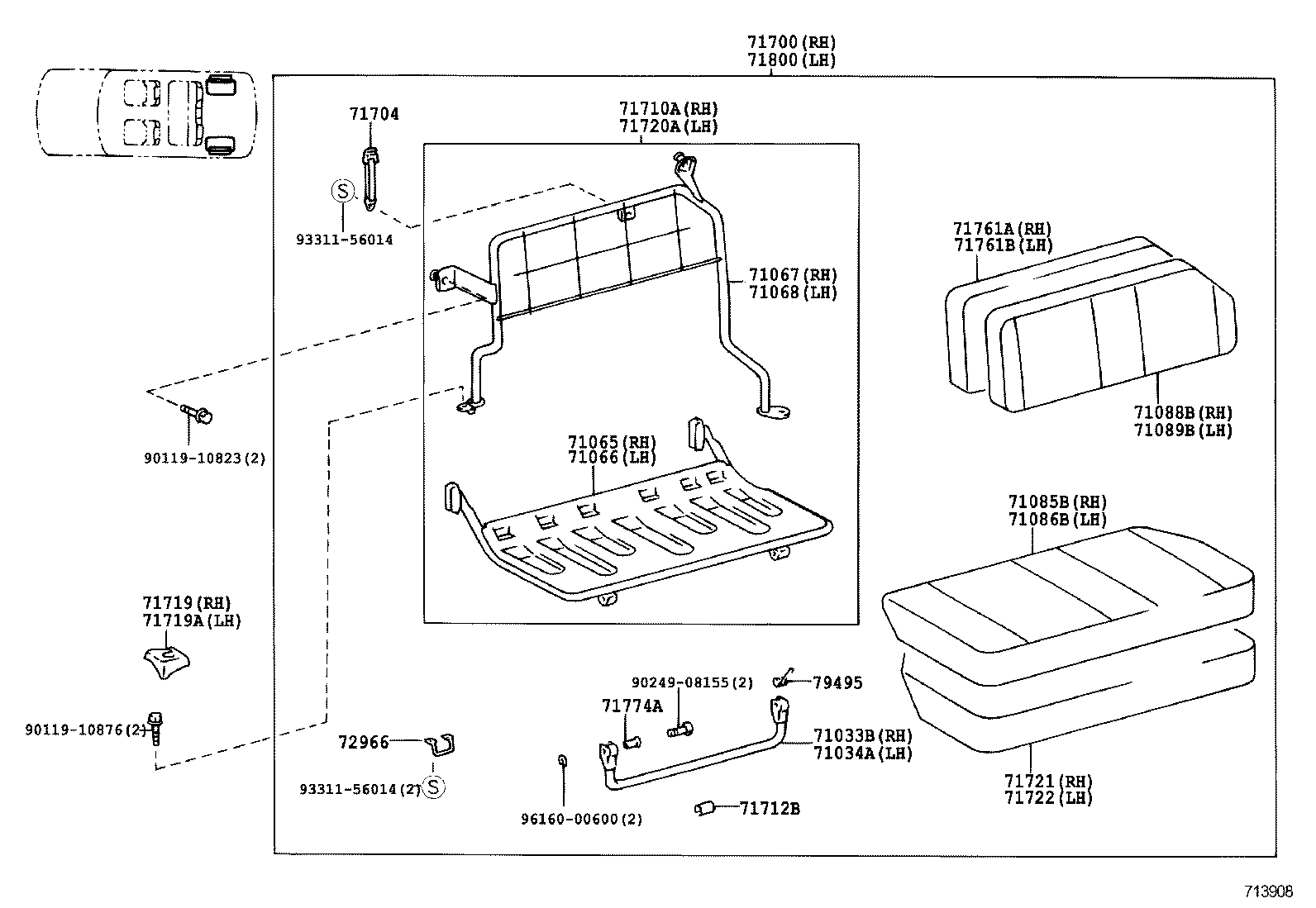

ILLUST NO. 8 OF10(9801-0208)
REAR NO.2 SEAT (OPPOSING TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-10823 | ||||
| 90119-10876 | ||||
| 90249-08155 | ||||
| 93311-56014 | ||||
| 96160-00600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
