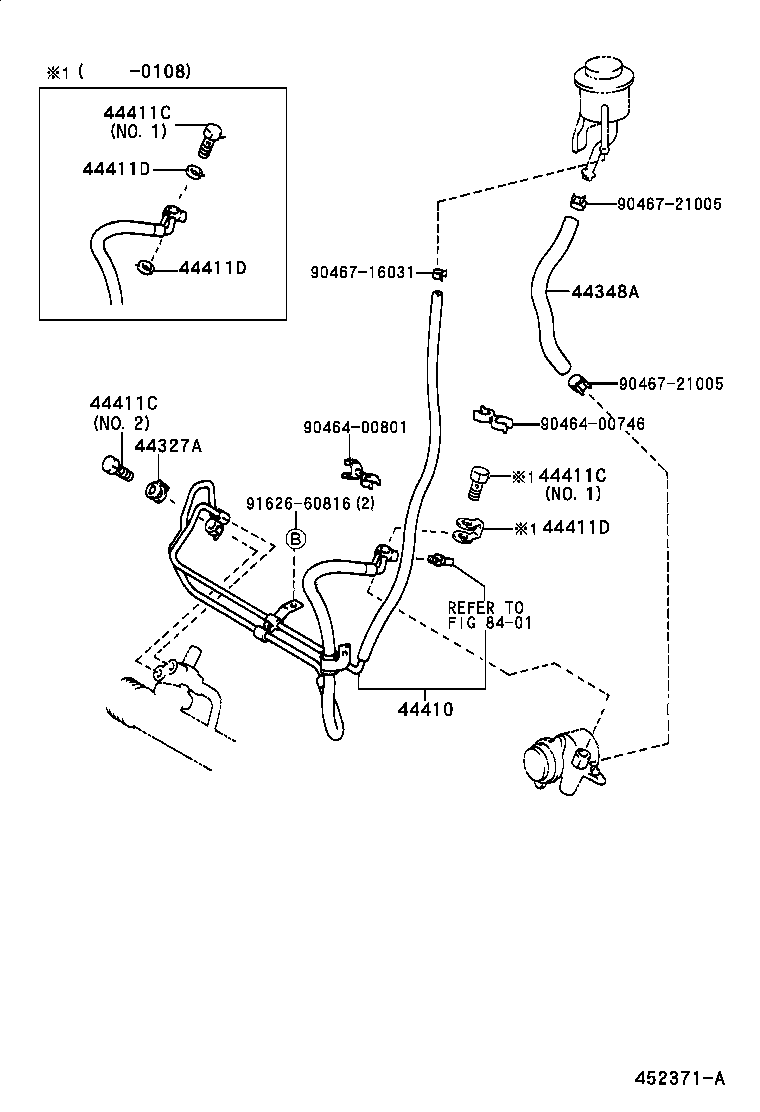

HDJ100R-GNPEZQ (2000)
Toyota Land Cruiser 100
(0008-0208)HDJ100..ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-30030 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-60250 |
HDJ100..ARL |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-60490 |
HDJ100..ARL |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16020 |
HDJ100,UZJ100..EFI,TDEFI NO.1 |
1 | ||
| 90401-16040 |
FZJ100,HDJ100,UZJ100 NO.2 |
1 | ||
| 90401-16034 |
HDJ100,UZJ100..EFI,TDEFI NO.1 |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16020 |
HDJ100,UZJ100..EFI,TDEFI NO.1 |
1 | ||
| 90401-16040 |
FZJ100,HDJ100,UZJ100 NO.2 |
1 | ||
| 90401-16034 |
HDJ100,UZJ100..EFI,TDEFI NO.1 |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16020 |
HDJ100,UZJ100..EFI,TDEFI NO.1 |
1 | ||
| 90401-16040 |
FZJ100,HDJ100,UZJ100 NO.2 |
1 | ||
| 90401-16034 |
HDJ100,UZJ100..EFI,TDEFI NO.1 |
1 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 44327-30030 |
FZJ10#,HDJ100,HZJ105..DSL2,EFI,TD2 |
1 | ||
| 90430-16168 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 44327-30040 |
HDJ100,UZJ100..EFI,TDEFI |
1 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 44327-30030 |
FZJ10#,HDJ100,HZJ105..DSL2,EFI,TD2 |
1 | ||
| 90430-16168 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 44327-30040 |
HDJ100,UZJ100..EFI,TDEFI |
1 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 44327-30030 |
FZJ10#,HDJ100,HZJ105..DSL2,EFI,TD2 |
1 | ||
| 90430-16168 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 44327-30040 |
HDJ100,UZJ100..EFI,TDEFI |
1 | ||
| Common parts | ||||
| 90464-00746 | ||||
| 90464-00801 | ||||
| 90467-16031 | ||||
| 90467-21005 | ||||
| 91626-60816 | ||||
| Linked diagrams | ||||
| 8401 | ||||
