HDJ100R-GNPEZQ (2000)
Toyota Land Cruiser 100
Production
Aug 2000
-
Aug 2002
Engine
1HDFTE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0008-0208)HDJ100..ARL

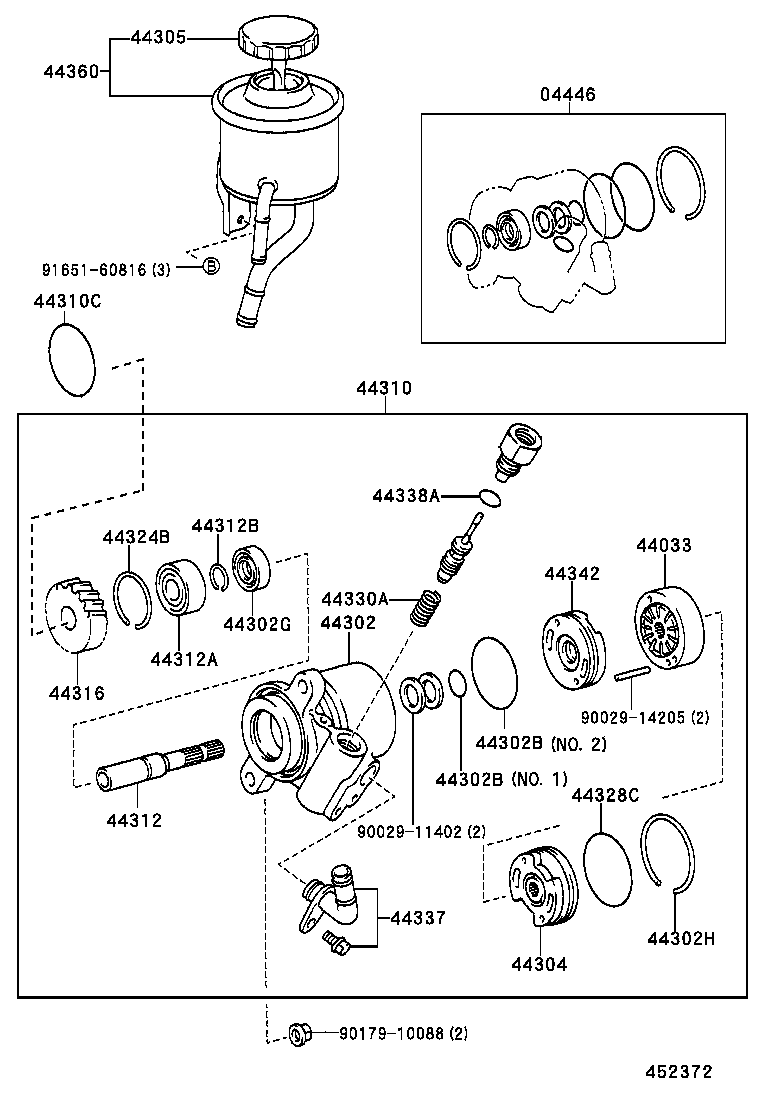

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-60100 |
HDJ100 |
1 | ||
| 44033 - ROTOR SUB-ASSY, W/CAM & VANE | ||||
| 44033-60010 |
HDJ100 |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-60080 |
HDJ100 |
1 | ||
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90029-20056 |
HDJ100 NO.1 |
1 | ||
| 90029-20057 |
HDJ100 NO.2 |
1 | ||
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90029-20056 |
HDJ100 NO.1 |
1 | ||
| 90029-20057 |
HDJ100 NO.2 |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90029-21018 |
HDJ100,HZJ105 |
1 | ||
| 44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90029-52010 |
HDJ100 |
1 | ||
| 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR | ||||
| 44304-60040 |
HDJ100 |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-35010 |
HDJ100..ARL |
1 | ||
| 44310 - PUMP ASSY, VANE | ||||
| 44310-60320 |
HDJ100..ARL |
1 | ||
| 44310C - RING, O(FOR VANE PUMP) | ||||
| 90301-60002 |
HDJ100,HZJ105 |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-60030 |
HDJ100 |
1 | ||
| 44312A - BEARING(FOR VANE PUMP SHAFT) | ||||
| 90029-36003 |
HDJ100,HZJ105 |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90029-52402 |
HDJ100,HZJ105 |
1 | ||
| 44316 - GEAR, VANE PUMP | ||||
| 44316-60040 |
HDJ100 |
1 | ||
| 44324B - RING, HOLE SNAP(FOR PUMP HOUSING REAR) | ||||
| 90029-52011 |
HDJ100 |
1 | ||
| 44328C - RING, O(FOR PUMP HOUSING END) | ||||
| 90029-20058 |
HDJ100 |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90029-60013 |
HDJ100 |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-60090 |
HDJ100..ARL |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 96711-19016 |
HDJ100 OD=19.6,ID=15.8 |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-60050 |
HDJ100 |
1 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-60220 |
HDJ100..ARL |
1 | ||
| Common parts | ||||
| 90029-11402 | ||||
| 90029-14205 | ||||
| 90179-10088 | ||||
| 91651-60816 | ||||
