HDJ100R-GNPEZQ (2000)

Toyota Land Cruiser 100

Production Aug 2000 - Aug 2002
Engine 1HDFTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9801-0208)HDJ100..4FC

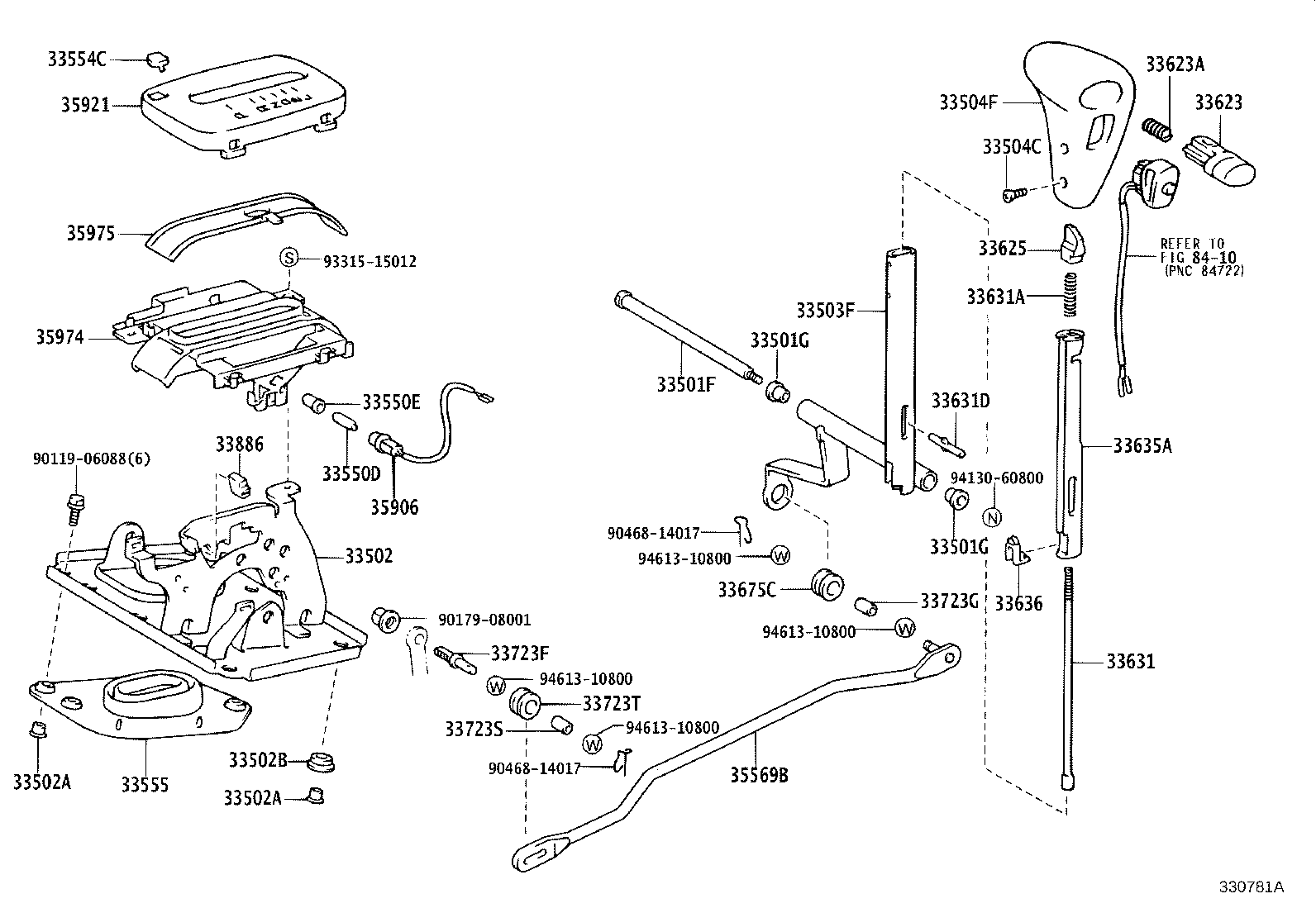

Click highlighted areas on diagram

diagram 33501F 33501G 33501G 33502 33502A 33502A 33502B 33503F 33504C 33504F 33550D 33550E 33554C 33555 33623 33623A 33625 33631 33631A 33631D 33635A 33636 33675C 33723F 33723G 33723S 33723T 33886 35569B 35906 35921 35974 35975 8410 9011906088 9017908001 9046814017 9046814017 9331515012 9413060800 9461310800 9461310800 9461310800 9461310800
Part # Description Qty Price
33501F - SHAFT SUB-ASSY, CONTROL (FOR FLOOR SHIFT)
33511-60130

FZJ105,HDJ100,HZJ105,UZJ100..4FC..ARL

 1
33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
90386-11019

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 2
33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
90386-11019

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 2
33502 - PLATE SUB-ASSY, SHIFT LEVER
33502-60280

FZJ105,HDJ100,HZJ105..4FC..ARL

 1
33502A - COLLAR (FOR FLOOR SHIFT SETTING)
90387-06065

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

OD=8.8

 6
33502A - COLLAR (FOR FLOOR SHIFT SETTING)
90387-06065

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

OD=8.8

 6
33502B - GROMMET (FOR SHIFT LEVER PLATE)
90480-13018

FZJ105,HDJ100,HZJ105,UZJ100..4FC..ARL

 2
33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33055-60050

FZJ105,HDJ100,HZJ105,UZJ100..4FC..ARL

 1
33504C - SCREW (FOR SHIFT LEVER KNOB SETTING)
90159-40109

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 2
33504F - KNOB SUB-ASSY, SHIFT LEVER
33542-20140C0

FZJ105,HDJ100..4FC..ARL

LEATHER,BLACK,TRIM1#,4#

 1
33550D - BULB, POSITION INDICATOR LAMP
90981-11018

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

12V 1.2W W/O SOCKET

 1
33550E - CAP, POSITION INDICATOR LAMP
90339-04049

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
33554C - COVER, SHIFT LOCK RELEASE BUTTON
33554-60110

FZJ105,HDJ100,HZJ105,UZJ100..4FC..ARL

 1
33555 - BOOT, SHIFT LEVER
33555-60140

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
33623 - BUTTON, SHIFT LEVER KNOB
33623-20060C0

FZJ105,HDJ100,HZJ105..4FC..ARL

BLACK,TRIM1#,4#

 1
33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
90501-07009

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
33625 - SLEEVE, SHIFT LEVER KNOB
33625-24010

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
33631 - ROD, DETENT
33631-14040

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
33631A - SPRING, COMPRESSION (FOR DETENT ROD)
90501-07074

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
33631D - PIN, GROOVED (FOR DETENT ROD)
90256-04003

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
33635A - GUIDE, WIRE, NO.1 (FOR SHIFT LEVER)
33635-60060

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
33636 - GUIDE, WIRE, NO.2 (FOR SHIFT LEVER)
33636-35010

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
33675C - GROMMET (FOR TRANSMISSION CONTROL ROD)
90480-17177

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33723-22010

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT)
90389-08005

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
33723S - BUSH (FOR CONNECTING ROD SWIVEL)
90389-08005

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
33723T - GROMMET (FOR CONNECTING ROD SWIVEL)
90480-17177

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
33886 - STOPPER, SHIFT LEVER
33886-22010

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
35569B - ROD, TRANSMISSION CONTROL (FOR FLOOR SHIFT)
35569-60090

FZJ10#,HDJ100,HZJ105..4FC

 1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-35100

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
35921 - PLATE, CONTROL POSITION INDICATOR
35921-60190

FZJ105,HDJ100,HZJ105,UZJ100..4FC..ARL

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-60100

FZJ105,HDJ100,HZJ105,UZJ100..4FC..ARL

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-60100

UZJ100..LHD..4FC;FZJ10#,HDJ100,HZJ105..4FC

 1
Common parts
90119-06088
90179-08001
90468-14017
93315-15012
94130-60800
94613-10800
