HDJ100R-GNPEZQ (2000)

Toyota Land Cruiser 100

Production Aug 2000 - Aug 2002
Engine 1HDFTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0008- )1HDFTE

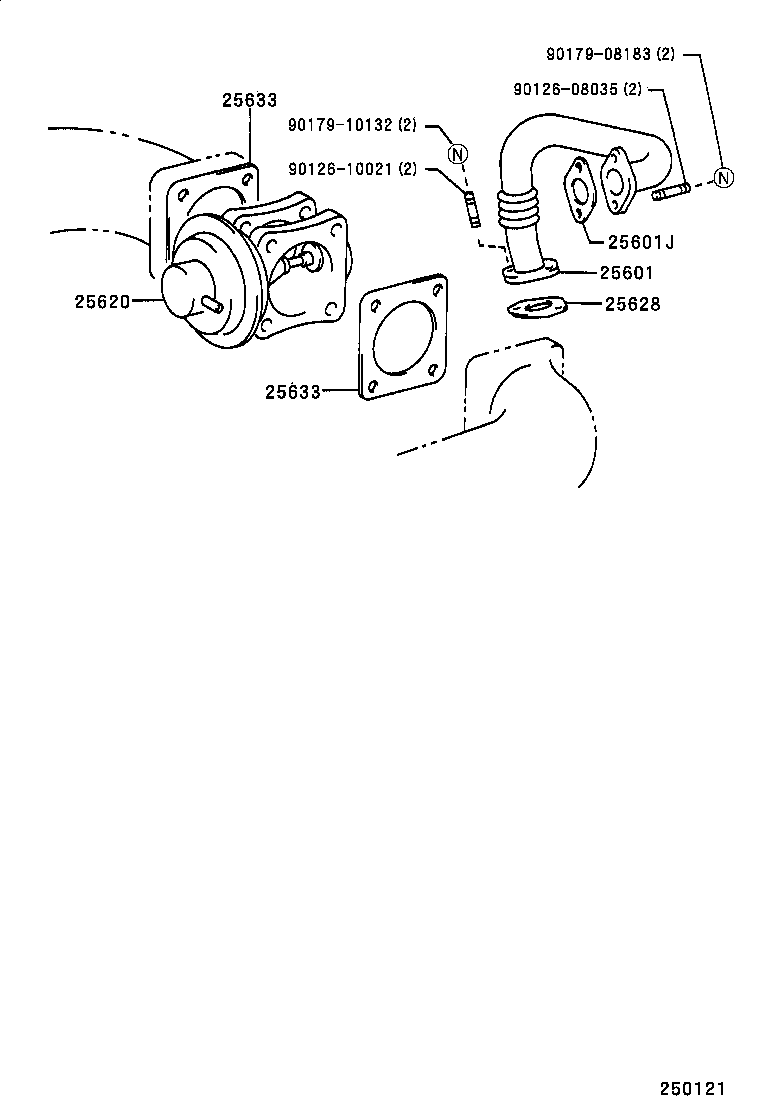

Click highlighted areas on diagram

diagram 25601 25601J 25620 25628 25633 25633 9012608035 9012610021 9017908183 9017910132
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-17011

1HDFTE..HDJ100

 1
25601-17010

1HDFTE..HDJ100

 1
25601J - GASKET(FOR EGR PIPE, NO.1)
25634-17010

1HDFTE..HDJ100

 1
25620 - VALVE ASSY, EGR
25620-17020

1HDFTE..HDJ100

 1
25628 - GASKET, EGR INLET
25628-17010

1HDFTE..HDJ100

 1
25633 - GASKET, EGR VALVE
25633-17010

1HDFTE..HDJ100

 2
25633-17020

1HDFTE..HDJ100

 2
25633 - GASKET, EGR VALVE
25633-17010

1HDFTE..HDJ100

 2
25633-17020

1HDFTE..HDJ100

 2
Common parts
90126-08035
90126-10021
90179-08183
90179-10132
