HDJ100R-GNPEZQ (2000)

Toyota Land Cruiser 100

Production Aug 2000 - Aug 2002
Engine 1HDFTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0008-0208)1HDFTE

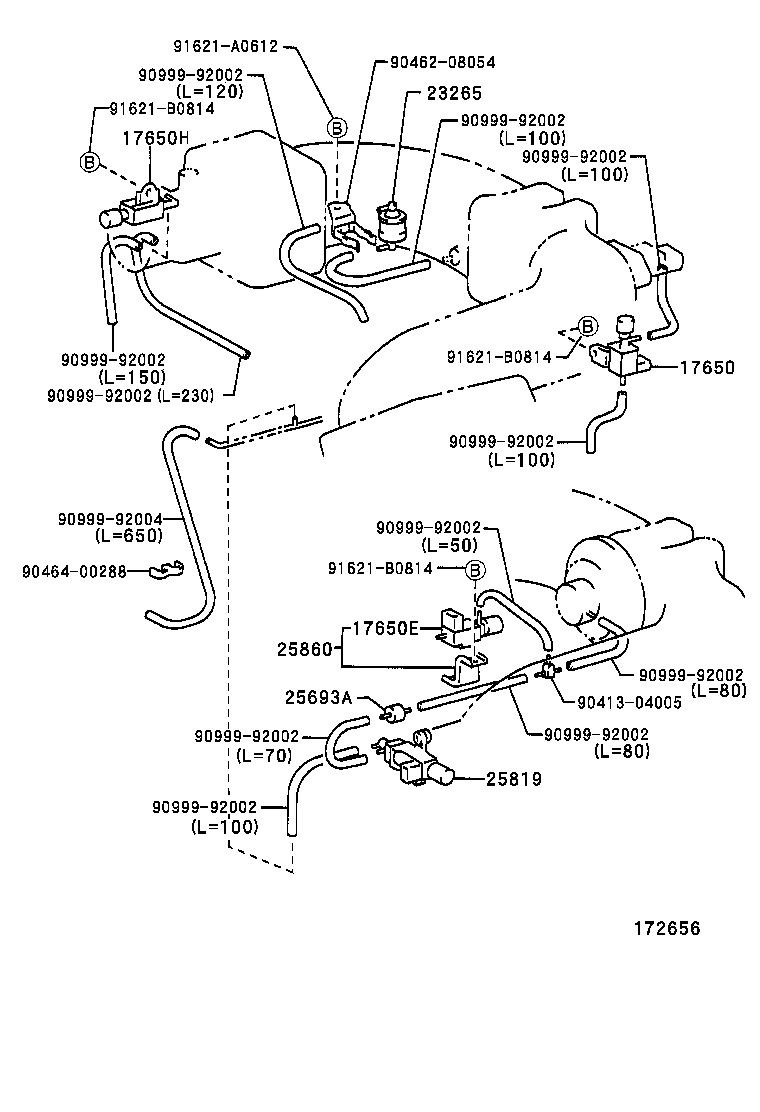

Click highlighted areas on diagram

diagram 17650 17650E 17650H 23265 25693A 25819 25860 9041304005 9046208054 9046400288 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992004 91621A0612 91621B0814 91621B0814 91621B0814
Part # Description Qty Price
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12014

1HDFTE..HDJ100

 1
17650E - VALVE, VACUUM SWITCHING
90910-12184

1HDFTE..HDJ100

 1
17650H - VALVE, VACUUM SWITCHING
90910-12155

1HDFTE..HDJ100

 1
23265 - FILTER, GAS, NO.1
90917-11036

1HDFTE..HDJ100

 1
25693A - DAMPER, EGR VACUUM MODULATOR
25693-64010

1HDFTE..HDJ100

 1
25819 - VALVE ASSY, VACUUM REGULATING
25819-17020

1HDFTE..HDJ100

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-17070

1HDFTE..HDJ100

 1
Common parts
90413-04005
90462-08054
90464-00288
90999-92002
90999-92004
91621-A0612
91621-B0814
