HDJ100R-GNPEZQ (2000)
Toyota Land Cruiser 100
(0008-0208)1HDFTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303T - PIPE SUB-ASSY, AIR | ||||
| 17303-17010 |
1HDFTE..HDJ100 |
1 | ||
| 17341F - HOSE, AIR, NO.1 | ||||
| 17341-17021 |
1HDFTE..HDJ100 |
1 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-67004 |
1HDFTE..HDJ100 |
2 | ||
| 90460-67007 |
1HDFTE..HDJ100 |
2 | ||
| 17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1) | ||||
| 90460-67004 |
1HDFTE..HDJ100 |
2 | ||
| 90460-67007 |
1HDFTE..HDJ100 |
2 | ||
| 17342D - HOSE, AIR, NO.2 | ||||
| 17342-17011 |
1HDFTE..HDJ100 |
1 | ||
| 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) | ||||
| 90460-67004 |
1HDFTE..HDJ100 |
2 | ||
| 90460-67007 |
1HDFTE..HDJ100 |
2 | ||
| 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) | ||||
| 90460-67004 |
1HDFTE..HDJ100 |
2 | ||
| 90460-67007 |
1HDFTE..HDJ100 |
2 | ||
| 17343D - HOSE, AIR, NO.3 | ||||
| 17343-17011 |
1HDFTE..HDJ100 |
1 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90460-67007 |
1HDFTE..HDJ100 |
2 | ||
| 90460-67004 |
1HDFTE..HDJ100 |
2 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90460-67007 |
1HDFTE..HDJ100 |
2 | ||
| 90460-67004 |
1HDFTE..HDJ100 |
2 | ||
| 17344E - HOSE, AIR, NO.4 | ||||
| 17344-17012 |
1HDFTE..HDJ100 |
1 | ||
| 17344-17013 |
1HDFTE..HDJ100 |
1 | ||
| 17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4) | ||||
| 90460-67007 |
1HDFTE..HDJ100 |
2 | ||
| 90460-67004 |
1HDFTE..HDJ100 |
2 | ||
| 17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4) | ||||
| 90460-67007 |
1HDFTE..HDJ100 |
2 | ||
| 90460-67004 |
1HDFTE..HDJ100 |
2 | ||
| 17360A - TUBE ASSY, AIR | ||||
| 17360-17010 |
1HDFTE..HDJ100 |
1 | ||
| 17362B - TUBE, AIR, NO.2 | ||||
| 17362-17010 |
1HDFTE..HDJ100 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-17210 |
1HDFTE..HDJ100 |
1 | ||
| 17700K - HOSE, VACUUM(FOR AIR CLEANER WARNING SENSOR) | ||||
| 90999-92003 |
1HDFTE..HDJ100 *H,L=540,MARK=#*,NO.2 |
1 | ||
| 90999-92002 |
1HD#,1HZ..HDJ100,HZJ105 *H,L=90,MARK=#*,NO.1 |
1 | ||
| 17700K - HOSE, VACUUM(FOR AIR CLEANER WARNING SENSOR) | ||||
| 90999-92003 |
1HDFTE..HDJ100 *H,L=540,MARK=#*,NO.2 |
1 | ||
| 90999-92002 |
1HD#,1HZ..HDJ100,HZJ105 *H,L=90,MARK=#*,NO.1 |
1 | ||
| 17703C - CAP SUB-ASSY, DUST | ||||
| 17703-50020 |
1HD#,1HZ..HDJ100,HZJ105 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-17150 |
1HDFTE..HDJ100 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-17020 |
1HDFTE..HDJ100 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-50010 |
1HD#,1HZ..HDJ100,HZJ105 |
1 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-50020 |
1HD#,1HZ..HDJ100,HZJ105 NO.2 |
1 | ||
| 17845-50010 |
1HD#,1HZ..HDJ100,HZJ105 NO.1 |
1 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-50020 |
1HD#,1HZ..HDJ100,HZJ105 NO.2 |
1 | ||
| 17845-50010 |
1HD#,1HZ..HDJ100,HZJ105 NO.1 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-17060 |
1HDFTE..HDJ100 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10800 |
1HD#,1HZ..HDJ100,HZJ105 |
1 | ||
| 17881C - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10900 |
1HD#..HDJ100 |
1 | ||
| 17911 - DUCT, COOL AIR INTAKE, NO.1 | ||||
| 52810-60010 |
1HD#,1HZ..HDJ100,HZJ105 |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17940-17010 |
1HDFTE..HDJ100 |
1 | ||
| 17944 - PROTECTOR, INTERCOOLER PIPE | ||||
| 17944-17010 |
1HDFTE..HDJ100 |
1 | ||
| 53807C - DUCT SUB-ASSY, FRONT FENDER AIR, RH | ||||
| 53807-60050 |
HDJ100,HZJ105 |
1 | ||
| Common parts | ||||
| 90119-06171 | ||||
| 91621-40620 | ||||
| 91631-60825 | ||||
| 91631-G0830 | ||||
| 91651-60816 | ||||

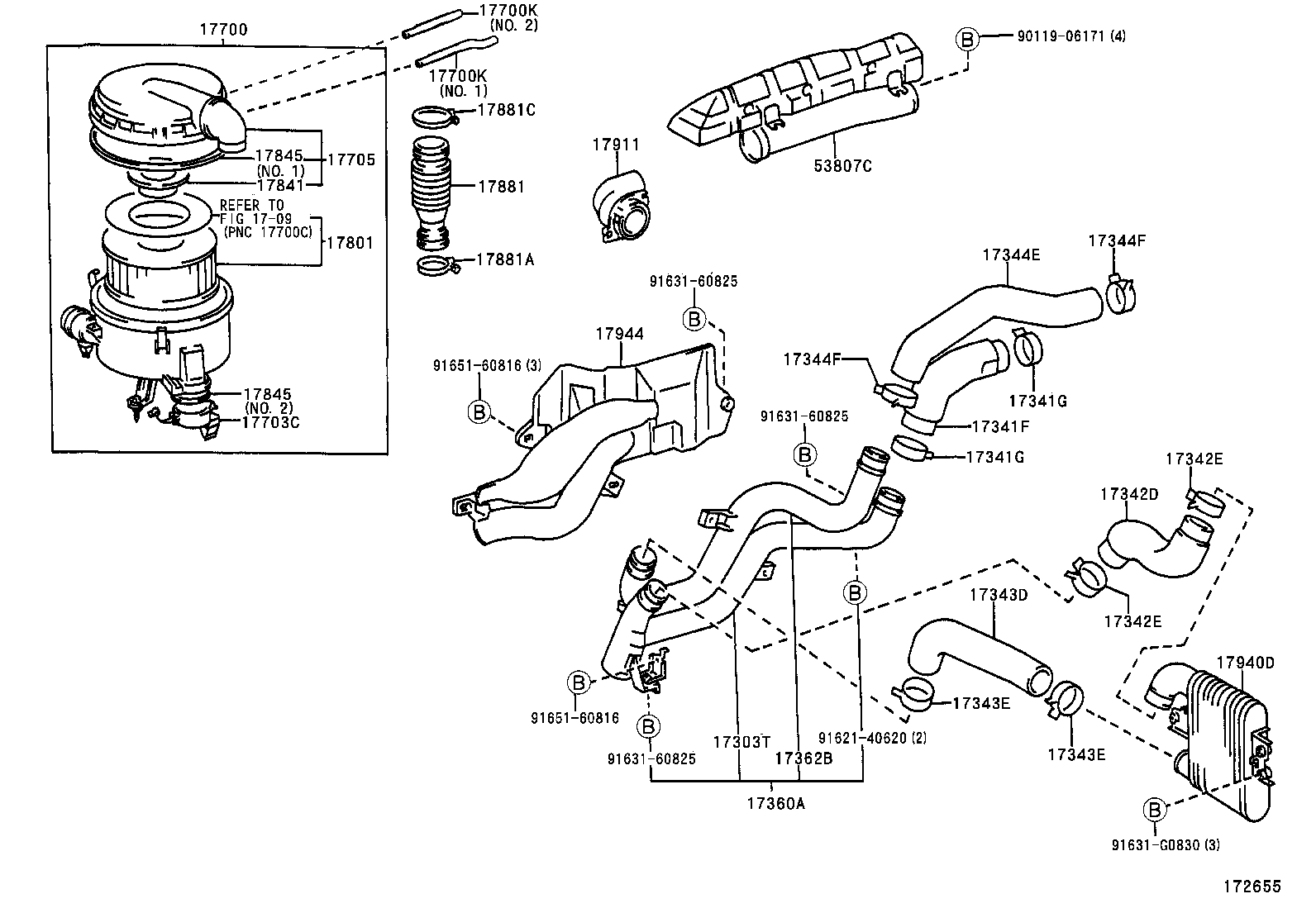

| Linked diagrams | ||||
| 1709 | ||||
