HDJ100R-GNPEZQ (2000)
Toyota Land Cruiser 100
ILLUST NO. 2 OF 2(9801-0208)1HD#,1HZ ; (0208- )1HZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-67150 |
1HD#,1HZ..HDJ100,HZJ105 |
1 | ||

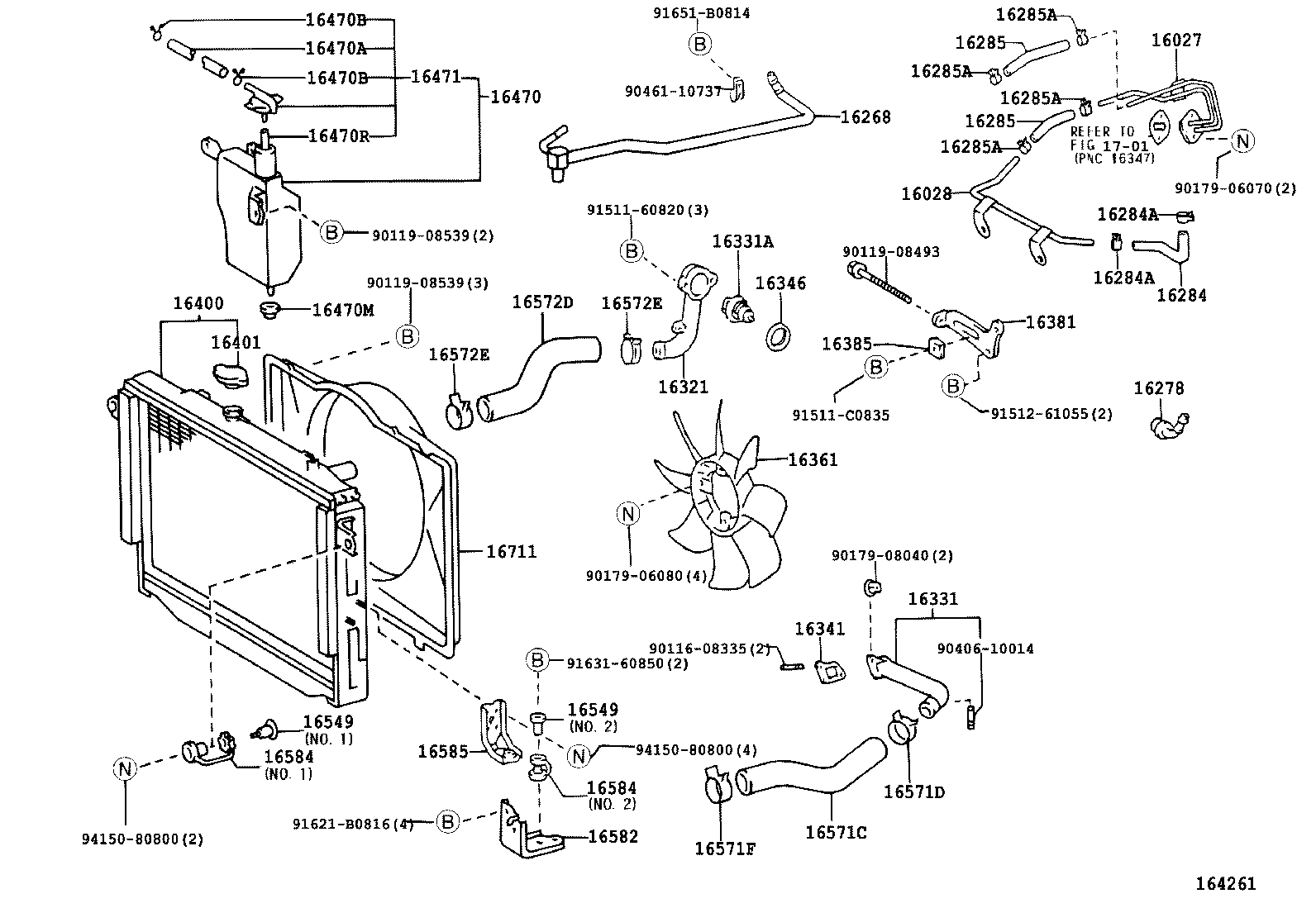

ILLUST NO. 1 OF 2(0008-0208)1HDFTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-17010 |
1HD#..HDJ100 |
1 | ||
| 16028 - PIPE SUB-ASSY, TURBO WATER, NO.2 | ||||
| 16028-17010 |
1HD#..HDJ100 |
1 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-17020 |
1HD#..HDJ100 |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-17010 |
1HD#,1HZ..HDJ100,HZJ105 |
1 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-17010 |
1HD#..HDJ100 |
1 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-15022 |
1HD#..HDJ100 |
2 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-15022 |
1HD#..HDJ100 |
2 | ||
| 16285 - HOSE, TURBO WATER, NO.2 | ||||
| 16285-17010 |
1HD#..HDJ100 |
2 | ||
| 16285 - HOSE, TURBO WATER, NO.2 | ||||
| 16285-17010 |
1HD#..HDJ100 |
2 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-15022 |
1HD#..HDJ100 |
4 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-15022 |
1HD#..HDJ100 |
4 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-15022 |
1HD#..HDJ100 |
4 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-15022 |
1HD#..HDJ100 |
4 | ||
| 16321 - INLET, WATER | ||||
| 16321-17010 |
1HD#,1HZ..HDJ100,HZJ105 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16304-17040 |
1HDFTE..HDJ100 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03089 |
1HD#,1HZ..HDJ100,HZJ105 *WAX 76-90 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-17010 |
1HD#,1HZ..HDJ100,HZJ105 |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-66020 |
1HD#,1HZ..HDJ100,HZJ105 |
1 | ||
| 16361 - FAN | ||||
| 16361-17030 |
1H#..HDJ100,HZJ105..ARL,GEN |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-17020 |
1HDFTE..HDJ100 |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-17010 |
1HD#,1HZ..HDJ100,HZJ105 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-17330 |
1HDFTE..HDJ100..4FC |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-67150 |
1HD#,1HZ..HDJ100,HZJ105 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-66030 |
1HD#,1HZ..HDJ100,HZJ105 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
1HD#,1HZ..HDJ100,HZJ105 *H,L=450 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1HD#,1HZ..HDJ100,HZJ105 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1HD#,1HZ..HDJ100,HZJ105 |
2 | ||
| 16470M - GROMMET | ||||
| 90480-25025 |
1HD#,1HZ..HDJ100,HZJ105 |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 16472-66030 |
1HD#,1HZ..HDJ100,HZJ105 L=309 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-66030 |
1HD#,1HZ..HDJ100,HZJ105 |
1 | ||
| 16549 - COLLAR, RADIATOR SUPPORT, NO.2 | ||||
| 16549-61010 |
1HD#,1HZ..HDJ100,HZJ105 NO.2 |
2 | ||
| 16549-50010 |
1HD#,1HZ..HDJ100,HZJ105 NO.1 |
2 | ||
| 16549 - COLLAR, RADIATOR SUPPORT, NO.2 | ||||
| 16549-61010 |
1HD#,1HZ..HDJ100,HZJ105 NO.2 |
2 | ||
| 16549-50010 |
1HD#,1HZ..HDJ100,HZJ105 NO.1 |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-17080 |
1HDFTE..HDJ100 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90467-41006 |
1HD#,1HZ..HDJ100,HZJ105 |
1 | ||
| 16571F - CLAMP OR CLIP(FOR WATER HOSE) | ||||
| 90467-42001 |
1HD#,1HZ..HDJ100,HZJ105 |
1 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-17130 |
1HD#..HDJ100 |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90467-43002 |
1HD#,1HZ..HDJ100,HZJ105 |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90467-43002 |
1HD#,1HZ..HDJ100,HZJ105 |
2 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-50010 |
1HD#,1HZ..HDJ100,HZJ105 |
2 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-66010 |
1HD#,1HZ..HDJ100,HZJ105 NO.1 |
2 | ||
| 16584-61020 |
1HD#,1HZ..HDJ100,HZJ105 NO.2 |
2 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-66010 |
1HD#,1HZ..HDJ100,HZJ105 NO.1 |
2 | ||
| 16584-61020 |
1HD#,1HZ..HDJ100,HZJ105 NO.2 |
2 | ||
| 16585 - BRACKET, RADIATOR, NO.3 | ||||
| 16585-61020 |
1HD#,1HZ..HDJ100,HZJ105 |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-17100 |
1HD#..HDJ100 |
1 | ||
| Common parts | ||||
| 90116-08335 | ||||
| 90119-08493 | ||||
| 90119-08539 | ||||
| 90179-06070 | ||||
| 90179-06080 | ||||
| 90179-08040 | ||||
| 90406-10014 | ||||
| 90461-10737 | ||||
| 91511-60820 | ||||
| 91511-C0835 | ||||
| 91512-61055 | ||||
| 91621-B0816 | ||||
| 91631-60850 | ||||
| 91651-B0814 | ||||
| 94150-80800 | ||||
| Linked diagrams | ||||
| 1701 | ||||
