Toyota Land cruiser 100 HDJ100 HEATING & AIR CONDITIONING - COMPRESSOR

Manufacturers Home
Toyota
GR
LAND CRUISER 100
HDJ100R-GNMNZQ (2000)
8719 - HEATING & AIR CONDITIONING - COMPRESSOR

HDJ100R-GNMNZQ (2000)

Toyota Land Cruiser 100

Production Aug 2000 - Aug 2007

Engine 1HDFTE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9801-0505)FZJ10#,HDJ100,HZJ105 ; (9801-0505)UZJ100..5FC..ARL,CHI,GEN ; (0505- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
88304 - CYLINDER SUB-ASSY, COOLER COMPRESSOR
88304-60030	FZJ100,HDJ100..ARL,GCC,GEN	08/2002 - 05/2005	1
88304-60030	FZJ100,HDJ100..ARL,GCC,GEN	08/2002 - 05/2005	1
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88321-2B010	HDJ100;HZJ105..STD..ARL W(SINGLE AUTOMATIC AIR CONDITIONER),FRONT	01/1998 - 07/1999	1
88321-2B010	HDJ100;HZJ105..STD..ARL W(SINGLE AUTOMATIC AIR CONDITIONER),FRONT	01/1998 - 07/1999	1
88322-32040	FZJ10#,HDJ100,HZJ105 W(SINGLE AIR CONDITIONER),REAR	01/1998 - 07/1999	1
88322-32040	FZJ10#,HDJ100,HZJ105 W(SINGLE AIR CONDITIONER),REAR	01/1998 - 07/1999	1
88321-2B010	HDJ100..LUB;HZJ105..STD..ARL W(SINGLE AUTOMATIC AIR CONDITIONER),FRONT	08/2002 - 05/2005	1
88321-2B010	HDJ100..LUB;HZJ105..STD..ARL W(SINGLE AUTOMATIC AIR CONDITIONER),FRONT	08/2002 - 05/2005	1
88321-32010	HDJ100 W(DUAL AIR CONDITIONER),FRONT	08/2002 - 05/2005	1
88321-32010	HDJ100 W(DUAL AIR CONDITIONER),FRONT	08/2002 - 05/2005	1
88322-32040	HDJ100..LUB;FZJ10#,HZJ105..ARL,GCC,GEN W(SINGLE AIR CONDITIONER),REAR	08/2002 - 05/2005	1
88322-32040	HDJ100..LUB;FZJ10#,HZJ105..ARL,GCC,GEN W(SINGLE AIR CONDITIONER),REAR	08/2002 - 05/2005	1
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88321-2B010	HDJ100;HZJ105..STD..ARL W(SINGLE AUTOMATIC AIR CONDITIONER),FRONT	01/1998 - 07/1999	1
88321-2B010	HDJ100;HZJ105..STD..ARL W(SINGLE AUTOMATIC AIR CONDITIONER),FRONT	01/1998 - 07/1999	1
88322-32040	FZJ10#,HDJ100,HZJ105 W(SINGLE AIR CONDITIONER),REAR	01/1998 - 07/1999	1
88322-32040	FZJ10#,HDJ100,HZJ105 W(SINGLE AIR CONDITIONER),REAR	01/1998 - 07/1999	1
88321-2B010	HDJ100..LUB;HZJ105..STD..ARL W(SINGLE AUTOMATIC AIR CONDITIONER),FRONT	08/2002 - 05/2005	1
88321-2B010	HDJ100..LUB;HZJ105..STD..ARL W(SINGLE AUTOMATIC AIR CONDITIONER),FRONT	08/2002 - 05/2005	1
88321-32010	HDJ100 W(DUAL AIR CONDITIONER),FRONT	08/2002 - 05/2005	1
88321-32010	HDJ100 W(DUAL AIR CONDITIONER),FRONT	08/2002 - 05/2005	1
88322-32040	HDJ100..LUB;FZJ10#,HZJ105..ARL,GCC,GEN W(SINGLE AIR CONDITIONER),REAR	08/2002 - 05/2005	1
88322-32040	HDJ100..LUB;FZJ10#,HZJ105..ARL,GCC,GEN W(SINGLE AIR CONDITIONER),REAR	08/2002 - 05/2005	1
88321A - PLATE SUB-ASSY, VALVE
88341-22010	FZJ10#,HDJ100,HZJ105 W(SINGLE AIR CONDITIONER),FRONT	01/1998 - 08/2002	1
88341-22010	FZJ10#,HDJ100,HZJ105 W(SINGLE AIR CONDITIONER),FRONT	01/1998 - 08/2002	1
88342-22010	FZJ10#,HDJ100,HZJ105 W(SINGLE AIR CONDITIONER),REAR	01/1998 - 08/2002	1
88342-22010	FZJ10#,HDJ100,HZJ105 W(SINGLE AIR CONDITIONER),REAR	01/1998 - 08/2002	1
88342-22010	FZJ10#,HDJ100,HZJ105..ARL,GCC,GEN W(SINGLE AIR CONDITIONER),REAR	08/2002 - 05/2005	1
88342-22010	FZJ10#,HDJ100,HZJ105..ARL,GCC,GEN W(SINGLE AIR CONDITIONER),REAR	08/2002 - 05/2005	1
88341-22010	FZJ10#,HDJ100,HZJ105..ARL,GCC,GEN W(SINGLE AIR CONDITIONER),FRONT	08/2002 - 05/2005	1
88341-22010	FZJ10#,HDJ100,HZJ105..ARL,GCC,GEN W(SINGLE AIR CONDITIONER),FRONT	08/2002 - 05/2005	1
88321A - PLATE SUB-ASSY, VALVE
88341-22010	FZJ10#,HDJ100,HZJ105 W(SINGLE AIR CONDITIONER),FRONT	01/1998 - 08/2002	1
88341-22010	FZJ10#,HDJ100,HZJ105 W(SINGLE AIR CONDITIONER),FRONT	01/1998 - 08/2002	1
88342-22010	FZJ10#,HDJ100,HZJ105 W(SINGLE AIR CONDITIONER),REAR	01/1998 - 08/2002	1
88342-22010	FZJ10#,HDJ100,HZJ105 W(SINGLE AIR CONDITIONER),REAR	01/1998 - 08/2002	1
88342-22010	FZJ10#,HDJ100,HZJ105..ARL,GCC,GEN W(SINGLE AIR CONDITIONER),REAR	08/2002 - 05/2005	1
88342-22010	FZJ10#,HDJ100,HZJ105..ARL,GCC,GEN W(SINGLE AIR CONDITIONER),REAR	08/2002 - 05/2005	1
88341-22010	FZJ10#,HDJ100,HZJ105..ARL,GCC,GEN W(SINGLE AIR CONDITIONER),FRONT	08/2002 - 05/2005	1
88341-22010	FZJ10#,HDJ100,HZJ105..ARL,GCC,GEN W(SINGLE AIR CONDITIONER),FRONT	08/2002 - 05/2005	1
88329E - BOLT, COMPRESSOR, NO.1
90099-04370	HDJ100,HZJ105 W(SINGLE AIR CONDITIONER)	01/1998 - 07/1999	5
90099-04370	HDJ100,HZJ105 W(SINGLE AIR CONDITIONER)	01/1998 - 07/1999	5
90099-04370	HZJ105;HDJ100..LUB W(SINGLE AIR CONDITIONER)	08/2002 - 05/2005	5
90099-04370	HZJ105;HDJ100..LUB W(SINGLE AIR CONDITIONER)	08/2002 - 05/2005	5
90099-04958	FZJ105,HDJ100 W(DUAL AIR CONDITIONER)	08/2002 - 05/2005	5
90099-04958	FZJ105,HDJ100 W(DUAL AIR CONDITIONER)	08/2002 - 05/2005	5
88335 - GASKET KIT, OVERHAUL
88335-2B030	HDJ100;HZJ105..STD..ARL	08/2002 - 05/2005	1
88335-2B030	HDJ100;HZJ105..STD..ARL	08/2002 - 05/2005	1
88335-2B030	HDJ100..ARL;FZJ105,HZJ105..STD..ARL	01/1998 - 08/2002	1
88335-2B030	HDJ100..ARL;FZJ105,HZJ105..STD..ARL	01/1998 - 08/2002	1
88343B - REED, SUCTION VALVE
88343-14020	HZJ105..STD..ARL;FZJ105,HDJ100..EFI,TDEFI	01/1998 - 08/2002	2
88343-14020	HZJ105..STD..ARL;FZJ105,HDJ100..EFI,TDEFI	01/1998 - 08/2002	2
88343-14020	FZJ105,HDJ100;HZJ105..STD..ARL	08/2002 - 05/2005	2
88343-14020	FZJ105,HDJ100;HZJ105..STD..ARL	08/2002 - 05/2005	2
88343B - REED, SUCTION VALVE
88343-14020	HZJ105..STD..ARL;FZJ105,HDJ100..EFI,TDEFI	01/1998 - 08/2002	2
88343-14020	HZJ105..STD..ARL;FZJ105,HDJ100..EFI,TDEFI	01/1998 - 08/2002	2
88343-14020	FZJ105,HDJ100;HZJ105..STD..ARL	08/2002 - 05/2005	2
88343-14020	FZJ105,HDJ100;HZJ105..STD..ARL	08/2002 - 05/2005	2
88344C - REED, DISCHARGE VALVE
88344-22010	HDJ100..ARL;FZJ105,HZJ105..STD..ARL	01/1998 - 08/2002	2
88344-22010	HDJ100..ARL;FZJ105,HZJ105..STD..ARL	01/1998 - 08/2002	2
88344-22010	HDJ100;HZJ105..STD..ARL	08/2002 - 05/2005	2
88344-22010	HDJ100;HZJ105..STD..ARL	08/2002 - 05/2005	2
88344C - REED, DISCHARGE VALVE
88344-22010	HDJ100..ARL;FZJ105,HZJ105..STD..ARL	01/1998 - 08/2002	2
88344-22010	HDJ100..ARL;FZJ105,HZJ105..STD..ARL	01/1998 - 08/2002	2
88344-22010	HDJ100;HZJ105..STD..ARL	08/2002 - 05/2005	2
88344-22010	HDJ100;HZJ105..STD..ARL	08/2002 - 05/2005	2
88360A - RING, COMPRESSOR SEAL PLATE SNAP
90096-90022	UZJ100..GX..ARL;FZJ10#,HDJ100,HZJ105..ARL,GCC,GEN	08/2002 - 05/2005	1
90096-90022	UZJ100..GX..ARL;FZJ10#,HDJ100,HZJ105..ARL,GCC,GEN	08/2002 - 05/2005	1
90096-90022	FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)	01/1998 - 08/2002	1
90096-90022	FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)	01/1998 - 08/2002	1
88360C - SEAL ASSY, SHAFT
88360-2B020	FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)	01/1998 - 08/2002	1
88360-2B020	FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)	01/1998 - 08/2002	1
88360-2B020	UZJ100..GX..ARL;FZJ10#,HDJ100,HZJ105..ARL,GCC,GEN	08/2002 - 05/2005	1
88360-2B020	UZJ100..GX..ARL;FZJ10#,HDJ100,HZJ105..ARL,GCC,GEN	08/2002 - 05/2005	1
88371A - VALVE, SUCTION
88371-60410	HDJ100,HZJ105..ARL,GEN	01/1998 - 08/2002	1
88371-60410	HDJ100,HZJ105..ARL,GEN	01/1998 - 08/2002	1
88371-60410	HDJ100,HZJ105..ARL,GEN	08/2002 - 05/2005	1
88371-60410	HDJ100,HZJ105..ARL,GEN	08/2002 - 05/2005	1
Common parts
90099-04924
90099-08058

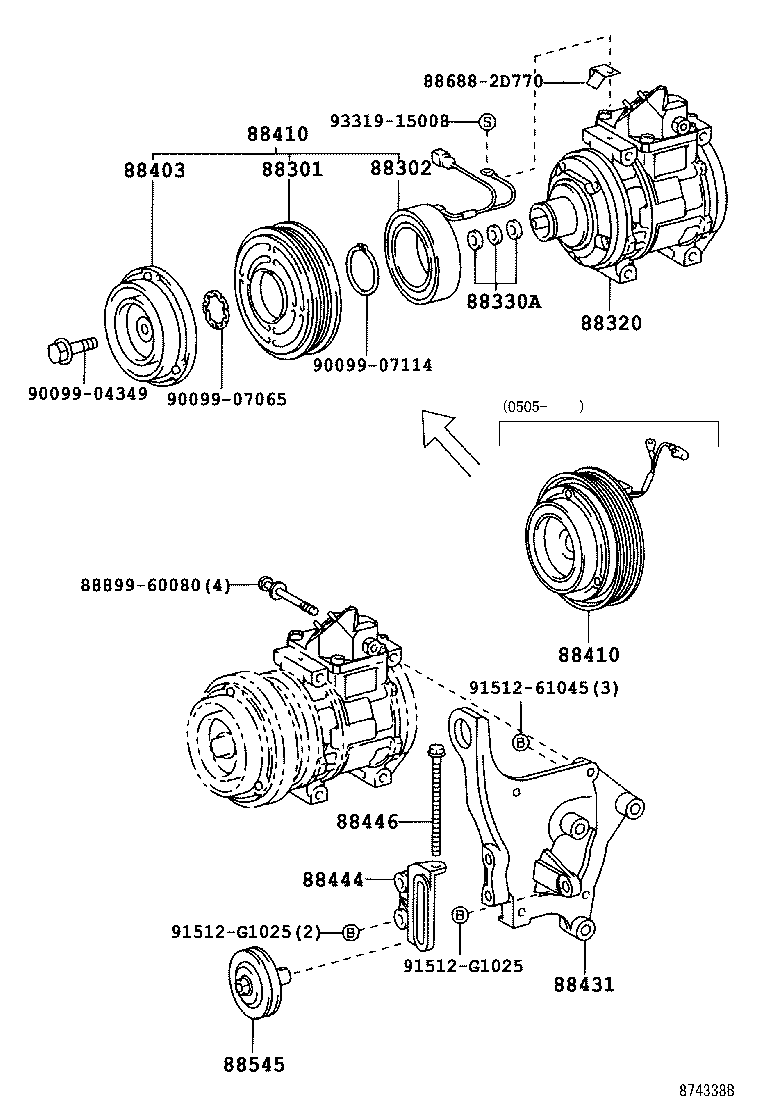

ILLUST NO. 1 OF 2(0008- )HDJ100..ARL

Click highlighted areas on diagram

Part #	Description	Period	Qty
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-6A020	HDJ100..ARL	08/2000 - 08/2002	1
88412-6A020	HDJ100	08/2002 - 05/2005	1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-2A030	FZJ100,HDJ100,HZJ105..ARL,GCC,GEN	08/2002 - 05/2005	1
88411-2A030	FZJ100,HDJ100,HZJ105	01/1998 - 08/2002	1
88320 - COMPRESSOR ASSY, COOLER
88320-60700	HDJ100,HZJ105..(GX,STD)..ARL W(DEALER OPTION SINGLE AIR CONDITIONER)	05/2005 - 12/2999	1
88320-60700	HDJ100,HZJ105..ARL,GEN W(SINGLE AIR CONDITIONER)	01/1998 - 07/1999	1
88320-60700	HDJ100..LUB;HZJ105..ARL,GEN W(SINGLE AIR CONDITIONER)	08/2002 - 05/2005	1
88320-60720	HDJ100 W(DUAL AIR CONDITIONER)	08/2002 - 05/2005	1
88320-60720	HDJ100..GX	05/2005 - 12/2999	1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020	FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)	01/1998 - 08/2002	1
88335-14020	FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN	08/2002 - 05/2005	1
88335-14020	FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN	05/2005 - 12/2999	1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-30290	UZJ100..GX..ARL;FZJ10#,HDJ100,HZJ105..ARL,GCC,GEN	08/2002 - 05/2005	1
88403-30290	FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..(STD,VX)..GEN	01/1998 - 08/2002	1
88410 - CLUTCH ASSY, MAGNET
88410-6A010	HDJ100..ARL	08/2000 - 08/2002	1
88410-6A010	HDJ100	08/2002 - 05/2005	1
88410-6A010	HDJ100	05/2005 - 12/2999	1
88410 - CLUTCH ASSY, MAGNET
88410-6A010	HDJ100..ARL	08/2000 - 08/2002	1
88410-6A010	HDJ100	08/2002 - 05/2005	1
88410-6A010	HDJ100	05/2005 - 12/2999	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-60260	HDJ100..ARL	08/2000 - 08/2002	1
88431-60260	HDJ100	08/2002 - 05/2005	1
88431-60260	HDJ100	05/2005 - 12/2999	1
88444 - BRACKET, IDLE PULLEY
88444-60120	HDJ100..ARL	08/2000 - 08/2002	1
88444-60120	HDJ100	05/2005 - 12/2999	1
88444-60120	HDJ100	08/2002 - 05/2005	1
88446 - BOLT, IDLE PULLEY
88446-60030	HDJ100,HZJ105	01/1998 - 08/2002	1
88446-60030	HDJ100,HZJ105	05/2005 - 12/2999	1
88446-60030	HDJ100,HZJ105	08/2002 - 05/2005	1
88545 - PULLEY ASSY, IDLE
88440-60040	HDJ100,HZJ105	01/1998 - 10/1999	1
88440-60060	HDJ100	08/2002 - 05/2005	1
88440-60060	HDJ100..ARL	08/2000 - 08/2002	1
88440-60060	HDJ100	05/2005 - 12/2999	1
Common parts
88688-2D770
88899-60080
90099-04349
90099-07065
90099-07114
91512-61045
91512-G1025
93319-15008

HDJ100R-GNMNZQ (2000)

ILLUST NO. 2 OF 2(9801-0505)FZJ10#,HDJ100,HZJ105 ; (9801-0505)UZJ100..5FC..ARL,CHI,GEN ; (0505- )

ILLUST NO. 1 OF 2(0008- )HDJ100..ARL

Part Price Details
