HDJ100R-GNMNZQ (2000)
Toyota Land Cruiser 100
Production
Aug 2000
-
Aug 2007
Engine
1HDFTE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

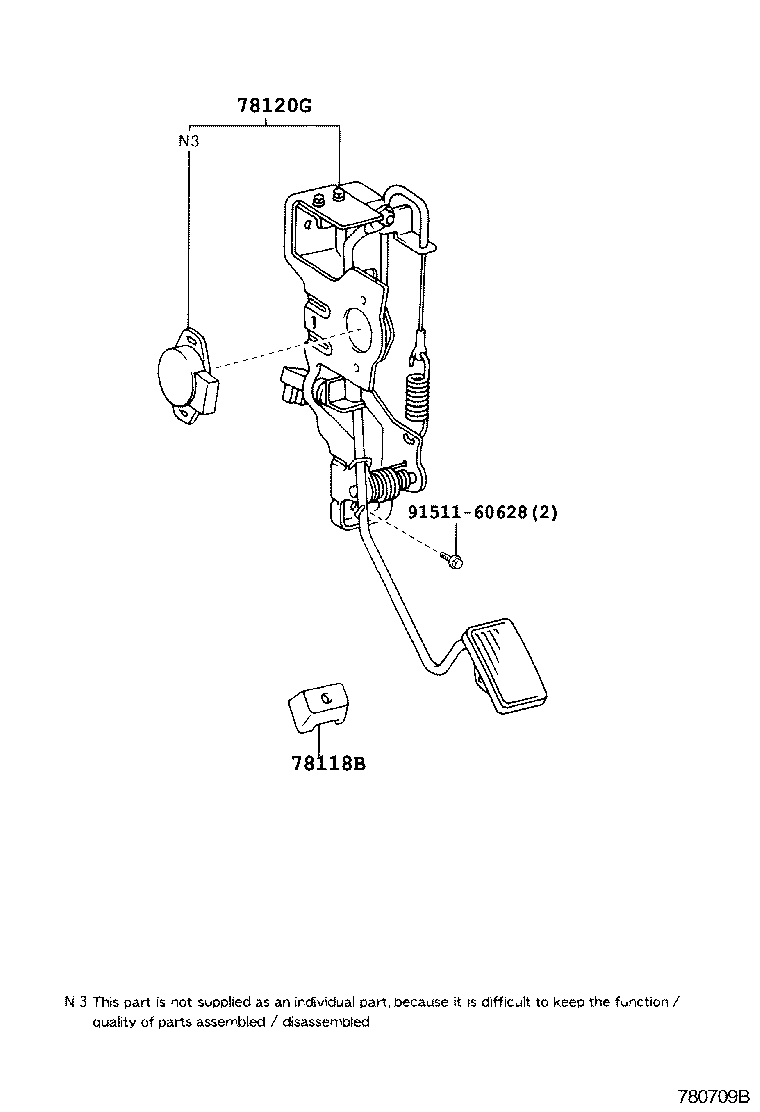

(0008-0208)HDJ100..ARL
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78118B - STOPPER, ACCELERATOR PEDAL | ||||
| 78118-60010 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 78118-60010 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 78118-60010 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-60230 |
HDJ100,UZJ100..RHD;FZJ105,HZJ105..RHD..5F |
1 | ||
| 78010-60010 |
HDJ100..RHD |
1 | ||
| 78010-60010 |
HDJ100..RHD |
1 | ||
| 78010-60010 |
HDJ100..ARL |
1 | ||
| Common parts | ||||
| 91511-60514 | ||||
| 91511-60628 | ||||

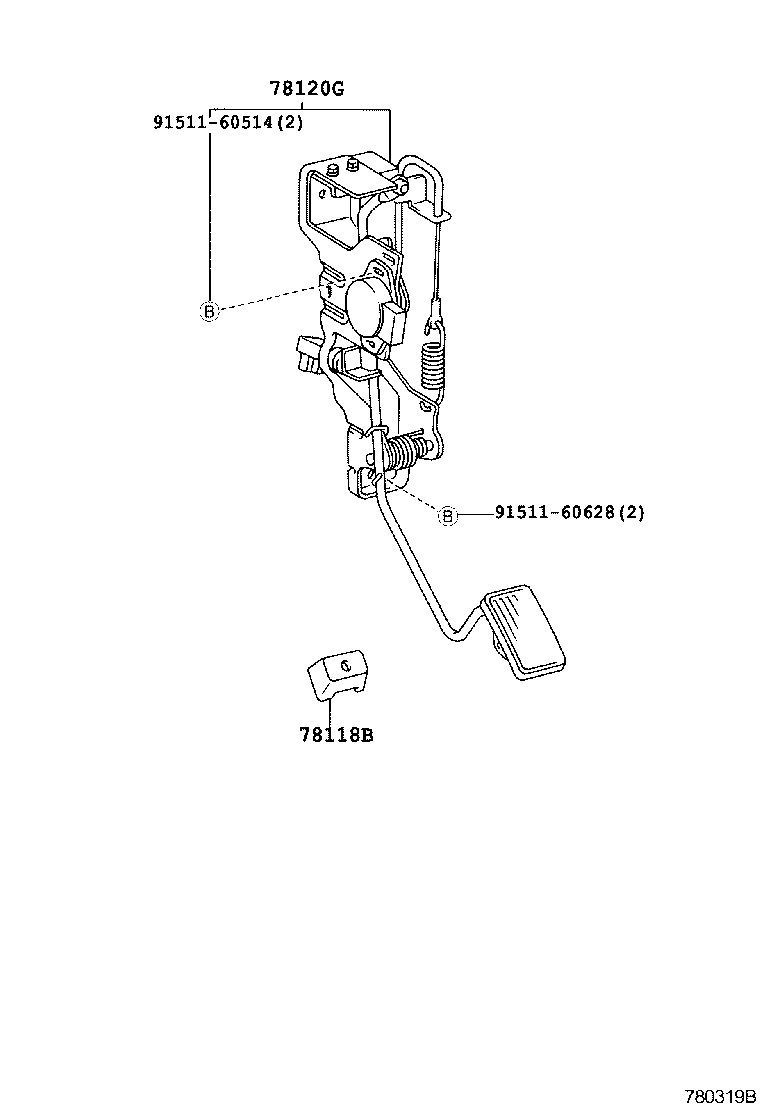

(0208- )HDJ100..RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78118B - STOPPER, ACCELERATOR PEDAL | ||||
| 78118-60010 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 78118-60010 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 78118-60010 |
FZJ105,HDJ100,HZJ105,UZJ100..RHD |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-60230 |
HDJ100,UZJ100..RHD;FZJ105,HZJ105..RHD..5F |
1 | ||
| 78010-60010 |
HDJ100..RHD |
1 | ||
| 78010-60010 |
HDJ100..RHD |
1 | ||
| 78010-60010 |
HDJ100..ARL |
1 | ||
| Common parts | ||||
| 91511-60628 | ||||
