HDJ100R-GNMNZQ (2000)

Toyota Land Cruiser 100

Production Aug 2000 - Aug 2007
Engine 1HDFTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9801-0505)HDJ100,HZJ105..RHD ; (0505- )RHD..SOB ; (0505- )HDJ100..RHD ; (050

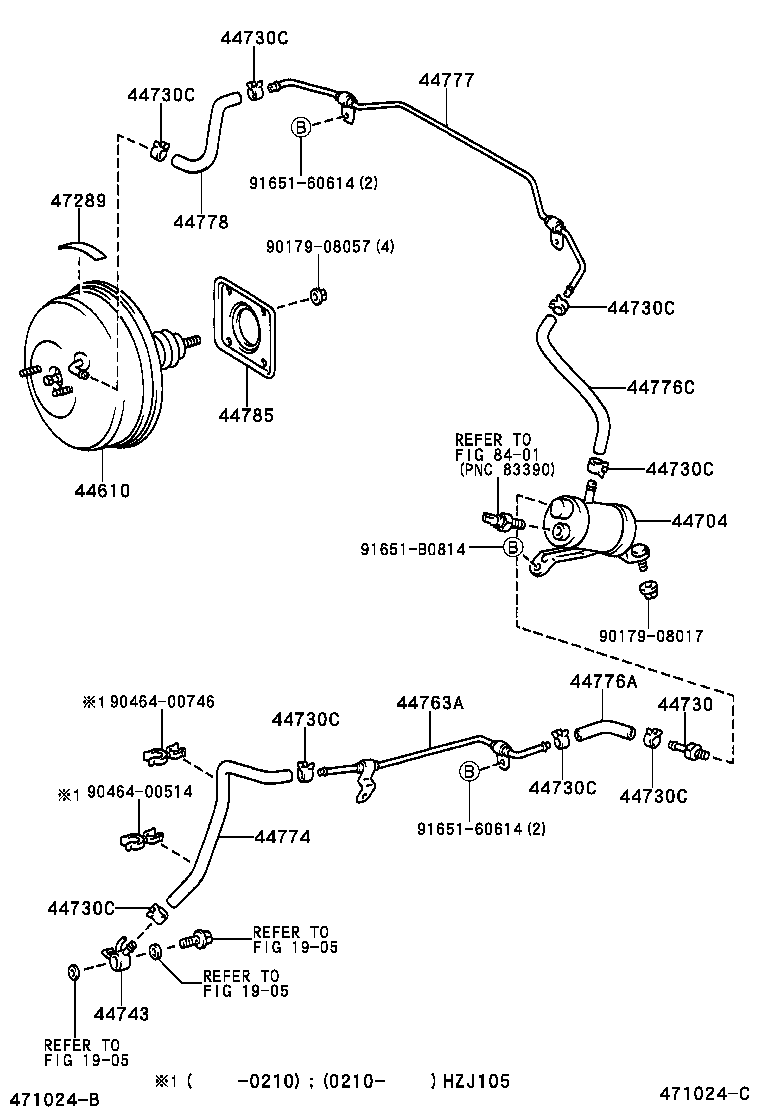

Click highlighted areas on diagram

diagram 1905 1905 1905 44610 44704 44730 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44730C 44743 44763A 44774 44776A 44776C 44777 44778 44785 47289 8401 9017908017 9017908057 9046400514 9046400746 9165160614 9165160614 91651B0814
Part # Description Qty Price
44743 - UNION(FOR VACUUM PUMP)
90405-09142

HDJ100,HZJ105

 1
90405-09142

HDJ100,HZJ105

 1
90405-09142

HDJ100,HZJ105

 1
44777 - CONNECTOR, VACUUM HOSE, NO.1
44777-60330

FZJ105,HDJ100,HZJ105..RHD..(DSL2,EFI,TD2)

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-60160

FZJ105,HDJ100,HZJ105..RHD..(DSL2,EFI,TD2)

 1
44785 - GASKET, BRAKE BOOSTER
44785-60010

FZJ10#,HDJ100,HZJ105,UZJ100..DSL2,EFI,TD2

 1
Common parts
90179-08017
90179-08057
90464-00514
90464-00746
91651-60614
91651-B0814
Linked diagrams
1905
8401
