HDJ100R-GNMEZ (2002)

Toyota Land Cruiser 100

Production Aug 2002 - Aug 2007
Engine 1HDFTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0208- )RHD

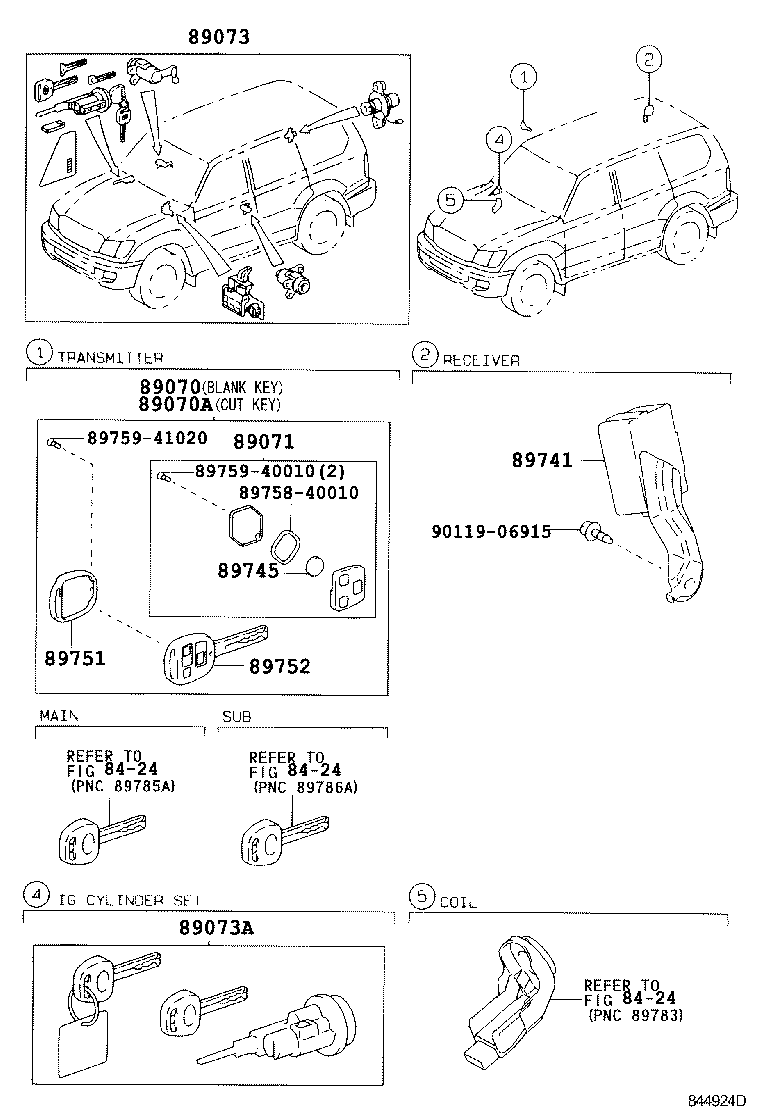

Click highlighted areas on diagram

diagram 8424 8424 8424 89070 89070A 89071 89073 89073A 89741 89745 89751 89752 8975840010 8975940010 8975941020 9011906915
Part # Description Qty Price
89070 - TRANSMITTER ASSY, DOOR CONTROL
89070-60130

HZJ105..GX..GEN;FZJ105,HDJ100,UZJ100..GEN

 1
89070-60750

FZJ105,HDJ100,HZJ105,UZJ100..(GX,VX)..GEN

W(ANTI-THEFT DEVICE & PANIC BOTTON)

 1
89070-60B61

FZJ105,HDJ100,HZJ105,UZJ100..(GX,VX)..GEN

W(ANTI-THEFT DEVICE & PANIC BOTTON)

 1
89070-60B60

FZJ105,HDJ100,HZJ105,UZJ100..(GX,VX)..GEN

W(ANTI-THEFT DEVICE & PANIC BOTTON)

 1
89070-60B90

FZJ105,HDJ100,HZJ105,UZJ100..(GX,VX)..GEN

W(ANTI-THEFT DEVICE & PANIC BOTTON)

 1
89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-60010

FZJ105,HDJ100,HZJ105,UZJ100..(GX,VX)..GEN

 2
89071-60150

FZJ105,HDJ100,HZJ105,UZJ100..(GX,VX)..GEN

 1
89071-60200

FZJ105,HDJ100,HZJ105,UZJ100..(GX,VX)..GEN

 1
89071-60240

FZJ105,HDJ100,HZJ105,UZJ100..(GX,VX)..GEN

W(ANTI-THEFT DEVICE & PANIC BOTTON)

 1
89071-60230

FZJ105,HDJ100,HZJ105,UZJ100..(GX,VX)..GEN

W(ANTI-THEFT DEVICE & PANIC BOTTON)

 1
89073 - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
89073-60150

FZJ105,HDJ100,HZJ105,UZJ100..(GX,VX)..GEN

W(SPARE TIRE CARRIER = BACK DOOR)

 1
89073-60160

FZJ105,HDJ100,HZJ105,UZJ100..(GX,VX)..GEN

 1
69005-6C530

HZJ105..LHD..STD;HZJ105,UZJ100..GCC;FZJ100,HDJ100..(GX,VX)..(GCC,GEN)

 1
69005-6C570

FZJ105,HDJ100,HZJ105,UZJ100..(GX,VX)..GEN

W(SPARE TIRE CARRIER = BACK DOOR)

 1
69005-6C520

HDJ100..GEN

W(KEY LESS ENTRY)

 1
69005-6C580

HZJ105,UZJ100..GCC;FZJ100,HDJ100..(GX,VX)..(GCC,GEN)

W(SPARE WHEEL CARRIER W/KEY LOCK = BACK DOOR)

 1
69005-6C570

FZJ105,HDJ100,HZJ105,UZJ100..(GX,VX)..GEN

W(SPARE TIRE CARRIER = BACK DOOR)

 1
69005-6C521

FZJ105,HDJ100,HZJ105,UZJ100..(GX,VX)..GEN

 1
69005-6C520

FZJ105,HDJ100,HZJ105,UZJ100..(GX,VX)..GEN

 1
69005-6C571

FZJ105,HDJ100,HZJ105,UZJ100..(GX,VX)..GEN

W(SPARE TIRE CARRIER = BACK DOOR)

 1
89073A - IGN CYLINDER SET LOCK W/TRANSMITTER HOUSING (CUT KEY)
89073-60050

FZJ105,HDJ100,HZJ105,UZJ100..(GX,VX)..GEN

 1
69057-60550

FZJ105,HDJ100,HZJ105,UZJ100..(GX,VX)..GEN

W(KEY LESS ENTRY)

 1
69057-60550

FZJ105,HDJ100,HZJ105,UZJ100..(GX,VX)..GEN

W(KEY LESS ENTRY)

 1
69057-60570

HZJ105,UZJ100..GCC;FZJ100,HDJ100..GCC,GEN;FZJ105,HZJ105..STD..GEN

 1
69057-60570

HZJ105,UZJ100..GCC;FZJ100,HDJ100..GCC,GEN;FZJ105,HZJ105..STD..GEN

 1
69057-60551

FZJ105,HDJ100,HZJ105,UZJ100..(GX,VX)..GEN

W(KEY LESS ENTRY)

 1
89741 - RECEIVER, DOOR CONTROL
89741-60370

FZJ105,HDJ100,HZJ105,UZJ100..(GX,VX)..GEN

MARK = 89741-60370

 1
89741-60180

FZJ105,HDJ100,HZJ105..RHD..(GX,VX)..GEN

 1
89741-60370

FZJ105,HDJ100,HZJ105,UZJ100..(GX,VX)..GEN

MARK = 89741-60370

 1
89741-60390

HZJ105..GCC;HDJ100..5F..GEN;HZJ105..LHD..LUB;HZJ105..RHD..SOB..GX;FZJ10#,UZJ100..LHD..(GX,VX)..(GCC,GEN)

 1
89745 - BATTERY, TRANSMITTER
89745-40010

FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN)

 2
89745-40010

FZJ100,HDJ100,UZJ100..GX,VX;FZJ105,HZJ105..GX..(GCC,GEN)

 2
89745-40010

HDJ100..5F..GEN;HZJ105..LHD..LUB;HZJ105..RHD..SOB..GX;FZJ105,UZJ100..LHD..(GX,VX)..GEN

 2
89745-48030

FZJ105,HDJ100,HZJ105,UZJ100..(GX,VX)..GEN

 2
89751 - COVER, TRANSMITTER HOUSING
89751-50011

FZJ105,HDJ100,HZJ105,UZJ100..(GX,VX)..GEN

 2
89751-60010

FZJ105,HDJ100,HZJ105,UZJ100..(GX,VX)..GEN

W(IMMOBILIZER)

 2
89751-50010

FZJ105,HDJ100,HZJ105,UZJ100..(GX,VX)..GEN

 2
89751-13011

HZJ105..GCC;HDJ100..5F..GEN;HZJ105..LHD..LUB;HZJ105..RHD..SOB..GX;FZJ10#,UZJ100..LHD..(GX,VX)..(GCC,GEN)

 2
89752 - CASE, TRANSMITTER HOUSING
89752-60060

FZJ105,HDJ100,HZJ105,UZJ100..(GX,VX)..GEN

W(PANIC BUTTON),BLANK KEY

 1
Common parts
89758-40010
89759-40010
89759-41020
90119-06915
Linked diagrams
8424
