HDJ100L-GNPEX (1998)

Toyota Land Cruiser 100

Production Jan 1998 - Aug 2002
Engine 1HDT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9801-0208)1HDT

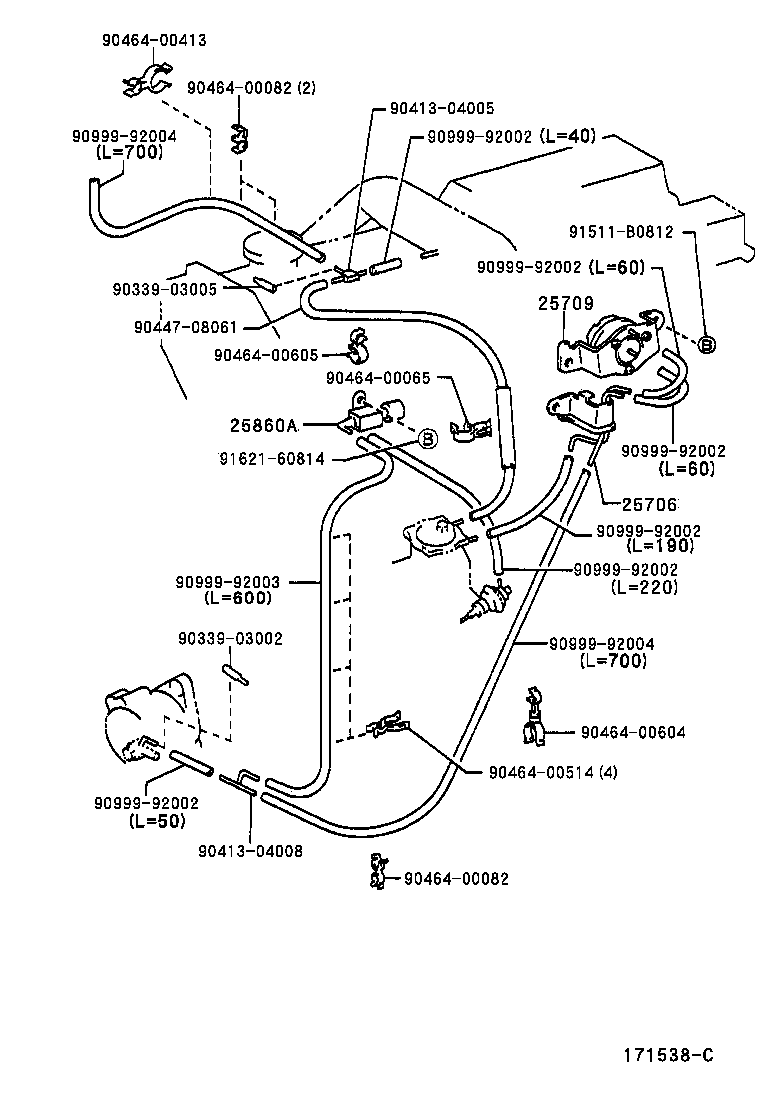

Click highlighted areas on diagram

diagram 25706 25709 25860A 9033903002 9033903005 9041304005 9041304008 9044708061 9046400065 9046400082 9046400082 9046400413 9046400514 9046400604 9046400605 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9099992004 9099992004 91511B0812 9162160814
Part # Description Qty Price
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-17011

1HDT..HDJ100

 1
25709 - VALVE SUB-ASSY, HIGH ALTITUDE COMPENSATOR
25709-17020

1HDT..HDJ100

 1
25860A - VALVE, VACUUM SWITCHING, NO.1
90910-12155

1HDT,1HZ..HDJ100,HZJ105

 1
Common parts
90339-03002
90339-03005
90413-04005
90413-04008
90447-08061
90464-00065
90464-00082
90464-00413
90464-00514
90464-00604
90464-00605
90999-92002
90999-92003
90999-92004
91511-B0812
91621-60814
