HDJ100L-GNAEZ (2002)

Toyota Land Cruiser 100

Production Aug 2002 - Aug 2007
Engine 1HDFTE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0208- )5FC

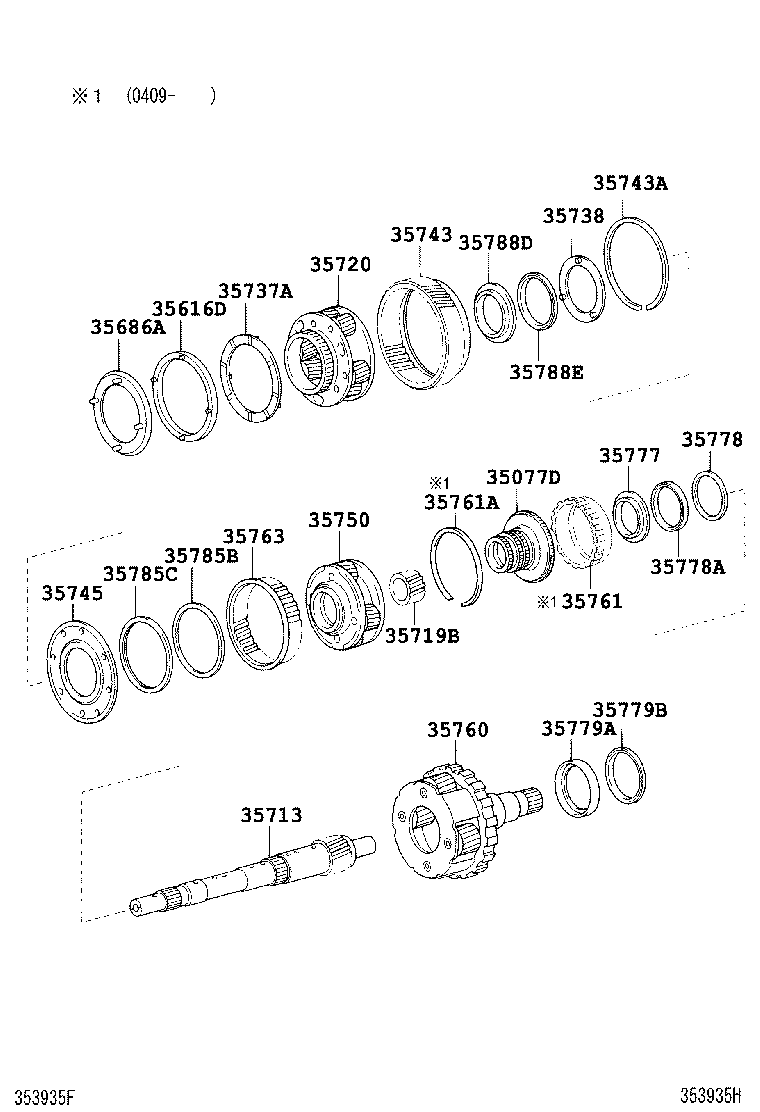

Click highlighted areas on diagram

A750F

diagram 35077D 35616D 35686A 35713 35719B 35720 35737A 35738 35743 35743A 35745 35750 35760 35761 35761A 35763 35777 35778 35778A 35779A 35779B 35785B 35785C 35788D 35788E
Part # Description Qty Price
35077D - FLANGE SUB-ASSY, RR PLANETARY RING GEAR
35077-60010

HDJ100,UZJ100..5FC..(ARL,GCC,GEN)

 1
35077-60010

HDJ100,UZJ100..5FC..(ARL,GCC,GEN)

 1
35616D - WASHER, CLUTCH DRUM THRUST
35616-60010

HDJ100,UZJ100..5FC..(ARL,GCC,GEN)

 1
35616-60010

HDJ100,UZJ100..5FC..(ARL,GCC,GEN)

 1
35686A - WASHER, CLUTCH DRUM THRUST, NO.2
35686-60010

HDJ100,UZJ100..5FC..(ARL,GCC,GEN)

 1
35686-60010

HDJ100,UZJ100..5FC..(ARL,GCC,GEN)

 1
35713 - SHAFT, INTERMEDIATE
35713-60050

HDJ100,UZJ100..5FC..(ARL,GCC,GEN)

 1
35713-60050

HDJ100,UZJ100..5FC..(ARL,GCC,GEN)

 1
35713-60040

HDJ100,UZJ100..5FC

 1
35719B - GEAR, PLANETARY SUN
35719-60050

HDJ100,UZJ100..5FC..(ARL,GCC,GEN)

 1
35719-60050

HDJ100,UZJ100..5FC..(ARL,GCC,GEN)

 1
35720 - GEAR ASSY, FRONT PLANETARY
35720-60050

HDJ100,UZJ100..5FC

 1
35720-60080

HDJ100,UZJ100..5FC..(ARL,GCC,GEN)

 1
35720-60080

HDJ100,UZJ100..5FC..(ARL,GCC,GEN)

 1
35737A - WASHER, PLANETARY CARRIER THRUST, NO.1
35737-60030

HDJ100,UZJ100..5FC..(ARL,GCC,GEN)

 1
35737-60030

HDJ100,UZJ100..5FC..(ARL,GCC,GEN)

 1
35738 - WASHER, PLANETARY CARRIER THRUST, NO.2
35738-60030

HDJ100,UZJ100..5FC..(ARL,GCC,GEN)

 1
35738-60030

HDJ100,UZJ100..5FC..(ARL,GCC,GEN)

 1
35743 - GEAR, FRONT PLANETARY RING
35743-60050

HDJ100,UZJ100..5FC..(ARL,GCC,GEN)

 1
35743-60050

HDJ100,UZJ100..5FC..(ARL,GCC,GEN)

 1
35743A - RING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR)
90520-99076

HDJ100,UZJ100..5FC..(ARL,GCC,GEN)

 1
90520-99076

HDJ100,UZJ100..5FC

 1
90520-99076

HDJ100,UZJ100..5FC..(ARL,GCC,GEN)

 1
35745 - FLANGE, FRONT PLANETARY RING GEAR
35745-60010

HDJ100,UZJ100..5FC..(ARL,GCC,GEN)

 1
35745-60010

HDJ100,UZJ100..5FC..(ARL,GCC,GEN)

 1
35750 - GEAR ASSY, CENTER PLANETARY
35750-60010

HDJ100,UZJ100..5FC..(ARL,GCC,GEN)

 1
35750-60010

HDJ100,UZJ100..5FC..(ARL,GCC,GEN)

 1
35760 - GEAR ASSY, REAR PLANETARY
35760-60080

HDJ100..5FC

 1
35760-60081

HDJ100..5FC

 1
35760-60081

HDJ100..5FC

 1
35761 - GEAR, REAR PLANETARY RING
35761-60040

HDJ100,UZJ100..5FC..(ARL,GCC,GEN)

 1
35761A - RING, HOLE SNAP (FOR REAR PLANETARY RING GEAR)
90520-99073

HDJ100,UZJ100..5FC..(ARL,GCC,GEN)

 1
90520-99073

HDJ100,UZJ100..5FC..(ARL,GCC,GEN)

 1
35763 - GEAR, CENTER PLANETARY RING
35763-60010

HDJ100,UZJ100..5FC..(ARL,GCC,GEN)

 1
35763-60010

HDJ100,UZJ100..5FC..(ARL,GCC,GEN)

 1
35777 - RACE, THRUST BEARING, NO.7
35777-60010

HDJ100,UZJ100..5FC..(ARL,GCC,GEN)

 1
35777-60010

HDJ100,UZJ100..5FC..(ARL,GCC,GEN)

 1
35778 - RACE, THRUST BEARING, NO.8
35778-60010

HDJ100,UZJ100..5FC..(ARL,GCC,GEN)

 1
35778-60010

HDJ100,UZJ100..5FC..(ARL,GCC,GEN)

 1
35778A - BEARING, THRUST NEEDLE ROLLER
90374-32010

HDJ100,UZJ100..5FC..(ARL,GCC,GEN)

 1
90374-32010

HDJ100,UZJ100..5FC..(ARL,GCC,GEN)

 1
35779A - RACE, THRUST BEARING, NO.9
35779-60010

HDJ100,UZJ100..5FC..(ARL,GCC,GEN)

 1
35779-60011

HDJ100,UZJ100..5FC..(ARL,GCC,GEN)

 1
35779-60011

HDJ100,UZJ100..5FC..(ARL,GCC,GEN)

 1
35779B - BEARING, THRUST NEEDLE ROLLER
90374-47001

HDJ100,UZJ100..5FC..(ARL,GCC,GEN)

 1
90374-43007

HDJ100,UZJ100..5FC..(ARL,GCC,GEN)

 1
90374-43007

HDJ100,UZJ100..5FC..(ARL,GCC,GEN)

 1
35785B - RACE, THRUST BEARING, NO.4
35785-60010

HDJ100,UZJ100..5FC..(ARL,GCC,GEN)

 1
35785-60010

HDJ100,UZJ100..5FC..(ARL,GCC,GEN)

 1
35785C - BEARING, THRUST NEEDLE ROLLER
90374-55004

HDJ100,UZJ100..5FC..(ARL,GCC,GEN)

 1
90374-55004

HDJ100,UZJ100..5FC..(ARL,GCC,GEN)

 1
35788D - RACE, THRUST BEARING, NO.3
35788-60010

HDJ100,UZJ100..5FC..(ARL,GCC,GEN)

 1
35788-60010

HDJ100,UZJ100..5FC..(ARL,GCC,GEN)

 1
35788E - BEARING, THRUST NEEDLE ROLLER
90374-44005

HDJ100,UZJ100..5FC..(ARL,GCC,GEN)

 1
90374-44005

HDJ100,UZJ100..5FC..(ARL,GCC,GEN)

 1
