HDJ100L-GCMEZ (2002)

Toyota Land Cruiser 100

Production Aug 2002 - Aug 2007
Engine 1HDFTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

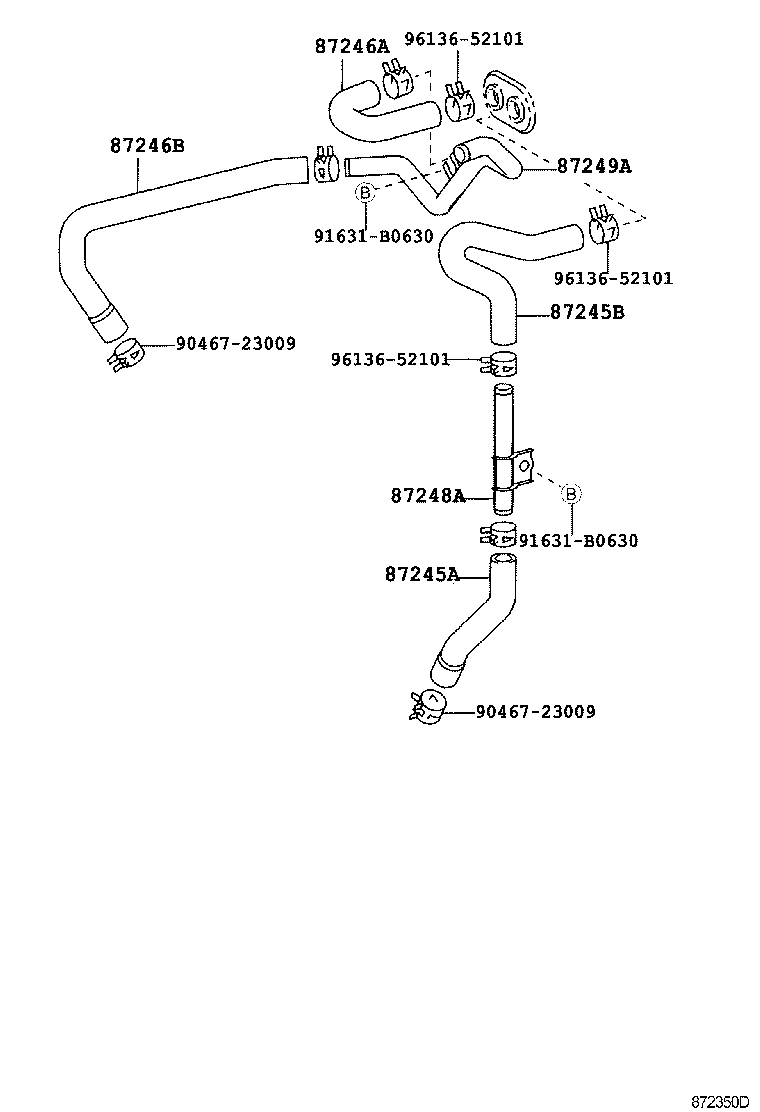

ILLUST NO. 1 OF 2(9801- )HDJ100,HZJ105

Click highlighted areas on diagram

FRONT

diagram 87245A 87245B 87246A 87246B 87248A 87249A 9046723009 9046723009 91631B0630 91631B0630 9613652101 9613652101 9613652101
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-6A020

HDJ100,HZJ105

 1
87245-6A020

HDJ100,HZJ105

 1
87245-6A020

HDJ100,HZJ105

 1
87245B - HOSE, HEATER WATER, INLET B
87245-6A080

HDJ100,HZJ105

 1
87245-6A300

HDJ100,HZJ105..ARL,GEN

W(REAR HEATER)

 1
87245-6A080

HDJ100,HZJ105

 1
87245-6A080

HDJ100,HZJ105

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-6A270

HDJ100,HZJ105

 1
87245-6A270

HDJ100,HZJ105

 1
87245-6A270

HDJ100,HZJ105

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-6A230

HDJ100,HZJ105

 1
87245-6A231

HDJ100,HZJ105

 1
87245-6A231

HDJ100,HZJ105

 1
87248A - PIPE, HEATER WATER INLET, A
87208-60540

HDJ100,HZJ105

 1
87208-60540

HDJ100,HZJ105

 1
87208-60540

HDJ100,HZJ105

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-60580

HDJ100,HZJ105

 1
87208-60580

HDJ100,HZJ105

 1
87208-60580

HDJ100,HZJ105

 1
Common parts
90467-23009
91631-B0630
96136-52101

ILLUST NO. 1 OF 2(9801- )HDJ100,HZJ105

Click highlighted areas on diagram

FRONT,W(REAR HEATER)

diagram 87208A 87245A 87245B 87245C 87246A 87246B 87248A 87248X 87255A 9017906161 9046723009 9046723009 91631B0630 91631B0630 9165160816 9613442100 9613442100 9613442100
Part # Description Qty Price
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-60590

HDJ100,HZJ105..ARL,GEN

 1
87245A - HOSE, HEATER WATER, INLET A
87245-6A020

HDJ100,HZJ105

 1
87245-6A020

HDJ100,HZJ105

 1
87245-6A020

HDJ100,HZJ105

 1
87245B - HOSE, HEATER WATER, INLET B
87245-6A080

HDJ100,HZJ105

 1
87245-6A300

HDJ100,HZJ105..ARL,GEN

W(REAR HEATER)

 1
87245-6A080

HDJ100,HZJ105

 1
87245-6A080

HDJ100,HZJ105

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-6A250

HDJ100,HZJ105..ARL,GEN

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-6A270

HDJ100,HZJ105

 1
87245-6A270

HDJ100,HZJ105

 1
87245-6A270

HDJ100,HZJ105

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-6A230

HDJ100,HZJ105

 1
87245-6A231

HDJ100,HZJ105

 1
87245-6A231

HDJ100,HZJ105

 1
87248A - PIPE, HEATER WATER INLET, A
87208-60540

HDJ100,HZJ105

 1
87208-60540

HDJ100,HZJ105

 1
87208-60540

HDJ100,HZJ105

 1
87248X - PIPE, HEATER WATER
87248-60460

HDJ100,HZJ105..ARL,GEN

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-6A280

HDJ100,HZJ105..ARL,GEN

 1
Common parts
90179-06161
90467-23009
91631-B0630
91651-60816
96134-42100
