HDJ100L-GCMEZ (2002)
Toyota Land Cruiser 100

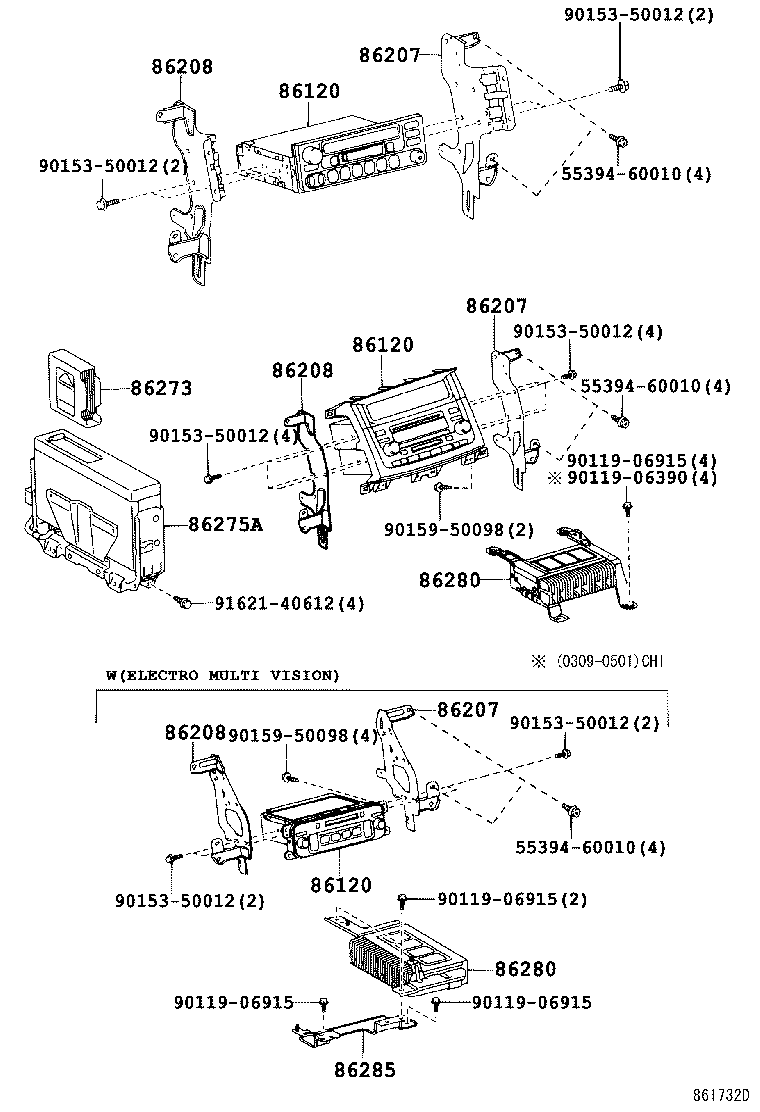

ILLUST NO. 1 OF 4(0208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-16680 |
FZJ105,HDJ100,HZJ105,UZJ100..GEN MATSUSHITA, ID=57206,AM/FM/SW1/SW2 CASSETTE 2 SPEAKERS |
1 | ||
| 86120-16660 |
FZJ105,HZJ105;FZJ100,HDJ100,UZJ100..(GX,VX)..(GCC,GEN) FUJITSU TEN,ID=17409,AM/FM ETR CASSETTE (AM=9KHZ STEP) 2 SPEAKER |
1 | ||
| 86120-2B620 |
FZJ105,HDJ100,HZJ105,UZJ100..(GX,VX)..GEN MATSUSHITA,ID=57410,AM/FM ETR CASSETTE (AM=5KHZ STEP) 4 SPEAKER |
1 | ||
| 86120-16670 |
FZJ105,HDJ100,HZJ105,UZJ100..GEN FUJITSU TEN,ID=17410,AM/FM ETR (AM=10KHZ STEP),2 SPEAKER |
1 | ||
| 86120-10470 |
UZJ100..GEN;FZJ10#,HDJ100,HZJ105..GCC,GEN MATSUSHITA, ID=57207,AM/SW1/SW2 ETR CASSETTE |
1 | ||
| 86120-33440 |
FZJ100..LUB..5F..GCC;FZJ105,HDJ100,HZJ105..GEN;UZJ100..LUB..5FC..(GCC,GEN) MATSUSHITA,ID=57413,TYPE B:REFER TO ILLUSTRATION & AM/FM (AM=10KHZ STEP) |
1 | ||
| 86120-42070 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN MATSUSHITA,ID=57414,TYPE B:REFER TO ILLUSTRATION & AM/FM/SW |
1 | ||
| 86120-60360 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(GCC,GEN) MATSUSHITA, ID=57409,AM/FM/SW1/SW2 CASSETTE 4 SPEAKERS |
1 | ||
| 86120-33460 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) MATSUSHITA,ID=57412,TYPE B:REFER TO ILLUSTRATION & AM/FM |
1 | ||
| 86120-33460 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN MATSUSHITA,ID=57412,TYPE B:REFER ILLUST. |
1 | ||
| 86120-33440 |
FZJ100..LUB..5F..GCC;FZJ105,HDJ100,HZJ105..GEN;UZJ100..LUB..5FC..(GCC,GEN) MATSUSHITA,ID=57413,TYPE B:REFER ILLUST. |
1 | ||
| 86120-42070 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN MATSUSHITA,ID=57414,TYPE B:REFER ILLUST. |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-16680 |
FZJ105,HDJ100,HZJ105,UZJ100..GEN MATSUSHITA, ID=57206,AM/FM/SW1/SW2 CASSETTE 2 SPEAKERS |
1 | ||
| 86120-16660 |
FZJ105,HZJ105;FZJ100,HDJ100,UZJ100..(GX,VX)..(GCC,GEN) FUJITSU TEN,ID=17409,AM/FM ETR CASSETTE (AM=9KHZ STEP) 2 SPEAKER |
1 | ||
| 86120-2B620 |
FZJ105,HDJ100,HZJ105,UZJ100..(GX,VX)..GEN MATSUSHITA,ID=57410,AM/FM ETR CASSETTE (AM=5KHZ STEP) 4 SPEAKER |
1 | ||
| 86120-16670 |
FZJ105,HDJ100,HZJ105,UZJ100..GEN FUJITSU TEN,ID=17410,AM/FM ETR (AM=10KHZ STEP),2 SPEAKER |
1 | ||
| 86120-10470 |
UZJ100..GEN;FZJ10#,HDJ100,HZJ105..GCC,GEN MATSUSHITA, ID=57207,AM/SW1/SW2 ETR CASSETTE |
1 | ||
| 86120-33440 |
FZJ100..LUB..5F..GCC;FZJ105,HDJ100,HZJ105..GEN;UZJ100..LUB..5FC..(GCC,GEN) MATSUSHITA,ID=57413,TYPE B:REFER TO ILLUSTRATION & AM/FM (AM=10KHZ STEP) |
1 | ||
| 86120-42070 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN MATSUSHITA,ID=57414,TYPE B:REFER TO ILLUSTRATION & AM/FM/SW |
1 | ||
| 86120-60360 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(GCC,GEN) MATSUSHITA, ID=57409,AM/FM/SW1/SW2 CASSETTE 4 SPEAKERS |
1 | ||
| 86120-33460 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) MATSUSHITA,ID=57412,TYPE B:REFER TO ILLUSTRATION & AM/FM |
1 | ||
| 86120-33460 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN MATSUSHITA,ID=57412,TYPE B:REFER ILLUST. |
1 | ||
| 86120-33440 |
FZJ100..LUB..5F..GCC;FZJ105,HDJ100,HZJ105..GEN;UZJ100..LUB..5FC..(GCC,GEN) MATSUSHITA,ID=57413,TYPE B:REFER ILLUST. |
1 | ||
| 86120-42070 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN MATSUSHITA,ID=57414,TYPE B:REFER ILLUST. |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-16680 |
FZJ105,HDJ100,HZJ105,UZJ100..GEN MATSUSHITA, ID=57206,AM/FM/SW1/SW2 CASSETTE 2 SPEAKERS |
1 | ||
| 86120-16660 |
FZJ105,HZJ105;FZJ100,HDJ100,UZJ100..(GX,VX)..(GCC,GEN) FUJITSU TEN,ID=17409,AM/FM ETR CASSETTE (AM=9KHZ STEP) 2 SPEAKER |
1 | ||
| 86120-2B620 |
FZJ105,HDJ100,HZJ105,UZJ100..(GX,VX)..GEN MATSUSHITA,ID=57410,AM/FM ETR CASSETTE (AM=5KHZ STEP) 4 SPEAKER |
1 | ||
| 86120-16670 |
FZJ105,HDJ100,HZJ105,UZJ100..GEN FUJITSU TEN,ID=17410,AM/FM ETR (AM=10KHZ STEP),2 SPEAKER |
1 | ||
| 86120-10470 |
UZJ100..GEN;FZJ10#,HDJ100,HZJ105..GCC,GEN MATSUSHITA, ID=57207,AM/SW1/SW2 ETR CASSETTE |
1 | ||
| 86120-33440 |
FZJ100..LUB..5F..GCC;FZJ105,HDJ100,HZJ105..GEN;UZJ100..LUB..5FC..(GCC,GEN) MATSUSHITA,ID=57413,TYPE B:REFER TO ILLUSTRATION & AM/FM (AM=10KHZ STEP) |
1 | ||
| 86120-42070 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN MATSUSHITA,ID=57414,TYPE B:REFER TO ILLUSTRATION & AM/FM/SW |
1 | ||
| 86120-60360 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(GCC,GEN) MATSUSHITA, ID=57409,AM/FM/SW1/SW2 CASSETTE 4 SPEAKERS |
1 | ||
| 86120-33460 |
HDJ100,UZJ100..5FC..GX..ARL;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN) MATSUSHITA,ID=57412,TYPE B:REFER TO ILLUSTRATION & AM/FM |
1 | ||
| 86120-33460 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN MATSUSHITA,ID=57412,TYPE B:REFER ILLUST. |
1 | ||
| 86120-33440 |
FZJ100..LUB..5F..GCC;FZJ105,HDJ100,HZJ105..GEN;UZJ100..LUB..5FC..(GCC,GEN) MATSUSHITA,ID=57413,TYPE B:REFER ILLUST. |
1 | ||
| 86120-42070 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN MATSUSHITA,ID=57414,TYPE B:REFER ILLUST. |
1 | ||
| 86207 - BRACKET SUB-ASSY, RADIO RECEIVER, RH | ||||
| 86207-60020 |
HDJ100,UZJ100..VX..(ARL,GCC,GEN) |
1 | ||
| 86207-60020 |
HDJ100,UZJ100..VX..(ARL,GCC,GEN) |
1 | ||
| 86207 - BRACKET SUB-ASSY, RADIO RECEIVER, RH | ||||
| 86207-60020 |
HDJ100,UZJ100..VX..(ARL,GCC,GEN) |
1 | ||
| 86207-60020 |
HDJ100,UZJ100..VX..(ARL,GCC,GEN) |
1 | ||
| 86207 - BRACKET SUB-ASSY, RADIO RECEIVER, RH | ||||
| 86207-60020 |
HDJ100,UZJ100..VX..(ARL,GCC,GEN) |
1 | ||
| 86207-60020 |
HDJ100,UZJ100..VX..(ARL,GCC,GEN) |
1 | ||
| 86208 - BRACKET SUB-ASSY, RADIO RECEIVER, LH | ||||
| 86208-60020 |
HDJ100,UZJ100..VX..(ARL,GCC,GEN) |
1 | ||
| 86208-60020 |
HDJ100,UZJ100..VX..(ARL,GCC,GEN) |
1 | ||
| 86208 - BRACKET SUB-ASSY, RADIO RECEIVER, LH | ||||
| 86208-60020 |
HDJ100,UZJ100..VX..(ARL,GCC,GEN) |
1 | ||
| 86208-60020 |
HDJ100,UZJ100..VX..(ARL,GCC,GEN) |
1 | ||
| 86208 - BRACKET SUB-ASSY, RADIO RECEIVER, LH | ||||
| 86208-60020 |
HDJ100,UZJ100..VX..(ARL,GCC,GEN) |
1 | ||
| 86208-60020 |
HDJ100,UZJ100..VX..(ARL,GCC,GEN) |
1 | ||
| Common parts | ||||
| 55394-60010 | ||||
| 90119-06390 | ||||
| 90119-06915 | ||||
| 90153-50012 | ||||
| 90159-50098 | ||||
| 91621-40612 | ||||

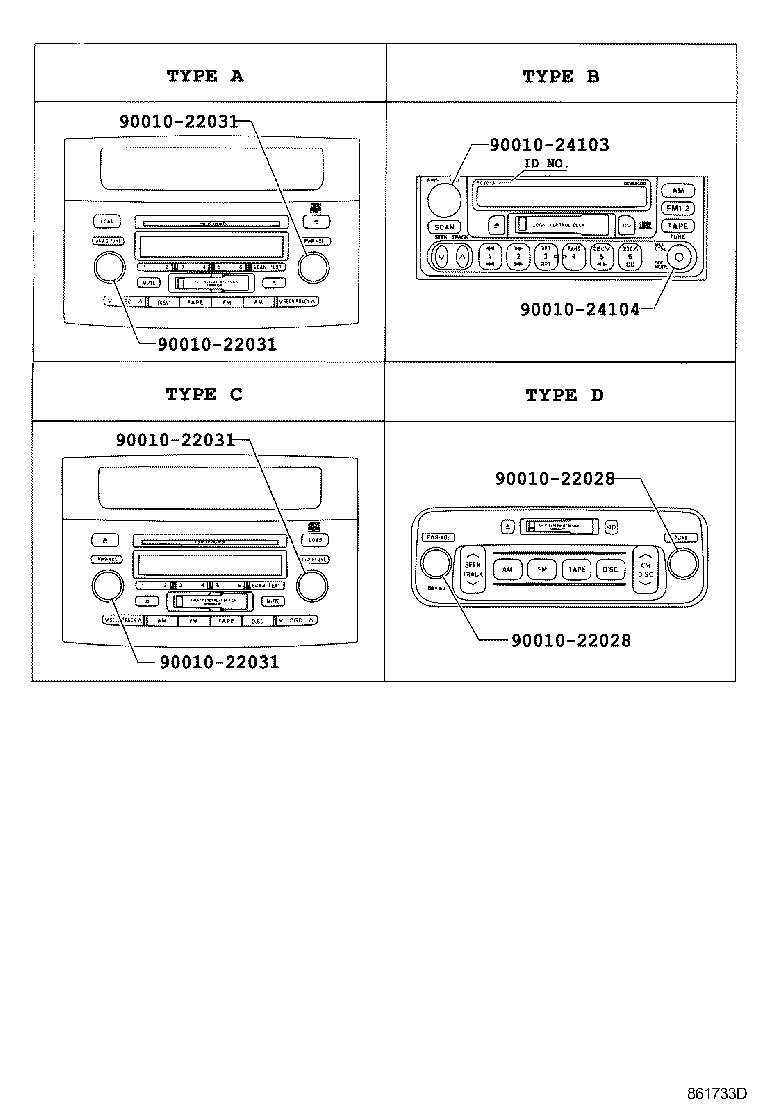

ILLUST NO. 2 OF 4(0208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90010-22028 | ||||
| 90010-22031 | ||||
| 90010-24103 | ||||
| 90010-24104 | ||||
