HDJ100L-GCMEZ (2002)

Toyota Land Cruiser 100

Production Aug 2002 - Aug 2007
Engine 1HDFTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0208- )

Click highlighted areas on diagram

diagram 3304 3305 83180 83181A 83181B
Part # Description Qty Price
83180 - DETECTOR ASSY, REVOLUTION
83180-60070

HDJ100,HZJ105..GEN

 1
83180-60090

HZJ105..ARL,GCC;HDJ100,HZJ105..(GX,VX)..GEN

W(ENGINE IMMOBILIZER SYSTEM)

 1
83181A - SENSOR, SPEEDOMETER
83181-12020

FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN

 1
83181-12020

FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)

 1
83181-12020

FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN

 1
83181B - RING, O (FOR SPEEDOMETER SENSOR)
96711-24030

FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN

 1
96711-24030

FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)

 1
96711-24030

FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN

 1
Linked diagrams
3304
3305

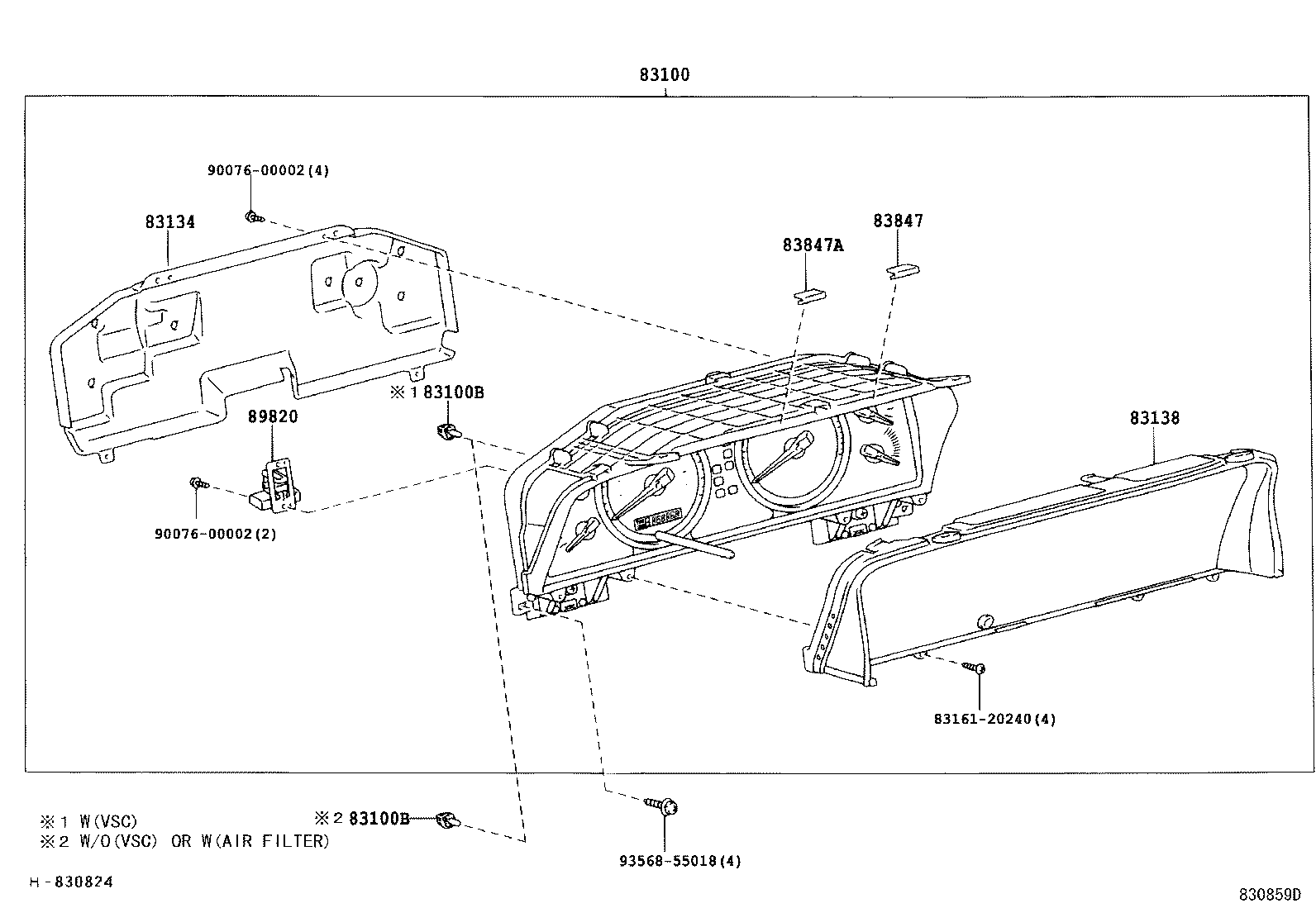

ILLUST NO. 1 OF 2(0208- )

Click highlighted areas on diagram

diagram 83100 83100B 83100B 83134 83138 8316120240 83847 83847A 89820 9007600002 9007600002 9356855018
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-6E130

HDJ100..5F..GEN

KM/H

 1
83800-6E140

HDJ100..5F..GEN

MPH & KM/H

 1
83800-6E131

HDJ100..5F..GEN

KM/H

 1
83800-6E141

HDJ100..5F..GEN

MPH & KM/H

 1
83800-6E141

HDJ100..5F..GEN

ANALOGUE METER,MILE/H+KM/H

 1
83800-6E131

HDJ100..5F..GEN

 1
83100B - BULB, COMBINATION METER, NO.1
90010-06029

FZJ10#,HDJ100,HZJ105,UZJ100

14V 3.0W,W(SOCKET),TYPE B:REFER TO ILLUSTRATION

 1
90010-06032

HDJ100,UZJ100

14V 0.84W,W(SOCKET),TYPE D:REFER TO ILLUSTRATION

 1
83120-60020

FZJ10#,HDJ100,HZJ105,UZJ100

12V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION

 1
90076-04003

FZJ10#,HDJ100,HZJ105,UZJ100

12V 1.12W,W(SOCKET),TYPE C:REFER TO ILLUSTRATION

 1
90010-06032

HDJ100..5FC..GEN;HZJ105..GX..(ARL,GCC);FZJ100,HDJ100,UZJ100..(4FC,5F)..(ARL,GCC,GEN)

14V 0.84W,W(SOCKET),W(SPEEDOMETER---MILE/KM)

 1
90010-06032

FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN

14V 0.84W,W(SOCKET)

 1
83100B - BULB, COMBINATION METER, NO.1
90010-06029

FZJ10#,HDJ100,HZJ105,UZJ100

14V 3.0W,W(SOCKET),TYPE B:REFER TO ILLUSTRATION

 1
90010-06032

HDJ100,UZJ100

14V 0.84W,W(SOCKET),TYPE D:REFER TO ILLUSTRATION

 1
83120-60020

FZJ10#,HDJ100,HZJ105,UZJ100

12V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION

 1
90076-04003

FZJ10#,HDJ100,HZJ105,UZJ100

12V 1.12W,W(SOCKET),TYPE C:REFER TO ILLUSTRATION

 1
90010-06032

HDJ100..5FC..GEN;HZJ105..GX..(ARL,GCC);FZJ100,HDJ100,UZJ100..(4FC,5F)..(ARL,GCC,GEN)

14V 0.84W,W(SOCKET),W(SPEEDOMETER---MILE/KM)

 1
90010-06032

FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN

14V 0.84W,W(SOCKET)

 1
83134 - COVER, COMBINATION METER, NO.1
83821-6D870

FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN

 1
83821-6A870

FZJ10#,HDJ100,HZJ105,UZJ100..5F

 1
83821-6D870

HDJ100..5FC..GX;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN)

 1
83138 - GLASS, SPEEDOMETER
83852-6D870

FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN

 1
83852-6D870

HDJ100..5FC..GX;UZJ100..5F..ARL;HDJ100,UZJ100..5FC..GEN;FZJ10#,HDJ100,HZJ105..(4FC,5F)..(ARL,GCC,GEN)

 1
83852-6A840

FZJ10#,HDJ100,HZJ105,UZJ100

 1
83847 - CUSHION, COMBINATION SPEEDOMETER, NO.1
83847-6D870

FZJ105,HDJ100;FZJ100,UZJ100..LUB..ATM..(GCC,GEN)

 1
83847-6D870

HDJ100..5FC..GX;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN)

 1
83847A - CUSHION, COMBINATION SPEEDMETER
83848-6D870

HDJ100;FZJ100,UZJ100..LUB..ATM..(GCC,GEN)

 1
83848-6D870

HDJ100..5FC..GX;HDJ100,UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105,UZJ100..(4FC,5F)..(ARL,GCC,GEN)

 1
89820 - SENSOR ASSY, INCLINATION
89820-60030

FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN

 1
89820-60010

FZJ10#,HDJ100,HZJ105,UZJ100

 1
89820-60030

FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN

 1
Common parts
83161-20240
90076-00002
93568-55018
