HDJ100L-GCMEZ (2002)

Toyota Land Cruiser 100

Production Aug 2002 - Aug 2007
Engine 1HDFTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

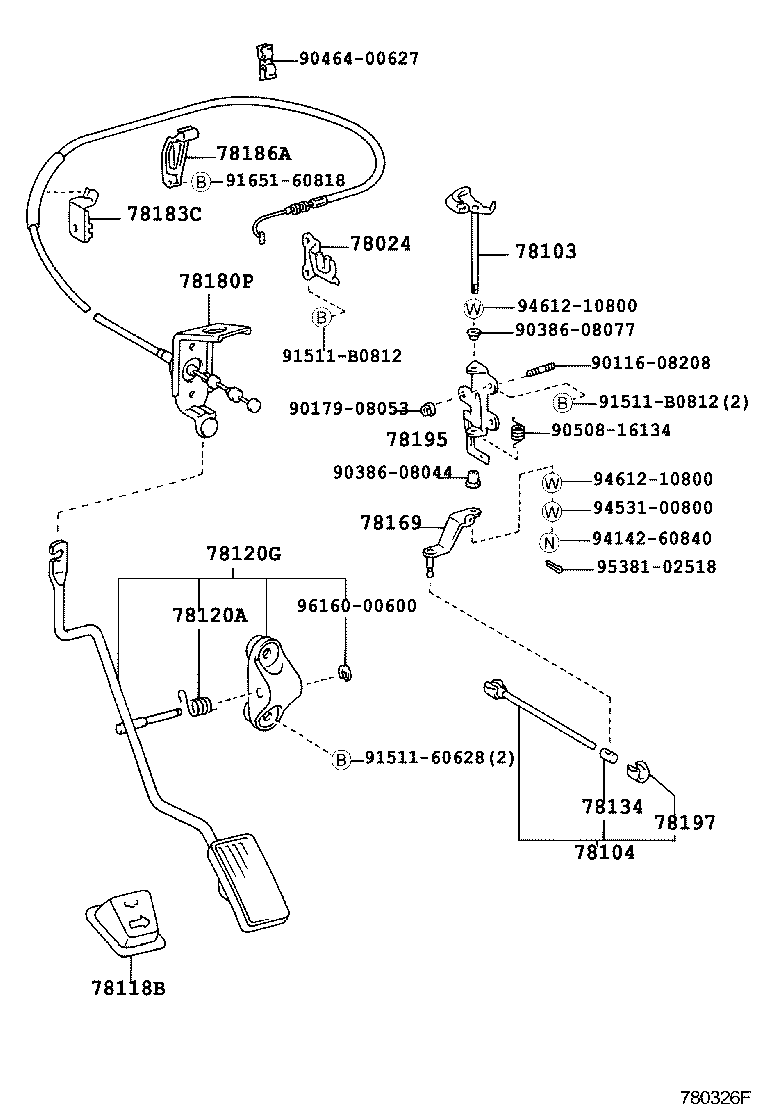

(9801- )HDJ100,HZJ105..LHD

Click highlighted areas on diagram

diagram 78024 78103 78104 78118B 78120A 78120G 78134 78169 78180P 78183C 78186A 78195 78197 9011608208 9017908053 9038608044 9038608077 9046400627 9050816134 9151160628 91511B0812 91511B0812 9165160818 9414260840 9453100800 9461210800 9461210800 9538102518 9616000600
Part # Description Qty Price
78118B - STOPPER, ACCELERATOR PEDAL
78118-60020

FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN)

 1
78118-60020

FZJ10#,HDJ100,HZJ105,UZJ100..LHD

 1
78118-60020

FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN)

 1
78120A - SPRING, COMPRESSION (FOR ACCELERATOR LINK ROD)
90959-03183

FZJ105,HZJ105..4FC;FZJ10#,HDJ100,HZJ105..LHD

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-60200

FZJ10#,HDJ100,HZJ105..LHD

 1
78010-60021

HDJ100..LHD

 1
78010-60020

HDJ100..LHD

 1
78010-60021

HDJ100..LHD

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-60570

HDJ100,HZJ105..LHD

 1
78180-60620

HDJ100..LHD

W(CRUISE CONTROL)

 1
78150-60040

HDJ100..GEN

W(CRUISE CONTROL),FOR ACTUATOR

 1
78183C - CLAMP, ACCELERATOR CONTROL CABLE
78183-60150

HDJ100,HZJ105..LHD

 1
78186A - CLAMP, ACCELERATOR CONTROL CABLE, NO.3
78186-60070

HDJ100..LHD

 1
Common parts
90116-08208
90179-08053
90386-08044
90386-08077
90464-00627
90508-16134
91511-60628
91511-B0812
91651-60818
94142-60840
94531-00800
94612-10800
95381-02518
96160-00600

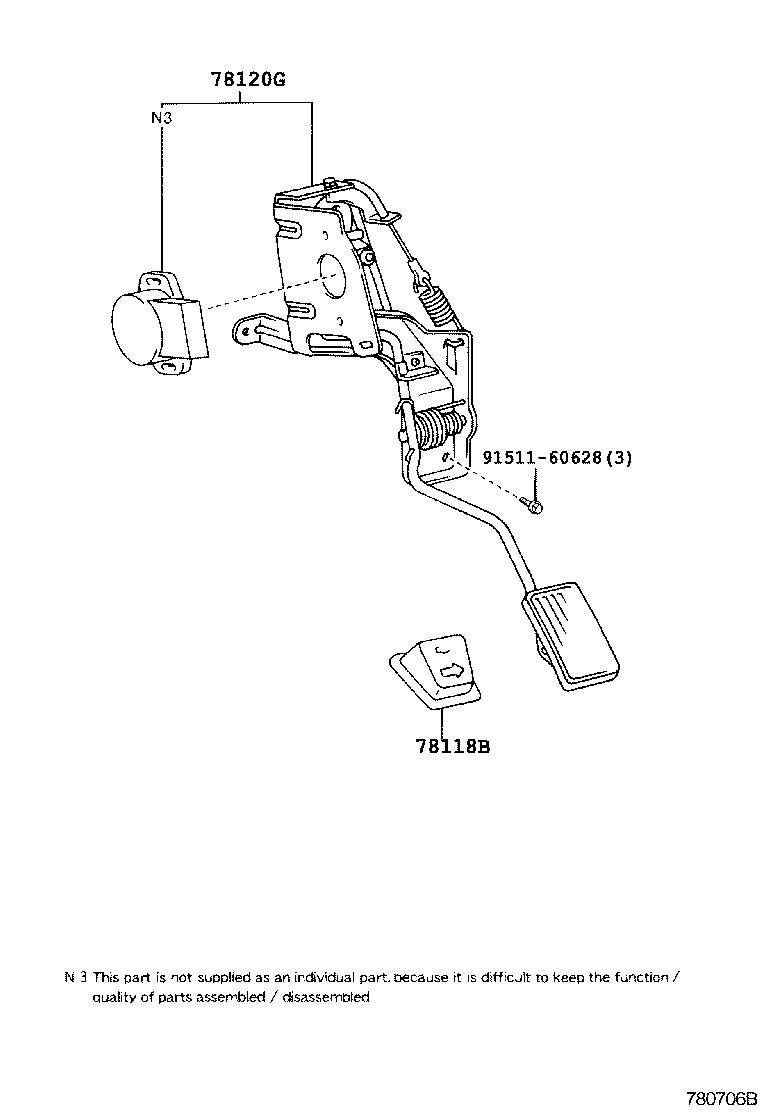

(0208- )HDJ100..LHD

Click highlighted areas on diagram

diagram 78118B 78120G 9151160628
Part # Description Qty Price
78118B - STOPPER, ACCELERATOR PEDAL
78118-60020

FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN)

 1
78118-60020

FZJ10#,HDJ100,HZJ105,UZJ100..LHD

 1
78118-60020

FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN)

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-60200

FZJ10#,HDJ100,HZJ105..LHD

 1
78010-60021

HDJ100..LHD

 1
78010-60020

HDJ100..LHD

 1
78010-60021

HDJ100..LHD

 1
Common parts
91511-60628
