HDJ100L-GCMEZ (2002)
Toyota Land Cruiser 100

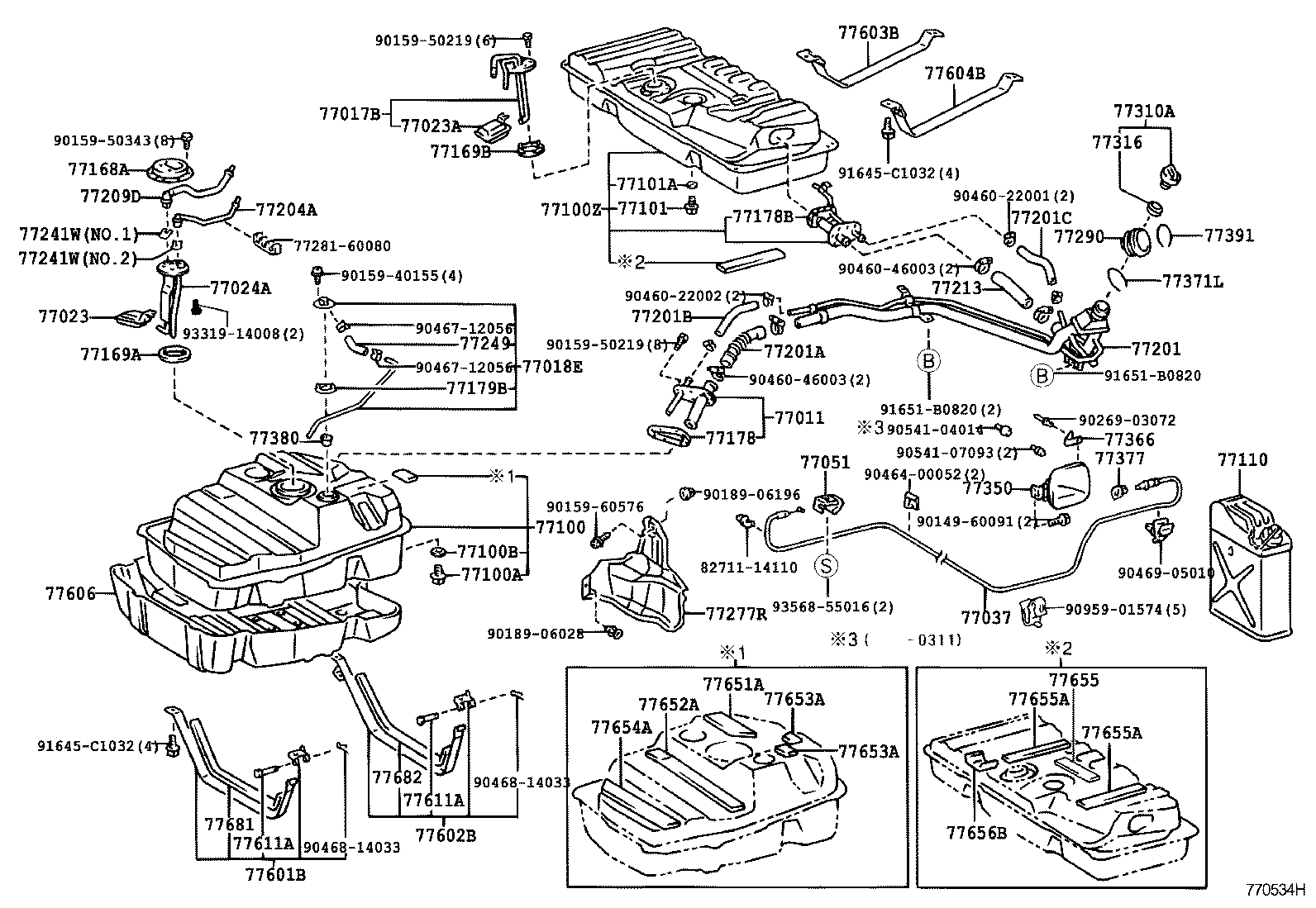

ILLUST NO. 1 OF 2(9801- )HDJ100,HZJ105
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-60070 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 77011-60070 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 77011-60070 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77017-60370 |
HDJ100..GEN |
1 | ||
| 77017-60430 |
HDJ100 |
1 | ||
| 77017-60430 |
HDJ100 |
1 | ||
| 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT | ||||
| 77018-60050 |
FZJ105,HDJ100,HZJ105 |
1 | ||
| 77018-60050 |
FZJ105,HDJ100,HZJ105 |
1 | ||
| 77018-60050 |
FZJ105,HDJ100,HZJ105 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-60030 |
HDJ100,HZJ105 |
1 | ||
| 77023-60030 |
HDJ100,HZJ105 |
1 | ||
| 77023-60030 |
HDJ100,HZJ105 |
1 | ||
| 77023A - FILTER SUB-ASSY, FUEL SUCTION TUBE(FOR SUB-TANK) | ||||
| 77023-60030 |
HDJ100 |
1 | ||
| 77023-60030 |
HDJ100 |
1 | ||
| 77023-60030 |
HDJ100 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-60110 |
HDJ100,HZJ105 |
1 | ||
| 77024-60150 |
HDJ100,HZJ105 |
1 | ||
| 77024-60150 |
HDJ100,HZJ105 |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD |
1 | ||
| 77037-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 77037-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 77037-60031 |
FZJ10#,HDJ100,HZJ105,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 77051 - LEVER SUB-ASSY, FUEL LID OPEN | ||||
| 77051-30060A1 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) IVORY,TRIM0# |
1 | ||
| 77051-30060A0 |
HDJ100..SOB;FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI) IVORY,TRIM4# |
1 | ||
| 77051-30060B2 |
FZJ10#,HDJ100,HZJ105,UZJ100..GX,VX MD.GRAY,TRIM1# |
1 | ||
| 77051-30060B4 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN STONE,TRIM1# |
1 | ||
| 77051-30060B4 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN STONE,TRIM1# |
1 | ||
| 77051-30060A1 |
FZJ10#,HDJ100,HZJ105,UZJ100..(GX,VX)..(ARL,GCC,GEN) IVORY,TRIM0# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-60450 |
HDJ100 |
1 | ||
| 77001-60690 |
HDJ100 |
1 | ||
| 77001-60690 |
HDJ100 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90105-12116 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 90105-12116 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90430-12245 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90430-12245 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 77100Z - TANK SUB-ASSY, FUEL SUB | ||||
| 77001-60461 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 77001-60460 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 77001-60461 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 77001-60462 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 77101 - PLUG(FOR FUEL SUB-TANK) | ||||
| 90105-12116 |
FZJ105..GX;FZJ105,UZJ100..LHD..(STD,VX);FZJ100,HDJ100,HZJ105..DSL2,EFI,TD2 |
1 | ||
| 90105-12116 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90105-12116 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90105-12116 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 77101A - GASKET(FOR FUEL SUB-TANK) | ||||
| 90430-12245 |
FZJ105..GX;FZJ105,UZJ100..LHD..(STD,VX);FZJ100,HDJ100,HZJ105..DSL2,EFI,TD2 |
1 | ||
| 90430-12245 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90430-12245 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 90430-12245 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 77110 - TANK ASSY, AUXILIARY FUEL | ||||
| 77110-60011 |
FZJ105,HDJ100,HZJ105,UZJ100..GEN W(AUXILIARY FUEL TANK X2) |
2 | ||
| 77110-60011 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN W(AUXILIARY FUEL TANK X2) |
2 | ||
| 77110-60011 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 77110-60011 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN W(AUXILIARY FUEL TANK X2) |
2 | ||
| 77110-60011 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 77110-60011 |
FZJ100,UZJ100..SOB..ATM;FZJ100,UZJ100..LUB..(GCC,GEN);FZJ105,HDJ100,HZJ105..GCC,GEN |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-12240 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 77168-33050 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 77168-33050 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-33020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 77169-33020 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 77169-33020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 77169B - GASKET, FUEL SUCTION TUBE SET, NO.1 | ||||
| 77169-32010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 77169-32010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 77169-32010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-34010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 77178-34010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 77178-34010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 77178B - GASKET, FUEL TANK FILLER PIPE, LOWER (FOR SUB-TANK) | ||||
| 77178-34010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 77178-34010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 77178-34010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 77179B - GASKET, FUEL TANK EVAPORATION VENT TUBE | ||||
| 77179-26010 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 77179-26010 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 77179-26010 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60510 |
HDJ100..GEN |
1 | ||
| 77201-60610 |
HDJ100 W(FUEL SUB TANK) |
1 | ||
| 77201-60540 |
HDJ100,UZJ100..GEN W(FUEL SUB TANK) |
1 | ||
| 77201-60510 |
HDJ100,UZJ100..GEN |
1 | ||
| 77201-60510 |
HDJ100..GEN |
1 | ||
| 77201-60540 |
HDJ100..GEN TYPE A:REFER ILLUST. |
1 | ||
| 77201-60610 |
HDJ100..GEN W(FUEL SUB TANK) |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 77213-60110 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 77213-60110 |
UZJ100..5F..(ARL,GCC);UZJ100..5FC..(GCC,GEN);FZJ100,HDJ100..ARL,GCC,GEN MARK B |
1 | ||
| 77213-60110 |
UZJ100..5F;UZJ100..5FC..(GCC,GEN);FZJ100,HDJ100..ARL,GCC,GEN MARK B |
1 | ||
| 77201B - HOSE, FUEL, NO.2(FOR FUEL TANK INLET PIPE) | ||||
| 95313-13028 |
UZJ100..5F;UZJ100..5FC..(GCC,GEN);FZJ100,HDJ100..ARL,GCC,GEN L=280,PNC 77201A = MARK B |
1 | ||
| 95313-13028 |
FZJ100,HDJ100,UZJ100 L=280,SAUDI ARABIA SPEC |
1 | ||
| 95313-13028 |
UZJ100..5F..(ARL,GCC);UZJ100..5FC..(GCC,GEN);FZJ100,HDJ100..ARL,GCC,GEN L=280,PNC 77201A = MARK B |
1 | ||
| 77201C - HOSE, FUEL, NO.3(FOR FUEL TANK INLET PIPE) | ||||
| 95313-13016 |
UZJ100..5F;UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105..ARL,GCC,GEN L=160,PNC 77201A = MARK B |
1 | ||
| 95313-13016 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) L=160 |
1 | ||
| 95313-13016 |
UZJ100..5F..(ARL,GCC);UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105..ARL,GCC,GEN L=160,PNC 77201A = MARK B |
1 | ||
| 77204A - TUBE, FUEL TANK RETURN | ||||
| 77204-60020 |
HDJ100 |
1 | ||
| 77204-60020 |
HDJ100 |
1 | ||
| 77204-60010 |
FZJ105..GX;FZJ105,UZJ100..LHD..(STD,VX);FZJ100,HDJ100,HZJ105..DSL2,EFI,TD2 |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-60180 |
HDJ100 |
1 | ||
| 77209-60180 |
HDJ100 |
1 | ||
| 77209-60180 |
HDJ100 |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-60140 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 77213-60140 |
UZJ100..5F;UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105..ARL,GCC,GEN PNC 77201A = MARK B |
1 | ||
| 77213-60140 |
UZJ100..5F..(ARL,GCC);UZJ100..5FC..(GCC,GEN);FZJ10#,HDJ100,HZJ105..ARL,GCC,GEN PNC 77201A = MARK B |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-60310 |
HDJ100,HZJ105 NO.1 |
1 | ||
| 77241-60310 |
HDJ100,HZJ105 NO.1 |
1 | ||
| 77241-60320 |
HDJ100,HZJ105 NO.2 |
1 | ||
| 77241-60320 |
UZJ100..ARL;HDJ100,HZJ105 NO.2 |
1 | ||
| 77241-60310 |
HDJ100,HZJ105 NO.1 |
1 | ||
| 77241-60320 |
HDJ100,HZJ105 NO.2 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-60310 |
HDJ100,HZJ105 NO.1 |
1 | ||
| 77241-60310 |
HDJ100,HZJ105 NO.1 |
1 | ||
| 77241-60320 |
HDJ100,HZJ105 NO.2 |
1 | ||
| 77241-60320 |
UZJ100..ARL;HDJ100,HZJ105 NO.2 |
1 | ||
| 77241-60310 |
HDJ100,HZJ105 NO.1 |
1 | ||
| 77241-60320 |
HDJ100,HZJ105 NO.2 |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-60110 |
FZJ105,HDJ100,HZJ105 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 77277-60070 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 77277-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 77291-60070 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 77291-60071 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 77291-60071 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-60010 |
HDJ100,HZJ105 |
1 | ||
| 77310-35110 |
HDJ100,HZJ105 |
1 | ||
| 77300-60010 |
HDJ100,HZJ105 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 77316-16010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 77316-16010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 77350-60061 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 77350-60061 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 77366-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 77366-60010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 77371L - RING, FUEL TANK FILLER PIPE SHIELD | ||||
| 77371-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 77371-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 77371-60010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 77377-60010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 77377-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 77380-26010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 77380-26010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-60040 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 77391-60040 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 77391-60040 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-60210 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 77601-60210 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 77601-60210 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-60080 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 77602-60080 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 77602-60080 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 77603B - BAND SUB-ASSY, FUEL TANK, NO.2 RH | ||||
| 77603-60020 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 77603-60020 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 77603-60020 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 77604B - BAND SUB-ASSY, FUEL TANK, NO.2 LH | ||||
| 77604-60020 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 77604-60020 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 77604-60020 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-60120 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 77606-60120 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 77606-60120 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-08060 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 90240-08060 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 90240-08060 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-08060 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 90240-08060 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 90240-08060 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77654-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 77654-60050 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 77654-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-60060 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 77652-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 77652-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-60060 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 77653-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 77653-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-60060 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 77653-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 77653-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 77654A - CUSHION, FUEL TANK, NO.4 | ||||
| 77651-60120 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 77651-60120 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 77651-60120 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 77655 - CUSHION, FUEL TANK, NO.3 | ||||
| 77651-35060 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 77651-35060 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 77651-35060 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 77651-35060 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 77655A - CUSHION, FUEL TANK, NO.5 | ||||
| 77651-60130 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 77651-60130 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 77651-60130 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 77651-60130 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 77655A - CUSHION, FUEL TANK, NO.5 | ||||
| 77651-60130 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 77651-60130 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 77651-60130 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 77651-60130 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 77656B - CUSHION, FUEL TANK, NO.6 | ||||
| 77652-20110 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 77652-33010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 77652-20110 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77682-16010 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 77682-16010 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 77682-16010 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77682-16010 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 77682-16010 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 77682-16010 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| Common parts | ||||
| 77281-60080 | ||||
| 82711-14110 | ||||
| 90149-60091 | ||||
| 90159-40155 | ||||
| 90159-50219 | ||||
| 90159-50343 | ||||
| 90159-60576 | ||||
| 90189-06028 | ||||
| 90189-06196 | ||||
| 90269-03072 | ||||
| 90460-22001 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90464-00052 | ||||
| 90467-12056 | ||||
| 90468-14033 | ||||
| 90469-05010 | ||||
| 90541-04014 | ||||
| 90541-07093 | ||||
| 90959-01574 | ||||
| 91645-C1032 | ||||
| 91651-B0820 | ||||
| 93319-14008 | ||||
| 93568-55016 | ||||
ILLUST NO. 2 OF 2(0208- )HDJ100
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77135 - BRACKET, CHECK VALVE | ||||
| 77135-20080 |
HDJ100,HZJ105 |
1 | ||
| 77135-20080 |
HDJ100,HZJ105 |
1 | ||
| 77135-20080 |
HDJ100,HZJ105 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-12026 |
HDJ100..GEN *H,L=260,ID=12 |
1 | ||
| 95332-12026 |
HDJ100..GEN *H,L=260,ID=12 |
1 | ||
| 95332-12028 |
HDJ100 *H,L=280,ID=12 |
1 | ||
| 95332-12028 |
HDJ100 *H,L=280,ID=12 |
1 | ||
| 95332-12026 |
HDJ100..GEN *H,L=260,ID=12 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-60700 |
HDJ100 |
1 | ||
| 77251-60701 |
HDJ100..GEN |
1 | ||
| 77251-60820 |
HDJ100 W(FUEL SUB TANK) |
1 | ||
| 77251-60701 |
HDJ100..GEN |
1 | ||
| 77251-60820 |
HDJ100 W(FUEL SUB TANK) |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 77259-60270 |
HDJ100 |
1 | ||
| 77259-60270 |
HDJ100 |
1 | ||
| 95332-12030 |
HDJ100..GEN *H,L=300,ID=12 |
1 | ||
| 77259-60270 |
HDJ100 |
1 | ||
| 95332-12030 |
HDJ100..GEN *H,L=300,ID=12 |
1 | ||
| 95332-12030 |
HDJ100..GEN *H,L=300,ID=12 |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 77259-60270 |
HDJ100 |
1 | ||
| 77259-60270 |
HDJ100 |
1 | ||
| 95332-12030 |
HDJ100..GEN *H,L=300,ID=12 |
1 | ||
| 77259-60270 |
HDJ100 |
1 | ||
| 95332-12030 |
HDJ100..GEN *H,L=300,ID=12 |
1 | ||
| 95332-12030 |
HDJ100..GEN *H,L=300,ID=12 |
1 | ||
| 77251G - HOSE, FUEL, NO.3(FOR FUEL MAIN TUBE) | ||||
| 95332-12018 |
HDJ100 |
1 | ||
| 95332-12018 |
HDJ100 |
1 | ||
| 95332-12018 |
HDJ100 |
1 | ||
| 77252B - HOSE, FUEL, NO.1 (FOR FUEL MAIN NO.2 TUBE) | ||||
| 77259-60290 |
HDJ100 |
1 | ||
| 77259-60290 |
HDJ100 |
1 | ||
| 77259-60290 |
HDJ100 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-60650 |
HDJ100..GEN W(FUEL SUB TANK) |
1 | ||
| 77255-60640 |
HDJ100..GEN |
1 | ||
| 77255-60631 |
HDJ100..GEN W(FUEL SUB TANK) |
1 | ||
| 77255-60820 |
HDJ100 |
1 | ||
| 77255-60631 |
HDJ100..GEN W(FUEL SUB TANK) |
1 | ||
| 77255-60820 |
HDJ100 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 77279-60050 |
HDJ100..GEN W(FUEL SUB TANK) |
1 | ||
| 95333-06030 |
HDJ100..GEN *H,L=240 |
1 | ||
| 77279-60110 |
HDJ100 |
1 | ||
| 95333-08030 |
HDJ100..GEN *H,L=240,ID=7.6 |
1 | ||
| 95333-08030 |
HDJ100..GEN *H,L=240,ID=7.6 |
1 | ||
| 77279-60110 |
HDJ100 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 77279-60050 |
HDJ100..GEN W(FUEL SUB TANK) |
1 | ||
| 95333-06030 |
HDJ100..GEN *H,L=240 |
1 | ||
| 77279-60110 |
HDJ100 |
1 | ||
| 95333-08030 |
HDJ100..GEN *H,L=240,ID=7.6 |
1 | ||
| 95333-08030 |
HDJ100..GEN *H,L=240,ID=7.6 |
1 | ||
| 77279-60110 |
HDJ100 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95333-08020 |
HDJ100 *H,L=150,ID=7.6 |
1 | ||
| 95333-08020 |
HDJ100 *H,L=150,ID=7.6 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-06020 |
HDJ100..GEN *H,L=130 |
1 | ||
| 95333-08020 |
HDJ100 *H,L=130,ID=7.6 |
1 | ||
| 95333-08020 |
HDJ100 *H,L=130,ID=7.6 |
1 | ||
| 77279A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.3) | ||||
| 77279-60060 |
HDJ100..GEN |
1 | ||
| 77279-60120 |
HDJ100 |
1 | ||
| 77279-60120 |
HDJ100 |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60190 |
HDJ100 |
1 | ||
| 77285-60190 |
HDJ100 |
1 | ||
| 77285-60190 |
HDJ100 |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77285-60200 |
HDJ100,HZJ105 |
1 | ||
| 77285-60200 |
HDJ100,HZJ105 |
1 | ||
| 77285-60200 |
HDJ100,HZJ105 |
1 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 77286-60050 |
HDJ100 |
1 | ||
| 77286-60050 |
HDJ100 |
1 | ||
| 77286-60050 |
HDJ100 |
1 | ||
| 77286J - CLAMP, FUEL TUBE, NO.4 | ||||
| 77286-60050 |
HDJ100 |
1 | ||
| 77286-60050 |
HDJ100 |
1 | ||
| 77286-60050 |
HDJ100 |
1 | ||
| 77286L - CLAMP, FUEL TUBE, NO.5 | ||||
| 77289-60050 |
HDJ100 |
1 | ||
| 77289-60050 |
HDJ100 |
1 | ||
| 77289-60050 |
HDJ100 |
1 | ||
| 77286M - CLAMP, FUEL TUBE, NO.6 | ||||
| 77298-60020 |
HDJ100,HZJ105 |
1 | ||
| 77298-60020 |
HDJ100,HZJ105 |
1 | ||
| 77298-60020 |
HDJ100,HZJ105 |
1 | ||
| 77286N - CLAMP, FUEL TUBE, NO.7 | ||||
| 77298-60020 |
HDJ100,HZJ105 |
1 | ||
| 77298-60020 |
HDJ100,HZJ105 |
1 | ||
| 77298-60020 |
HDJ100,HZJ105 |
1 | ||
| 77286P - CLAMP, FUEL TUBE, NO.8 | ||||
| 77299-60020 |
HDJ100,HZJ105 |
1 | ||
| 77299-60020 |
HDJ100,HZJ105 |
1 | ||
| 77299-60020 |
HDJ100,HZJ105 |
1 | ||
| 77286Q - CLAMP, FUEL TUBE, NO.9 | ||||
| 77273-60090 |
HDJ100 |
1 | ||
| 77273-60090 |
HDJ100 |
1 | ||
| 77273-60090 |
HDJ100 |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-60190 |
UZJ100..LHD;FZJ100,HDJ100 |
3 | ||
| 77295-60190 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
3 | ||
| 77295-60190 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
3 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10067 |
HDJ100,HZJ105 |
1 | ||
| 90917-10067 |
HDJ100,HZJ105 |
1 | ||
| 90917-10067 |
HDJ100,HZJ105 |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95333-06020 |
HDJ100,HZJ105 *H,L=150 |
1 | ||
| 95333-06020 |
HDJ100,HZJ105 *H,L=150 |
1 | ||
| 95333-06020 |
HDJ100,HZJ105 *H,L=150 |
1 | ||
| 77710B - VALVE ASSY, FUEL TANK SOLENOID MAIN | ||||
| 77710-60120 |
HDJ100 |
1 | ||
| 77710-60170 |
HDJ100 |
1 | ||
| 77710-60170 |
HDJ100 |
1 | ||
| 77716 - BRACKET, FUEL SOLENOID VALVE MAIN | ||||
| 77716-60110 |
HDJ100 |
1 | ||
| 77716-60180 |
HDJ100 |
1 | ||
| 77716-60180 |
HDJ100 |
1 | ||
| 77720E - VALVE ASSY, FUEL TANK SOLENOID RETURN | ||||
| 77720-60070 |
FZJ105..GX;FZJ105,UZJ100..LHD..(STD,VX);FZJ100,HDJ100,HZJ105..DSL2,EFI,TD2 |
1 | ||
| 77720-60120 |
HDJ100 |
1 | ||
| 77720-60120 |
HDJ100 |
1 | ||
| Common parts | ||||
| 90179-06161 | ||||
| 90467-18002 | ||||
| 90467-18008 | ||||
| 91616-A0820 | ||||
| 96132-41300 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
| 96133-41300 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
