HDJ100L-GCMEZ (2002)
Toyota Land Cruiser 100
(9801- )SOB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67206A - BRACKET SUB-ASSY, BACK DOOR STOPPER | ||||
| 67206-60040 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 67206-60040 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 67206-60040 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 67208 - STOPPER SUB-ASSY, BACK DOOR, NO.2 | ||||
| 67208-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 67208-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 67208-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 67836D - COVER, REAR DOOR LOCK CHILD PROTECTION | ||||
| 67836-12040 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 67836-12040 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB..(GCC,GEN) |
1 | ||
| 67836-12040 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 68801 - HINGE SUB-ASSY, BACK DOOR, UPPER RH | ||||
| 68801-60040 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 68801-60040 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 68801-60040 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 68802 - HINGE SUB-ASSY, BACK DOOR, UPPER LH | ||||
| 68802-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 68802-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 68802-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 68803A - HINGE SUB-ASSY, BACK DOOR, LOWER RH | ||||
| 68803-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 68803-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 68803-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 68804A - HINGE SUB-ASSY, BACK DOOR, LOWER LH | ||||
| 68804-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 68804-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 68804-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 68869 - PLATE, BACK DOOR HINGE SEAL | ||||
| 68869-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
4 | ||
| 68869-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB T=1.0 |
1 | ||
| 68869-60020 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB T=0.5 |
1 | ||
| 68869-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB T=1.0 |
1 | ||
| 68869-60020 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB T=0.5 |
1 | ||
| 68869 - PLATE, BACK DOOR HINGE SEAL | ||||
| 68869-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
4 | ||
| 68869-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB T=1.0 |
1 | ||
| 68869-60020 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB T=0.5 |
1 | ||
| 68869-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB T=1.0 |
1 | ||
| 68869-60020 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB T=0.5 |
1 | ||
| 68869 - PLATE, BACK DOOR HINGE SEAL | ||||
| 68869-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
4 | ||
| 68869-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB T=1.0 |
1 | ||
| 68869-60020 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB T=0.5 |
1 | ||
| 68869-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB T=1.0 |
1 | ||
| 68869-60020 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB T=0.5 |
1 | ||
| 68869 - PLATE, BACK DOOR HINGE SEAL | ||||
| 68869-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
4 | ||
| 68869-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB T=1.0 |
1 | ||
| 68869-60020 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB T=0.5 |
1 | ||
| 68869-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB T=1.0 |
1 | ||
| 68869-60020 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB T=0.5 |
1 | ||
| 69206D - HANDLE SUB-ASSY, BACK DOOR INSIDE, LH | ||||
| 69206-20120B3 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB MD.GRAY,TRIM1# |
1 | ||
| 69206-20120B6 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB STONE,TRIM1# |
1 | ||
| 69206-20120A0 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB..(GX,VX) IVORY,TRIM4# |
1 | ||
| 69206-20120B6 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB STONE,TRIM1# |
1 | ||
| 69206-20120A1 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB..(GX,VX) IVORY,TRIM0# |
1 | ||
| 69206-20120A1 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB..(GX,VX) IVORY,TRIM0# |
1 | ||
| 69211B - CUSHION(FOR BACK DOOR OUTSIDE HANDLE) | ||||
| 90541-04014 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 90541-04014 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 90541-04014 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 69212B - HANDLE, BACK DOOR INSIDE | ||||
| 69212-60030 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 69212-60030C0 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN BLACK |
1 | ||
| 69212-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 69293C - SNAP, BACK DOOR HANDLE | ||||
| 69293-12030 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 69293-12030 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 69293-12030 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 69350 - LOCK ASSY, BACK DOOR | ||||
| 69110-60120 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB..(GX,VX) W(CHILD LOCK & POWER DOOR LOCK) |
1 | ||
| 69110-60120 |
FZJ105..SOB..GX;HZJ105..RHD..SOB..GX;FZJ100,HDJ100,HZJ105,UZJ100..LHD..SOB W(CHILD LOCK & POWER DOOR LOCK) |
1 | ||
| 69110-60120 |
FZJ105..SOB..GX;HZJ105..RHD..SOB..GX;FZJ100,HDJ100,HZJ105,UZJ100..LHD..SOB |
1 | ||
| 69350Q - LOCK ASSY, BACK DOOR, UPPER | ||||
| 69350-60130 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 69350-60130 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 69350-60130 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 69380C - LOCK ASSY, BACK DOOR, LOWER | ||||
| 69380-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 69380-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 69380-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 69410C - PLATE ASSY, BACK DOOR LOCK STRIKER | ||||
| 69410-87001 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 69410-87001 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 69410-87001 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 69430A - STRIKER ASSY, BACK DOOR LOWER LOCK | ||||
| 69430-60040 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 69430-60041 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 69430-60041 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 69470C - STRIKER ASSY, BACK DOOR UPPER LOCK | ||||
| 69470-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 69470-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 69470-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 69478 - CUSHION, BACK DOOR LOWER STOPPER | ||||
| 69478-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 69478-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 69478-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 69690 - CONTROL ASSY, BACK DOOR REMOTE | ||||
| 69690-60040 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 69690-60040 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 69690-60040 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1 | ||||
| 69759-20030 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 69759-20030 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 69759-20030 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 69790A - LINK ASSY, BACK DOOR LOCK CONTROL | ||||
| 69790-60080 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 69790-60080 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| 69790-60080 |
FZJ10#,HDJ100,HZJ105,UZJ100..SOB |
1 | ||
| Common parts | ||||
| 69759-14050 | ||||
| 90105-08187 | ||||
| 90119-06779 | ||||
| 90119-08776 | ||||
| 90148-60022 | ||||
| 90148-80028 | ||||
| 90149-50064 | ||||
| 90159-60010 | ||||
| 90162-50008 | ||||
| 90189-05003 | ||||
| 90386-16007 | ||||
| 90467-04014 | ||||
| 90467-08117 | ||||
| 90467-09049 | ||||
| 90950-01229 | ||||
| 91645-80825 | ||||

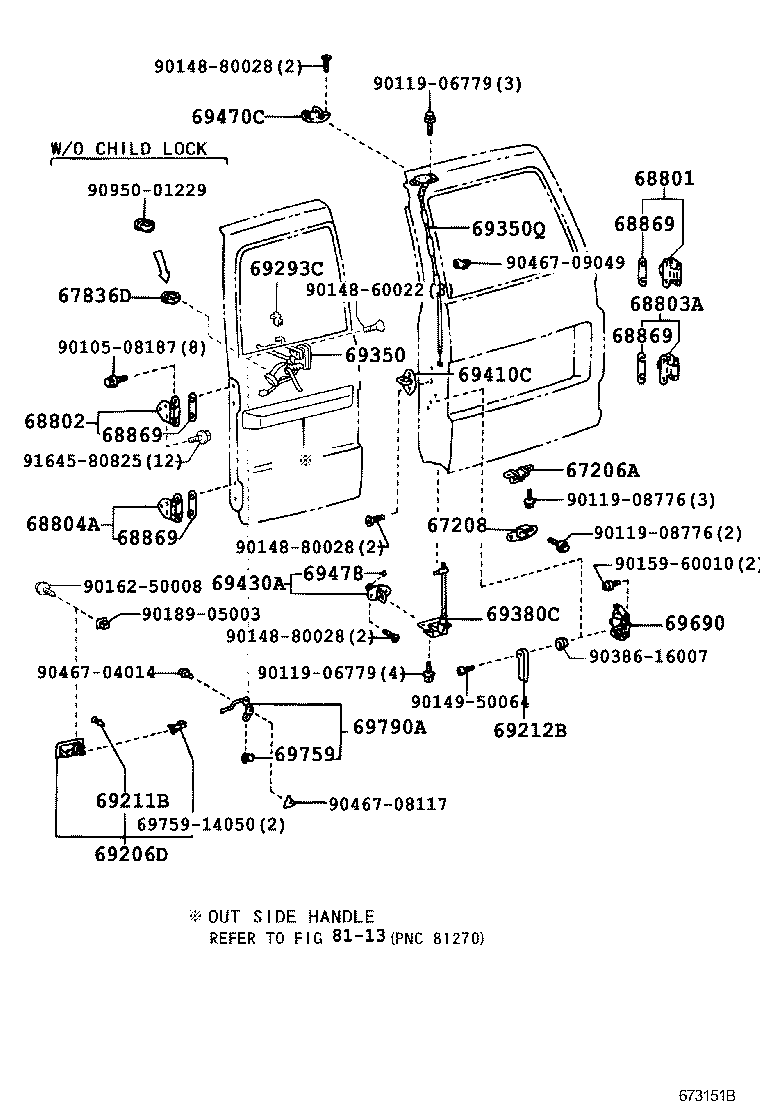

| Linked diagrams | ||||
| 8113 | ||||
