HDJ100L-GCMEZ (2002)

Toyota Land Cruiser 100

Production Aug 2002 - Aug 2007
Engine 1HDFTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9801- )

Click highlighted areas on diagram

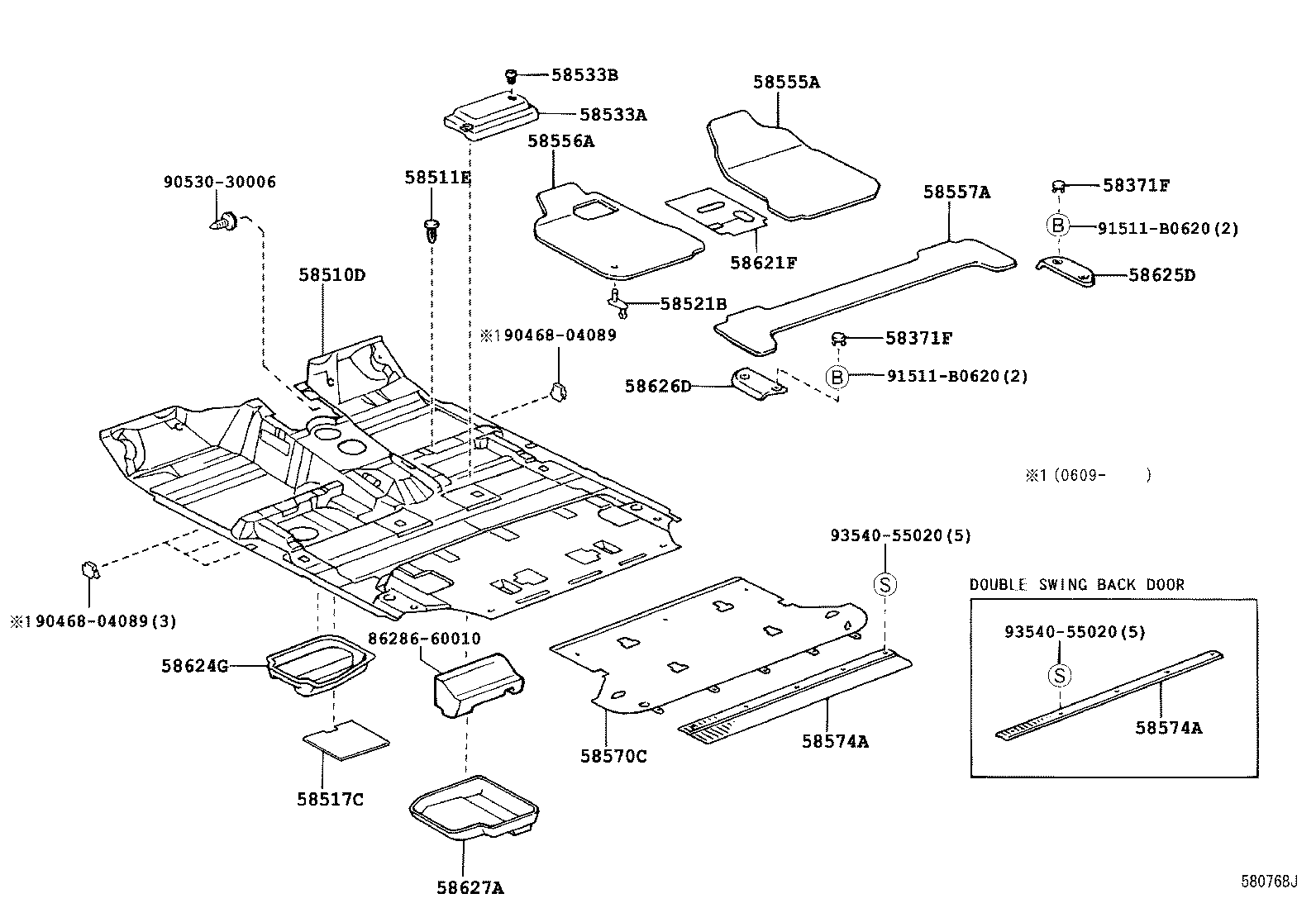

CARPET

diagram 58371F 58371F 58510D 58511E 58517C 58521B 58533A 58533B 58555A 58556A 58557A 58570C 58574A 58574A 58621F 58624G 58625D 58626D 58627A 8628660010 9046804089 9046804089 9053030006 91511B0620 91511B0620 9354055020 9354055020
Part # Description Qty Price
58371F - COVER, REAR FLOOR STEP, NO.1
58371-60100A0

FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI)

IVORY,TRIM4#

 4
58371F - COVER, REAR FLOOR STEP, NO.1
58371-60100A0

FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI)

IVORY,TRIM4#

 4
58510D - CARPET ASSY, FLOOR, FRONT
58510-6B450B0

HDJ100..SOB

W(REAR HEATER),GRAY,TRIM1#

 1
58510-6B450A0

HDJ100..SOB

W(REAR HEATER),IVORY,TRIM4#

 1
58510-6B520A0

HDJ100..SOB

IVORY,TRIM4#

 1
58510-6B520B0

HDJ100..SOB

GRAY,TRIM1#

 1
58510-6C520B0

HDJ100..SOB

STONE,TRIM1#

 1
58510-6C520A0

HDJ100..SOB

IVORY,TRIM0#

 1
58510-6C521B0

HDJ100..SOB

STONE,TRIM1#

 1
58510-6C521A0

HDJ100..SOB

IVORY,TRIM0#

 1
58510-6C521B0

HDJ100..SOB

STONE,TRIM1#

 1
58510-6C521A0

HDJ100..SOB

IVORY,TRIM0#

 1
58511E - CLIP(FOR FRONT FLOOR MAT)
90467-07158A1

HDJ100,UZJ100..VX..(ARL,GCC,GEN)

IVORY,TRIM0#

 1
90467-07158A1

HDJ100,UZJ100..VX..(ARL,GCC,GEN)

IVORY,TRIM0#

 1
90467-07158B2

HDJ100,UZJ100..VX..(ARL,GCC,GEN)

STONE,TRIM1#

 1
90467-07158B2

HDJ100,UZJ100..VX..(ARL,GCC,GEN)

STONE,TRIM1#

 1
58517C - PAD, FRONT FLOOR MAT
58517-60030

FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX)

 1
58517-60030

FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN

 1
58517-60030

FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN

 1
58570C - CARPET ASSY, REAR FLOOR
58570-60700B0

HDJ100,UZJ100..SOB

W(OPPOSING TYPE THIRD SEAT),GRAY,TRIM1#

 1
58570-60700A0

HDJ100,UZJ100..SOB

W(OPPOSING TYPE THIRD SEAT),IVORY,TRIM4#

 1
58570-60550B0

HDJ100,UZJ100..SOB

W(OPPOSING TYPE THIRD SEAT & DUAL AIR CONDITIONER),GRAY,TRIM1#

 1
58570-60550A0

HDJ100,UZJ100..SOB

W(OPPOSING TYPE THIRD SEAT & DUAL AIR CONDITIONER),IVORY,TRIM4#

 1
58570-60551B1

HDJ100,UZJ100..SOB

W(OPPOSING TYPE THIRD SEAT & DUAL AIR CONDITIONER),STONE,TRIM1#

 1
58570-60552A1

HDJ100,UZJ100..SOB

W(OPPOSING TYPE THIRD SEAT & DUAL AIR CONDITIONER),IVORY,TRIM0#

 1
58570-60552B1

HDJ100,UZJ100..SOB

W(OPPOSING TYPE THIRD SEAT & DUAL AIR CONDITIONER),STONE,TRIM1#

 1
58570-60551A1

HDJ100,UZJ100..SOB

W(OPPOSING TYPE THIRD SEAT & DUAL AIR CONDITIONER),IVORY,TRIM0#

 1
58570-60552A1

HDJ100,UZJ100..SOB

W(OPPOSING TYPE THIRD SEAT & DUAL AIR CONDITIONER),IVORY,TRIM0#

 1
58570-60552B1

HDJ100,UZJ100..SOB

W(OPPOSING TYPE THIRD SEAT & DUAL AIR CONDITIONER),STONE,TRIM1#

 1
58574A - PLATE, REAR FLOOR MAT SUPPORT, REAR
58574-60050A0

FZJ10#,HDJ100,HZJ105,UZJ100..SOB..(GX,VX)

IVORY,TRIM4#

 1
58574-60050A1

FZJ10#,HDJ100,HZJ105,UZJ100..SOB..(GX,VX)

IVORY,TRIM0#

 1
58574-60050B1

FZJ10#,HDJ100,HZJ105,UZJ100..SOB

STONE,TRIM1#

 1
58574-60050A1

FZJ10#,HDJ100,HZJ105,UZJ100..SOB..(GX,VX)

IVORY,TRIM0#

 1
58574-60050B0

FZJ10#,HDJ100,HZJ105,UZJ100..SOB

MD.GRAY,TRIM1#

 1
58574-60050B1

FZJ10#,HDJ100,HZJ105,UZJ100..SOB

STONE,TRIM1#

 1
58574A - PLATE, REAR FLOOR MAT SUPPORT, REAR
58574-60050A0

FZJ10#,HDJ100,HZJ105,UZJ100..SOB..(GX,VX)

IVORY,TRIM4#

 1
58574-60050A1

FZJ10#,HDJ100,HZJ105,UZJ100..SOB..(GX,VX)

IVORY,TRIM0#

 1
58574-60050B1

FZJ10#,HDJ100,HZJ105,UZJ100..SOB

STONE,TRIM1#

 1
58574-60050A1

FZJ10#,HDJ100,HZJ105,UZJ100..SOB..(GX,VX)

IVORY,TRIM0#

 1
58574-60050B0

FZJ10#,HDJ100,HZJ105,UZJ100..SOB

MD.GRAY,TRIM1#

 1
58574-60050B1

FZJ10#,HDJ100,HZJ105,UZJ100..SOB

STONE,TRIM1#

 1
58624G - PAD, FRONT FLOOR SILENCER
58624-60110

FZJ105,HZJ105..GX;FZJ100,HDJ100,UZJ100

 1
58624-60110

FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN

 1
58624-60110

FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN

 1
58625D - PLATE, REAR FLOOR MAT, NO.1
58625-60020A0

FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI)

IVORY,TRIM4#

 1
58626D - PLATE, REAR FLOOR MAT, NO.2
58626-60020A0

FZJ10#,HDJ100,HZJ105..(GX,VX)..(DSL2,EFI,TDEFI)

IVORY,TRIM4#

 1
Common parts
86286-60010
90468-04089
90530-30006
91511-B0620
93540-55020
