HDJ100L-GCMEZ (2002)
Toyota Land Cruiser 100

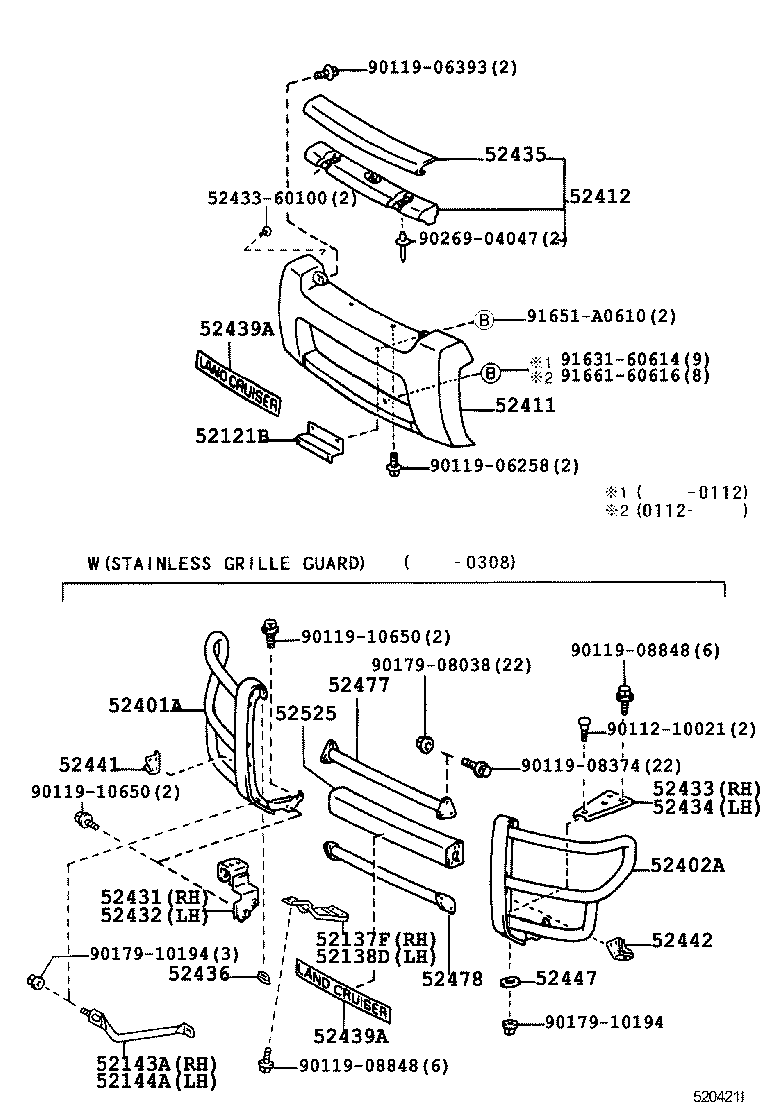

ILLUST NO. 2 OF 2(9801- )ARL,GCC,GEN
BUMPER GUARD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52121B - BRACKET, FRONT LICENCE PLATE MOUNTING | ||||
| 52121-60010 |
HDJ100,UZJ100..GCC,GEN |
1 | ||
| 52121-60010 |
HDJ100,UZJ100..GCC,GEN |
1 | ||
| 52121-60010 |
HDJ100,UZJ100..GCC,GEN |
1 | ||
| 52137F - BRACKET, FRONT BUMPER ARM MOUNTING, NO.3 | ||||
| 52137-60070 |
FZJ100,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 52138D - BRACKET, FRONT BUMPER ARM MOUNTING, NO.4 | ||||
| 52138-60060 |
FZJ100,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 52143A - ARM, FRONT BUMPER, INNER RH | ||||
| 52143-60060 |
FZJ100,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 52144A - ARM, FRONT BUMPER, INNER LH | ||||
| 52144-60050 |
FZJ100,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 52401A - GUARD SUB-ASSY, FRONT BUMPER, RH | ||||
| 52401-60130 |
HDJ100..GEN;UZJ100..LHD..5FC |
1 | ||
| 52402A - GUARD SUB-ASSY, FRONT BUMPER, LH | ||||
| 52402-60030 |
FZJ100,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 52411 - GUARD, FRONT BUMPER | ||||
| 52411-60080 |
HDJ100,UZJ100..GCC,GEN |
1 | ||
| 52411-60080B0 |
HDJ100,UZJ100..GEN GRAY ME.,056 ,1D2 ,1F7 ,4R3 |
1 | ||
| 52411-60080E1 |
HDJ100,UZJ100..GCC,GEN BEIGE,056 ,1B1 ,1D2 ,4R3 |
1 | ||
| 52411-60080D0 |
HDJ100,UZJ100..GCC,GEN DK. GRAY M.,1E9 ,202 ,3Q2 ,6R4 ,8R3 |
1 | ||
| 52411-60080D0 |
HDJ100,UZJ100..GCC,GEN DK. GRAY M.,1E9 ,202 ,3Q2 ,6Q7 ,8L4 |
1 | ||
| 52412 - GUARD, FRONT BUMPER, NO.2 | ||||
| 52412-60030E1 |
HDJ100,UZJ100..GCC,GEN BEIGE,056 ,1B1 ,1D2 ,4R3 |
1 | ||
| 52412-60030 |
HDJ100,UZJ100..GCC,GEN |
1 | ||
| 52412-60030B0 |
HDJ100,UZJ100..GEN GRAY ME.,056 ,1D2 ,1F7 ,4R3 |
1 | ||
| 52412-60030D0 |
HDJ100,UZJ100..GCC,GEN DK. GRAY M.,1E9 ,202 ,3Q2 ,6Q7 ,8L4 |
1 | ||
| 52412-60030D0 |
HDJ100,UZJ100..GCC,GEN DK. GRAY M.,1E9 ,202 ,3Q2 ,6R4 ,8R3 |
1 | ||
| 52431 - RETAINER, FRONT BUMPER GUARD | ||||
| 52431-60110 |
FZJ100,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 52432 - RETAINER, FRONT BUMPER GUARD | ||||
| 52432-60080 |
FZJ100,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 52433 - SUPPORT, FRONT BUMPER GUARD, RH | ||||
| 52433-60110 |
FZJ100,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 52434 - SUPPORT, FRONT BUMPER GUARD, LH | ||||
| 52434-60080 |
FZJ100,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 52435 - GARNISH, FRONT BUMPER GUARD | ||||
| 52435-60020 |
HDJ100,UZJ100..GCC,GEN |
1 | ||
| 52435-60020 |
HDJ100,UZJ100..GCC,GEN |
1 | ||
| 52435-60020 |
HDJ100,UZJ100..GCC,GEN |
1 | ||
| 52436 - PROTECTOR, FRONT BUMPER GUARD | ||||
| 52436-60040 |
FZJ100,HDJ100,UZJ100..GCC,GEN |
4 | ||
| 52439A - TAPE, FRONT BUMPER GUARD PRTECTOR | ||||
| 52447-60040 |
HDJ100,UZJ100..GCC,GEN |
1 | ||
| 52447-60060A0 |
HDJ100,UZJ100..GCC,GEN 3650-211CHARCOAL GRAY,056 ,1B1 ,1D2 ,4R3 |
1 | ||
| 52447-60060A0 |
HDJ100,UZJ100..GEN 3650-211CHARCOAL GRAY,056 ,1D2 ,1F7 ,4R3 |
1 | ||
| 52439-60060 |
FZJ100,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 52447-60060A1 |
HDJ100,UZJ100..GCC,GEN MN-001 SILVER METALLIC,1E9 ,202 ,3Q2 ,6Q7 ,8L4 |
1 | ||
| 52447-60060A1 |
HDJ100,UZJ100..GCC,GEN MN-001 SILVER METALLIC,1E9 ,202 ,3Q2 ,6R4 ,8R3 |
1 | ||
| 52439A - TAPE, FRONT BUMPER GUARD PRTECTOR | ||||
| 52447-60040 |
HDJ100,UZJ100..GCC,GEN |
1 | ||
| 52447-60060A0 |
HDJ100,UZJ100..GCC,GEN 3650-211CHARCOAL GRAY,056 ,1B1 ,1D2 ,4R3 |
1 | ||
| 52447-60060A0 |
HDJ100,UZJ100..GEN 3650-211CHARCOAL GRAY,056 ,1D2 ,1F7 ,4R3 |
1 | ||
| 52439-60060 |
FZJ100,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 52447-60060A1 |
HDJ100,UZJ100..GCC,GEN MN-001 SILVER METALLIC,1E9 ,202 ,3Q2 ,6Q7 ,8L4 |
1 | ||
| 52447-60060A1 |
HDJ100,UZJ100..GCC,GEN MN-001 SILVER METALLIC,1E9 ,202 ,3Q2 ,6R4 ,8R3 |
1 | ||
| 52441 - BASE, FRONT BUMPER GUARD, NO.1 RH | ||||
| 52441-60120 |
FZJ100,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 52442 - BASE, FRONT BUMPER GUARD, NO.1 LH | ||||
| 52442-60080 |
FZJ100,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 52447 - PAD, FRONT BUMPER GUARD, NO.2 RH | ||||
| 52447-60050 |
FZJ100,HDJ100,UZJ100..GCC,GEN |
4 | ||
| 52477 - GUARD, FRONT BUMPER, NO.3 | ||||
| 52477-60040 |
FZJ100,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 52478 - GUARD, FRONT BUMPER, NO.4 | ||||
| 52478-60040 |
FZJ100,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 52525 - RETAINER, FRONT BUMPER, LOWER CENTER | ||||
| 52506-60050 |
FZJ100,HDJ100,UZJ100..GCC,GEN |
1 | ||
| Common parts | ||||
| 52433-60100 | ||||
| 90112-10021 | ||||
| 90119-06258 | ||||
| 90119-06393 | ||||
| 90119-08374 | ||||
| 90119-08848 | ||||
| 90119-10650 | ||||
| 90179-08038 | ||||
| 90179-10194 | ||||
| 90269-04047 | ||||
| 91631-60614 | ||||
| 91651-A0610 | ||||
| 91661-60616 | ||||
ILLUST NO. 1 OF 2(0208- )ARL,GCC,GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-60020 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 52021-60060 |
HZJ105;FZJ10#,HDJ100,UZJ100..GCC,GEN |
1 | ||
| 52021-60060 |
FZJ10#,HZJ105..ARL,GCC,GEN;HDJ100,UZJ100..VX..(ARL,GCC,GEN) |
1 | ||
| 52021-60080 |
FZJ100,HDJ100,UZJ100..GCC,GEN W(STAINLESS GRILLE GUARD) |
1 | ||
| 52021A - REINFORCEMENT SUB-ASSY, FRONT BUMPER, RH | ||||
| 52131-60100 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 52131-60140 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 52131-60140 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 52022A - REINFORCEMENT SUB-ASSY, FRONT BUMPER, LH | ||||
| 52132-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 52132-60100 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 52132-60100 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
1 | ||
| 52049 - COVER SUB-ASSY, FRONT BUMPER WINCH | ||||
| 52049-60030E0 |
UZJ100..GCC,GEN;HDJ100..5F..GEN;FZJ100,HZJ105..GX..GCC LT.GRAYISH BEIGE ME.,056 ,1B1 ,4R3 |
1 | ||
| 52049-60030B0 |
UZJ100..GCC,GEN;HDJ100..5F..GEN;FZJ100,HZJ105..GX..GCC GRAY ME.,1D2 |
1 | ||
| 52049-60030D0 |
UZJ100..GCC,GEN;HDJ100..5F..GEN;FZJ100,HZJ105..GX..GCC DK. GRAY M.,1E9 ,202 ,3Q2 ,6Q7 ,8L4 |
1 | ||
| 52049-60030D0 |
UZJ100..GCC,GEN;HDJ100..5F..GEN;FZJ100,HZJ105..GX..GCC DK. GRAY M.,1E9 ,202 ,3Q2 ,6R4 |
1 | ||
| 52049-60030B1 |
UZJ100..GCC,GEN;HDJ100..5F..GEN;FZJ100,HZJ105..GX..GCC GRAY ME.,8R3 |
1 | ||
| 52049-60030B0 |
UZJ100..GCC,GEN;HDJ100..5F..GEN;FZJ100,HZJ105..GX..GCC GRAY ME.,056 ,1D2 ,1F7 ,4R3 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-60911 |
HDJ100,UZJ100..GCC,GEN W(WINCH & FOG LAMP) |
1 | ||
| 52119-60904 |
HDJ100,UZJ100 |
1 | ||
| 52119-60908 |
HDJ100,UZJ100..GCC,GEN W(FRONT BUMPER GUARD) |
1 | ||
| 52119-60923 |
UZJ100..LHD;HDJ100..5F..GEN;FZJ100,HZJ105..GX..GCC W(PAINTED BUMPER & WINCH) |
1 | ||
| 52119-60920 |
HDJ100,UZJ100..GCC,GEN W(BUMPER GUARD) |
1 | ||
| 52119-60918 |
HZJ105..GX..(ARL,GCC);FZJ100,HDJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN) W(PAINTED BUMPER) |
1 | ||
| 52119-60918 |
HZJ105..GX..(ARL,GCC);FZJ100,HDJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN) W(PAINTED BUMPER) |
1 | ||
| 52119-60920 |
HDJ100,UZJ100..GCC,GEN W(BUMPER GUARD) |
1 | ||
| 52119-60923 |
UZJ100..GCC,GEN;HDJ100..5F..GEN;FZJ100,HZJ105..GX..GCC W(PAINTED BUMPER & WINCH) |
1 | ||
| 52119-60923 |
UZJ100..GCC,GEN;HDJ100..5F..GEN;FZJ100,HZJ105..GX..GCC W(PAINTED BUMPER & WINCH) |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-60010 |
HDJ100,UZJ100 |
1 | ||
| 52127-60030 |
HZJ105..GX..(ARL,GCC);FZJ100,HDJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 52127-60030 |
HZJ105..GX..(ARL,GCC);FZJ100,HDJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-60030 |
HZJ105..GX..(ARL,GCC);FZJ100,HDJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 52128-60030 |
HZJ105..GX..(ARL,GCC);FZJ100,HDJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN) |
1 | ||
| 52128-60010 |
HDJ100,UZJ100 |
1 | ||
| 52133F - BRACKET, FRONT BUMPER, RH | ||||
| 52133-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 52133-60070 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 52134G - BRACKET, FRONT BUMPER, LH | ||||
| 52134-60080 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 52134-60080 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 52147E - BRACKET, FRONT BUMPER MOUNTING, RH | ||||
| 52147-60050 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 52147-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 52147-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 52148E - BRACKET, FRONT BUMPER MOUNTING, LH | ||||
| 52147-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 52147-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 52147-60050 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
3 | ||
| 52161-16010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
3 | ||
| 52161-16010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
3 | ||
| 52421A - PAD, FRONT BUMPER | ||||
| 52421-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..GCC,GEN |
2 | ||
| 52421-60090 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
2 | ||
| 52421-60090 |
HDJ100..5F..GEN;FZJ10#,HZJ105,UZJ100..GCC,GEN |
2 | ||
| 52541 - PROTECTOR, FRONT BUMPER | ||||
| 52541-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 52541-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 52541 - PROTECTOR, FRONT BUMPER | ||||
| 52541-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 52541-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 52542A - PROTECTOR, FRONT BUMPER, NO.2 | ||||
| 52542-60010 |
HZJ105..GX..(ARL,GCC);FZJ100,HDJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN) |
2 | ||
| 52542-60010 |
HZJ105..GX..(ARL,GCC);FZJ100,HDJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN) |
2 | ||
| 52542A - PROTECTOR, FRONT BUMPER, NO.2 | ||||
| 52542-60010 |
HZJ105..GX..(ARL,GCC);FZJ100,HDJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN) |
2 | ||
| 52542-60010 |
HZJ105..GX..(ARL,GCC);FZJ100,HDJ100,UZJ100..(GX,VX)..(ARL,GCC,GEN) |
2 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-60020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 52611-60020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 52611-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| Common parts | ||||
| 90109-06330 | ||||
| 90119-08867 | ||||
| 90119-10464 | ||||
| 90159-60477 | ||||
| 90179-06127 | ||||
| Linked diagrams | ||||
| 7554 | ||||
