HDJ100L-GCMEZ (2002)
Toyota Land Cruiser 100

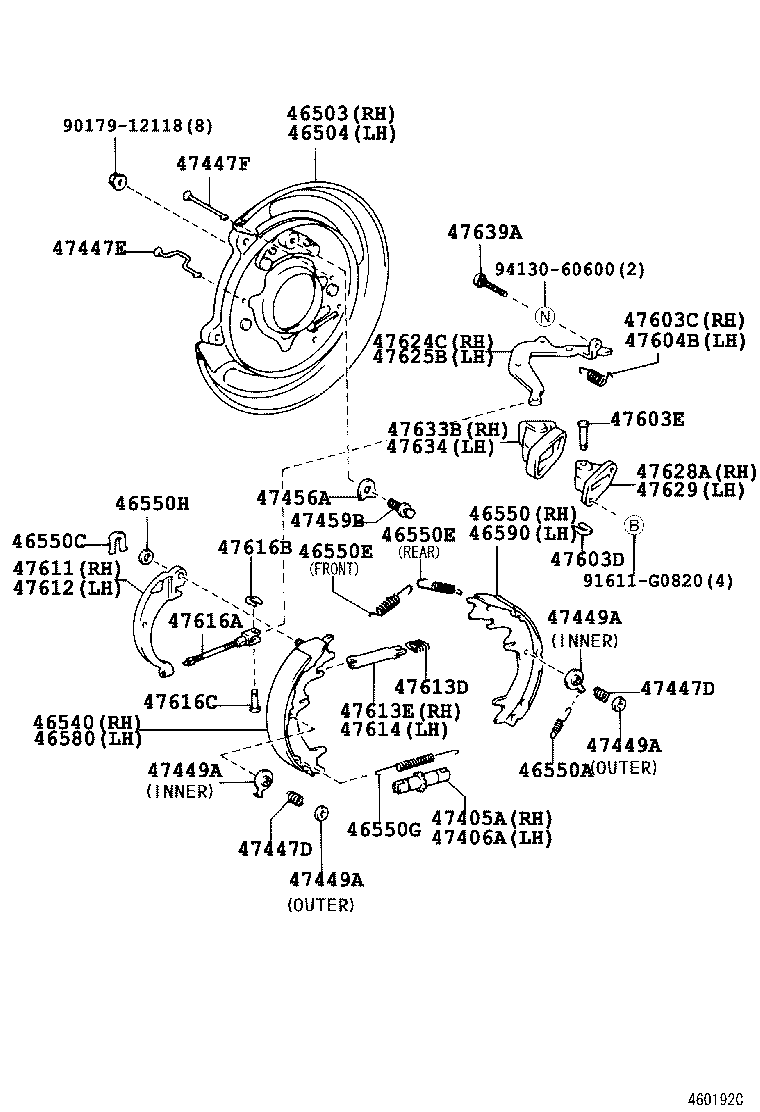

ILLUST NO. 2 OF 2(9801- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-60100 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 46503-60100 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 46503-60100 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-60060 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 46504-60060 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 46504-60060 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 46540-60050 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 46540-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-60060 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 46550-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 46550-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-12029 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 90506-12029 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 90506-12029 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-07018 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 90213-07018 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 90213-07018 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-20016 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) FRONT |
2 | ||
| 90507-23014 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) REAR |
2 | ||
| 90507-20016 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN FRONT |
2 | ||
| 90507-23014 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN REAR |
2 | ||
| 90507-23014 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN REAR |
2 | ||
| 90507-20016 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN FRONT |
2 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-20016 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) FRONT |
2 | ||
| 90507-20016 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN FRONT |
2 | ||
| 90507-23014 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) REAR |
2 | ||
| 90507-23014 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN REAR |
2 | ||
| 90507-23014 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN REAR |
2 | ||
| 90507-20016 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN FRONT |
2 | ||
| 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-12068 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 90506-12068 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 90506-12068 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 46550H - SHIM(FOR PARKING BRAKE SHOE) | ||||
| 90564-09186 |
FZJ10#,HDJ100,HZJ105,UZJ100 T=0.9 |
2 | ||
| 90564-09184 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=0.3 |
2 | ||
| 90564-09185 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) T=0.6 |
2 | ||
| 90564-09185 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN T=0.6 |
2 | ||
| 90564-09003 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN T=0.5 |
2 | ||
| 90564-09184 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN T=0.3 |
2 | ||
| 90564-09186 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN T=0.9 |
2 | ||
| 90564-09002 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN T=0.4 |
2 | ||
| 90564-09186 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN T=0.9 |
1 | ||
| 90564-09002 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN T=0.4 |
1 | ||
| 90564-09184 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN T=0.3 |
1 | ||
| 90564-09185 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN T=0.6 |
1 | ||
| 90564-09003 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN T=0.5 |
1 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46580-60050 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 46580-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 46580-60050 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46550-60060 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 46550-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 46550-60060 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) | ||||
| 47405-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 47405-60010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 47405-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) | ||||
| 47406-60010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 47406-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 47406-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 90501-16053 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
4 | ||
| 90501-16053 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
4 | ||
| 90501-16053 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
4 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 90501-16053 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
4 | ||
| 90501-16053 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
4 | ||
| 90501-16053 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
4 | ||
| 47447E - PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47447-50010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47447-50010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47447-50010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 47447F - PIN, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE) | ||||
| 47447-30020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47447-30020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47447-30020 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OUTER |
4 | ||
| 47449-40010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN INNER |
4 | ||
| 47449-40010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) INNER |
4 | ||
| 47449-30030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OUTER |
4 | ||
| 47449-30030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OUTER |
4 | ||
| 47449-40010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN INNER |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OUTER |
4 | ||
| 47449-40010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN INNER |
4 | ||
| 47449-40010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) INNER |
4 | ||
| 47449-30030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OUTER |
4 | ||
| 47449-30030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OUTER |
4 | ||
| 47449-40010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN INNER |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OUTER |
4 | ||
| 47449-40010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN INNER |
4 | ||
| 47449-40010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) INNER |
4 | ||
| 47449-30030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OUTER |
4 | ||
| 47449-30030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OUTER |
4 | ||
| 47449-40010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN INNER |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-30030 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) OUTER |
4 | ||
| 47449-40010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN INNER |
4 | ||
| 47449-40010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) INNER |
4 | ||
| 47449-30030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OUTER |
4 | ||
| 47449-30030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN OUTER |
4 | ||
| 47449-40010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN INNER |
4 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| 47456-20030 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 47456-35010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47456-35010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE) | ||||
| 47459-30010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47459-30010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47459-30010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 47603C - SPRING, TENSION(FOR PARKING BRAKE BELL CRANK RH) | ||||
| 90506-20033 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 90506-20033 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 90506-20033 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 47603D - WASHER, TYPE C(FOR PARKING BRAKE BELL CRANK) | ||||
| 90213-06013 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 90213-06013 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 90213-06013 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47603E - PIN(FOR PARKING BRAKE BELL CRANK) | ||||
| 90249-08075 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 90249-08075 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 90249-08075 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 47604B - SPRING, TENSION(FOR PARKING BRAKE BELL CRANK LH) | ||||
| 90506-20033 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 90506-20033 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 90506-20033 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47611 - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47611-60030 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 47611-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 47611-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 47612 - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47612-60030 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 47612-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 47612-60030 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 47613D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-14002 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 90504-14002 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 90504-14002 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47613E - STRUT, PARKING BRAKE SHOE, RH | ||||
| 47613-60020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 47613-60020 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 47613-60020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 47614 - STRUT, PARKING BRAKE SHOE, LH | ||||
| 47613-60020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 47613-60020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 47613-60020 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 47616A - WIRE, PARKING BRAKE | ||||
| 47616-60020 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 47616-60020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47616-60020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47616B - WASHER, TYPE C(FOR PARKING BRAKE WIRE) | ||||
| 90213-04001 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 90213-04001 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 90213-04001 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47616C - PIN(FOR PARKING BRAKE WIRE) | ||||
| 90249-07074 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 90249-07074 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 90249-07074 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 47624C - CRANK, PARKING BRAKE BELL, RH | ||||
| 47624-60022 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 47624-60022 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 47624-60022 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 47625B - CRANK, PARKING BRAKE BELL, LH | ||||
| 47625-60022 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 47625-60022 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 47625-60022 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 47628A - BRACKET, BELLCRANK, RH(FOR PARKING BRAKE) | ||||
| 47628-60010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 47628-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 47628-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 47629 - BRACKET, BELLCRANK, LH(FOR PARKING BRAKE) | ||||
| 47629-60010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 47629-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 47629-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 47633B - BOOT, BELLCRANK, RH(FOR PARKING BRAKE) | ||||
| 47633-60010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 47633-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 47633-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 47634 - BOOT, BELLCRANK, LH(FOR PARKING BRAKE) | ||||
| 47634-60010 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 47634-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 47634-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 47639A - BOLT, BELLCRANK STOPPER(FOR PARKING BRAKE) | ||||
| 47639-30020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| 47639-30020 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
2 | ||
| 47639-30020 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
2 | ||
| Common parts | ||||
| 90179-12118 | ||||
| 91611-G0820 | ||||
| 94130-60600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
