HDJ100L-GCMEZ (2002)
Toyota Land Cruiser 100

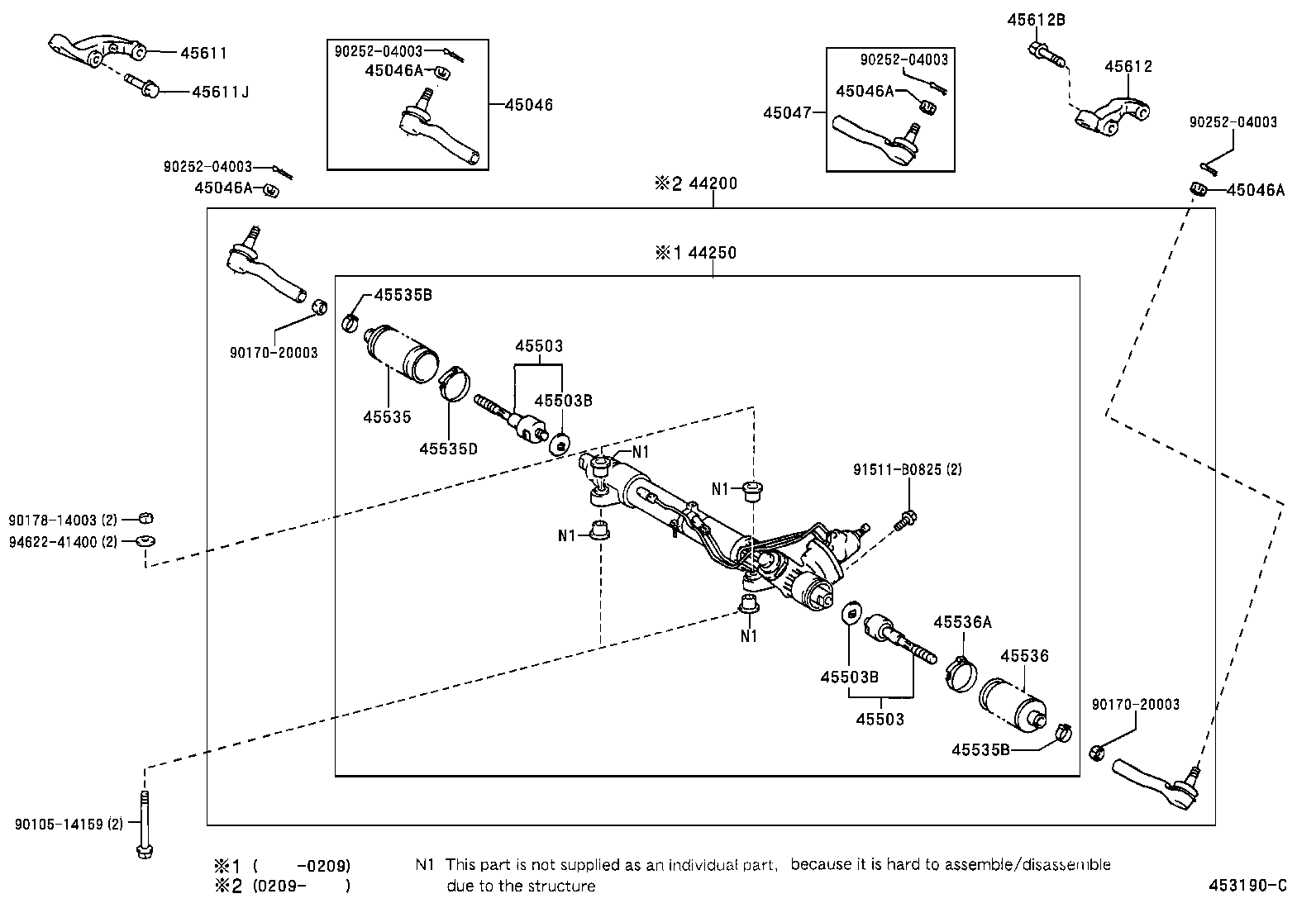

ILLUST NO. 1 OF 2(0208- )FZJ100,HDJ100,UZJ100..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44200 - LINK ASSY, POWER STEERING | ||||
| 44200-60100 |
FZJ100,HDJ100,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 44200-60100 |
FZJ100,HDJ100,UZJ100..LHD..(GCC,GEN) |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-60060 |
FZJ100,HDJ100..LHD |
1 | ||
| 44250-60100 |
FZJ100,HDJ100,UZJ100..LHD |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-69195 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 45046-69205 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 45046-69205 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-16006 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
2 | ||
| 90171-16006 |
UZJ100..LHD;FZJ100,HDJ100 |
2 | ||
| 90171-16006 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-16006 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
2 | ||
| 90171-16006 |
UZJ100..LHD;FZJ100,HDJ100 |
2 | ||
| 90171-16006 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-16006 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
2 | ||
| 90171-16006 |
UZJ100..LHD;FZJ100,HDJ100 |
2 | ||
| 90171-16006 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-16006 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
2 | ||
| 90171-16006 |
UZJ100..LHD;FZJ100,HDJ100 |
2 | ||
| 90171-16006 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45047-69115 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 45047-69115 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 45047-69100 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-69015 |
FZJ100,HDJ100,UZJ100 |
2 | ||
| 45503-69025 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
2 | ||
| 45503-69025 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-69015 |
FZJ100,HDJ100,UZJ100 |
2 | ||
| 45503-69025 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
2 | ||
| 45503-69025 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-18002 |
FZJ100,HDJ100,UZJ100 OD=47 |
2 | ||
| 90214-27002 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN OD=47 |
2 | ||
| 90214-27002 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN OD=47 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-18002 |
FZJ100,HDJ100,UZJ100 OD=47 |
2 | ||
| 90214-27002 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN OD=47 |
2 | ||
| 90214-27002 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN OD=47 |
2 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-60010 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 45535-60010 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 45535-60010 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 96134-52600 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
2 | ||
| 96134-52600 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
2 | ||
| 90467-26002 |
FZJ100,HDJ100,UZJ100 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 96134-52600 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
2 | ||
| 96134-52600 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
2 | ||
| 90467-26002 |
FZJ100,HDJ100,UZJ100 |
2 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 90460-62006 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 90460-62006 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 90460-62006 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-60010 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 45535-60010 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 45535-60010 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90460-62006 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 90460-62006 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 90460-62006 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-60120 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 45611-60120 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 45611-60100 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 45611J - BOLT(FOR STEERING KNUCKLE ARM RH) | ||||
| 90105-14043 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
2 | ||
| 90105-14043 |
UZJ100..LHD;FZJ100,HDJ100 |
2 | ||
| 90105-14043 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
2 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-60100 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 45612-60120 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 45612-60120 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 45612B - BOLT(FOR STEERING KNUCKLE ARM LH) | ||||
| 90105-14043 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
2 | ||
| 90105-14043 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
2 | ||
| 90105-14043 |
UZJ100..LHD;FZJ100,HDJ100 |
2 | ||
| Common parts | ||||
| 90105-14159 | ||||
| 90170-20003 | ||||
| 90178-14003 | ||||
| 90252-04003 | ||||
| 91511-B0825 | ||||
| 94622-41400 | ||||
ILLUST NO. 2 OF 2(0208- )FZJ100,HDJ100,UZJ100
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-60090 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 04445-60090 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 04445-60080 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-60090 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 04445-60090 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 04445-60080 |
FZJ100,HDJ100,UZJ100 |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-60050 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 04455-60050 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 04455-60050 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-60050 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 04455-60050 |
FZJ100,HDJ100,UZJ100..ARL,GCC,GEN |
1 | ||
| 04455-60050 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
