HDJ100L-GCMEZ (2002)

Toyota Land Cruiser 100

Production Aug 2002 - Aug 2007
Engine 1HDFTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9801- )HDJ100..5F

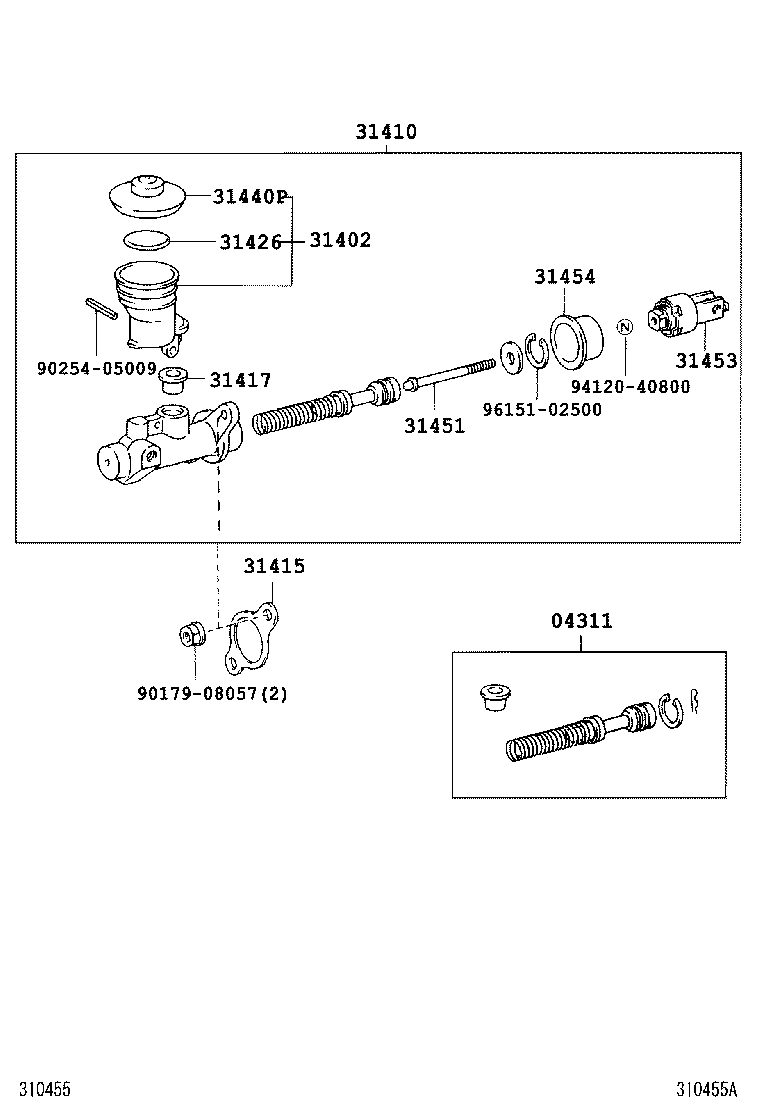

Click highlighted areas on diagram

diagram 04311 31402 31410 31415 31417 31426 31440P 31451 31453 31454 9017908057 9025405009 9412040800 9615102500
Part # Description Qty Price
04311 - CYLINDER KIT, CLUTCH MASTER
04311-60100

HDJ100,HZJ105,UZJ100..5F..(ARL,GCC,GEN)

 1
04311-60100

HDJ100,HZJ105,UZJ100..5F

 1
04311-60100

HDJ100,HZJ105,UZJ100..5F

 1
31402 - RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER
31402-35030

FZJ10#,HDJ100..5F..(ARL,GCC,GEN)

 1
31402-35030

FZJ10#,HDJ100..5F..(ARL,GCC,GEN)

 1
31410 - CYLINDER ASSY, CLUTCH MASTER
31410-60610

HDJ100..5F

 1
31410-60610

HDJ100..5F

 1
31410-60610

HDJ100..5F

 1
31415 - GASKET, CLUTCH MASTER CYLINDER
31415-60020

HDJ100,HZJ105,UZJ100..5F

 1
31415-60020

HDJ100,HZJ105,UZJ100..5F..(ARL,GCC,GEN)

 1
31415-60020

HDJ100,HZJ105,UZJ100..5F

 1
31417 - GROMMET, CLUTCH RESERVOIR
31417-35010

FZJ10#,HDJ100,HZJ105,UZJ100..5F..(ARL,GCC,GEN)

 1
31417-35010

FZJ10#,HDJ100,HZJ105,UZJ100..5F..(ARL,GCC,GEN)

 1
31417-35010

HDJ100,UZJ100..5F..VX..(EFI,TD2);FZJ10#,HDJ100,HZJ105..5F..(GX,STD)

 1
31426 - FLOAT, CLUTCH MASTER CYLINDER RESERVOIR
31426-30011

HDJ100,UZJ100..5F..VX..(EFI,TD2);FZJ10#,HDJ100,HZJ105..5F..(GX,STD)

 1
31426-30011

FZJ10#,HDJ100,HZJ105,UZJ100..5F..(ARL,GCC,GEN)

 1
31426-30011

FZJ10#,HDJ100,HZJ105,UZJ100..5F..(ARL,GCC,GEN)

 1
31440P - CAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER
47230-20040

FZJ10#,HDJ100..5F..(ARL,GCC,GEN)

 1
47230-20040

FZJ10#,HDJ100..5F..(ARL,GCC,GEN)

 1
31451 - ROD, CLUTCH MASTER CYLINDER PUSH
31451-60080

FZJ10#,HDJ100..5F..(ARL,GCC,GEN)

 1
31451-60080

FZJ10#,HDJ100..5F..(ARL,GCC,GEN)

 1
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31453-35010

FZJ10#,HDJ100..5F..(ARL,GCC,GEN)

 1
31453-35010

FZJ10#,HDJ100..5F..(ARL,GCC,GEN)

 1
31454 - BOOT, CLUTCH MASTER CYLINDER
31454-60020

HDJ100,HZJ105,UZJ100..5F

 1
31454-60020

HDJ100,HZJ105,UZJ100..5F

 1
31454-60020

HDJ100,HZJ105,UZJ100..5F..(ARL,GCC,GEN)

 1
Common parts
90179-08057
90254-05009
94120-40800
96151-02500
