HDJ100L-GCMEZ (2002)
Toyota Land Cruiser 100
(0208- )1HDFTE ; (0208- )1HZ..ARL,GCC ; (0208- )1HZ..LHD..GEN
12V 80A,120A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

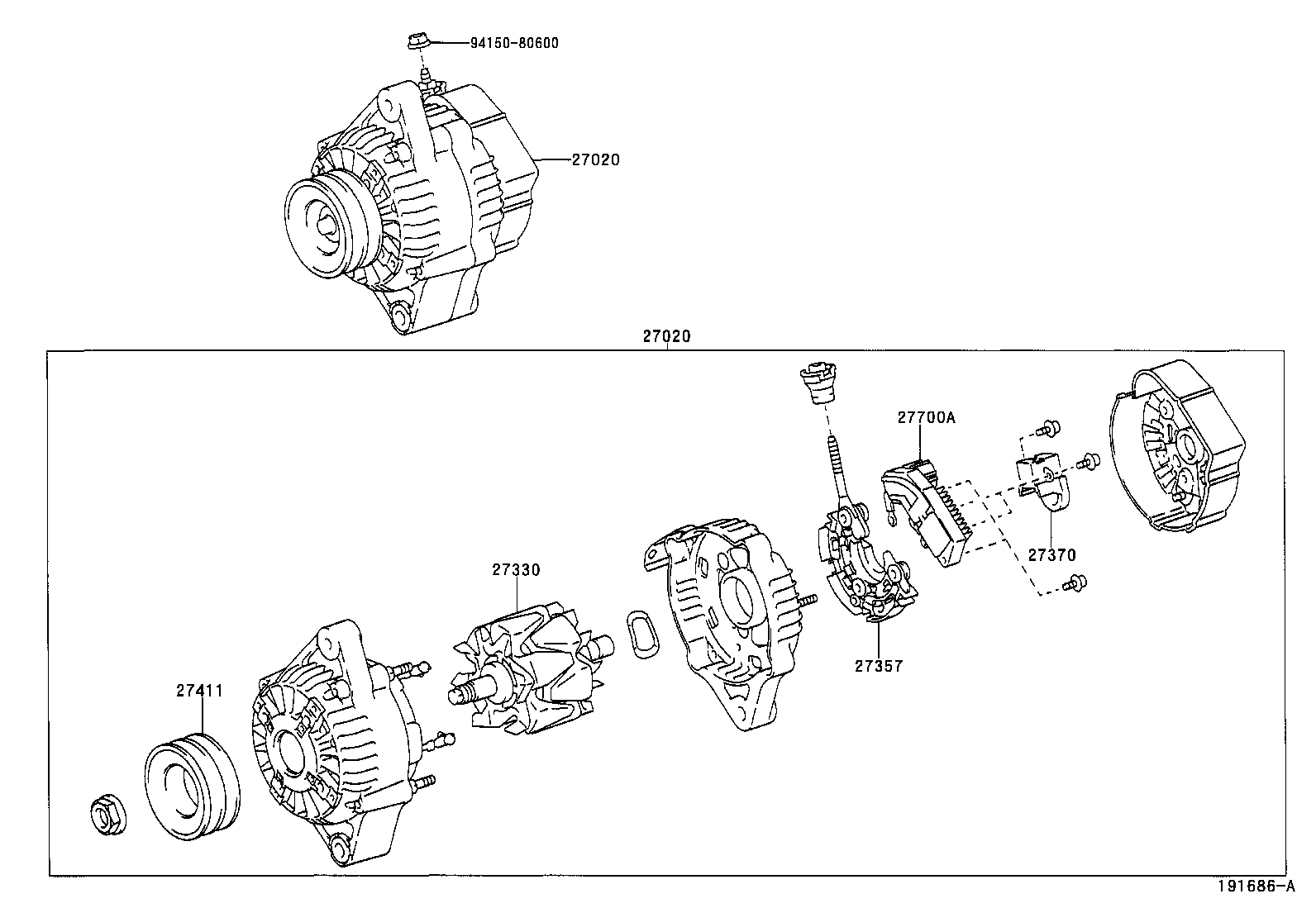

| 27020 - ALTERNATOR ASSY | ||||
| 27060-17210 |
1H#..HDJ100,HZJ105..5F..(GCC,GEN) 12V 70A |
1 | ||
| 27060-17220 |
1HDFTE..HDJ100..GEN;1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN 12V 80A |
1 | ||
| 27060-17220 |
1HDFTE..HDJ100..GEN;1HZ..HZJ105..LHD..SOB 12V 80A |
1 | ||
| 27020 - ALTERNATOR ASSY | ||||
| 27060-17210 |
1H#..HDJ100,HZJ105..5F..(GCC,GEN) 12V 70A |
1 | ||
| 27060-17220 |
1HDFTE..HDJ100..GEN;1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN 12V 80A |
1 | ||
| 27060-17220 |
1HDFTE..HDJ100..GEN;1HZ..HZJ105..LHD..SOB 12V 80A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-67100 |
1H#..HDJ100,HZJ105..5F..(GCC,GEN) 12V 70A |
1 | ||
| 27330-74550 |
1HDFTE..HDJ100..GEN;1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN 12V 80A |
1 | ||
| 27330-74550 |
1HDFTE..HDJ100..GEN;1HZ..HZJ105..LHD..SOB 12V 80A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-67100 |
1H#..HDJ100,HZJ105..5F..(GCC,GEN) 12V 70A |
1 | ||
| 27357-55080 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN;1FZFE,1HDFTE..FZJ10#,HDJ100..GCC,GEN 12V 80A |
1 | ||
| 27357-55080 |
1HZ..HZJ105..LHD..SOB;1FZFE,1HDFTE..FZJ10#,HDJ100..GCC,GEN 12V 80A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
1HZ..HZJ105..ARL,GCC;2UZFE..UZJ100..GCC,GEN;1HZ..HZJ105..LHD..SOB..GEN;1FZFE,1HDFTE..FZJ10#,HDJ100..ARL,GCC,GEN 12V 80A,100A,120A |
1 | ||
| 27370-58320 |
1H#..HDJ100,HZJ105..5F..(GCC,GEN) 12V 70A |
1 | ||
| 27370-75060 |
1HZ..HZJ105..ARL,GCC;2UZFE..UZJ100..GCC,GEN;1HZ..HZJ105..LHD..SOB..GEN;1FZFE,1HDFTE..FZJ10#,HDJ100..ARL,GCC,GEN 12V 80A,100A,120A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-17030 |
1HDFTE..HDJ100;1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN 12V 80A,120A |
1 | ||
| 27411-17010 |
1H#..HDJ100,HZJ105..5F..(GCC,GEN) 12V 70A |
1 | ||
| 27411-17030 |
1HDFTE..HDJ100;1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN 12V 80A,120A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-50050 |
1H#,2UZFE..HDJ100,HZJ105,UZJ100 |
1 | ||
| 27700-50030 |
1H#..HDJ100,HZJ105 |
1 | ||
| 27700-50030 |
1H#..HDJ100,HZJ105 |
1 | ||
| Common parts | ||||
| 94150-80600 | ||||
(0208- )1H#..5F..GCC,GEN
12V 70A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-17210 |
1H#..HDJ100,HZJ105..5F..(GCC,GEN) 12V 70A |
1 | ||
| 27060-17220 |
1HDFTE..HDJ100..GEN;1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN 12V 80A |
1 | ||
| 27060-17220 |
1HDFTE..HDJ100..GEN;1HZ..HZJ105..LHD..SOB 12V 80A |
1 | ||
| 27020 - ALTERNATOR ASSY | ||||
| 27060-17210 |
1H#..HDJ100,HZJ105..5F..(GCC,GEN) 12V 70A |
1 | ||
| 27060-17220 |
1HDFTE..HDJ100..GEN;1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN 12V 80A |
1 | ||
| 27060-17220 |
1HDFTE..HDJ100..GEN;1HZ..HZJ105..LHD..SOB 12V 80A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-67100 |
1H#..HDJ100,HZJ105..5F..(GCC,GEN) 12V 70A |
1 | ||
| 27330-74550 |
1HDFTE..HDJ100..GEN;1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN 12V 80A |
1 | ||
| 27330-74550 |
1HDFTE..HDJ100..GEN;1HZ..HZJ105..LHD..SOB 12V 80A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-67100 |
1H#..HDJ100,HZJ105..5F..(GCC,GEN) 12V 70A |
1 | ||
| 27357-55080 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN;1FZFE,1HDFTE..FZJ10#,HDJ100..GCC,GEN 12V 80A |
1 | ||
| 27357-55080 |
1HZ..HZJ105..LHD..SOB;1FZFE,1HDFTE..FZJ10#,HDJ100..GCC,GEN 12V 80A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
1HZ..HZJ105..ARL,GCC;2UZFE..UZJ100..GCC,GEN;1HZ..HZJ105..LHD..SOB..GEN;1FZFE,1HDFTE..FZJ10#,HDJ100..ARL,GCC,GEN 12V 80A,100A,120A |
1 | ||
| 27370-58320 |
1H#..HDJ100,HZJ105..5F..(GCC,GEN) 12V 70A |
1 | ||
| 27370-75060 |
1HZ..HZJ105..ARL,GCC;2UZFE..UZJ100..GCC,GEN;1HZ..HZJ105..LHD..SOB..GEN;1FZFE,1HDFTE..FZJ10#,HDJ100..ARL,GCC,GEN 12V 80A,100A,120A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-17030 |
1HDFTE..HDJ100;1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN 12V 80A,120A |
1 | ||
| 27411-17010 |
1H#..HDJ100,HZJ105..5F..(GCC,GEN) 12V 70A |
1 | ||
| 27411-17030 |
1HDFTE..HDJ100;1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN 12V 80A,120A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-50050 |
1H#,2UZFE..HDJ100,HZJ105,UZJ100 |
1 | ||
| 27700-50030 |
1H#..HDJ100,HZJ105 |
1 | ||
| 27700-50030 |
1H#..HDJ100,HZJ105 |
1 | ||
| Common parts | ||||
| 94150-80600 | ||||
