HDJ100L-GCMEZ (2002)
Toyota Land Cruiser 100

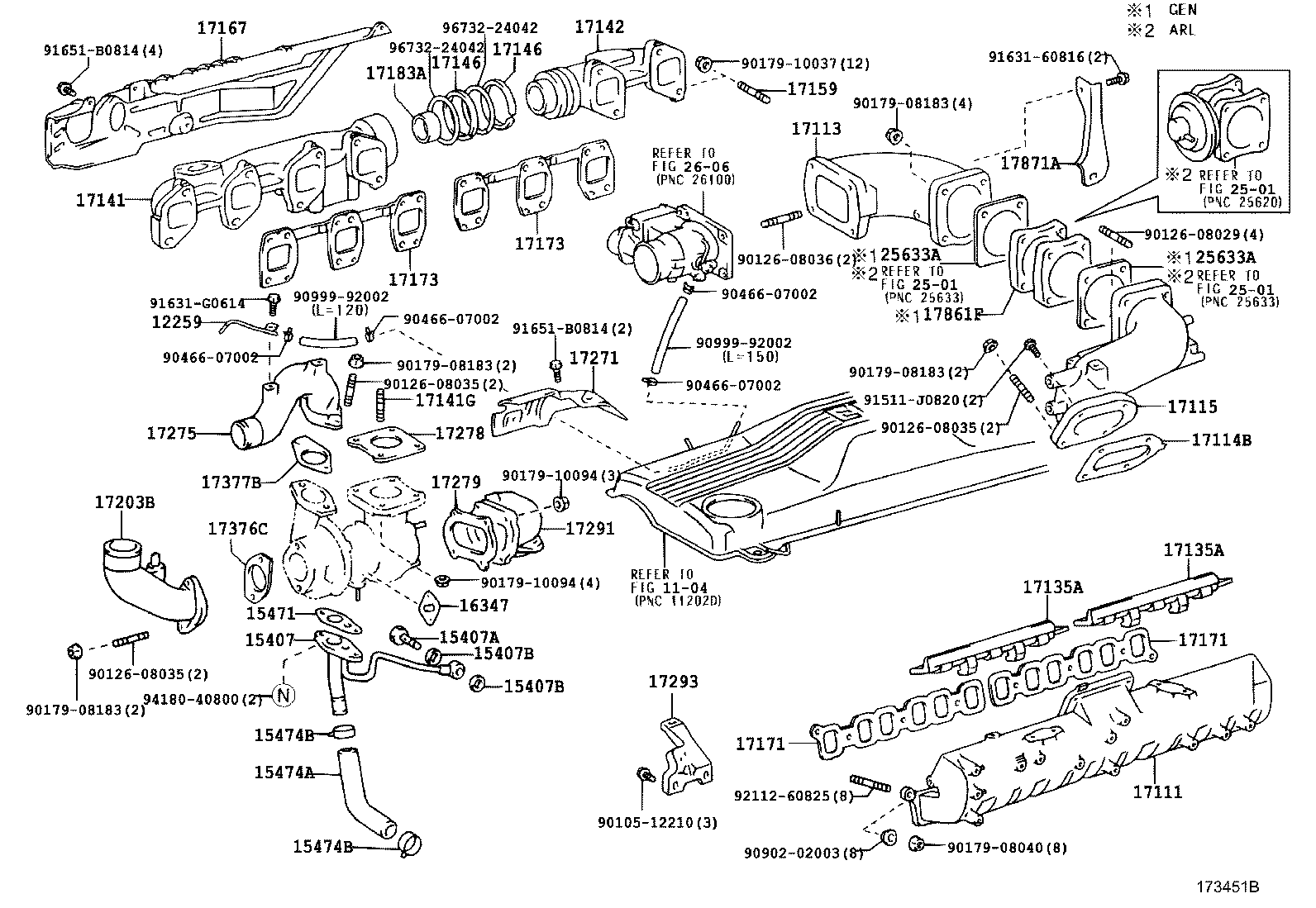

ILLUST NO. 1 OF 2(0208- )1HDFTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12259 - PIPE, OIL RETURN, NO.2 | ||||
| 12259-17010 |
1HDFTE..HDJ100 |
1 | ||
| 12259-17010 |
1HDFTE..HDJ100 |
1 | ||
| 15407 - PIPE SUB-ASSY, TURBO OIL INLET | ||||
| 15407-17020 |
1HDFTE..HDJ100 |
1 | ||
| 15407-17020 |
1HD#..HDJ100 |
1 | ||
| 15407-17020 |
1HDFTE..HDJ100 |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| 90401-12097 |
1HDFTE..HDJ100 |
1 | ||
| 90401-12097 |
1HDFTE..HDJ100 |
1 | ||
| 90401-12097 |
1HD#..HDJ100 |
1 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90430-12221 |
1HDFTE..HDJ100 |
2 | ||
| 90430-12221 |
1HD#..HDJ100 |
2 | ||
| 90430-12221 |
1HDFTE..HDJ100 |
2 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90430-12221 |
1HDFTE..HDJ100 |
2 | ||
| 90430-12221 |
1HD#..HDJ100 |
2 | ||
| 90430-12221 |
1HDFTE..HDJ100 |
2 | ||
| 15471 - GASKET, TURBO OIL INLET | ||||
| 15471-58010 |
1HDFTE..HDJ100 |
1 | ||
| 15471-58010 |
1HDFTE..HDJ100 |
1 | ||
| 15471-58010 |
1HD#..HDJ100 |
1 | ||
| 15474A - HOSE, TURBO OIL OUTLET | ||||
| 90910-05206 |
1HD#..HDJ100 |
1 | ||
| 90910-05206 |
1HDFTE..HDJ100 |
1 | ||
| 90910-05206 |
1HDFTE..HDJ100 |
1 | ||
| 15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE) | ||||
| 96134-52600 |
1HDFTE..HDJ100 |
2 | ||
| 90467-26001 |
1HD#..HDJ100 |
2 | ||
| 96134-52600 |
1HDFTE..HDJ100 |
2 | ||
| 15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE) | ||||
| 96134-52600 |
1HDFTE..HDJ100 |
2 | ||
| 90467-26001 |
1HD#..HDJ100 |
2 | ||
| 96134-52600 |
1HDFTE..HDJ100 |
2 | ||
| 16347 - GASKET, WATER BY-PASS | ||||
| 16347-42020 |
1HDFTE..HDJ100 |
1 | ||
| 16347-42020 |
1HDFTE..HDJ100 |
1 | ||
| 16347-42020 |
1HD#..HDJ100 |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-17012 |
1H#..HDJ100,HZJ105 |
1 | ||
| 17111-17031 |
1HDFTE..HDJ100 |
1 | ||
| 17111-17031 |
1HDFTE..HDJ100 |
1 | ||
| 17113 - PIPE, INTAKE | ||||
| 17113-17100 |
1HDFTE..HDJ100 |
1 | ||
| 17113-17100 |
1HDFTE..HDJ100 |
1 | ||
| 17114B - GASKET, INTAKE FLANGE | ||||
| 17116-17020 |
1HDFTE..HDJ100 |
1 | ||
| 17116-17020 |
1HDFTE..HDJ100 |
1 | ||
| 17115 - GASKET, INTAKE MANIFOLD HOLE COVER | ||||
| 17115-17021 |
1HDFTE..HDJ100 |
1 | ||
| 17115-17021 |
1HDFTE..HDJ100 |
1 | ||
| 17135A - INSULATOR, INTAKE MANIFOLD, NO.1 | ||||
| 17135-17010 |
1HDFTE..HDJ100 |
2 | ||
| 17135-17010 |
1HDFTE..HDJ100 |
2 | ||
| 17135A - INSULATOR, INTAKE MANIFOLD, NO.1 | ||||
| 17135-17010 |
1HDFTE..HDJ100 |
2 | ||
| 17135-17010 |
1HDFTE..HDJ100 |
2 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-17031 |
1HDFTE..HDJ100 |
1 | ||
| 17141-17031 |
1HDFTE..HDJ100 |
1 | ||
| 17141G - BOLT, STUD(FOR TURBOCHARGER) | ||||
| 90116-10117 |
1HDFTE..HDJ100 |
4 | ||
| 90116-10117 |
1HDFTE..HDJ100 |
4 | ||
| 90116-10117 |
1HD#..HDJ100 |
4 | ||
| 17142 - CASE, EXHAUST MANIFOLD, NO.2 | ||||
| 17142-17020 |
1HDFTE..HDJ100..GEN |
1 | ||
| 17142-17010 |
1H#..HDJ100,HZJ105 REFER TO ILLUST. |
1 | ||
| 17142-17020 |
1HDFTE..HDJ100..GEN |
1 | ||
| 17146 - RING, EXHAUST MANIFOLD | ||||
| 17151-17010 |
1HD#,1HZ..HDJ100,HZJ105 |
2 | ||
| 17151-17010 |
1H#..HDJ100,HZJ105 |
2 | ||
| 17151-17010 |
1H#..HDJ100,HZJ105 |
2 | ||
| 17146 - RING, EXHAUST MANIFOLD | ||||
| 17151-17010 |
1HD#,1HZ..HDJ100,HZJ105 |
2 | ||
| 17151-17010 |
1H#..HDJ100,HZJ105 |
2 | ||
| 17151-17010 |
1H#..HDJ100,HZJ105 |
2 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10171 |
1HD#,1HZ..HDJ100,HZJ105 |
12 | ||
| 90116-10171 |
1H#..HDJ100,HZJ105 |
12 | ||
| 90116-10171 |
1H#..HDJ100,HZJ105 |
12 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-17052 |
1HDFTE..HDJ100..GEN |
1 | ||
| 17167-17052 |
1HDFTE..HDJ100..GEN |
1 | ||
| 17171 - GASKET, INTAKE TO EXHAUST MANIFOLD | ||||
| 17171-17030 |
1HDFTE..HDJ100 |
2 | ||
| 17171-17030 |
1HDFTE..HDJ100 |
2 | ||
| 17171 - GASKET, INTAKE TO EXHAUST MANIFOLD | ||||
| 17171-17030 |
1HDFTE..HDJ100 |
2 | ||
| 17171-17030 |
1HDFTE..HDJ100 |
2 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-17020 |
1HDFTE..HDJ100 |
2 | ||
| 17173-17020 |
1HDFTE..HDJ100 |
2 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-17020 |
1HDFTE..HDJ100 |
2 | ||
| 17173-17020 |
1HDFTE..HDJ100 |
2 | ||
| 17183A - COLLAR, MANIFOLD | ||||
| 17183-17010 |
1HD#,1HZ..HDJ100,HZJ105 |
1 | ||
| 17183-17010 |
1H#..HDJ100,HZJ105 |
1 | ||
| 17183-17010 |
1H#..HDJ100,HZJ105 |
1 | ||
| 17203B - ELBOW SUB-ASSY, COMPRESSOR INLET | ||||
| 17203-17010 |
1HDFTE..HDJ100 |
1 | ||
| 17203-17010 |
1HDFTE..HDJ100 |
1 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-17010 |
1HDFTE..HDJ100 |
1 | ||
| 17271-17010 |
1HDFTE..HDJ100 |
1 | ||
| 17271-17010 |
1HD#..HDJ100 |
1 | ||
| 17275 - ELBOW, COMPRESSOR OUTLET | ||||
| 17275-17011 |
1HDFTE..HDJ100 |
1 | ||
| 17275-17011 |
1HDFTE..HDJ100 |
1 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| 17278-17010 |
1HDFTE..HDJ100 |
1 | ||
| 17278-17010 |
1HDFTE..HDJ100 |
1 | ||
| 17278-17010 |
1HD#..HDJ100 |
1 | ||
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 17279-17020 |
1HD#..HDJ100 |
1 | ||
| 17279-17020 |
1HDFTE..HDJ100 |
1 | ||
| 17279-17020 |
1HDFTE..HDJ100 |
1 | ||
| 17291 - ELBOW, TURBINE OUTLET | ||||
| 17291-17030 |
1HD#..HDJ100 |
1 | ||
| 17291-17030 |
1HDFTE..HDJ100 |
1 | ||
| 17291-17030 |
1HDFTE..HDJ100 |
1 | ||
| 17293 - STAY, TURBOCHARGER | ||||
| 17293-17020 |
1HD#..HDJ100 |
1 | ||
| 17293-17020 |
1HDFTE..HDJ100 |
1 | ||
| 17293-17020 |
1HDFTE..HDJ100 |
1 | ||
| 17376C - GASKET, AIR TUBE | ||||
| 17376-17010 |
1HDFTE..HDJ100 |
1 | ||
| 17376-17010 |
1HDFTE..HDJ100 |
1 | ||
| 17377B - GASKET, AIR TUBE, NO.2 | ||||
| 17377-88410 |
1HDFTE..HDJ100 |
1 | ||
| 17377-88410 |
1HDFTE..HDJ100 |
1 | ||
| 17861F - CONNECTOR, INTAKE AIR | ||||
| 17861-17030 |
1HDFTE..HDJ100..GEN |
1 | ||
| 17861-17030 |
1HDFTE..HDJ100..GEN |
1 | ||
| 17871A - STAY, AIR CONNECTOR | ||||
| 17871-17020 |
1HDFTE..HDJ100 |
1 | ||
| 17871-17020 |
1HDFTE..HDJ100 |
1 | ||
| 25633A - GASKET, EGR VALVE | ||||
| 25633-17020 |
1HDFTE..HDJ100..GEN |
2 | ||
| 25633-17020 |
1HDFTE..HDJ100..GEN |
2 | ||
| 25633A - GASKET, EGR VALVE | ||||
| 25633-17020 |
1HDFTE..HDJ100..GEN |
2 | ||
| 25633-17020 |
1HDFTE..HDJ100..GEN |
2 | ||
| Common parts | ||||
| 90105-12210 | ||||
| 90126-08029 | ||||
| 90126-08035 | ||||
| 90126-08036 | ||||
| 90179-08040 | ||||
| 90179-08183 | ||||
| 90179-10037 | ||||
| 90179-10094 | ||||
| 90466-07002 | ||||
| 90902-02003 | ||||
| 90999-92002 | ||||
| 91511-J0820 | ||||
| 91631-60816 | ||||
| 91631-G0614 | ||||
| 91651-B0814 | ||||
| 92112-60825 | ||||
| 94180-40800 | ||||
| 96732-24042 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 2501 | ||||
| 2606 | ||||
