HDJ100L-GCMEZ (2002)
Toyota Land Cruiser 100
Production
Aug 2002
-
Aug 2007
Engine
1HDFTE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9801- )1HD#,1HZ

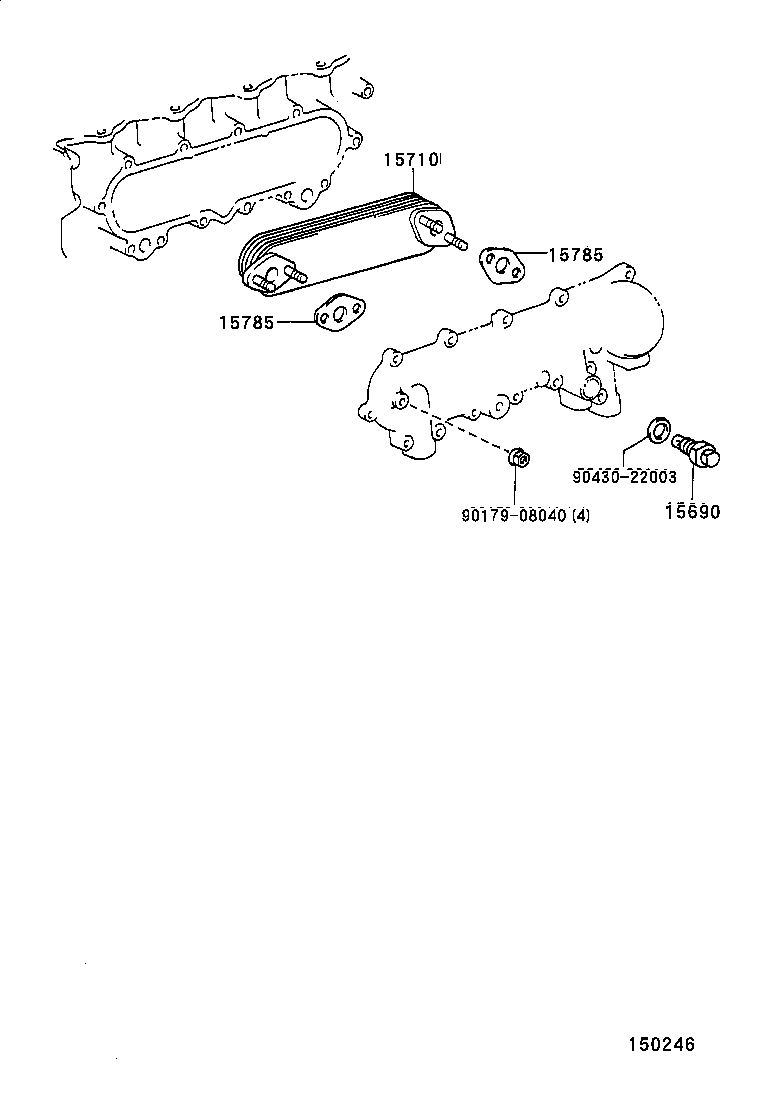

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15690 - VALVE ASSY, OIL COOLER RELIEF | ||||
| 15690-64010 |
1H#..HDJ100,HZJ105 |
1 | ||
| 15690-64010 |
1H#..HDJ100,HZJ105 |
1 | ||
| 15690-64010 |
1HD#,1HZ..HDJ100,HZJ105 |
1 | ||
| 15710 - COOLER ASSY, OIL | ||||
| 15710-17021 |
1HDFTE..HDJ100 |
1 | ||
| 15710-17021 |
1HDFTE..HDJ100 |
1 | ||
| 15785 - GASKET, OIL COOLER | ||||
| 15785-66010 |
1H#..HDJ100,HZJ105 |
2 | ||
| 15785-66010 |
1HD#,1HZ..HDJ100,HZJ105 |
2 | ||
| 15785-66010 |
1H#..HDJ100,HZJ105 |
2 | ||
| 15785 - GASKET, OIL COOLER | ||||
| 15785-66010 |
1H#..HDJ100,HZJ105 |
2 | ||
| 15785-66010 |
1HD#,1HZ..HDJ100,HZJ105 |
2 | ||
| 15785-66010 |
1H#..HDJ100,HZJ105 |
2 | ||
| Common parts | ||||
| 90179-08040 | ||||
| 90430-22003 | ||||
