HDJ100L-GCMEX (1998)
Toyota Land Cruiser 100
ILLUST NO. 2 OF 2(9801-0505)FZJ10#,HDJ100,HZJ105 ; (9801-0505)UZJ100..5FC..ARL,CHI,GEN ; (0505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88304 - CYLINDER SUB-ASSY, COOLER COMPRESSOR | ||||
| 88304-60030 |
FZJ100,HDJ100..GCC,GEN |
1 | ||
| 88304-60030 |
FZJ100,HDJ100..GCC,GEN |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-32010 |
HDJ100..GEN W(DUAL AIR CONDITIONER),FRONT |
1 | ||
| 88321-32010 |
HDJ100..GEN W(DUAL AIR CONDITIONER),FRONT |
1 | ||
| 88321-2B010 |
HDJ100;HZJ105..STD..ARL W(SINGLE AUTOMATIC AIR CONDITIONER),FRONT |
1 | ||
| 88321-2B010 |
HDJ100;HZJ105..STD..ARL W(SINGLE AUTOMATIC AIR CONDITIONER),FRONT |
1 | ||
| 88322-32040 |
FZJ10#,HDJ100,HZJ105 W(SINGLE AIR CONDITIONER),REAR |
1 | ||
| 88322-32040 |
FZJ10#,HDJ100,HZJ105 W(SINGLE AIR CONDITIONER),REAR |
1 | ||
| 88322-32040 |
HDJ100..SOB W(DUAL AIR CONDITIONER),REAR |
1 | ||
| 88322-32040 |
HDJ100..SOB W(DUAL AIR CONDITIONER),REAR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-32010 |
HDJ100..GEN W(DUAL AIR CONDITIONER),FRONT |
1 | ||
| 88321-32010 |
HDJ100..GEN W(DUAL AIR CONDITIONER),FRONT |
1 | ||
| 88321-2B010 |
HDJ100;HZJ105..STD..ARL W(SINGLE AUTOMATIC AIR CONDITIONER),FRONT |
1 | ||
| 88321-2B010 |
HDJ100;HZJ105..STD..ARL W(SINGLE AUTOMATIC AIR CONDITIONER),FRONT |
1 | ||
| 88322-32040 |
FZJ10#,HDJ100,HZJ105 W(SINGLE AIR CONDITIONER),REAR |
1 | ||
| 88322-32040 |
FZJ10#,HDJ100,HZJ105 W(SINGLE AIR CONDITIONER),REAR |
1 | ||
| 88322-32040 |
HDJ100..SOB W(DUAL AIR CONDITIONER),REAR |
1 | ||
| 88322-32040 |
HDJ100..SOB W(DUAL AIR CONDITIONER),REAR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-22010 |
FZJ10#,HDJ100,HZJ105 W(SINGLE AIR CONDITIONER),FRONT |
1 | ||
| 88341-22010 |
FZJ10#,HDJ100,HZJ105 W(SINGLE AIR CONDITIONER),FRONT |
1 | ||
| 88342-22010 |
FZJ10#,HDJ100,HZJ105 W(SINGLE AIR CONDITIONER),REAR |
1 | ||
| 88342-22010 |
FZJ10#,HDJ100,HZJ105 W(SINGLE AIR CONDITIONER),REAR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88341-22010 |
FZJ10#,HDJ100,HZJ105 W(SINGLE AIR CONDITIONER),FRONT |
1 | ||
| 88341-22010 |
FZJ10#,HDJ100,HZJ105 W(SINGLE AIR CONDITIONER),FRONT |
1 | ||
| 88342-22010 |
FZJ10#,HDJ100,HZJ105 W(SINGLE AIR CONDITIONER),REAR |
1 | ||
| 88342-22010 |
FZJ10#,HDJ100,HZJ105 W(SINGLE AIR CONDITIONER),REAR |
1 | ||
| 88329E - BOLT, COMPRESSOR, NO.1 | ||||
| 90099-04370 |
HDJ100,HZJ105 W(SINGLE AIR CONDITIONER) |
5 | ||
| 90099-04370 |
HDJ100,HZJ105 W(SINGLE AIR CONDITIONER) |
5 | ||
| 90099-04958 |
HDJ100..GEN W(DUAL AIR CONDITIONER) |
5 | ||
| 90099-04958 |
HDJ100..GEN W(DUAL AIR CONDITIONER) |
5 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-2B030 |
FZJ105..GX;HZJ105..GX..ARL;FZJ105..STD..GEN;FZJ100,HDJ100,HZJ105..GCC,GEN W(SINGLE AIR CONDITIONER) |
1 | ||
| 88335-2B030 |
FZJ105..GX;HZJ105..GX..ARL;FZJ105..STD..GEN;FZJ100,HDJ100,HZJ105..GCC,GEN W(SINGLE AIR CONDITIONER) |
1 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-14020 |
HZJ105..GX..ARL;FZJ100,HDJ100,HZJ105..GCC,GEN W(SINGLE AIR CONDITIONER) |
2 | ||
| 88343-14020 |
HZJ105..GX..ARL;FZJ100,HDJ100,HZJ105..GCC,GEN W(SINGLE AIR CONDITIONER) |
2 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-14020 |
HZJ105..GX..ARL;FZJ100,HDJ100,HZJ105..GCC,GEN W(SINGLE AIR CONDITIONER) |
2 | ||
| 88343-14020 |
HZJ105..GX..ARL;FZJ100,HDJ100,HZJ105..GCC,GEN W(SINGLE AIR CONDITIONER) |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-22010 |
FZJ105..GX;HZJ105..GX..ARL;FZJ105..STD..GEN;FZJ100,HDJ100,HZJ105..GCC,GEN W(SINGLE AIR CONDITIONER) |
2 | ||
| 88344-22010 |
FZJ105..GX;HZJ105..GX..ARL;FZJ105..STD..GEN;FZJ100,HDJ100,HZJ105..GCC,GEN W(SINGLE AIR CONDITIONER) |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-22010 |
FZJ105..GX;HZJ105..GX..ARL;FZJ105..STD..GEN;FZJ100,HDJ100,HZJ105..GCC,GEN W(SINGLE AIR CONDITIONER) |
2 | ||
| 88344-22010 |
FZJ105..GX;HZJ105..GX..ARL;FZJ105..STD..GEN;FZJ100,HDJ100,HZJ105..GCC,GEN W(SINGLE AIR CONDITIONER) |
2 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 90096-90022 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 88360C - SEAL ASSY, SHAFT | ||||
| 88360-2B020 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 88360-2B020 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 88371A - VALVE, SUCTION | ||||
| 88371-60410 |
HDJ100,HZJ105..ARL,GEN |
1 | ||
| 88371-60410 |
HDJ100,HZJ105..ARL,GEN |
1 | ||
| Common parts | ||||
| 90099-04924 | ||||
| 90099-08058 | ||||

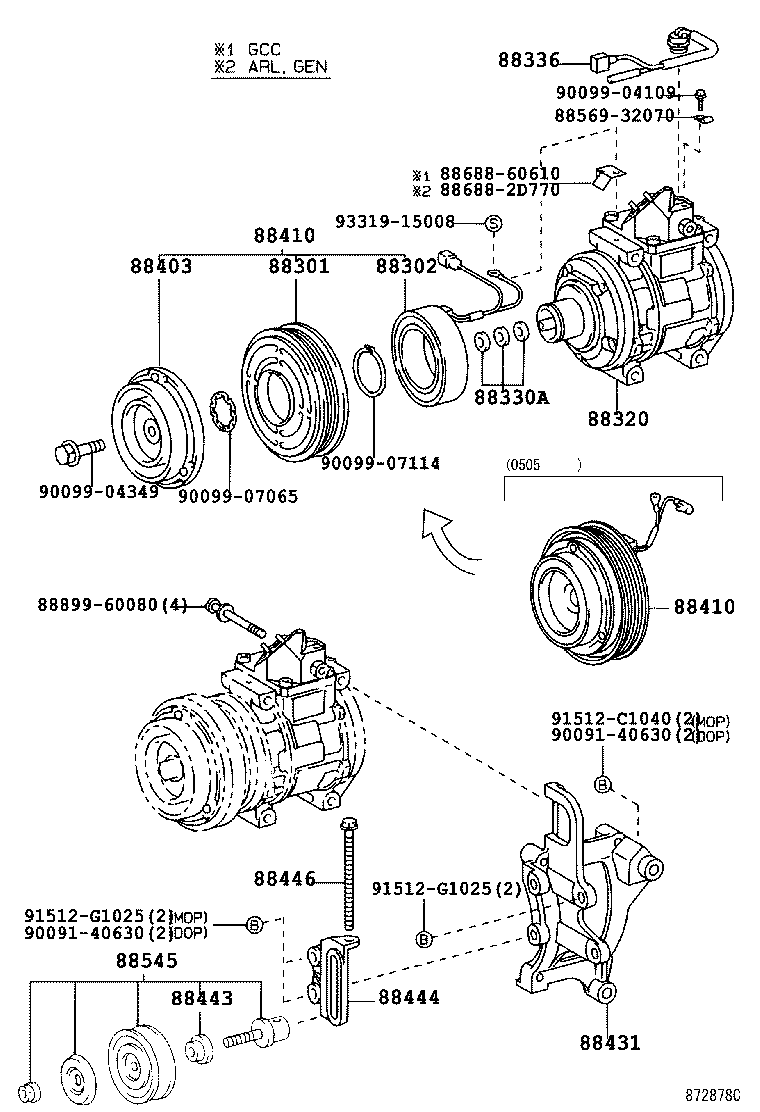

ILLUST NO. 1 OF 2(9801- )HZJ105 ; (9801- )HDJ100..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-30430 |
HDJ100,HZJ105..DSL2,TD2 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-2A030 |
FZJ100,HDJ100,HZJ105 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-60700 |
HDJ100,HZJ105..ARL,GEN W(SINGLE AIR CONDITIONER) |
1 | ||
| 88320-60720 |
HDJ100..GEN W(DUAL AIR CONDITIONER) |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..LHD..(STD,VX) |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-30290 |
FZJ105..GX;FZJ100,HDJ100,HZJ105;FZJ105,UZJ100..(STD,VX)..GEN |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-22480 |
HDJ100,HZJ105..DSL2,TD2 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-22480 |
HDJ100,HZJ105..DSL2,TD2 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-60150 |
HDJ100,HZJ105..DSL2,TD2 |
1 | ||
| 88443 - COLLAR, IDLE PULLEY | ||||
| 88443-36010 |
HZJ105..GX..ARL;HDJ100,HZJ105..GCC,GEN |
1 | ||
| 88444 - BRACKET, IDLE PULLEY | ||||
| 88444-60110 |
HDJ100..GEN;HZJ105..SOB;HZJ105..LUB..GEN |
1 | ||
| 88446 - BOLT, IDLE PULLEY | ||||
| 88446-60030 |
HDJ100,HZJ105 |
1 | ||
| 88545 - PULLEY ASSY, IDLE | ||||
| 88440-35010 |
HDJ100,HZJ105..GCC,GEN |
1 | ||
| 88440-60040 |
HDJ100,HZJ105 |
1 | ||
| Common parts | ||||
| 88569-32070 | ||||
| 88688-2D770 | ||||
| 88688-60610 | ||||
| 88899-60080 | ||||
| 90091-40630 | ||||
| 90099-04109 | ||||
| 90099-04349 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 91512-C1040 | ||||
| 91512-G1025 | ||||
| 93319-15008 | ||||
