HDJ100L-GCMEX (1998)
Toyota Land Cruiser 100
Production
Jan 1998
-
Aug 2002
Engine
1HDT
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9801-0208)HDJ100..LHD

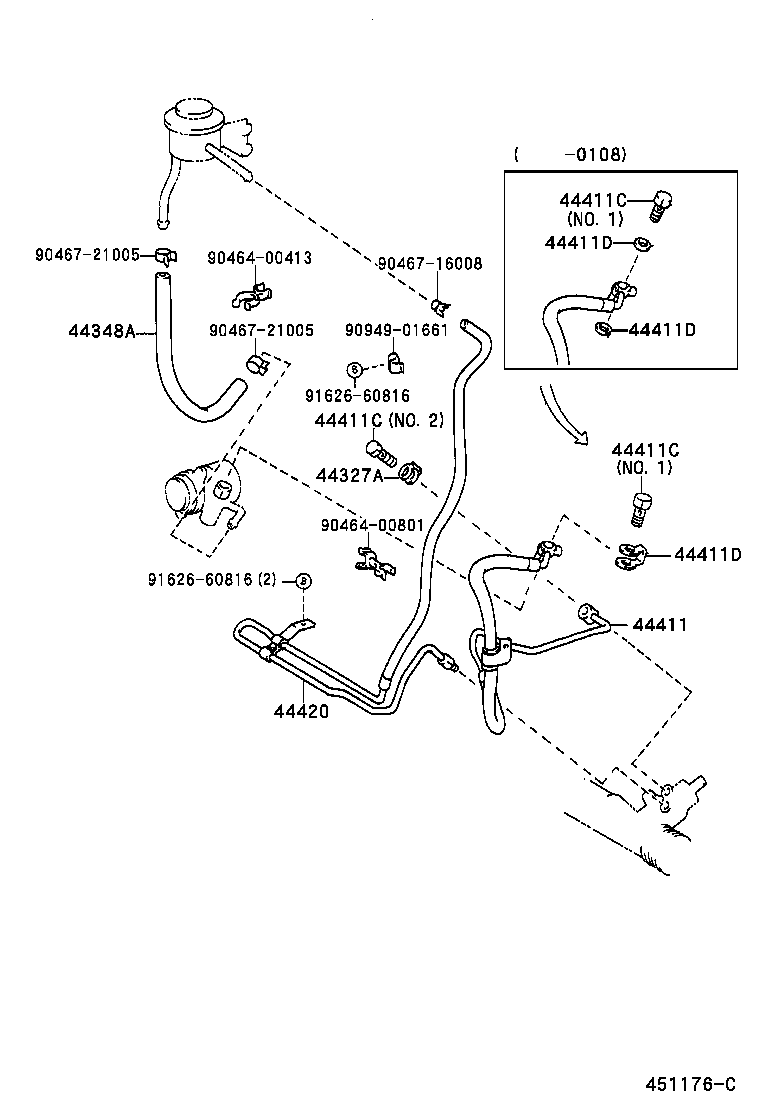

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-30030 |
UZJ100..LHD;FZJ100,HDJ100 |
1 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-60280 |
HDJ100..GEN |
1 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-60580 |
HDJ100..LHD |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16027 |
FZJ100,HDJ100..GCC,GEN NO.1 |
1 | ||
| 90401-16040 |
FZJ100,HDJ100,UZJ100 NO.2 |
1 | ||
| 96341-41603 |
FZJ100,HDJ100..GCC,GEN NO.1 |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16027 |
FZJ100,HDJ100..GCC,GEN NO.1 |
1 | ||
| 90401-16040 |
FZJ100,HDJ100,UZJ100 NO.2 |
1 | ||
| 96341-41603 |
FZJ100,HDJ100..GCC,GEN NO.1 |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16027 |
FZJ100,HDJ100..GCC,GEN NO.1 |
1 | ||
| 90401-16040 |
FZJ100,HDJ100,UZJ100 NO.2 |
1 | ||
| 96341-41603 |
FZJ100,HDJ100..GCC,GEN NO.1 |
1 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 44327-30030 |
FZJ10#,HDJ100,HZJ105..DSL2,EFI,TD2 |
1 | ||
| 90430-16168 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 44327-30030 |
FZJ10#,HDJ100,HZJ105..DSL2,EFI,TD2 |
1 | ||
| 90430-16168 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 44327-30030 |
FZJ10#,HDJ100,HZJ105..DSL2,EFI,TD2 |
1 | ||
| 90430-16168 |
FZJ10#,HDJ100,HZJ105,UZJ100 |
2 | ||
| 44420 - COOLER ASSY, OIL | ||||
| 44420-60370 |
HDJ100..LHD |
1 | ||
| Common parts | ||||
| 90464-00413 | ||||
| 90464-00801 | ||||
| 90467-16008 | ||||
| 90467-21005 | ||||
| 90949-01661 | ||||
| 91626-60816 | ||||
