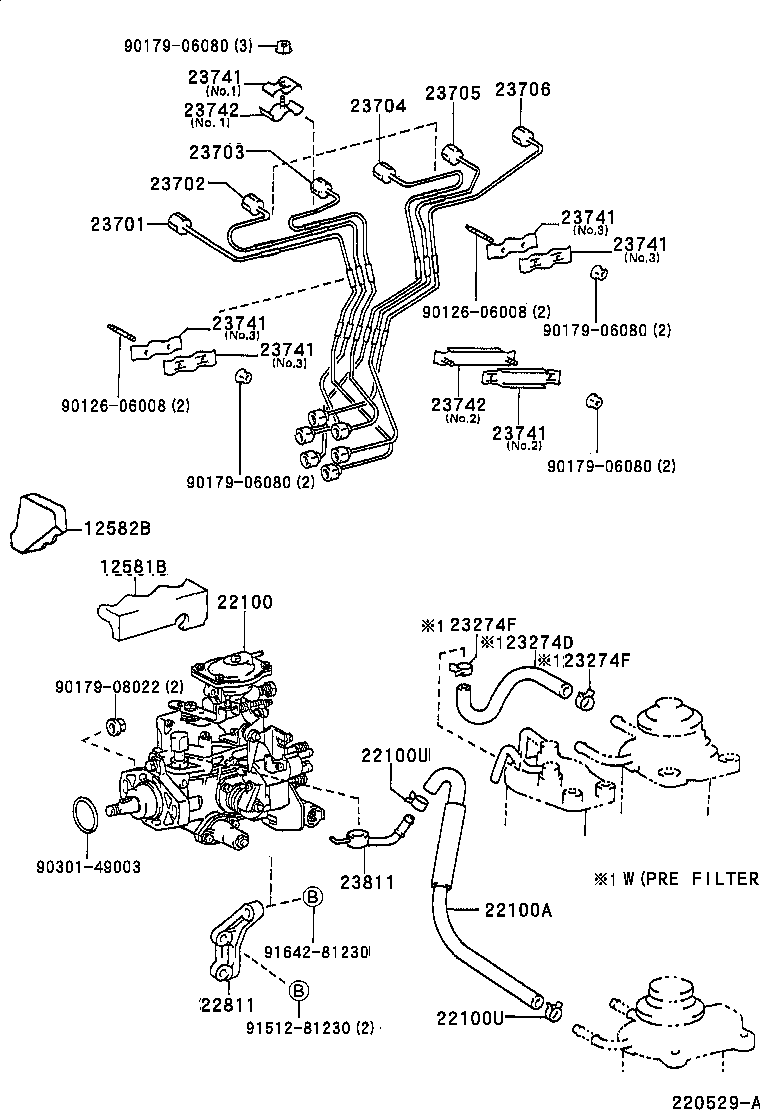

HDJ100L-GCMEX (1998)
Toyota Land Cruiser 100
(9801-0208)1HDT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12581B - INSULATOR, CYLINDER BLOCK, NO.1 | ||||
| 12581-17011 |
1HDT..HDJ100;1HZ..HZJ105..5F..ARL;1HZ..HZJ105..LHD..SOB..GEN |
1 | ||
| 12582B - INSULATOR, CYLINDER BLOCK, NO.2 | ||||
| 12582-17010 |
1HD#..HDJ100 |
1 | ||
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-17541 |
1HDT..HDJ100..SOB PHILIPPINES SPEC |
1 | ||
| 22100-17581 |
1HDT..HDJ100..5F |
1 | ||
| 22100-17561 |
1HDT..HDJ100..5F W(HIGH ALTITUDE COMPENSATOR) |
1 | ||
| 22100-1C130 |
1HDT..HDJ100..SOB W(ENGINE IMMOBILIZER SYSTEM & PHILIPPINES SPEC) |
1 | ||
| 22100-1C120 |
1HDT..HDJ100..5F W(ENGINE IMMOBILIZER SYSTEM) |
1 | ||
| 22100-1C140 |
1HDT..HDJ100..5F W(ENGINE IMMOBILIZER SYSTEM & HIGH ALTITUDE COMPENSATOR) |
1 | ||
| 22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) | ||||
| 23271-17130 |
1HDT,1HZ..HDJ100,HZJ105 |
1 | ||
| 22100U - CLIP, HOSE FUEL(FOR INJECTION PUMP) | ||||
| 96132-41500 |
1HDT,1HZ..HDJ100,HZJ105 |
2 | ||
| 22100U - CLIP, HOSE FUEL(FOR INJECTION PUMP) | ||||
| 96132-41500 |
1HDT,1HZ..HDJ100,HZJ105 |
2 | ||
| 22811 - STAY, INJECTION PUMP, NO.1 | ||||
| 22811-17011 |
1HDT,1HZ..HDJ100,HZJ105 |
1 | ||
| 23274D - HOSE, FUEL, NO.3 | ||||
| 23274-17040 |
1HDT..HDJ100 |
1 | ||
| 23274F - CLIP(FOR FUEL HOSE NO.3) | ||||
| 90467-18002 |
1HDT..HDJ100 |
2 | ||
| 23274F - CLIP(FOR FUEL HOSE NO.3) | ||||
| 90467-18002 |
1HDT..HDJ100 |
2 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-17020 |
1HDT..HDJ100 |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-17020 |
1HDT..HDJ100 |
1 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-17020 |
1HDT..HDJ100 |
1 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23704-17020 |
1HDT..HDJ100 |
1 | ||
| 23705 - PIPE SUB-ASSY, INJECTION, NO.5 | ||||
| 23705-17020 |
1HDT..HDJ100 |
1 | ||
| 23706 - PIPE SUB-ASSY, INJECTION, NO.6 | ||||
| 23706-17020 |
1HDT..HDJ100 |
1 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-17020 |
1HDT,1HZ..HDJ100,HZJ105 NO.2 |
1 | ||
| 23741-17010 |
1HDT,1HZ..HDJ100,HZJ105 NO.1 |
3 | ||
| 23741-17030 |
1HDT,1HZ..HDJ100,HZJ105 NO.3 |
4 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-17020 |
1HDT,1HZ..HDJ100,HZJ105 NO.2 |
1 | ||
| 23741-17010 |
1HDT,1HZ..HDJ100,HZJ105 NO.1 |
3 | ||
| 23741-17030 |
1HDT,1HZ..HDJ100,HZJ105 NO.3 |
4 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-17020 |
1HDT,1HZ..HDJ100,HZJ105 NO.2 |
1 | ||
| 23741-17010 |
1HDT,1HZ..HDJ100,HZJ105 NO.1 |
3 | ||
| 23741-17030 |
1HDT,1HZ..HDJ100,HZJ105 NO.3 |
4 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-17020 |
1HDT,1HZ..HDJ100,HZJ105 NO.2 |
1 | ||
| 23741-17010 |
1HDT,1HZ..HDJ100,HZJ105 NO.1 |
3 | ||
| 23741-17030 |
1HDT,1HZ..HDJ100,HZJ105 NO.3 |
4 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-17020 |
1HDT,1HZ..HDJ100,HZJ105 NO.2 |
1 | ||
| 23741-17010 |
1HDT,1HZ..HDJ100,HZJ105 NO.1 |
3 | ||
| 23741-17030 |
1HDT,1HZ..HDJ100,HZJ105 NO.3 |
4 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-17020 |
1HDT,1HZ..HDJ100,HZJ105 NO.2 |
1 | ||
| 23741-17010 |
1HDT,1HZ..HDJ100,HZJ105 NO.1 |
3 | ||
| 23741-17030 |
1HDT,1HZ..HDJ100,HZJ105 NO.3 |
4 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-17020 |
1HDT,1HZ..HDJ100,HZJ105 NO.2 |
1 | ||
| 23742-17010 |
1HDT,1HZ..HDJ100,HZJ105 NO.1 |
3 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-17020 |
1HDT,1HZ..HDJ100,HZJ105 NO.2 |
1 | ||
| 23742-17010 |
1HDT,1HZ..HDJ100,HZJ105 NO.1 |
3 | ||
| 23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP) | ||||
| 23811-17070 |
1HDT,1HZ..HDJ100,HZJ105 |
1 | ||
| Common parts | ||||
| 90126-06008 | ||||
| 90179-06080 | ||||
| 90179-08022 | ||||
| 90301-49003 | ||||
| 91512-81230 | ||||
| 91642-81230 | ||||
