HDJ100L-GCMEX (1998)

Toyota Land Cruiser 100

Production Jan 1998 - Aug 2002
Engine 1HDT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9801-0208)1HDT,1HZ

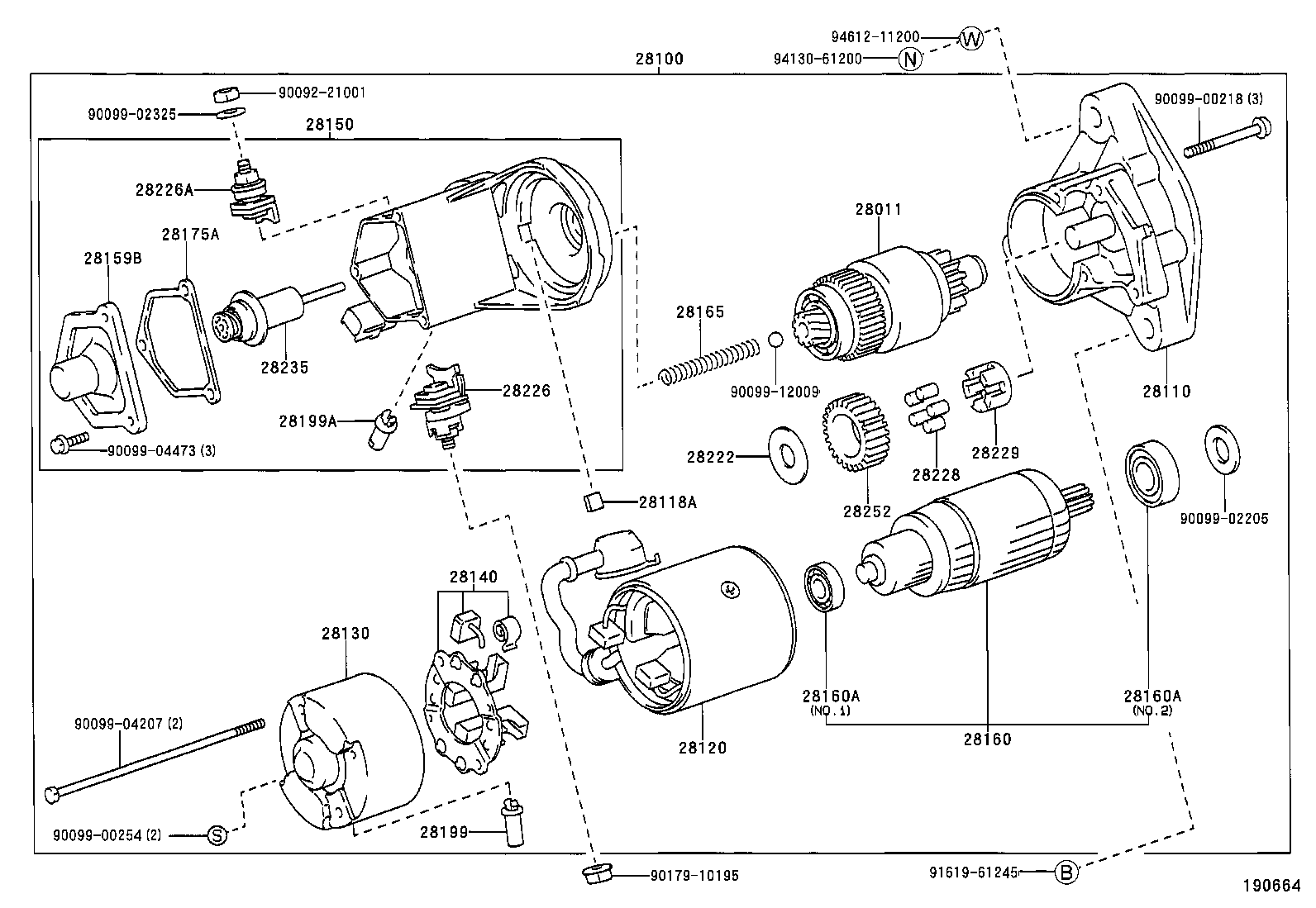

Click highlighted areas on diagram

12V 2.5KW

diagram 28011 28100 28110 28118A 28120 28130 28140 28150 28159B 28160 28160A 28160A 28165 28175A 28199 28199A 28222 28226 28226A 28228 28229 28235 28252 9009221001 9009900218 9009900254 9009902205 9009902325 9009904207 9009904473 9009912009 9017910195 9161961245 9413061200 9461211200
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-17020

1HDT,1HZ..HDJ100,HZJ105

12V 2.5KW

 1
28100 - STARTER ASSY
28100-17060

1HDT,1HZ..HDJ100,HZJ105

12V 2.5KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28115-17020

1HDT,1HZ..HDJ100,HZJ105

12V 2.5KW

 1
28118A - PLATE(FOR STARTER YOKE)
28118-77090

1HDT,1HZ..HDJ100,HZJ105

 1
28120 - YOKE ASSY, STARTER
28120-56081

1HDT,1HZ..HDJ100,HZJ105

12V 2.5KW

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-56300

1HDT,1HZ..HDJ100,HZJ105

12V 2.5KW

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-77090

1HDT,1HZ..HDJ100,HZJ105

12V 2.5KW

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-17060

1HDT,1HZ..HDJ100,HZJ105

12V 2.5KW

 1
28159B - COVER, MAGNET SWITCH
28159-17030

1HD#,1HZ..HDJ100,HZJ105

 1
28160 - ARMATURE ASSY, STARTER
28160-47040

1HDT,1HZ..HDJ100,HZJ105

12V 2.5KW

 1
28160A - BEARING, STARTER ARMATURE
90099-10119

1HDT,1HZ..HDJ100,HZJ105

12V 2.5KW,NO.2

 1
90099-10107

1HDT,1HZ..HDJ100,HZJ105

12V 2.5KW,NO.1

 1
28160A - BEARING, STARTER ARMATURE
90099-10119

1HDT,1HZ..HDJ100,HZJ105

12V 2.5KW,NO.2

 1
90099-10107

1HDT,1HZ..HDJ100,HZJ105

12V 2.5KW,NO.1

 1
28165 - SPRING, STARTER MAGNET SWITCH RETURN
28165-77090

1HD#,1HZ..HDJ100,HZJ105

 1
28175A - GASKET, MAGNET SWITCH COVER
28175-56310

1HD#,1HZ..HDJ100,HZJ105

 1
28199 - COVER, STARTER
28199-46080

1HD#,1HZ..HDJ100,HZJ105

 1
28199A - PROTECTOR, DUST STARTER
28199-54190

1HD#,1HZ..HDJ100,HZJ105

 1
28222 - WASHER, STARTER IDLE GEAR CLUTCH
28222-77090

1HD#,1HZ..HDJ100,HZJ105

 1
28226 - STARTER KIT, BATTERY TERMINAL
28226-54320

1HD#,1HZ..HDJ100,HZJ105

 1
28226A - STARTER KIT, MOTOR TERMINAL
28226-54220

1HD#,1HZ..HDJ100,HZJ105

 1
28228 - ROLLER, STARTER IDLE GEAR CLUTCH
28228-56080

1HD#,1HZ..HDJ100,HZJ105

 5
28229 - RETAINER, STARTER IDLE GEAR
28229-56080

1HD#,1HZ..HDJ100,HZJ105

 1
28235 - PLUNGER, MAGNET SWITCH
28235-17030

1HD#,1HZ..HDJ100,HZJ105

 1
28252 - GEAR, STARTER IDLE
28254-77090

1HDT,1HZ..HDJ100,HZJ105

12V 2.5KW

 1
Common parts
90092-21001
90099-00218
90099-00254
90099-02205
90099-02325
90099-04207
90099-04473
90099-12009
90179-10195
91619-61245
94130-61200
94612-11200
