HDJ100L-GCMEX (1998)
Toyota Land Cruiser 100
(9801-0208)1HDT,1HZ..5F..GCC,GEN
12V 70A

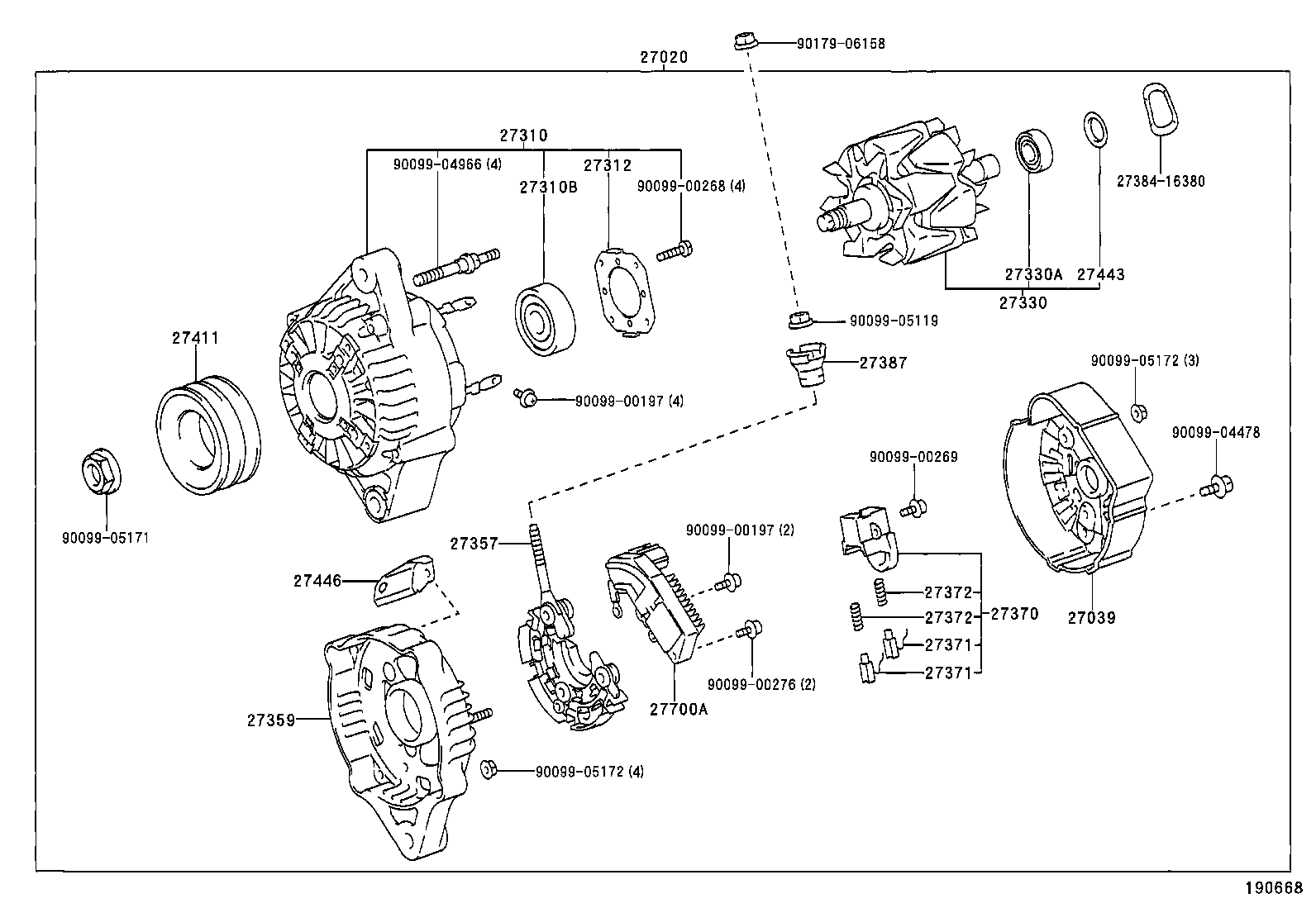

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-17210 |
1H#..HDJ100,HZJ105..5F..(GCC,GEN) 12V 70A |
1 | ||
| 27060-17220 |
1HDT..HDJ100;1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..GEN 12V 80A |
1 | ||
| 27060-17220 |
1HDT..HDJ100;1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN 12V 80A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-55080 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN;1FZFE,1HDT..FZJ10#,HDJ100..GCC,GEN 12V 80A |
1 | ||
| 27039-55080 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..GEN;1FZFE,1HDT..FZJ10#,HDJ100..GCC,GEN 12V 80A |
1 | ||
| 27039-67100 |
1H#..HDJ100,HZJ105..5F..(GCC,GEN) 12V 70A |
1 | ||
| 27039-70470 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN;1FZFE,1HDT..FZJ10#,HDJ100..GCC,GEN 12V 80A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-17220 |
1HDT..HDJ100;1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..GEN 12V 80A |
1 | ||
| 27310-17220 |
1HDT..HDJ100;1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN 12V 80A |
1 | ||
| 27310-55090 |
1H#..HDJ100,HZJ105..5F..(GCC,GEN) 12V 70A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10199 |
1H#..HDJ100,HZJ105..5F..(GCC,GEN) 12V 70A |
1 | ||
| 90099-10192 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN;1FZFE,1HDT,2UZFE..FZJ10#,HDJ100,UZJ100 12V 80A,100A,120A |
1 | ||
| 90099-10192 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..GEN;1FZFE,1HDT,2UZFE..FZJ10#,HDJ100,UZJ100 12V 80A,100A,120A |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
1H#..HDJ100,HZJ105..5F..(GCC,GEN) 12V 70A |
1 | ||
| 27312-42010 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..GEN;1FZFE,1HDT,2UZFE..FZJ10#,HDJ100,UZJ100 12V 80A,100A,120A |
1 | ||
| 27312-42010 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN;1FZFE,1HDT,2UZFE..FZJ10#,HDJ100,UZJ100 12V 80A,100A,120A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-67100 |
1H#..HDJ100,HZJ105..5F..(GCC,GEN) 12V 70A |
1 | ||
| 27330-72280 |
1HDT..HDJ100;1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..GEN 12V 80A |
1 | ||
| 27330-72280 |
1HDT..HDJ100;1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN 12V 80A |
1 | ||
| 27330-74550 |
1HDT..HDJ100;1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN 12V 80A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10216 |
1H#..HDJ100,HZJ105..5F..(GCC,GEN) 12V 70A |
1 | ||
| 90099-10140 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..GEN;1FZFE,1HDT..FZJ10#,HDJ100 12V 80A,100A,120A |
1 | ||
| 90099-10140 |
1HZ..HZJ105..ARL,GCC;1FZFE,1HDT..FZJ10#,HDJ100;1HZ..HZJ105..LHD..SOB..GEN 12V 80A,100A,120A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-67100 |
1H#..HDJ100,HZJ105..5F..(GCC,GEN) 12V 70A |
1 | ||
| 27357-55080 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..GEN;1FZFE,1HDT,2UZFE..FZJ10#,HDJ100,UZJ100..GCC,GEN 12V 80A |
1 | ||
| 27357-55080 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN;1FZFE,1HDT,2UZFE..FZJ10#,HDJ100,UZJ100..GCC,GEN 12V 80A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-75160 |
1H#..HDJ100,HZJ105..5F..(GCC,GEN) 12V 70A |
1 | ||
| 27359-72280 |
1HDT..HDJ100;1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..GEN 12V 80A |
1 | ||
| 27359-72280 |
1HDT..HDJ100;1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN 12V 80A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..GEN;1FZFE,1HDT,2UZFE..FZJ10#,HDJ100,UZJ100 12V 80A,100A,120A |
1 | ||
| 27370-75060 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN;1FZFE,1HD#,2UZFE..FZJ10#,HDJ100,UZJ100 12V 80A,100A,120A |
1 | ||
| 27370-58320 |
1H#..HDJ100,HZJ105..5F..(GCC,GEN) 12V 70A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-70300 |
1H#..HDJ100,HZJ105..5F..(GCC,GEN) |
2 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-70300 |
1H#..HDJ100,HZJ105..5F..(GCC,GEN) |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
1H#..HDJ100,HZJ105..5F..(GCC,GEN) |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
1H#..HDJ100,HZJ105..5F..(GCC,GEN) |
2 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-42021 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..GEN;1FZFE,1HDT,2UZFE..FZJ10#,HDJ100,UZJ100 12V 80A,100A,120A |
1 | ||
| 27387-42021 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN;1FZFE,1HDT,2UZFE..FZJ10#,HDJ100,UZJ100 12V 80A,100A,120A |
1 | ||
| 27387-70171 |
1H#..HDJ100,HZJ105..5F..(GCC,GEN) 12V 70A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-17030 |
1HDT..HDJ100;1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..GEN 12V 80A,120A |
1 | ||
| 27411-17030 |
1HD#..HDJ100;1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN 12V 80A,120A |
1 | ||
| 27411-17010 |
1H#..HDJ100,HZJ105..5F..(GCC,GEN) 12V 70A |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
1FZFE,1HD#,1HZ,2UZFE..FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 27446 - CLIP, ALTERNATOR CORD | ||||
| 27446-62012 |
1HD#,1HZ..HDJ100,HZJ105 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-50050 |
1H#,2UZFE..HDJ100,HZJ105,UZJ100 |
1 | ||
| 27700-50030 |
2UZFE..UZJ100..LHD;1HD#,1HZ..HDJ100,HZJ105 |
1 | ||
| Common parts | ||||
| 27384-16380 | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-00269 | ||||
| 90099-00276 | ||||
| 90099-04478 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90179-06158 | ||||
(9801-0208)1HD# ; (9801-0208)1HZ..ARL,GCC ; (9801-0208)1HZ..LHD..GEN
12V 80A,120A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-17210 |
1H#..HDJ100,HZJ105..5F..(GCC,GEN) 12V 70A |
1 | ||
| 27060-17220 |
1HDT..HDJ100;1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..GEN 12V 80A |
1 | ||
| 27060-17220 |
1HDT..HDJ100;1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN 12V 80A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-55080 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN;1FZFE,1HDT..FZJ10#,HDJ100..GCC,GEN 12V 80A |
1 | ||
| 27039-55080 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..GEN;1FZFE,1HDT..FZJ10#,HDJ100..GCC,GEN 12V 80A |
1 | ||
| 27039-67100 |
1H#..HDJ100,HZJ105..5F..(GCC,GEN) 12V 70A |
1 | ||
| 27039-70470 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN;1FZFE,1HDT..FZJ10#,HDJ100..GCC,GEN 12V 80A |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..GEN;1FZFE,1HDT,2UZFE..FZJ10#,HDJ100,UZJ100 |
1 | ||
| 27064-42010 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN;1FZFE,1HD#,2UZFE..FZJ10#,HDJ100,UZJ100 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-17220 |
1HDT..HDJ100;1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..GEN 12V 80A |
1 | ||
| 27310-17220 |
1HDT..HDJ100;1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN 12V 80A |
1 | ||
| 27310-55090 |
1H#..HDJ100,HZJ105..5F..(GCC,GEN) 12V 70A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10199 |
1H#..HDJ100,HZJ105..5F..(GCC,GEN) 12V 70A |
1 | ||
| 90099-10192 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN;1FZFE,1HDT,2UZFE..FZJ10#,HDJ100,UZJ100 12V 80A,100A,120A |
1 | ||
| 90099-10192 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..GEN;1FZFE,1HDT,2UZFE..FZJ10#,HDJ100,UZJ100 12V 80A,100A,120A |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
1H#..HDJ100,HZJ105..5F..(GCC,GEN) 12V 70A |
1 | ||
| 27312-42010 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..GEN;1FZFE,1HDT,2UZFE..FZJ10#,HDJ100,UZJ100 12V 80A,100A,120A |
1 | ||
| 27312-42010 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN;1FZFE,1HDT,2UZFE..FZJ10#,HDJ100,UZJ100 12V 80A,100A,120A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-67100 |
1H#..HDJ100,HZJ105..5F..(GCC,GEN) 12V 70A |
1 | ||
| 27330-72280 |
1HDT..HDJ100;1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..GEN 12V 80A |
1 | ||
| 27330-72280 |
1HDT..HDJ100;1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN 12V 80A |
1 | ||
| 27330-74550 |
1HDT..HDJ100;1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN 12V 80A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10216 |
1H#..HDJ100,HZJ105..5F..(GCC,GEN) 12V 70A |
1 | ||
| 90099-10140 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..GEN;1FZFE,1HDT..FZJ10#,HDJ100 12V 80A,100A,120A |
1 | ||
| 90099-10140 |
1HZ..HZJ105..ARL,GCC;1FZFE,1HDT..FZJ10#,HDJ100;1HZ..HZJ105..LHD..SOB..GEN 12V 80A,100A,120A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-67100 |
1H#..HDJ100,HZJ105..5F..(GCC,GEN) 12V 70A |
1 | ||
| 27357-55080 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..GEN;1FZFE,1HDT,2UZFE..FZJ10#,HDJ100,UZJ100..GCC,GEN 12V 80A |
1 | ||
| 27357-55080 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN;1FZFE,1HDT,2UZFE..FZJ10#,HDJ100,UZJ100..GCC,GEN 12V 80A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-75160 |
1H#..HDJ100,HZJ105..5F..(GCC,GEN) 12V 70A |
1 | ||
| 27359-72280 |
1HDT..HDJ100;1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..GEN 12V 80A |
1 | ||
| 27359-72280 |
1HDT..HDJ100;1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN 12V 80A |
1 | ||
| 27365 - PLATE, TERMINAL | ||||
| 27365-55080 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..GEN;1FZFE,1HDT,2UZFE..FZJ10#,HDJ100,UZJ100 |
1 | ||
| 27365-55080 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN;1FZFE,1HD#,2UZFE..FZJ10#,HDJ100,UZJ100 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..GEN;1FZFE,1HDT,2UZFE..FZJ10#,HDJ100,UZJ100 12V 80A,100A,120A |
1 | ||
| 27370-75060 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN;1FZFE,1HD#,2UZFE..FZJ10#,HDJ100,UZJ100 12V 80A,100A,120A |
1 | ||
| 27370-58320 |
1H#..HDJ100,HZJ105..5F..(GCC,GEN) 12V 70A |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-42021 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..GEN;1FZFE,1HDT,2UZFE..FZJ10#,HDJ100,UZJ100 12V 80A,100A,120A |
1 | ||
| 27387-42021 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN;1FZFE,1HDT,2UZFE..FZJ10#,HDJ100,UZJ100 12V 80A,100A,120A |
1 | ||
| 27387-70171 |
1H#..HDJ100,HZJ105..5F..(GCC,GEN) 12V 70A |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..GEN;1FZFE,1HDT..FZJ10#,HDJ100 |
1 | ||
| 27388-42010 |
1HZ..HZJ105..ARL,GCC;1FZFE,1HD#..FZJ10#,HDJ100;1HZ..HZJ105..LHD..SOB..GEN |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-17030 |
1HDT..HDJ100;1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..GEN 12V 80A,120A |
1 | ||
| 27411-17030 |
1HD#..HDJ100;1HZ..HZJ105..ARL,GCC;1HZ..HZJ105..LHD..SOB..GEN 12V 80A,120A |
1 | ||
| 27411-17010 |
1H#..HDJ100,HZJ105..5F..(GCC,GEN) 12V 70A |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
1FZFE,1HD#,1HZ,2UZFE..FZJ10#,HDJ100,HZJ105,UZJ100 |
1 | ||
| 27446 - CLIP, ALTERNATOR CORD | ||||
| 27446-62012 |
1HD#,1HZ..HDJ100,HZJ105 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-50050 |
1H#,2UZFE..HDJ100,HZJ105,UZJ100 |
1 | ||
| 27700-50030 |
2UZFE..UZJ100..LHD;1HD#,1HZ..HDJ100,HZJ105 |
1 | ||
| Common parts | ||||
| 27384-50030 | ||||
| 27389-42010 | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||
