HDJ100L-GCMEX (1998)

Toyota Land Cruiser 100

Production Jan 1998 - Aug 2002
Engine 1HDT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9801-0208)1HDT

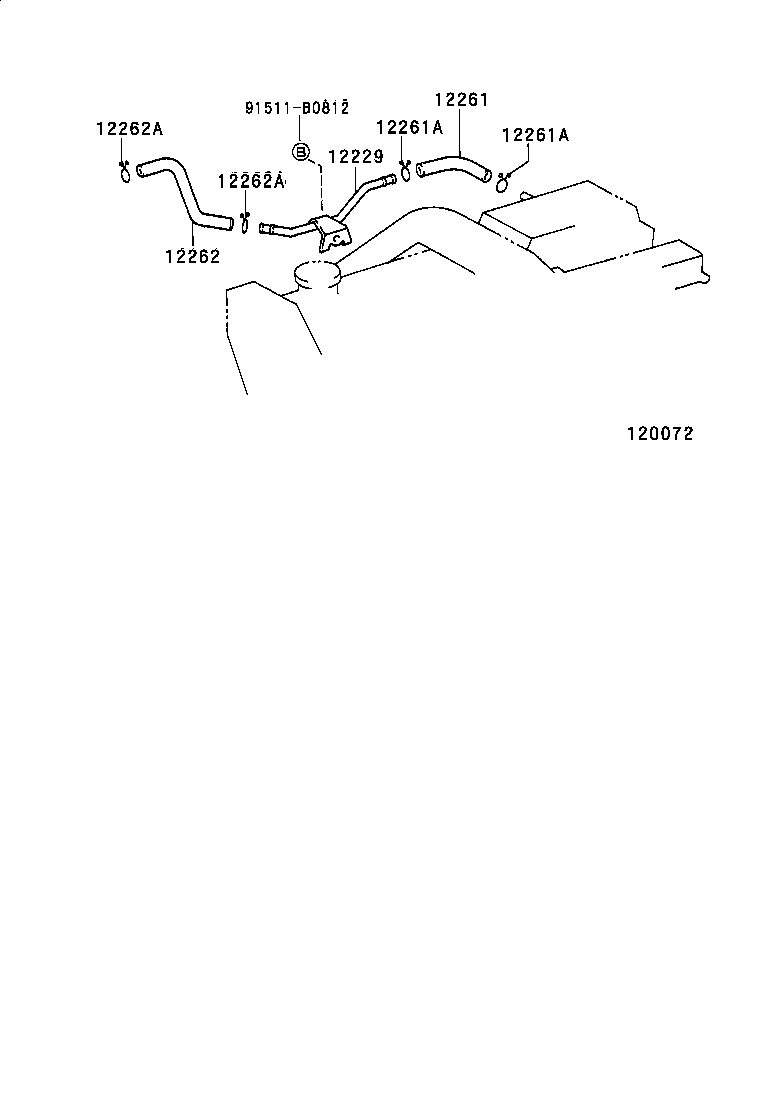

Click highlighted areas on diagram

diagram 12229 12261 12261A 12261A 12262 12262A 12262A 91511B0812
Part # Description Qty Price
12229 - PIPE, VENTILATION
12229-17010

1HDT..HDJ100

 1
12261 - HOSE, VENTILATION
12261-17010

1HDT,1HZ..HDJ100,HZJ105

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-22010

1HD#,1HZ..HDJ100,HZJ105

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-22010

1HD#,1HZ..HDJ100,HZJ105

 2
12262 - HOSE, VENTILATION, NO.2
12262-17060

1HDT..HDJ100

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-22010

1HDT..HDJ100

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-22010

1HDT..HDJ100

 2
Common parts
91511-B0812
