HDJ100L-GCMEX (1998)
Toyota Land Cruiser 100
(9801-0208)1HDT

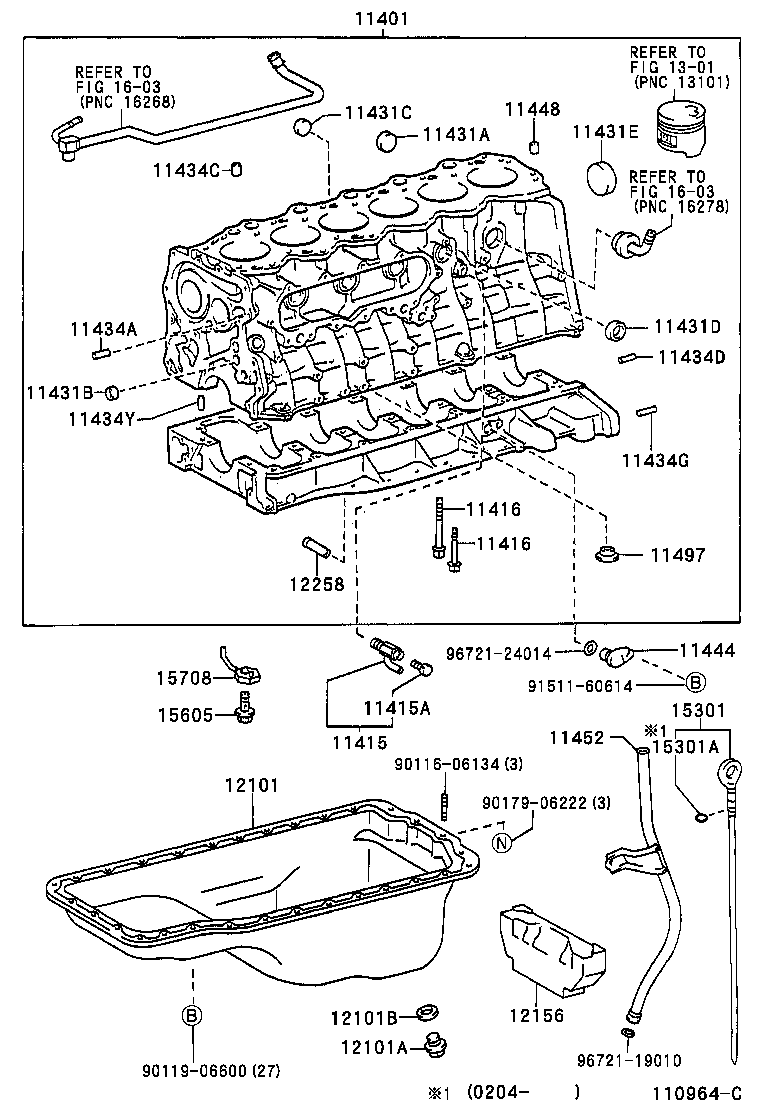

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-19798 |
1HDT..HDJ100 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 90910-09075 |
1HD#,1HZ..HDJ100,HZJ105 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90910-09087 |
1HD#,1HZ..HDJ100,HZJ105 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90119-08182 |
1HD#,1HZ..HDJ100,HZJ105 L=75 |
15 | ||
| 90910-02098 |
1HD#,1HZ..HDJ100,HZJ105 L=86.5 |
14 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90119-08182 |
1HD#,1HZ..HDJ100,HZJ105 L=75 |
15 | ||
| 90910-02098 |
1HD#,1HZ..HDJ100,HZJ105 L=86.5 |
14 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 90331-35002 |
1HD#,1HZ..HDJ100,HZJ105 |
3 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-41800 |
1HD#,1HZ..HDJ100,HZJ105 |
4 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-42500 |
1HD#,1HZ..HDJ100,HZJ105 |
1 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
1HD#,1HZ..HDJ100,HZJ105 |
6 | ||
| 11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK) | ||||
| 96411-45000 |
1HD#,1HZ..HDJ100,HZJ105 |
2 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-08120 |
1HD#,1HZ..HDJ100,HZJ105 L=18,OD=8 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08074 |
1HD#,1HZ..HDJ100,HZJ105 L=15,OD=8 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-06068 |
1HD#,1HZ..HDJ100,HZJ105 L=11,OD=6 |
2 | ||
| 11434G - PIN, STRAIGHT(FOR END PLATE) | ||||
| 90250-08054 |
1HD#,1HZ..HDJ100,HZJ105 |
2 | ||
| 11434Y - PIN, STRAIGHT(FOR OIL PAN) | ||||
| 90250-12006 |
1HD#,1HZ..HDJ100,HZJ105 |
2 | ||
| 11444 - PLUG, HOLE | ||||
| 11444-67020 |
1HDT..HDJ100 |
1 | ||
| 11448 - ORIFICE, CYLINDER BLOCK OIL | ||||
| 11448-17010 |
1HDT,1HZ..HDJ100,HZJ105 |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-17040 |
1HD#,1HZ..HDJ100,HZJ105 |
1 | ||
| 11452-17041 |
1HD#,1HZ..HDJ100,HZJ105 |
1 | ||
| 11497 - GASKET, CYLINDER BLOCK OIL HOLE | ||||
| 11497-17010 |
1HD#,1HZ..HDJ100,HZJ105 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-17150 |
1HDT..HDJ100 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12026 |
1HD#,1HZ..HDJ100,HZJ105 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12031 |
1HD#,1HZ..HDJ100,HZJ105 |
1 | ||
| 12156 - INSULATOR, OIL PAN | ||||
| 12156-17010 |
1HD#..HDJ100;1HZ..HZJ105..ARL;1HZ..HZJ105..LHD..SOB..GEN |
1 | ||
| 12258 - PIPE, OIL RETURN | ||||
| 12258-17010 |
1HD#..HDJ100 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-17050 |
1HD#..HDJ100 |
1 | ||
| 15301A - RING, O(FOR OIL LEVEL GAGE) | ||||
| 96741-19005 |
1HD#..HDJ100 |
1 | ||
| 15605 - VALVE SUB-ASSY, OIL CHECK | ||||
| 15605-17030 |
1HD#,1HZ..HDJ100,HZJ105 |
6 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15708-17010 |
1HDT,1HZ..HDJ100,HZJ105 |
6 | ||
| Common parts | ||||
| 90116-06134 | ||||
| 90119-06600 | ||||
| 90179-06222 | ||||
| 91511-60614 | ||||
| 96721-19010 | ||||
| 96721-24014 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1603 | ||||
