FZJ105R-GNMNKQ (1998)

Toyota Land Cruiser 100

Production Jan 1998 - Aug 2002
Engine 1FZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9801- )HDJ100..SOB ; (9801- )FZJ10#,UZJ100..5F..ARL,GCC,GEN

Click highlighted areas on diagram

BENCH SEAT TYPE

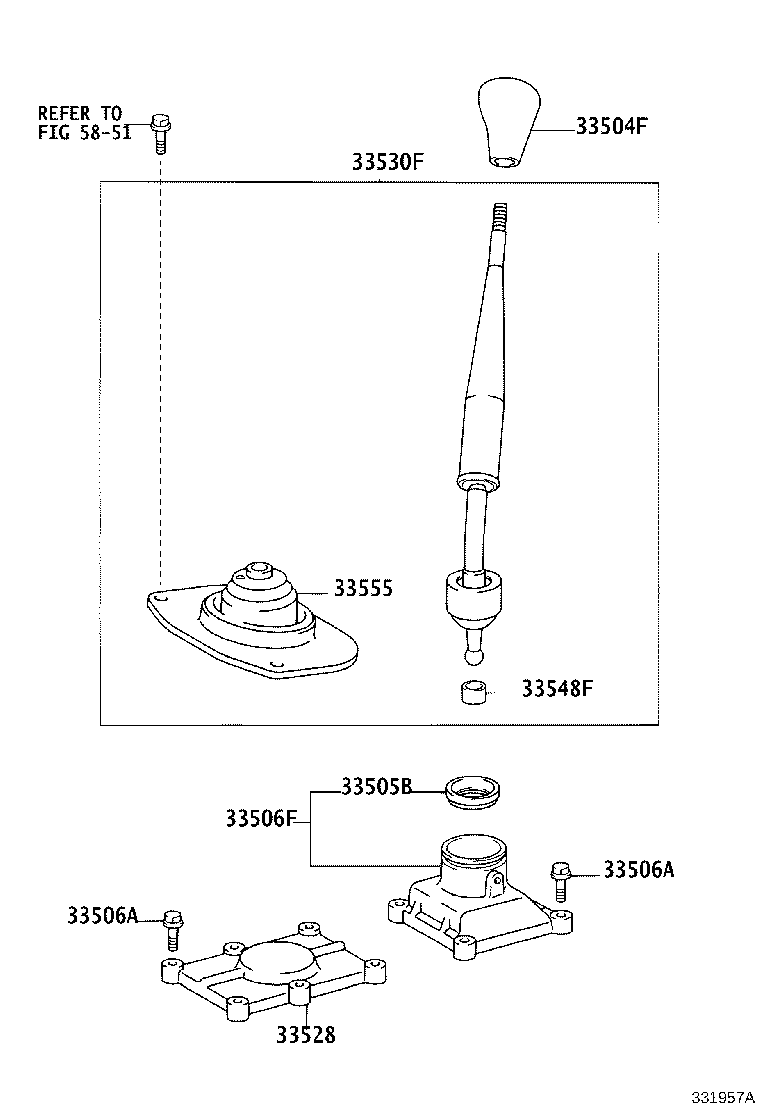

diagram 33504F 33505B 33506A 33506F 33530F 33548F 33555 5851
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-60121C0

HDJ100..SOB;UZJ100..5F..GCC;FZJ10#,HZJ105..5F..GX

URETHANE,BLACK,TRIM1#,4#

 1
33504-60130C0

HDJ100..SOB;FZJ105..5F..GX..ARL

LEATHER,BLACK,TRIM1#,4#

 1
33504-60121C0

HDJ100..SOB;FZJ10#,HDJ100,HZJ105..5F..GX

URETHANE,BLACK,TRIM1#,4#

 1
33506A - BOLT (FOR CONTROL SHIFT LEVER RETAINER)
90119-08332

HDJ100..LUB..5F;FZJ10#,UZJ100..5F

SEPARATE SEAT TYPE

 10
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33506-60100

HDJ100..LUB..5F;FZJ10#,UZJ100..5F

SEPARATE SEAT TYPE

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-60390

FZJ105..RHD..5F

SEPARATE SEAT TYPE

 1
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-22020

FZJ10#,HDJ100,UZJ100..5F

 1
33548-31010

FZJ10#,HDJ100,HZJ105,UZJ100..5F

 1
33555 - BOOT, SHIFT LEVER
33555-60100

FZJ10#..5F;HDJ100..LUB..5F

SEPARATE SEAT TYPE

 1
Linked diagrams
5851

(9801- )HDJ100..LUB..5F ; (9801- )FZJ10#,UZJ100..5F

Click highlighted areas on diagram

SEPARATE SEAT TYPE

diagram 33504F 33505B 33506A 33506A 33506F 33528 33530F 33548F 33555 5851
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-60121C0

HDJ100..SOB;UZJ100..5F..GCC;FZJ10#,HZJ105..5F..GX

URETHANE,BLACK,TRIM1#,4#

 1
33504-60130C0

HDJ100..SOB;FZJ105..5F..GX..ARL

LEATHER,BLACK,TRIM1#,4#

 1
33504-60121C0

HDJ100..SOB;FZJ10#,HDJ100,HZJ105..5F..GX

URETHANE,BLACK,TRIM1#,4#

 1
33506A - BOLT (FOR CONTROL SHIFT LEVER RETAINER)
90119-08332

HDJ100..LUB..5F;FZJ10#,UZJ100..5F

SEPARATE SEAT TYPE

 10
33506A - BOLT (FOR CONTROL SHIFT LEVER RETAINER)
90119-08332

HDJ100..LUB..5F;FZJ10#,UZJ100..5F

SEPARATE SEAT TYPE

 10
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33506-60100

HDJ100..LUB..5F;FZJ10#,UZJ100..5F

SEPARATE SEAT TYPE

 1
33528 - COVER, CONTROL SHAFT
33528-60040

FZJ105..5F..GX;HDJ100..LUB..5F;FZJ105..STD..GEN;FZJ100,UZJ100..5F

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-60390

FZJ105..RHD..5F

SEPARATE SEAT TYPE

 1
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-22020

FZJ10#,HDJ100,UZJ100..5F

 1
33548-31010

FZJ10#,HDJ100,HZJ105,UZJ100..5F

 1
33555 - BOOT, SHIFT LEVER
33555-60100

FZJ10#..5F;HDJ100..LUB..5F

SEPARATE SEAT TYPE

 1
Linked diagrams
5851
