FZJ105L-GNMNK (1998)
Toyota Land Cruiser 100
(9801- )FZJ105,HZJ105
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51100F - FRAME SUB-ASSY | ||||
| 51002-6A720 |
FZJ105,HZJ105..LHD W(SPARE TIRE CARRIER = FRAME & WINCH) |
1 | ||
| 51002-6A730 |
FZJ105,HZJ105..LHD W(SPARE TIRE CARRIER = BACK DOOR & WINCH) |
1 | ||
| 51001-6B330 |
FZJ105,HZJ105..LHD W(SPARE TIRE CARRIER = FRAME) |
1 | ||
| 51001-6B340 |
FZJ105,HZJ105..LHD W(SPARE TIRE CARRIER = BACK DOOR) |
1 | ||
| 51001-6B330 |
FZJ105,HZJ105..LHD W(SPARE TIRE CARRIER = FRAME) |
1 | ||
| 51001-6B340 |
FZJ105,HZJ105..LHD W(SPARE TIRE CARRIER = BACK DOOR) |
1 | ||
| 51002-6A720 |
FZJ105,HZJ105..LHD W(SPARE TIRE CARRIER = FRAME & WINCH) |
1 | ||
| 51002-6A730 |
FZJ105,HZJ105..LHD W(SPARE TIRE CARRIER = BACK DOOR & WINCH) |
1 | ||
| 51001-6B330 |
FZJ105,HZJ105..LHD W(SPARE TIRE CARRIER = FRAME) |
1 | ||
| 51001-6B340 |
FZJ105,HZJ105..LHD W(SPARE TIRE CARRIER = BACK DOOR) |
1 | ||
| 51002-6A720 |
FZJ105,HZJ105..LHD W(SPARE TIRE CARRIER = FRAME & WINCH) |
1 | ||
| 51002-6A730 |
FZJ105,HZJ105..LHD W(SPARE TIRE CARRIER = BACK DOOR & WINCH) |
1 | ||
| 51143A - REINFORCEMENT, SIDE RAIL, FRONT RH | ||||
| 51143-60100 |
FZJ105,HZJ105 W(HOOK) |
1 | ||
| 51143-60100 |
FZJ105,HZJ105 |
1 | ||
| 51143-60080 |
FZJ105,HZJ105 |
1 | ||
| 51143-60100 |
FZJ105,HZJ105 |
1 | ||
| 51144A - REINFORCEMENT, SIDE RAIL, FRONT LH | ||||
| 51144-60090 |
FZJ105,HZJ105 W(HOOK) |
1 | ||
| 51144-60090 |
FZJ105,HZJ105 |
1 | ||
| 51144-60070 |
FZJ105,HZJ105 |
1 | ||
| 51144-60090 |
FZJ105,HZJ105 |
1 | ||
| 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT | ||||
| 51201-60122 |
FZJ105,HZJ105 |
1 | ||
| 51201-60122 |
FZJ105,HZJ105 |
1 | ||
| 51201-60122 |
FZJ105,HZJ105 |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51202-60140 |
FZJ105,HZJ105..5F |
1 | ||
| 51202-60140 |
FZJ105,HZJ105 |
1 | ||
| 51202-60140 |
FZJ105,HZJ105 |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51204-60100 |
FZJ105,HZJ105 |
1 | ||
| 51204-60100 |
FZJ105,HZJ105 |
1 | ||
| 51204-60100 |
FZJ105,HZJ105 |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51251-60060 |
FZJ105,HZJ105 |
1 | ||
| 51251-60060 |
FZJ105,HZJ105 |
1 | ||
| 51251-60060 |
FZJ105,HZJ105 |
1 | ||
| 51252A - CROSSMEMBER, FRAME, NO.5 LOWER | ||||
| 51252-60011 |
FZJ105,HZJ105 |
1 | ||
| 51252-60011 |
FZJ105,HZJ105 |
1 | ||
| 51252-60011 |
FZJ105,HZJ105 |
1 | ||
| 51291 - CROSSMEMBER, FRAME, REAR | ||||
| 51209-60170 |
FZJ105,HZJ105 |
1 | ||
| 51209-60170 |
FZJ105,HZJ105 |
1 | ||
| 51209-60170 |
FZJ105,HZJ105 |
1 | ||
| 51311B - GUSSET, FRAME FRONT CROSSMEMBER, RH | ||||
| 51311-60051 |
FZJ105,HZJ105 |
1 | ||
| 51311-60051 |
FZJ105,HZJ105 |
1 | ||
| 51311-60051 |
FZJ105,HZJ105 |
1 | ||
| 51312C - GUSSET, FRAME FRONT CROSSMEMBER, LH | ||||
| 51312-60031 |
FZJ105,HZJ105 |
1 | ||
| 51312-60031 |
FZJ105,HZJ105 |
1 | ||
| 51312-60031 |
FZJ105,HZJ105 |
1 | ||
| 51321 - GUSSET, CROSSMEMBER, NO.2 RH | ||||
| 51321-60050 |
FZJ105,HZJ105 |
1 | ||
| 51321-60050 |
FZJ105,HZJ105 |
1 | ||
| 51321-60050 |
FZJ105,HZJ105 |
1 | ||
| 51322 - GUSSET, CROSSMEMBER, NO.2 LH | ||||
| 51321-60050 |
FZJ105,HZJ105 |
1 | ||
| 51321-60050 |
FZJ105,HZJ105 |
1 | ||
| 51321-60050 |
FZJ105,HZJ105 |
1 | ||
| 51341 - GUSSET, FRAME NO.4 CROSSMEMBER, RH | ||||
| 51341-60030 |
FZJ105,HZJ105 |
1 | ||
| 51341-60030 |
FZJ105,HZJ105 |
1 | ||
| 51342 - GUSSET, FRAME NO.4 CROSSMEMBER, LH | ||||
| 51342-60030 |
FZJ105,HZJ105 |
1 | ||
| 51342-60030 |
FZJ105,HZJ105 |
1 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51421-60190 |
FZJ105,HZJ105 |
1 | ||
| 51421-60190 |
FZJ105,HZJ105 |
1 | ||
| 51421-60190 |
FZJ105,HZJ105 |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51422-60180 |
FZJ105,HZJ105 |
1 | ||
| 51422-60180 |
FZJ105,HZJ105 |
1 | ||
| 51422-60180 |
FZJ105,HZJ105 |
1 | ||
| 51502B - BRACKET SUB-ASSY, LATERAL ROD SUPPORT | ||||
| 51502-60010 |
FZJ105,HZJ105 |
1 | ||
| 51502-60010 |
FZJ105,HZJ105 |
1 | ||
| 51502-60010 |
FZJ105,HZJ105 |
1 | ||
| 51505E - BRACKET SUB-ASSY, FRONT SPRING SUPPORT, RH | ||||
| 51505-60020 |
FZJ105,HZJ105 |
1 | ||
| 51505-60020 |
FZJ105,HZJ105 |
1 | ||
| 51505-60020 |
FZJ105,HZJ105 |
1 | ||
| 51506E - BRACKET SUB-ASSY, FRONT SPRING SUPPORT, LH | ||||
| 51506-60020 |
FZJ105,HZJ105 |
1 | ||
| 51506-60020 |
FZJ105,HZJ105 |
1 | ||
| 51506-60020 |
FZJ105,HZJ105 |
1 | ||
| 51508C - BRACKET SUB-ASSY, LOWER CONTROL LINK, RH | ||||
| 51508-60010 |
FZJ105,HZJ105 |
1 | ||
| 51508-60010 |
FZJ105,HZJ105 |
1 | ||
| 51508-60010 |
FZJ105,HZJ105 |
1 | ||
| 51509C - BRACKET SUB-ASSY, LOWER CONTROL LINK, LH | ||||
| 51509-60010 |
FZJ105,HZJ105 |
1 | ||
| 51509-60010 |
FZJ105,HZJ105 |
1 | ||
| 51509-60010 |
FZJ105,HZJ105 |
1 | ||
| 51518A - BRACKET, LEADING ARM | ||||
| 51518-60020 |
FZJ105,HZJ105 |
2 | ||
| 51518-60020 |
FZJ105,HZJ105 |
2 | ||
| 51518-60020 |
FZJ105,HZJ105 |
2 | ||
| 51518A - BRACKET, LEADING ARM | ||||
| 51518-60020 |
FZJ105,HZJ105 |
2 | ||
| 51518-60020 |
FZJ105,HZJ105 |
2 | ||
| 51518-60020 |
FZJ105,HZJ105 |
2 | ||
| 51531 - BRACKET, REAR SPRING SUPPORT, RH | ||||
| 51531-60020 |
FZJ105,HZJ105 |
1 | ||
| 51531-60020 |
FZJ105,HZJ105 |
1 | ||
| 51538A - STAY, LATERAL ROD SUPPORT, FRONT RH | ||||
| 51538-60021 |
FZJ105,HZJ105..LHD |
1 | ||
| 51538-60021 |
FZJ105,HZJ105..LHD |
1 | ||
| 51538-60021 |
FZJ105,HZJ105..LHD |
1 | ||
| 51541 - BRACKET, REAR SPRING SUPPORT, LH | ||||
| 51541-60020 |
FZJ105,HZJ105 |
1 | ||
| 51541-60020 |
FZJ105,HZJ105 |
1 | ||
| 51547 - BRACKET, LATERAL ROD SUPPORT, FRONT LH | ||||
| 51547-60031 |
FZJ105,HZJ105..LHD |
1 | ||
| 51547-60031 |
FZJ105,HZJ105..LHD |
1 | ||
| 51547-60031 |
FZJ105,HZJ105..LHD |
1 | ||
| 51593A - BRACKET, REAR SPRING BUMPER, RH | ||||
| 51593-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 51593-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 51594 - BRACKET, REAR SPRING BUMPER, LH | ||||
| 51593-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 51593-60010 |
FZJ10#,HDJ100,HZJ105,UZJ100..ARL,GCC,GEN |
1 | ||
| 51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH | ||||
| 51701-60100 |
FZJ105,HZJ105 |
1 | ||
| 51701-60100 |
FZJ105,HZJ105 |
1 | ||
| 51701-60100 |
FZJ105,HZJ105 |
1 | ||
| 51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH | ||||
| 51701-60100 |
FZJ105,HZJ105 |
1 | ||
| 51701-60100 |
FZJ105,HZJ105 |
1 | ||
| 51701-60100 |
FZJ105,HZJ105 |
1 | ||
| 51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH | ||||
| 51703-60070 |
FZJ105,HZJ105 |
1 | ||
| 51703-60070 |
FZJ105,HZJ105 |
1 | ||
| 51703-60070 |
FZJ105,HZJ105 |
1 | ||
| 51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH | ||||
| 51704-60060 |
FZJ105,HZJ105 |
1 | ||
| 51704-60060 |
FZJ105,HZJ105 |
1 | ||
| 51704-60060 |
FZJ105,HZJ105 |
1 | ||
| 51705B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH | ||||
| 51705-60150 |
FZJ105,HZJ105 |
1 | ||
| 51705-60150 |
FZJ105,HZJ105 |
1 | ||
| 51705-60150 |
FZJ105,HZJ105 |
1 | ||
| 51706B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH | ||||
| 51705-60150 |
FZJ105,HZJ105 |
1 | ||
| 51705-60150 |
FZJ105,HZJ105 |
1 | ||
| 51705-60150 |
FZJ105,HZJ105 |
1 | ||
| 51707C - BRACKET SUB-ASSY, CAB MOUNTING, NO.4 RH | ||||
| 51707-60080 |
FZJ105,HZJ105 |
1 | ||
| 51707-60080 |
FZJ105,HZJ105 |
1 | ||
| 51707-60080 |
FZJ105,HZJ105 |
1 | ||
| 51708A - BRACKET SUB-ASSY, CAB MOUNTING, NO.4 LH | ||||
| 51708-60060 |
FZJ105,HZJ105 |
1 | ||
| 51708-60060 |
FZJ105,HZJ105 |
1 | ||
| 51708-60060 |
FZJ105,HZJ105 |
1 | ||
| 51709C - BRACKET SUB-ASSY, CAB MOUNTING, NO.5 RH | ||||
| 51709-60070 |
FZJ105,HZJ105 |
1 | ||
| 51709-60070 |
FZJ105,HZJ105 |
1 | ||
| 51709-60070 |
FZJ105,HZJ105 |
1 | ||
| 51709D - BRACKET SUB-ASSY, CAB MOUNTING, NO.5 LH | ||||
| 51709-60070 |
FZJ105,HZJ105 |
1 | ||
| 51709-60070 |
FZJ105,HZJ105 |
1 | ||
| 51709-60070 |
FZJ105,HZJ105 |
1 | ||
| 51727 - GUSSET, CAB MOUNTING, NO.2 RH | ||||
| 51727-60010 |
FZJ105,HZJ105 |
1 | ||
| 51727-60010 |
FZJ105,HZJ105 |
1 | ||
| 51727-60010 |
FZJ105,HZJ105 |
1 | ||
| 51728 - GUSSET, CAB MOUNTING, NO.2 LH | ||||
| 51728-60010 |
FZJ105,HZJ105 |
1 | ||
| 51728-60010 |
FZJ105,HZJ105 |
1 | ||
| 51728-60010 |
FZJ105,HZJ105 |
1 | ||
| 51745A - BRACKET, REAR BODY MOUNTING, NO.5 RH | ||||
| 51745-60011 |
FZJ105,HZJ105 |
1 | ||
| 51745-60011 |
FZJ105,HZJ105 |
1 | ||
| 51745-60011 |
FZJ105,HZJ105 |
1 | ||
| 51746A - BRACKET, REAR BODY MOUNTING, NO.5 LH | ||||
| 51746-60021 |
FZJ105,HZJ105 |
1 | ||
| 51746-60021 |
FZJ105,HZJ105 |
1 | ||
| 51746-60021 |
FZJ105,HZJ105 |
1 | ||
| 51943A - BRACKET, SPARE WHEEL CARRIER | ||||
| 51943-60060 |
FZJ105,HZJ105 |
1 | ||
| 51943-60060 |
FZJ105,HZJ105 |
1 | ||
| 51943-60060 |
FZJ105,HZJ105 |
1 | ||
| 51944A - BRACKET, SPARE WHEEL CARRIER, NO.2 | ||||
| 51944-60040 |
FZJ105,HZJ105 |
1 | ||
| 51944-60040 |
FZJ105,HZJ105 |
1 | ||
| 51944-60040 |
FZJ105,HZJ105 |
1 | ||
| 51963F - HOOK, TRANSPORT | ||||
| 51961-60210 |
FZJ105,HZJ105 |
1 | ||
| 51961-60210 |
FZJ105,HZJ105 |
1 | ||
| 51961-60210 |
FZJ105,HZJ105 |
1 | ||
| 51965C - HOOK, REAR | ||||
| 51961-60210 |
FZJ105,HZJ105 |
1 | ||
| 51961-60210 |
FZJ105,HZJ105 |
1 | ||
| 51961-60210 |
FZJ105,HZJ105 |
1 | ||
| Common parts | ||||
| 90119-08667 | ||||
| 90119-10586 | ||||
| 90119-12215 | ||||

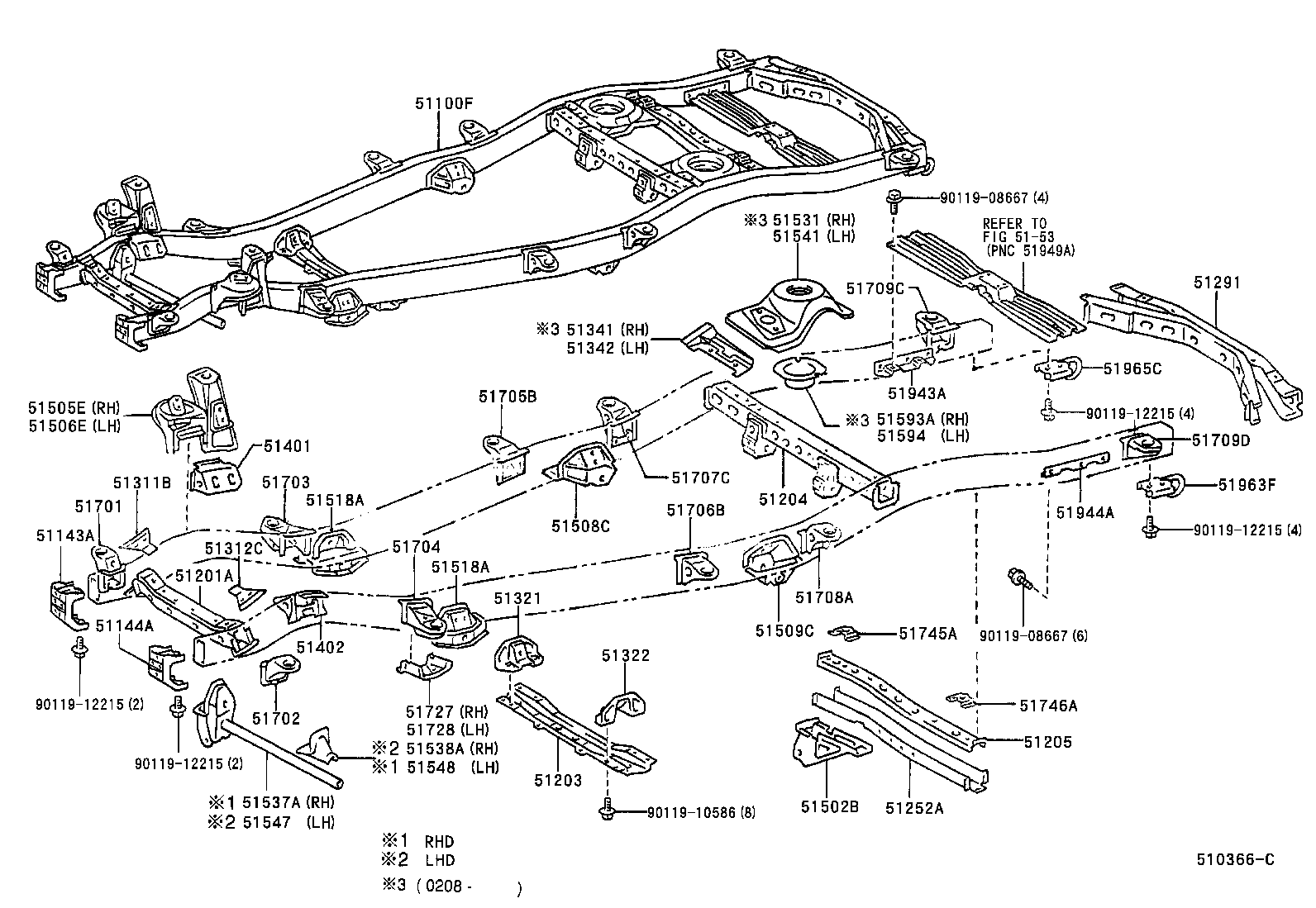

| Linked diagrams | ||||
| 5153 | ||||
