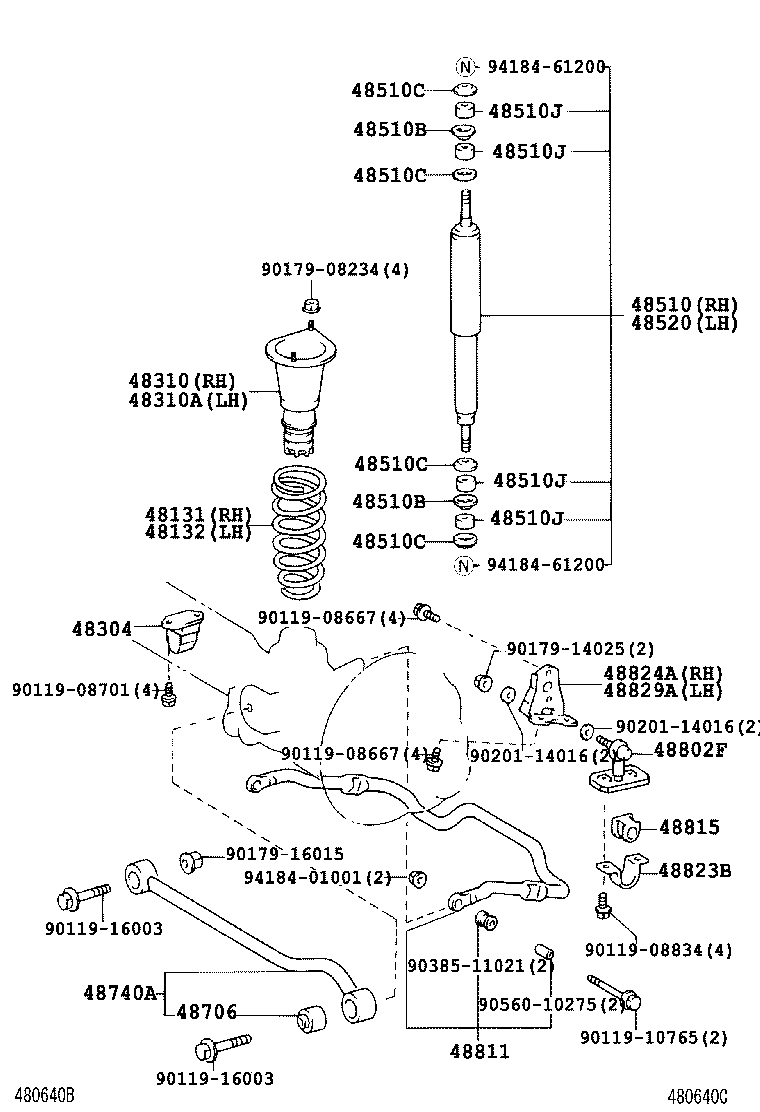

Toyota Land cruiser 100 FZJ105 FRONT SPRING & SHOCK ABSORBER

Part #	Description	Period	Qty
48131 - SPRING, FRONT COIL, RH
48131-6B080	FZJ105..LHD W(WINCH)	01/1998 - 03/1999	1
48131-6B060	FZJ105..LHD	01/1998 - 08/2002	1
48131-6B070	FZJ105..LHD W(WINCH)	03/1999 - 08/2002	1
48131-6B060	FZJ105..LHD	05/2005 - 12/2999	1
48131-6B060	FZJ105..LHD	08/2002 - 05/2005	1
48131-6B080	FZJ105..LHD W(WINCH)	08/2002 - 05/2005	1
48131-6B080	FZJ105..LHD W(WINCH)	05/2005 - 12/2999	1
48132 - SPRING, FRONT COIL, LH
48131-6B140	FZJ105..LHD	03/1999 - 08/2002	1
48131-6B100	FZJ105..LHD;HZJ105..RHD..GEN W(WINCH)	01/1998 - 08/2002	1
48131-6B090	FZJ105;HZJ105..RHD..GEN W(WINCH)	08/2002 - 05/2005	1
48131-6B080	FZJ105..LHD;HZJ105..RHD..GEN	01/1998 - 03/1999	1
48131-6B140	FZJ105..LHD	08/2002 - 05/2005	1
48131-6B090	FZJ105;HZJ105..RHD W(WINCH)	05/2005 - 12/2999	1
48131-6B140	FZJ105..LHD	05/2005 - 12/2999	1
48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1
48306-60062	FZJ105,HZJ105 LH	08/2002 - 05/2005	1
48306-60062	FZJ105,HZJ105 LH	01/1998 - 08/2002	1
48304-60080	FZJ105,HZJ105 RH	08/2002 - 05/2005	1
48304-60080	FZJ105,HZJ105 RH	05/2005 - 12/2999	1
48306-60062	FZJ105,HZJ105 LH	05/2005 - 12/2999	1
48304-60080	FZJ105,HZJ105 RH	01/1998 - 08/2002	1
48310 - SPRING ASSY, FRONT SUSPENSION HOLLOW, RH
48310-60030	FZJ105,HZJ105	01/1998 - 08/2002	1
48310-60030	FZJ105,HZJ105	05/2005 - 12/2999	1
48310-60030	FZJ105,HZJ105	08/2002 - 05/2005	1
48310A - SPRING ASSY, FRONT SUSPENSION HOLLOW, LH
48310-60030	FZJ105,HZJ105	08/2002 - 05/2005	1
48310-60030	FZJ105,HZJ105	01/1998 - 08/2002	1
48310-60030	FZJ105,HZJ105	05/2005 - 12/2999	1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48511-69436	FZJ105,HZJ105 MARK 48511-60481	01/1998 - 08/2002	1
48511-69436	FZJ105,HZJ105 MARK 48511-60481	08/2002 - 11/2004	1
48511-69535	FZJ105,HZJ105 MARK 48511-60482	11/2004 - 05/2005	1
48511-69595	FZJ105,HZJ105 MARK 48511-60483	09/2006 - 12/2999	1
48511-69535	FZJ105,HZJ105 MARK 48511-60482	05/2005 - 09/2006	1
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02141	FZJ105,HZJ105	05/2005 - 12/2999	4
90948-02141	FZJ105,HZJ105	01/1998 - 08/2002	4
90948-02141	FZJ105,HZJ105	08/2002 - 05/2005	4
48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
90948-02141	FZJ105,HZJ105	05/2005 - 12/2999	4
90948-02141	FZJ105,HZJ105	01/1998 - 08/2002	4
90948-02141	FZJ105,HZJ105	08/2002 - 05/2005	4
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02144	FZJ105,HZJ105	01/1998 - 08/2002	8
90948-02144	FZJ105,HZJ105	08/2002 - 05/2005	8
90948-02144	FZJ105,HZJ105	05/2005 - 12/2999	8
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02144	FZJ105,HZJ105	01/1998 - 08/2002	8
90948-02144	FZJ105,HZJ105	08/2002 - 05/2005	8
90948-02144	FZJ105,HZJ105	05/2005 - 12/2999	8
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02144	FZJ105,HZJ105	01/1998 - 08/2002	8
90948-02144	FZJ105,HZJ105	08/2002 - 05/2005	8
90948-02144	FZJ105,HZJ105	05/2005 - 12/2999	8
48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
90948-02144	FZJ105,HZJ105	01/1998 - 08/2002	8
90948-02144	FZJ105,HZJ105	08/2002 - 05/2005	8
90948-02144	FZJ105,HZJ105	05/2005 - 12/2999	8
48510J - CUSHION, FRONT SHOCK ABSORBER, NO.1
90948-01004	FZJ105,HZJ105	01/1998 - 08/2002	8
90948-01004	FZJ105,HZJ105	08/2002 - 05/2005	8
90948-01004	FZJ105,HZJ105	05/2005 - 12/2999	8
48510J - CUSHION, FRONT SHOCK ABSORBER, NO.1
90948-01004	FZJ105,HZJ105	01/1998 - 08/2002	8
90948-01004	FZJ105,HZJ105	08/2002 - 05/2005	8
90948-01004	FZJ105,HZJ105	05/2005 - 12/2999	8
48510J - CUSHION, FRONT SHOCK ABSORBER, NO.1
90948-01004	FZJ105,HZJ105	01/1998 - 08/2002	8
90948-01004	FZJ105,HZJ105	08/2002 - 05/2005	8
90948-01004	FZJ105,HZJ105	05/2005 - 12/2999	8
48510J - CUSHION, FRONT SHOCK ABSORBER, NO.1
90948-01004	FZJ105,HZJ105	01/1998 - 08/2002	8
90948-01004	FZJ105,HZJ105	08/2002 - 05/2005	8
90948-01004	FZJ105,HZJ105	05/2005 - 12/2999	8
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48511-69436	FZJ105,HZJ105 MARK 48511-60481	01/1998 - 08/2002	1
48511-69436	FZJ105,HZJ105 MARK 48511-60481	08/2002 - 11/2004	1
48511-69535	FZJ105,HZJ105 MARK 48511-60482	11/2004 - 05/2005	1
48511-69535	FZJ105,HZJ105 MARK 48511-60482	05/2005 - 09/2006	1
48511-69595	FZJ105,HZJ105 MARK 48511-60483	09/2006 - 12/2999	1
48706 - BUSH SUB-ASSY, FRONT LATERAL CONTROL ROD
48706-60030	FZJ105,HZJ105	01/1998 - 08/2002	2
48706-60030	FZJ105,HZJ105	05/2005 - 12/2999	2
48706-60030	FZJ105,HZJ105	08/2002 - 05/2005	2
48740A - ROD ASSY, FRONT LATERAL CONTROL
48740-60050	FZJ105,HZJ105..LHD	01/1998 - 08/2002	1
48740-60050	FZJ105,HZJ105..LHD	05/2005 - 12/2999	1
48740-60050	FZJ105,HZJ105..LHD	08/2002 - 05/2005	1
48802F - LINK SUB-ASSY, FRONT STABILIZER
48802-60050	FZJ105,HZJ105	01/1998 - 08/2002	2
48802-60050	FZJ105,HZJ105	05/2005 - 12/2999	2
48802-60050	FZJ105,HZJ105	08/2002 - 05/2005	2
48811 - BAR, STABILIZER, FRONT
48804-60070	FZJ105,HZJ105	01/1998 - 08/2002	1
48804-60070	FZJ105,HZJ105	08/2002 - 05/2005	1
48804-60070	FZJ105,HZJ105	05/2005 - 12/2999	1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-60160	FZJ105,HZJ105	01/1998 - 08/2002	2
48815-60160	FZJ105,HZJ105	05/2005 - 12/2999	2
48815-60160	FZJ105,HZJ105	08/2002 - 05/2005	2
48823B - COVER, FRONT STABILIZER BRACKET
48823-60030	FZJ105,HZJ105	05/2005 - 12/2999	2
48823-60030	FZJ105,HZJ105	01/1998 - 08/2002	2
48823-60030	FZJ105,HZJ105	08/2002 - 05/2005	2
48824A - BRACKET, FRONT STABILIZER, NO.1 RH
48824-60070	FZJ105,HZJ105	01/1998 - 08/2002	1
48824-60070	FZJ105,HZJ105	05/2005 - 12/2999	1
48824-60070	FZJ105,HZJ105	08/2002 - 05/2005	1
48829A - BRACKET, FRONT STABILIZER, NO.1 LH
48829-60050	FZJ105,HZJ105	05/2005 - 12/2999	1
48829-60050	FZJ105,HZJ105	08/2002 - 05/2005	1
48829-60050	FZJ105,HZJ105	01/1998 - 08/2002	1
Common parts
90119-08667
90119-08701
90119-08834
90119-10765
90119-16003
90179-08234
90179-14025
90179-16015
90201-14016
90385-11021
90560-10275
94184-01001
94184-61200

FZJ105L-GNMNK (1998)

(9801- )FZJ105,HZJ105
